Thor GH105 Freestanding 2 Burner Gas Griddle – 20mm Plate, NG or LPG

Thor produces durable, high-output gas cooking equipment designed for restaurants,
cafés and catering kitchens. With strong burner performance, solid plate construction and AGA-approved
safety systems, Thor appliances are built to handle the demands of Australian commercial service.

• Commercial-grade gas burners for fast service.
• Heavy steel plates for strong heat retention.
• AGA-approved safety with flame failure protection.
• Freestanding formats with integrated stands and undershelves.

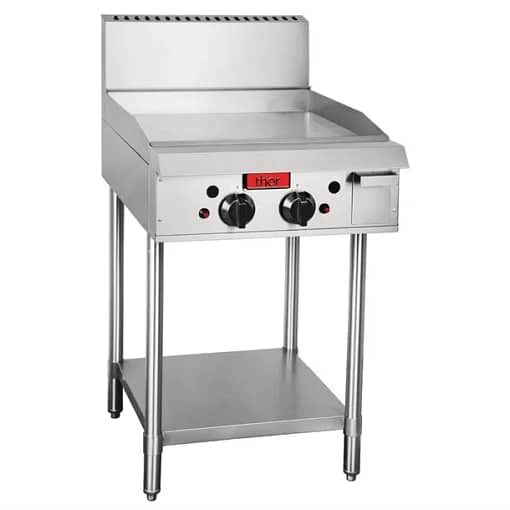

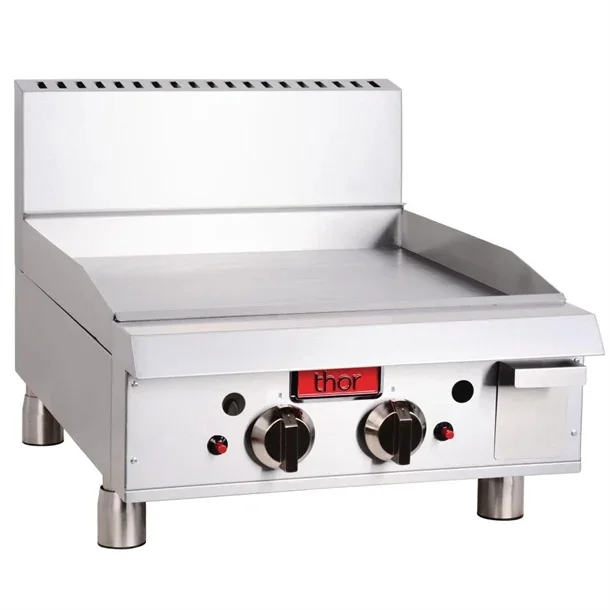

The Thor GH105 Freestanding 2 Burner Gas Griddle is a compact yet powerful grilling solution
for busy restaurants, cafés, burger bars and QSR kitchens. With two 32.5MJ/hr stainless burners
and a 20mm thick steel plate, it delivers strong searing performance, fast heat-up and
reliable temperature stability across a 606 × 510mm cooking surface.

The integrated stand with undershelf provides storage for pans and utensils, and the front waste tray simplifies
close-of-service cleaning and grease management.

Two independently controlled zones allow operators to run different temperatures side by side—ideal for cooking
proteins and vegetables simultaneously. The 20mm plate supports intense searing and even heat
distribution, while the heavy-duty stainless-steel body and stand ensure the GH105 is ready for daily commercial use.

• Burners: 2 × 32.5MJ/hr stainless burners (approx. 8.8kW each)
• Heat Zones: 2 independently controlled zones
• Plate: 20mm thick steel griddle plate
• Cooking Area: 606mm (W) × 510mm (D)
• Safety: Flame failure devices and burner safety valves (AGA approved)
• Cleaning: Removable front waste tray and front face panel
• Construction: Heavy-duty stainless body and stand with undershelf
• Gas Type: NG or LPG (specify on order)
• Connection: 3/4″ rear gas inlet
• Dimensions (H×W×D): 1175 × 610 × 835 mm
• Weight: 82kg
• Warranty: 2 years parts & labour

The Thor GH105 must be installed by a licensed gas fitter in accordance with AS/NZS 5601.1
and local regulations. AGA approval, flame failure protection and safety valves support safer operation in
commercial environments. The unit is ideal for restaurants, takeaways, food courts, catering kitchens and burger
bars seeking a compact, high-output griddle on a freestanding stand.

• Preheat zones fully before loading to ensure even sear and colour.
• Use split temperatures to separate high-heat and holding zones.
• Scrape plate between batches to reduce carbon build-up.
• Empty waste tray at the end of service to keep the unit clean.

Energy snapshot

• Total input: 2 × 32.5MJ/hr = 65MJ/hr
• Typical daily use: 4–7 hours/day in busy sites
• Estimated daily gas use: 260–455MJ/day
• Approximate daily cost: ~$9–$16/day (depending on gas tariff)

Commercial advantages

• Fast heat-up and strong recovery support high turnover during service peaks.
• Dual independent zones provide flexibility for all-day menus.
• Long-life 20mm plate reduces replacement frequency and downtime.

For operators relying on grilled menu items, the GH105’s combination of heavy plate, dual zones and robust
construction provides a strong balance between running cost and production output.

• Freestanding 2 burner gas griddle with stand
• 20mm thick steel plate, 606 × 510mm cooking area
• 2 × 32.5MJ/hr burners (NG or LPG)
• AGA approved with flame failure safety
