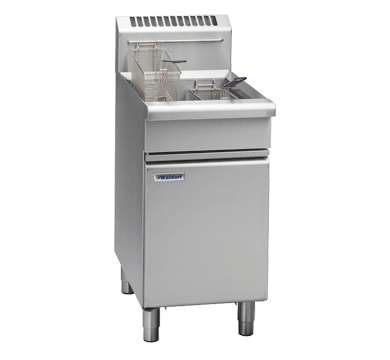

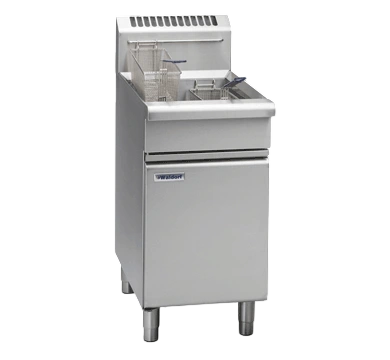

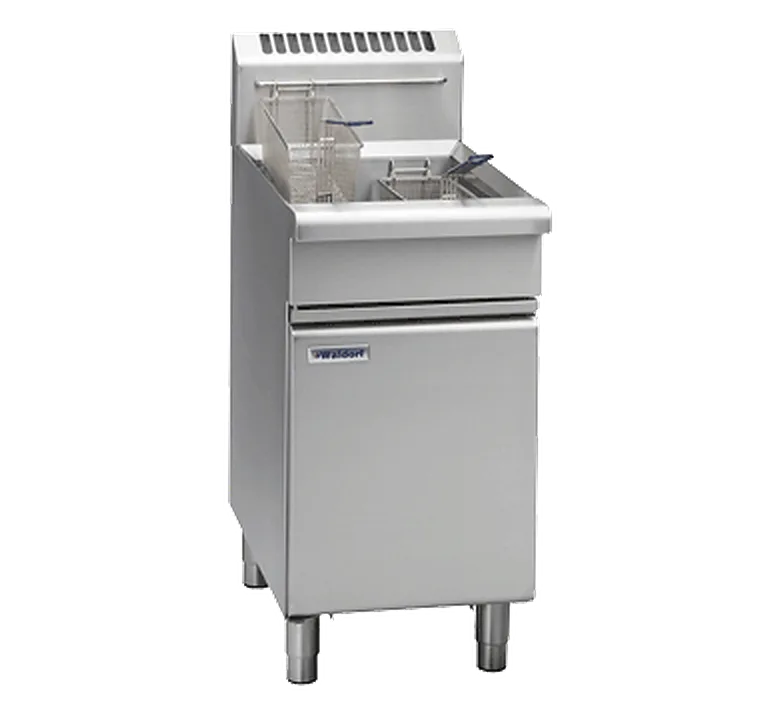

Waldorf FN8120G 450 mm Gas Fryer – 20 L Oil, 31 kg/hr, Easy Ignition
Updated:
At KW Commercial Kitchen, the Waldorf FN8120G is our fast-fri, extra-wide 450-mm single-pan gas fryer featuring 20 L oil, 31 kg/hr output, and 2 × 45 MJ/h patented infra-red burners for super-fast recovery and lower gas use. Millivolt controls with piezo ignition make lighting quick and reliable, while the open stainless pan and 32 mm drain keep clean-downs simple.
Built for Australian restaurants, cafés & QSRs
The FN8120G combines a direct-action thermostat (145–195 °C), large cool zone, and stainless pan (10-year limited warranty) in a compact footprint that drops into any Waldorf 800 line-up.
Key features & specifications
- Oil / Output: 20 L; 31 kg/hr
- Burners: 2 × 45 MJ/h infra-red (total 90 MJ/h ≈ 25 kW)
- Thermostat: Direct-action, reacts ±1 °C; 145–195 °C
- Controls & safety: Millivolt gas valve (no power), flame failure on each pilot, over-temp cut-out, piezo ignition
- Drain: 32 mm (1¼″) front drain valve for fast, clean oil changes
- Baskets: 2 chrome-plated baskets (extra baskets available as accessories)
- Gas connection: R 3/4″ BSP male; NG or ULPG regulators supplied
- Dimensions (W×D×H): 450 × 805 × 1,130 mm; Net 81 kg (Packed 122 kg)
- Warranty: 12-month parts & labour + 10-year limited pan warranty
Compliance & safety (AU)
- Gas: Install by a licensed gas fitter per AS/NZS 5601.1.
- Electrical: Not required (millivolt system).
- Food safety: FSANZ-aligned; cool-zone helps extend oil life and quality.
Convenience & usage advice
- Easy to ignite & use: Piezo to standing pilot; simple mechanical controls.
- Gas-efficient, fast ROI: Infra-red burners deliver rapid recovery and less idle reheating.
Ideal applications
- Restaurants & cafés
- Takeaway & QSR chicken/fish lines
- Hotels, pubs & catering kitchens
