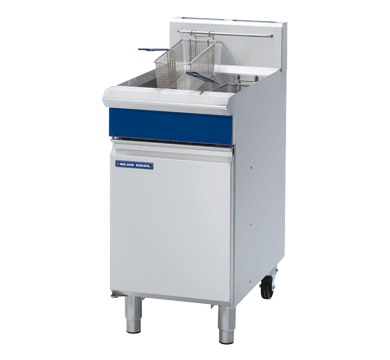

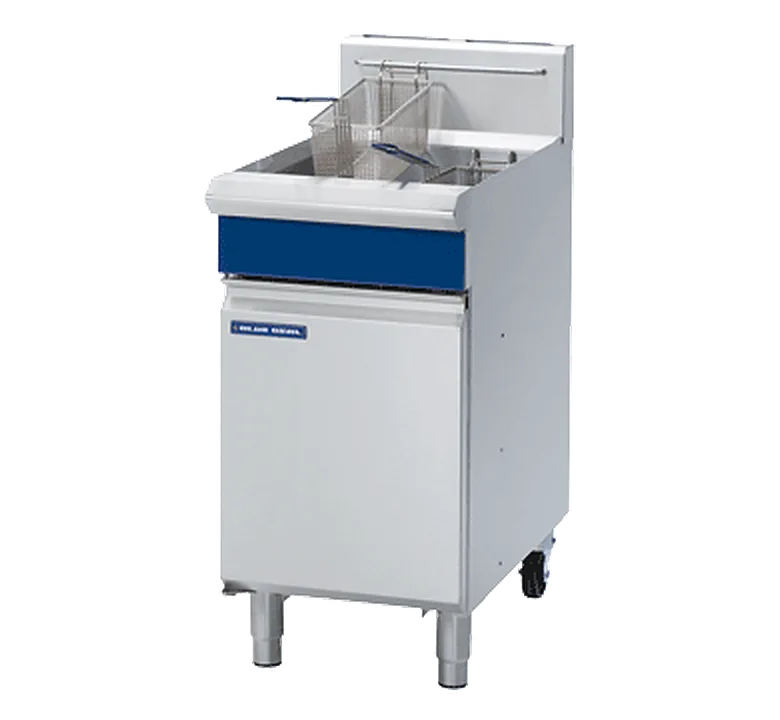

Blue Seal GT45 Gas Fryer – 20L Oil, 31kg/hr Output

Updated: 29 Aug 2025

At KW Commercial Kitchen, we supply the Blue Seal GT45, a robust 450mm single pan gas fryer with 20L oil capacity and 31kg/hr production rate. With twin 45MJ infra-red burners, a large cool zone and a 32mm drain, it delivers reliable frying and quick clean-downs.:contentReference[oaicite:1]{index=1}

Built for Australian restaurants, pubs and catering kitchens

The GT45 combines direct action thermostat (145–195 °C), flame failure protection, and a millivolt gas valve system for safe, precise frying. Rear rollers make moving and servicing simple.:contentReference[oaicite:2]{index=2}

Key features & specifications

• Oil capacity: 20 L
• Production rate: 31 kg/hr
• Burners: 2 × 45MJ/hr infra-red (90 MJ total, ≈25kW)
• Controls: Mechanical thermostat (145–195 °C), over-temp safety, piezo ignition
• Pan: Stainless open pan with 10-year limited warranty
• Drain: 32mm front valve for oil changes
• Baskets: 2 chrome wire baskets supplied
• Gas connection: R 3/4″ BSP male, NG or LP gas, regulators supplied
• Dimensions (W×D×H): 450 × 812 × 1085 mm
• Weight: 81 kg net / 122 kg packed
• Warranty: 12 months parts & labour + 10-year frypot warranty

Compliance & safety (AU)

• Gas: Installed by licensed fitter per AS/NZS 5601.1.
• Food safety: FSANZ-aligned design; stainless open pan and cool zone help extend oil life.

Convenience & usage advice

• Quick ignition: Piezo start to standing pilot; no electrical supply required.
• Easy cleaning: Open stainless pan, rear rollers and 32mm drain reduce downtime.

Ideal applications

• Restaurants & cafés
• Pubs & hotels
• Catering kitchens with high turnover

Frequently Asked Questions

1) How do I clean it daily?

Drain oil via 32mm valve, wipe pan with mild detergent, rinse and dry. Avoid abrasives or chlorine.

2) What routine maintenance is needed?

Check burners weekly, clean baskets daily, service thermostat quarterly.

3) What are the gas requirements?

90 MJ/h gas, 3/4″ BSP inlet, NG/LP gas regulators included.

4) What about installation and compliance?

Install by licensed gas fitter per AS/NZS 5601.1; ensure ventilation and clearances.

5) Are accessories available?

Yes – Waldorf/Blue Seal Filtamax filtration, fish plates, side guards, castors and extra baskets.
