Waldorf FN8127E Electric Fryer – 27L Oil, 31kg/hr Output
Updated:

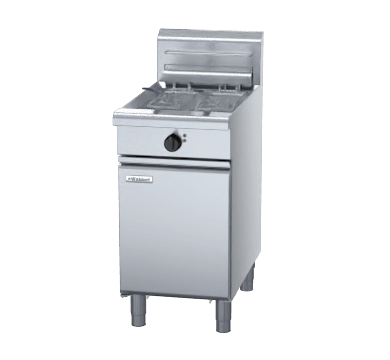

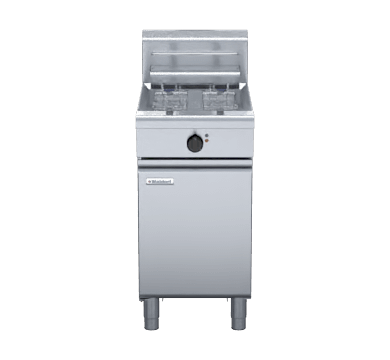

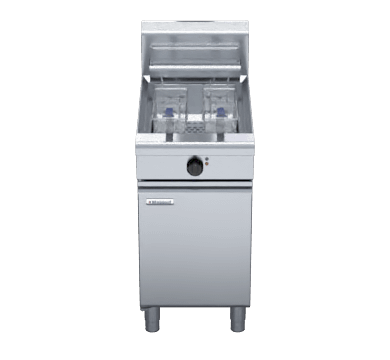

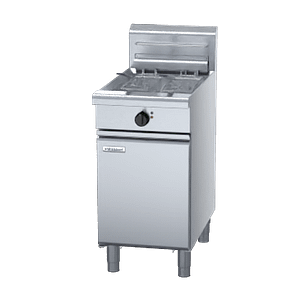

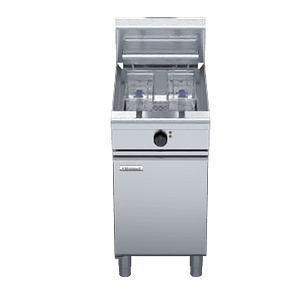

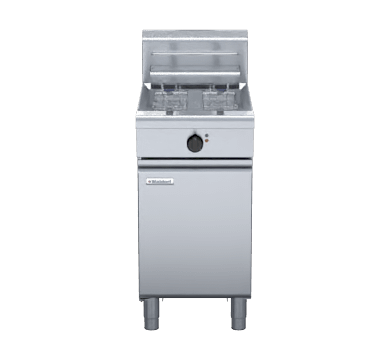

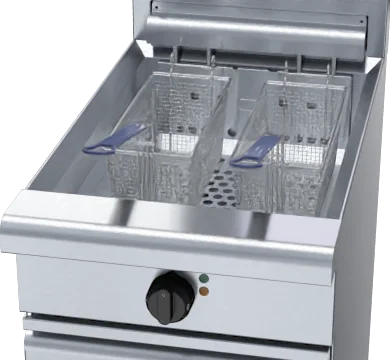

At KW Commercial Kitchen, we supply the Waldorf FN8127E, a compact 450mm electric fryer with 27L oil capacity, 31kg/hr production, and 17kW stainless heating elements. With hinge-out elements, wide oil cool zone and a 32mm drain, it’s designed for fast cleaning and dependable high-volume frying
Built for Australian restaurants, hotels & catering kitchens
The FN8127E pairs mechanical thermostat controls (90–200 °C), fail-safe over-temp cut-out, and indicator lights with rugged stainless construction and easy front servicing
Key features & specifications
- Oil capacity: 27 L
- Production rate: 31 kg/hr
- Heating elements: 3 × 5.66kW stainless steel, total 17kW
- Thermostat: 90–200 °C mechanical control with over-temp cut-out
- Drain: 32 mm (1 1/4″) front drain valve
- Baskets: 2 chrome-plated wire baskets supplied
- Electrical: 400–415V, 3P+N+E, 50/60 Hz, 17kW (23.6A per phase)
- Dimensions (W×D×H): 450 × 805 × 1130 mm
- Weight: 64 kg net / 105 kg packed
- Warranty: 12 months parts & labour + 10-year pan warranty
Compliance & safety (AU)
- Electrical: RCM compliant; must be installed by licensed electrician.
- Food safety: FSANZ-aligned stainless design with cool-zone pan.
Convenience & usage advice

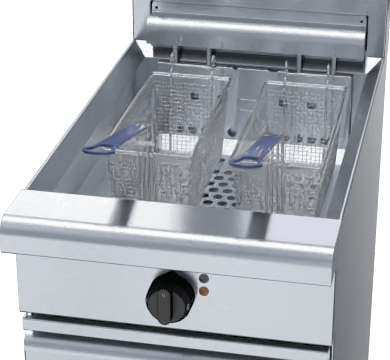

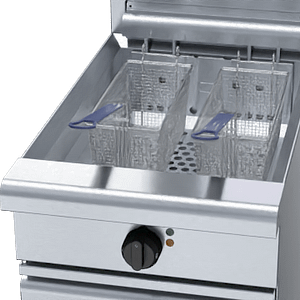

- Quick cleaning: Hinge-out elements and open stainless pan simplify cleaning.
- Energy efficient: 17kW elements deliver fast recovery for high turnover kitchens.
Ideal applications
- Restaurants & cafés
- Hotels & pubs
- High-volume catering kitchens
Frequently Asked Questions
1) How do I clean it daily?
Drain oil via 32mm valve, wipe pan with mild detergent, rinse and dry. Avoid abrasives or chlorine.
2) What routine maintenance is needed?
Check element tilt switch monthly, service thermostat quarterly, replace baskets when worn.
3) What are the electrical requirements?
400–415V, 3-phase, 17kW load, 23.6A per phase; connect via licensed electrician.
4) What about compliance in AU?
RCM certified, FSANZ-aligned; must be installed per AS/NZS electrical standards.
5) Are accessories available?
Yes – Waldorf Filtamax filtration system, fish plates, extra baskets, side splash guards, castors and plinths.
