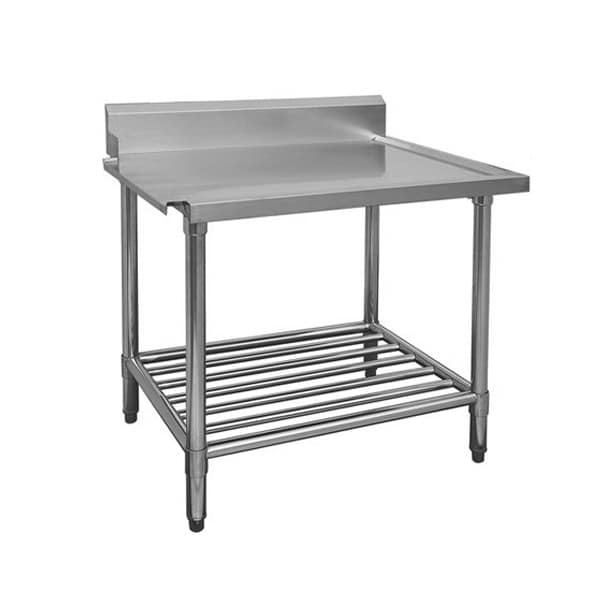

Modular Systems WBBD7-1500L/A Dishwasher Bench – Left Outlet, 1500mm

Updated: 1 Oct 2025

At KW Commercial Kitchen, we supply the Modular Systems WBBD7-1500L/A—an all-stainless dishwasher inlet bench with left outlet orientation, built for fast installation and daily service. It pairs a 1500 × 700 × 900 mm footprint, 180 mm enclosed splashback, and SUS304 benchtop with reinforced ‘U’ channels for stability.

Built for Australian cafés, restaurants & dish rooms

The WBBD7-1500L/A combines 1.2 mm 304 stainless benchtop, 42 mm Ø stainless legs with adjustable disc feet, and XPS-lined tops to minimise drumming—supplied flat-packed with tools for quick, simple assembly.

Key features & specifications

• Orientation: Left outlet (facing the bench, inlet & sinks on the left)
• Dimensions (W×D×H): 1500 × 700 × 900 mm; splashback 180 mm high, 30 mm thick
• Top: 1.2 mm SUS304 (18/8) stainless, XPS board lined (15 mm) with stainless panel
• Reinforcement: Stainless ‘U’ channel bracing (more channels on larger sizes)
• Legs & feet: 1.2 mm stainless legs, 42 mm Ø; fully adjustable polished disc feet; optional lockable castor kits
• Finish: Splashback stainless-backed, bevelled, fully enclosed
• Supplied: Flat-packed with instruction manual & tools; 4-leg support on 1500 mm model
• Net weight: 30 kg
• Packed size (W×D×H): 1570 × 770 × 275 mm
• Warranty: 2 years parts only

Compliance & safety (AU)

• Food safety: Smooth stainless construction helps meet FSANZ hygiene practices.
• Electrical/Gas: Not applicable.
• Installation: Level on adjustable feet; seal to walls where required by local council.

Convenience & usage advice

• Faster install: Pre-packed hardware and clear instructions reduce set-up time.
• Best results: Maintain 10–20 mm wall clearance for cleaning; consider optional castors for mobile wash lines.

Ideal applications

• Dishwasher inlet/outlet lines
• Café and restaurant back-of-house
• Hotels, clubs and catering facilities

At a glance

• 1500 × 700 × 900 mm; 180 mm splashback
• 1.2 mm SUS304 benchtop; XPS-lined
• 42 mm Ø stainless legs; adjustable disc feet
• Supplied flat-packed with tools; 2-year parts warranty

Frequently Asked Questions

1) How do I clean it daily without harming finishes?

Use a pH-neutral detergent and microfibre cloth; avoid chlorides/abrasives; rinse and dry to minimise tea-staining.

2) What routine maintenance keeps performance stable?

Check fixings quarterly; level feet as floors settle; inspect splashback sealant and re-silicone if needed.

3) What are the power or gas requirements and typical energy use?

None—this is a stainless bench component; utility requirements relate only to your dishwasher.

4) What about installation and Australian compliance?

Install per local council hygiene requirements; ensure clear drainage falls and safe working heights; anchor if specified.

5) Are spare parts and accessories available?

Yes—optional castor kits, extra bracing and matching inlet/outlet benches. Quote model WBBD7-1500L/A.
