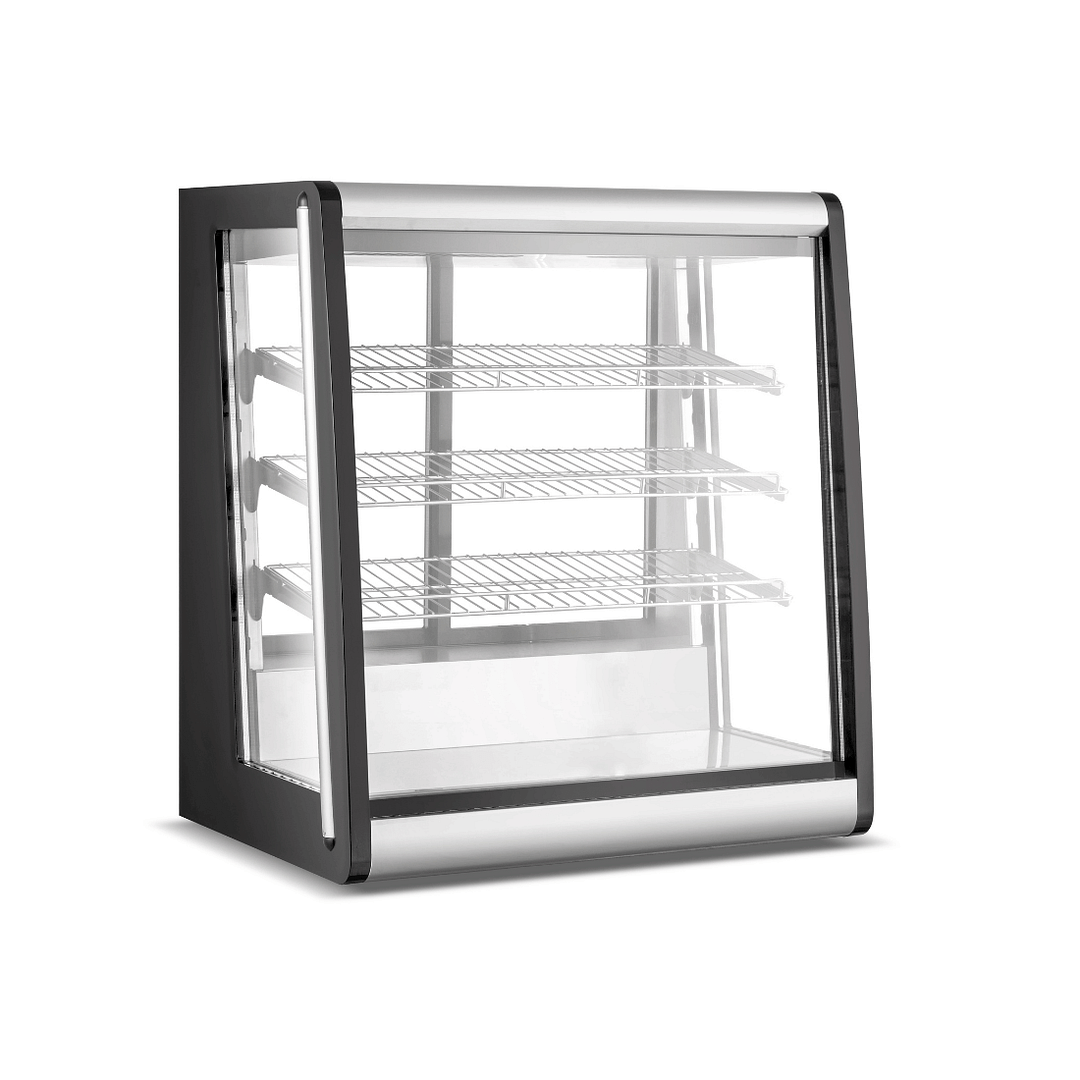

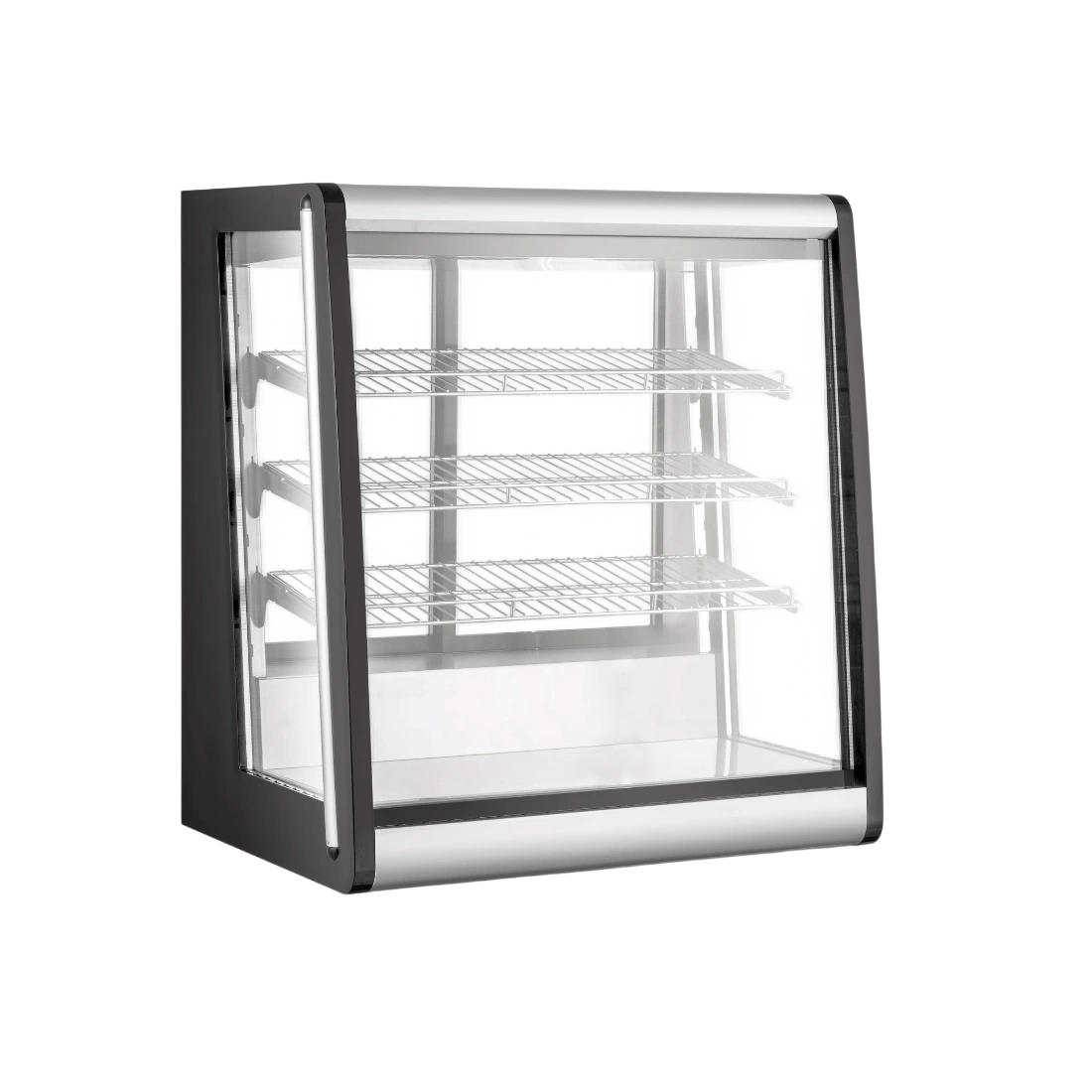

Bonvue CTA-196 Chilled Angled Counter-Top Food Display

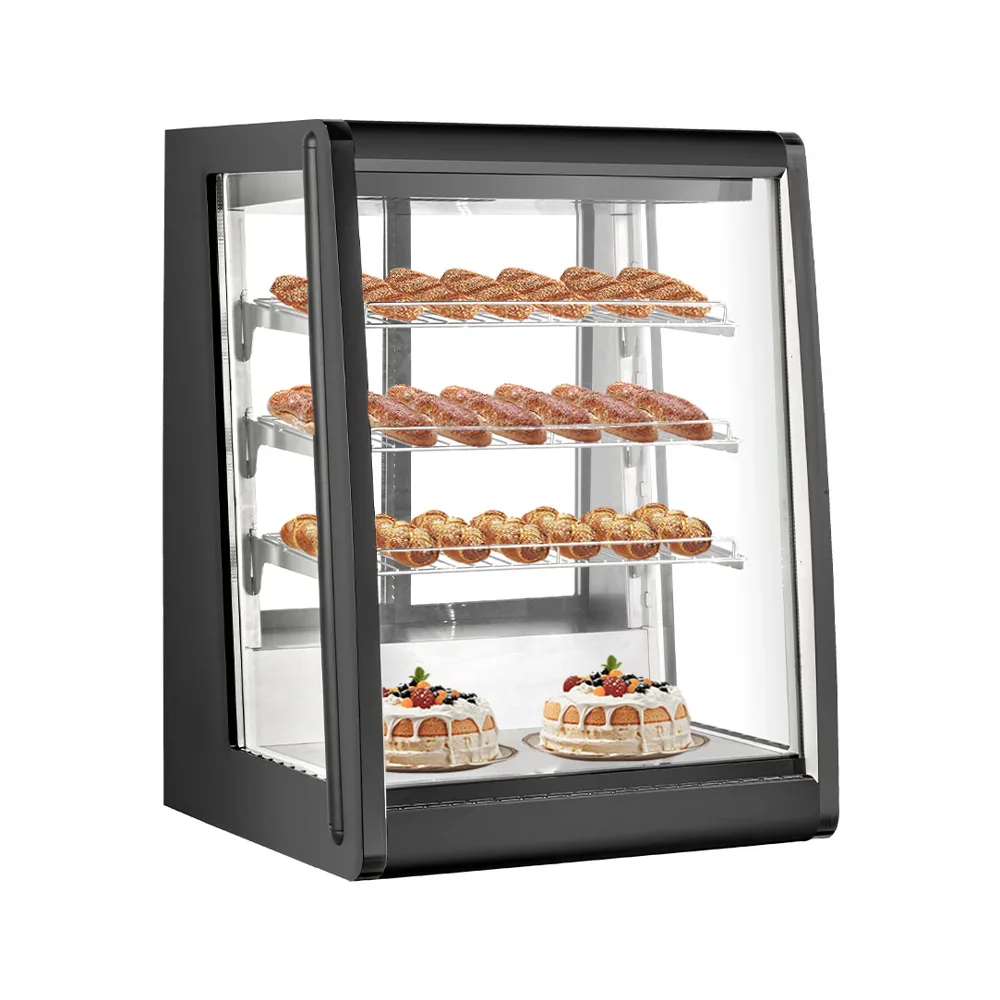

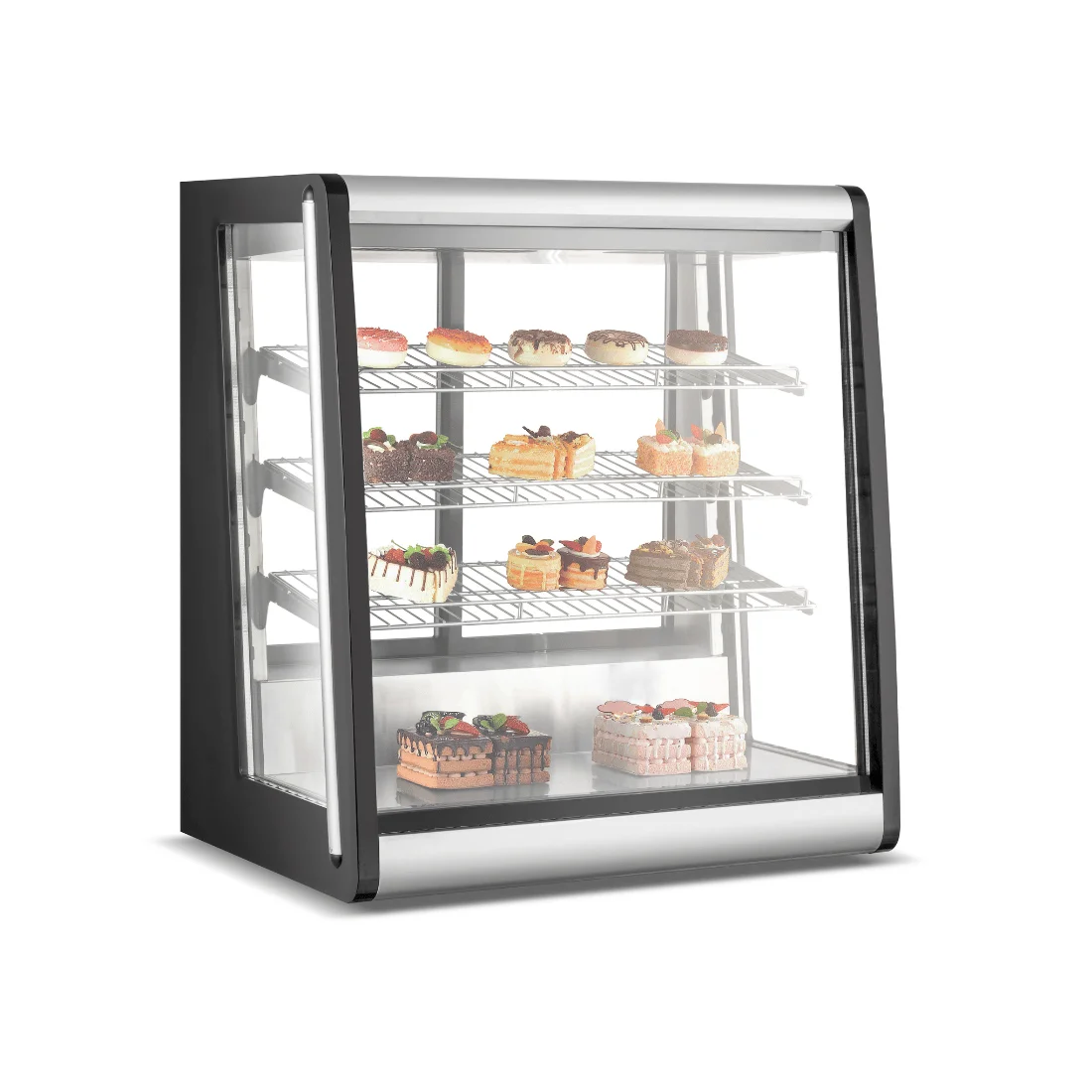

The Bonvue CTA-196 is a 196L gross countertop chilled display with three adjustable chrome-plated shelves, dual-sided LED lighting and rear sliding doors. Digital control and ventilated cooling provide a +2 to +12°C range for commercial food display.

The CTA-196 suits café counters, bakery service areas and other commercial food displays needing several adjustable shelf levels in a countertop cabinet. Staff access the contents through two rear sliding doors, while double tempered glass and dual-sided LED lighting present the display to customers. Choose it where the counter can support the loaded unit and room conditions suit its 30°C, 50% RH ambient rating.

• Staff-served counters needing rear sliding access for restocking and service.
• Cafés and food-service displays wanting three adjustable chrome-plated shelves.
• Countertop installations with suitable support, ventilation and a dedicated power socket.

• Frozen products: choose a commercial freezer display.
• Displays needing a larger stated capacity: compare the 246L CTA-246 and check its fit.
• Medicine storage: choose refrigeration designed for that use.
• Positions near heat sources or in conditions beyond the 30°C, 50% RH ambient rating: choose a suitable location or a display rated for the actual conditions.

Choose the CTA-196 for an angled countertop display with three adjustable shelves and rear service access. If two shelves and a square-glass format suit your presentation better, compare the GN-1200RT.

Plan the display around 196L gross volume and the internal dimensions, then check the products you want to place on the shelves. For a larger stated capacity in the angled CTA family, compare the 246L CTA-246.

Use the dimensions in Key Specifications above to check the counter position and access route. Confirm the counter can support the unit and its contents, and leave room behind it for service through the sliding doors.

Check the room against the 30°C, 50% RH ambient rating and match the +2 to +12°C setting range to the products you will display. Choose a dry, ventilated position away from heat sources.

Provide a dedicated 240V, 10A socket for the 200W unit. Compare the energy figures using your electricity tariff and actual operating conditions rather than assuming a fixed running cost.

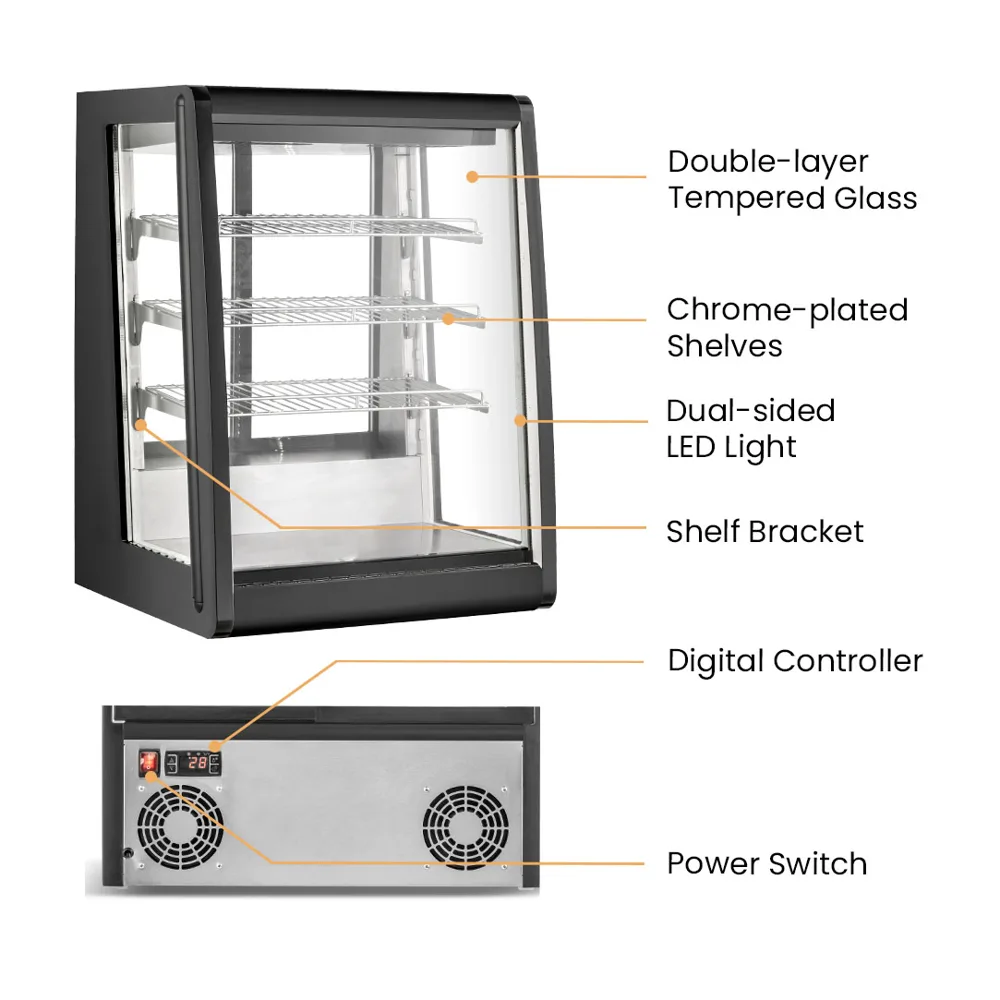

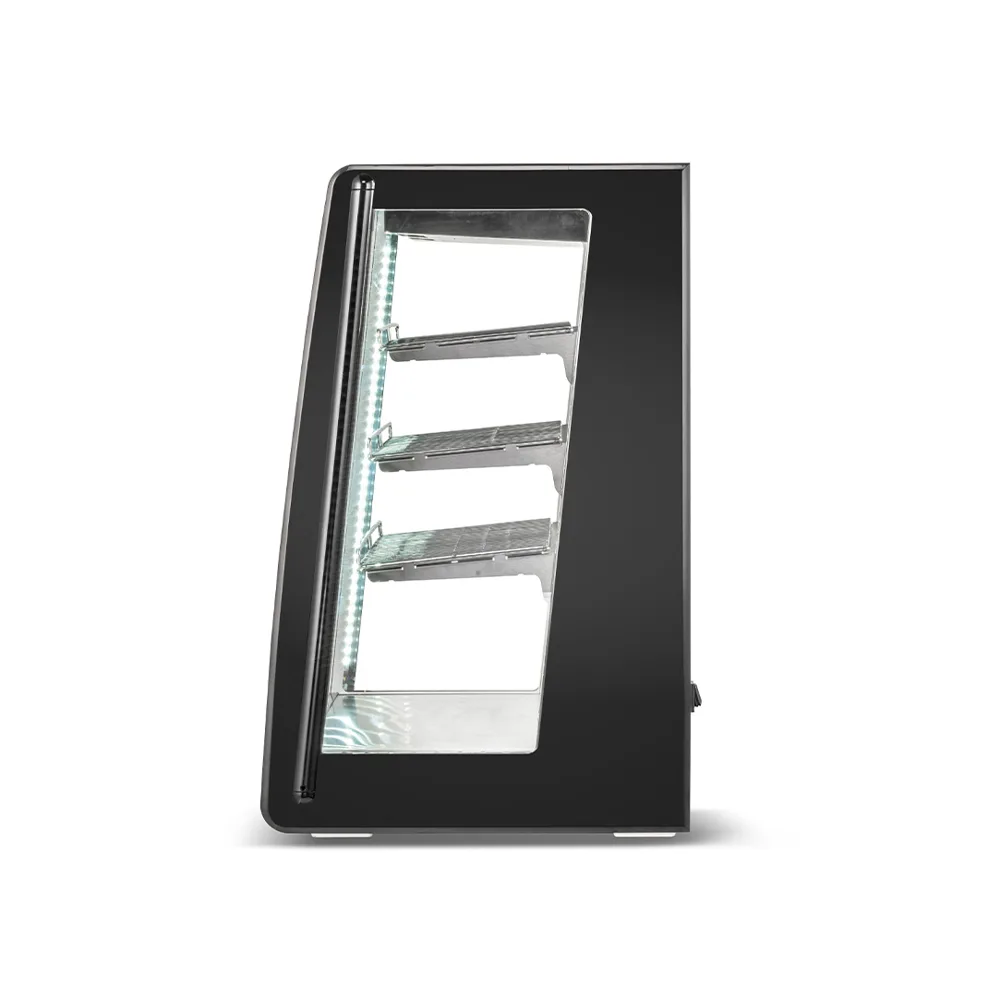

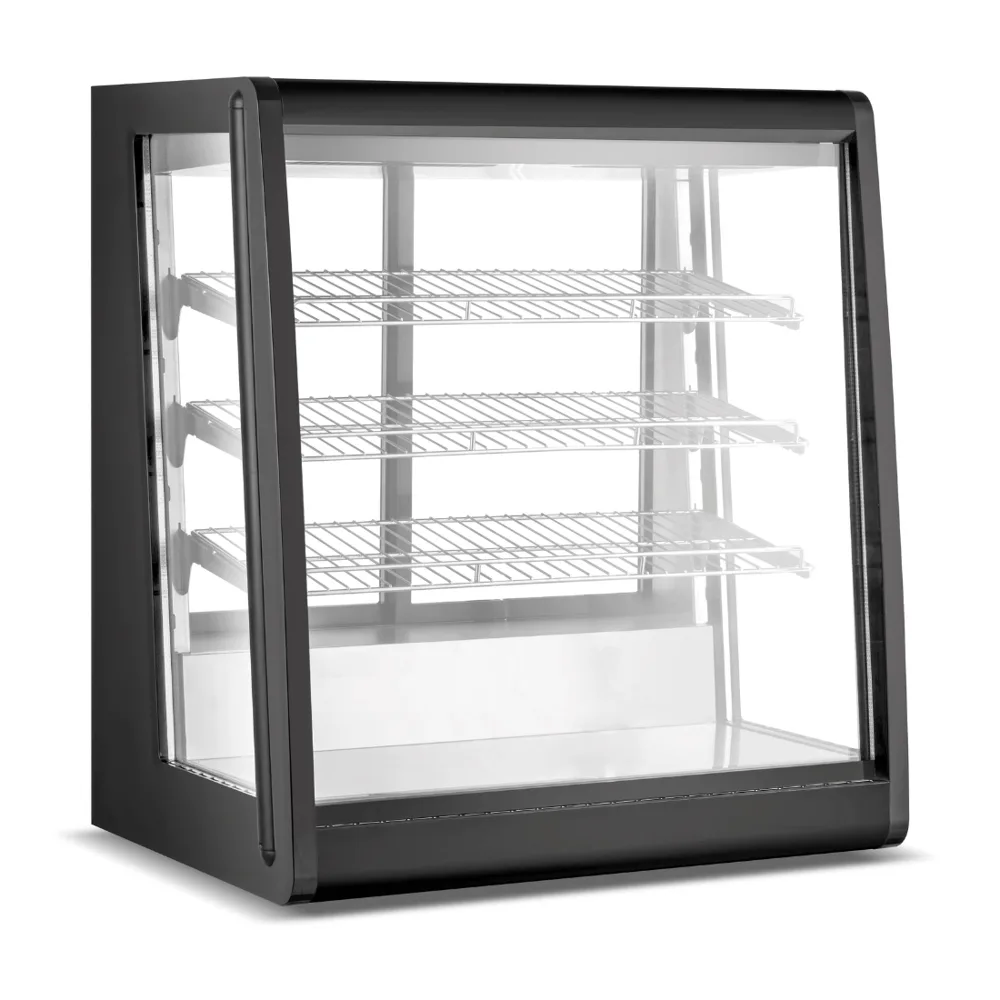

• Three adjustable chrome-plated shelves for arranging the display.
• Dual-sided LED lighting and double tempered glass on all sides.

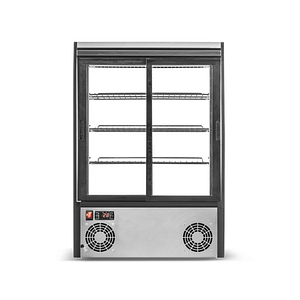

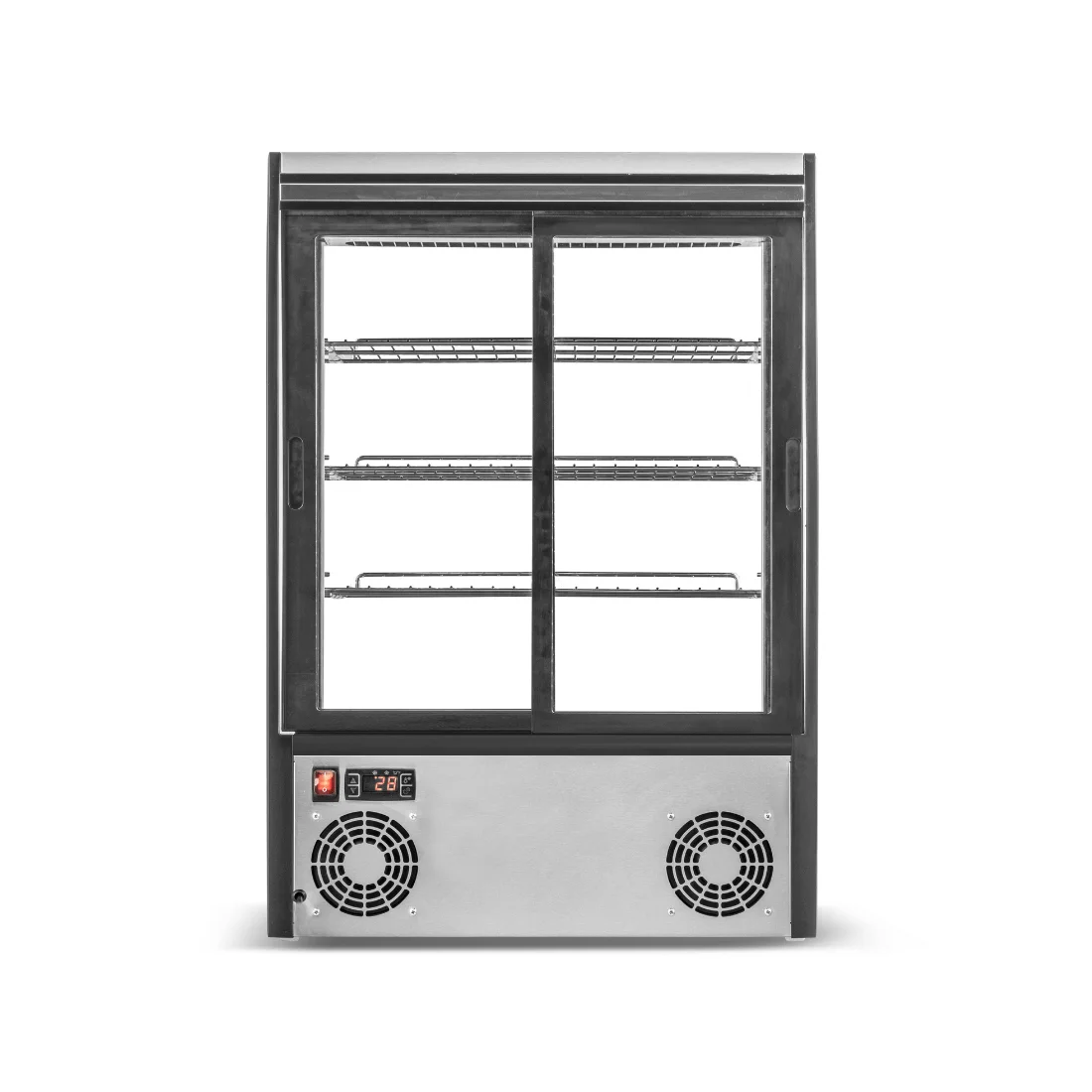

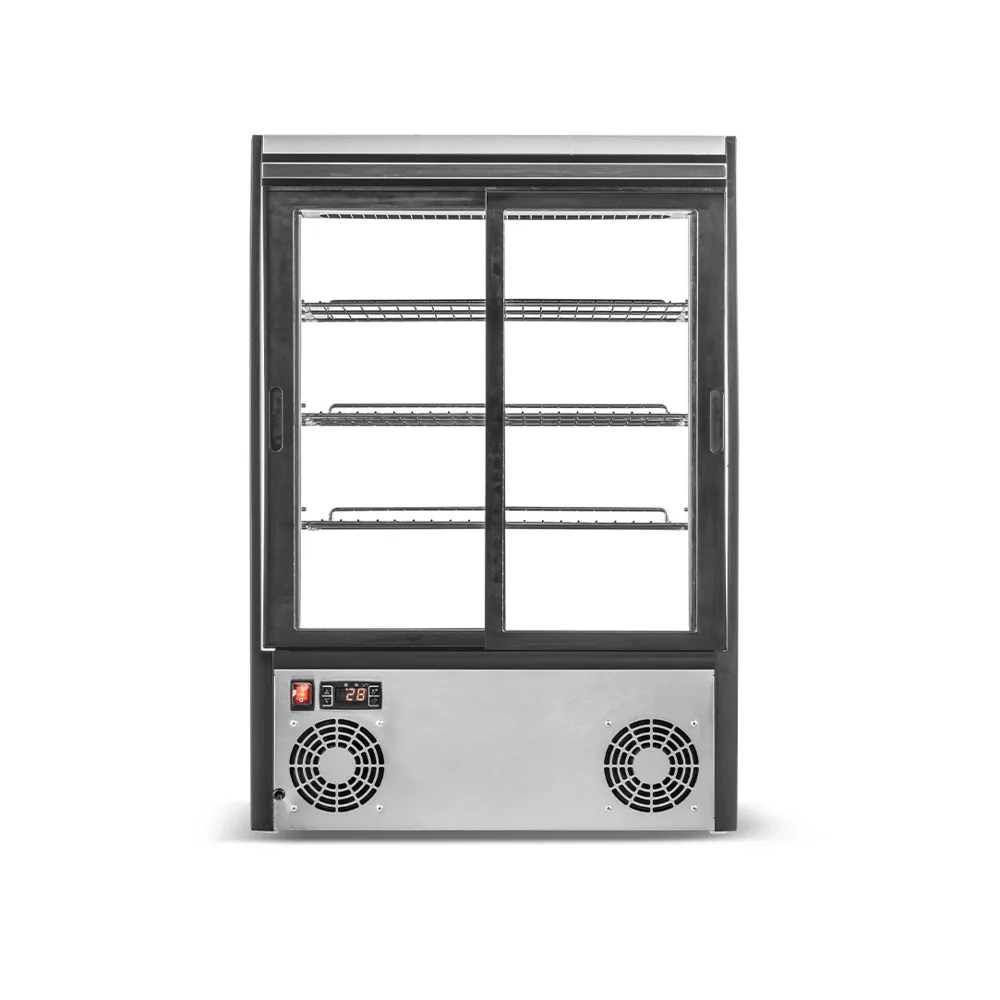

• Two rear sliding doors for service and restocking.
• Digital temperature control, ventilated cooling and automatic defrost.
• 10-star GEMS rating with R290 refrigeration.

• Needs counter support for the 64kg unit plus the displayed products.
• Rear service access requires working room behind the cabinet.
• The 30°C, 50% RH ambient rating needs checking against the display area's conditions.
• Requires a dedicated power socket and a ventilated location away from heat sources.

• Bonvue GN-1200RT Counter top square 2 Shelves Glass cold food display: The GN-1200RT is a square-glass countertop cold display with two shelves and 280W input; the angled CTA-196 has three adjustable shelves and 200W input, and both use 240V.
• Bonvue CTA-246 Chilled Angled Counter-Top Food Display – 246L: The CTA-246 is an angled countertop chilled display with 246L capacity and R290 refrigeration; the CTA-196 provides 196L gross volume and also uses R290, with both models using 240V.

• Counter and access. Use the dimensions in Key Specifications above to check the position and access route, and confirm support for the unit plus its contents. Handle it carefully and place it on a stable counter with room for rear service and ventilation.
• Installation allowance. Allow −5mm to +10mm dimensional tolerance when planning the installation. Keep the unit in a dry, ventilated location away from heat sources and within the 30°C, 50% RH ambient rating.
• Dedicated power. Use a dedicated 240V, 10A socket; the unit is rated at 200W and 50Hz. Protect the cable and keep other appliances off the same socket.
• Loading and temperature. Adjust the shelves for the products you intend to display and keep air ducts clear. Avoid placing heavy loads on the cabinet, and follow the operating instructions when setting temperature or restarting after a power interruption.
• Cleaning and refrigerant care. Follow the operating instructions and site cleaning procedures; do not flush the cabinet with water or use sprays around it. R290 is flammable: keep flammable or explosive materials away and do not drill holes in the cabinet.

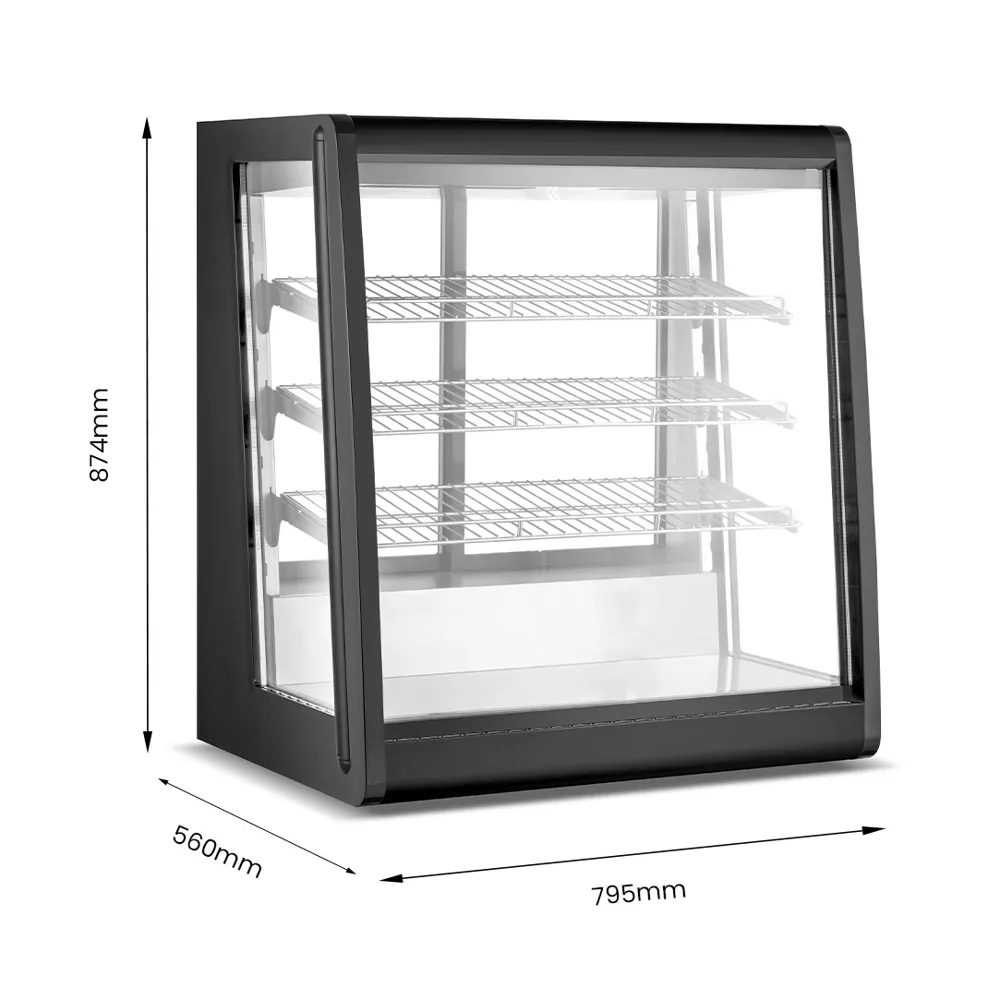

For body dimensions, see Key Specifications above.
