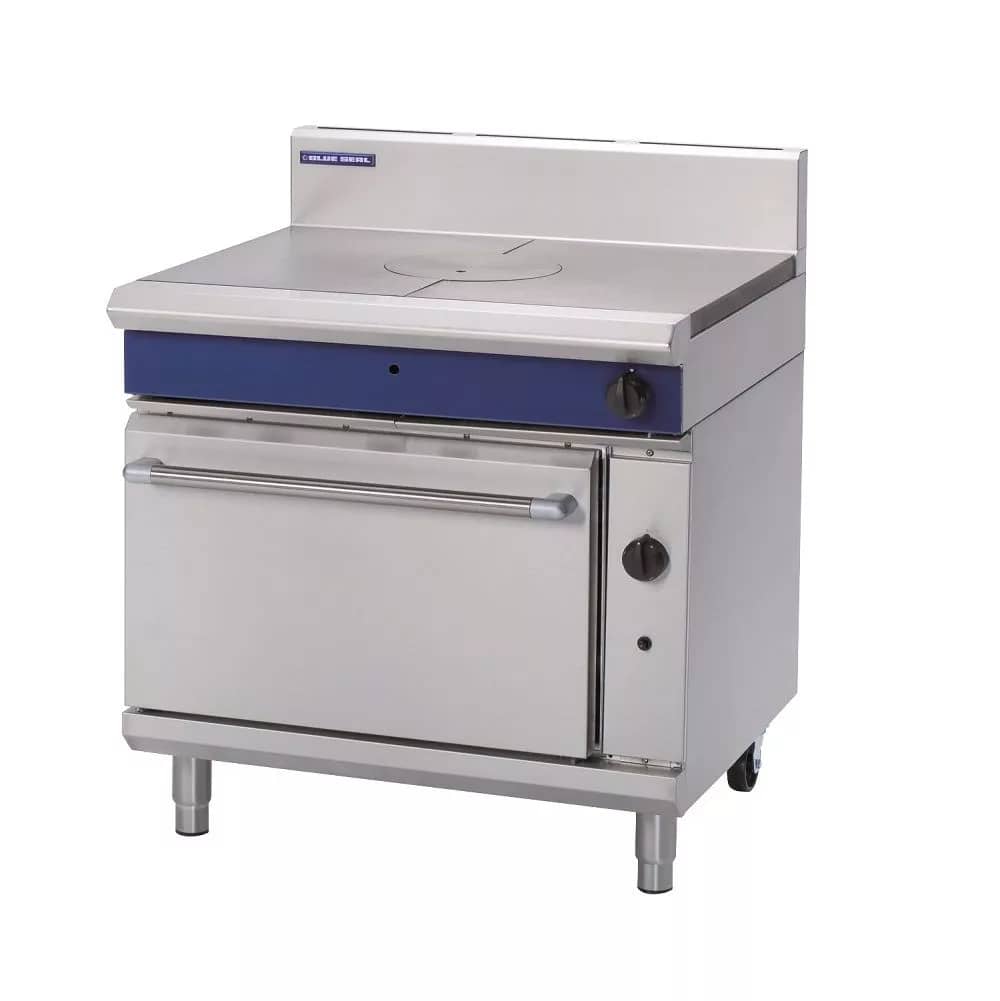

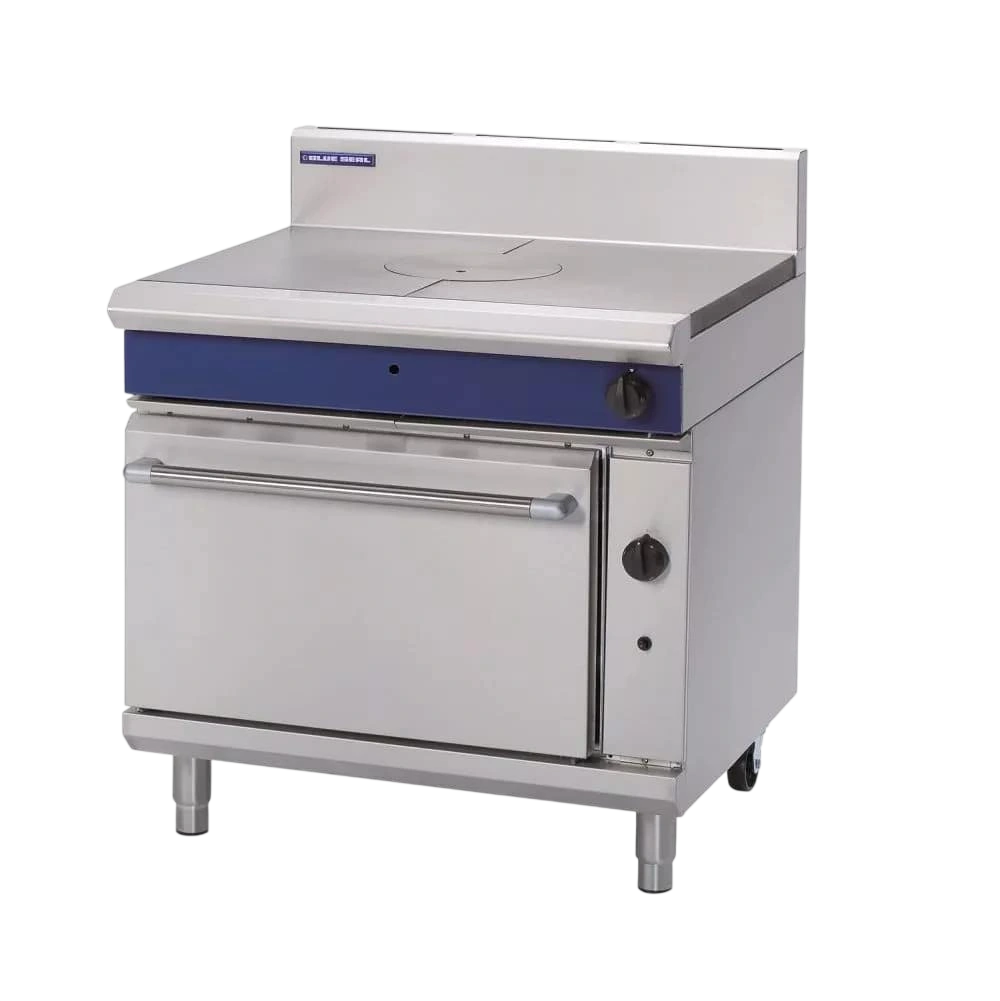

Blue Seal G570 Gas Target Top Static Oven Range – 900mm
Updated:
Heavy-duty performance for high-demand commercial kitchens
The Blue Seal G570 from the Evolution Series is a robust 900mm gas target top static oven range engineered for heavy-duty service. Featuring a 45MJ/hr dual ring cast iron burner and a GN 2/1 static oven with 30MJ burner, it delivers excellent heat control, retention, and thermal efficiency. Perfect for hotels, restaurants, and institutional kitchens requiring consistent output and durability.
Key features & specifications
- Target top burner: 45MJ/hr dual ring cast iron with single control
- Oven burner: 30MJ tubular burner with thermostat control (80–300°C)
- Oven capacity: GN 2/1, 4 rack positions, supplied with 2 chrome racks
- Construction: 304 stainless steel exterior, vitreous enamel oven liner, removable sole plate
- Dimensions (W×D×H): 900 × 812 × 1085 mm (with splashback)
- Weight: 259kg net, 324kg packed
- Gas connection: 3/4” BSP male; supplied with NG and LP regulators
- Warranty: 24 months parts & labour
Compliance & safety (AU)
- Gas: Installed by a licensed gas fitter per AS/NZS 5601.1.
- Food safety: FSANZ-aligned commercial cooking equipment.
Convenience & usage advice
- Versatile heating: Centre for high heat, outer zones for simmering
- Easy maintenance: Removable racks, sole plate, and front-serviceable components
Ideal applications
- Restaurants and hotels
- Institutional kitchens
- High-volume catering facilities
Frequently Asked Questions
1) How do I clean the target top after service?
Allow to cool, scrape debris with a spatula, and wipe with a damp cloth; avoid water on hot surfaces.
2) What maintenance keeps it in top condition?
Clean drip trays daily, remove and clean oven racks weekly, and have a licensed technician service every 6 months.
3) What are the gas requirements?
Natural Gas: 1.13–3.40 kPa; LPG: 2.75–4.50 kPa; 3/4” BSP male connection with supplied regulator.
4) Is it suitable for continuous high-volume cooking?
Yes, the reinforced cast iron top and high-output burners are designed for extended use.
5) Are spare parts readily available?
Yes, burners, thermostats, racks, and ignition parts are stocked; quote model and serial number when ordering.
Specs source: official datasheet and installation manual for Blue Seal G570.
