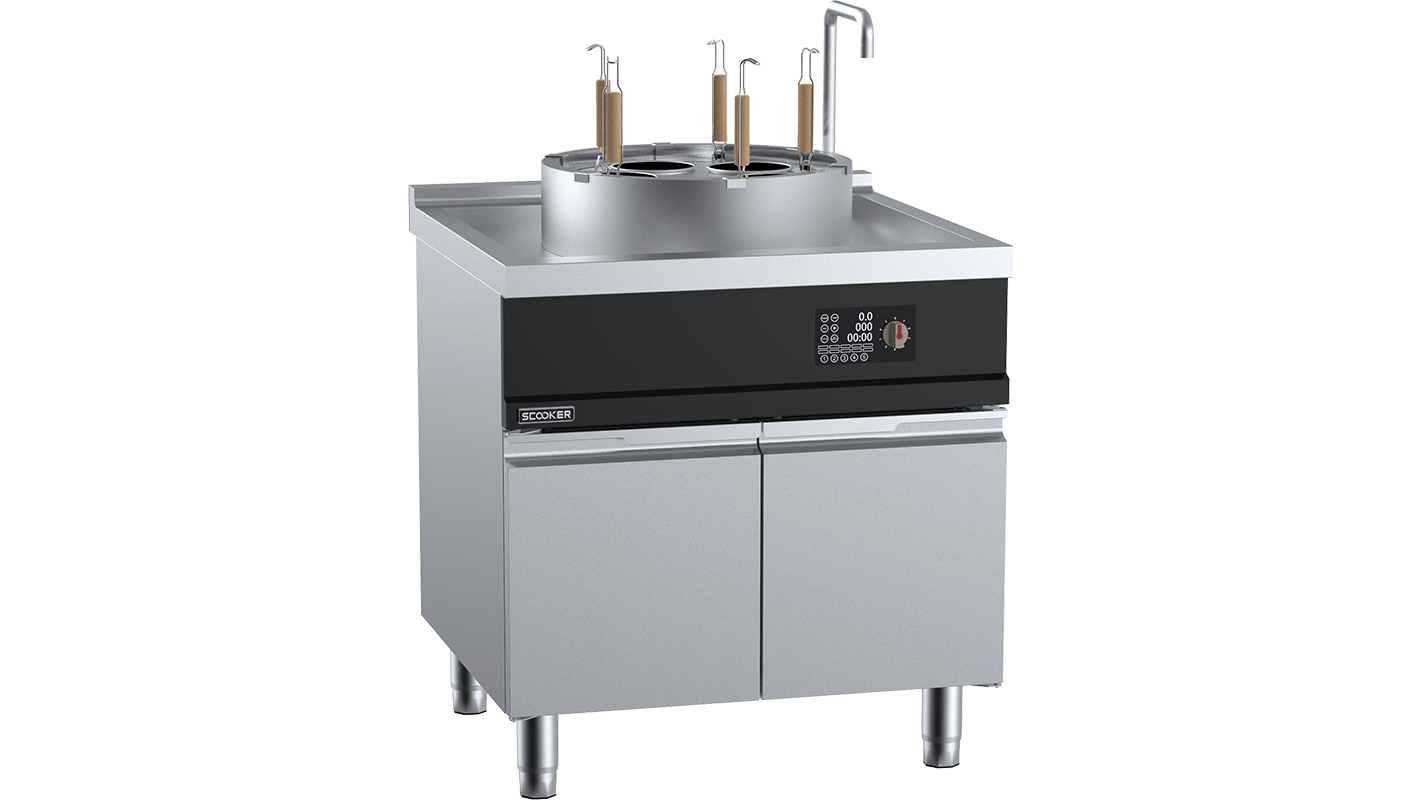

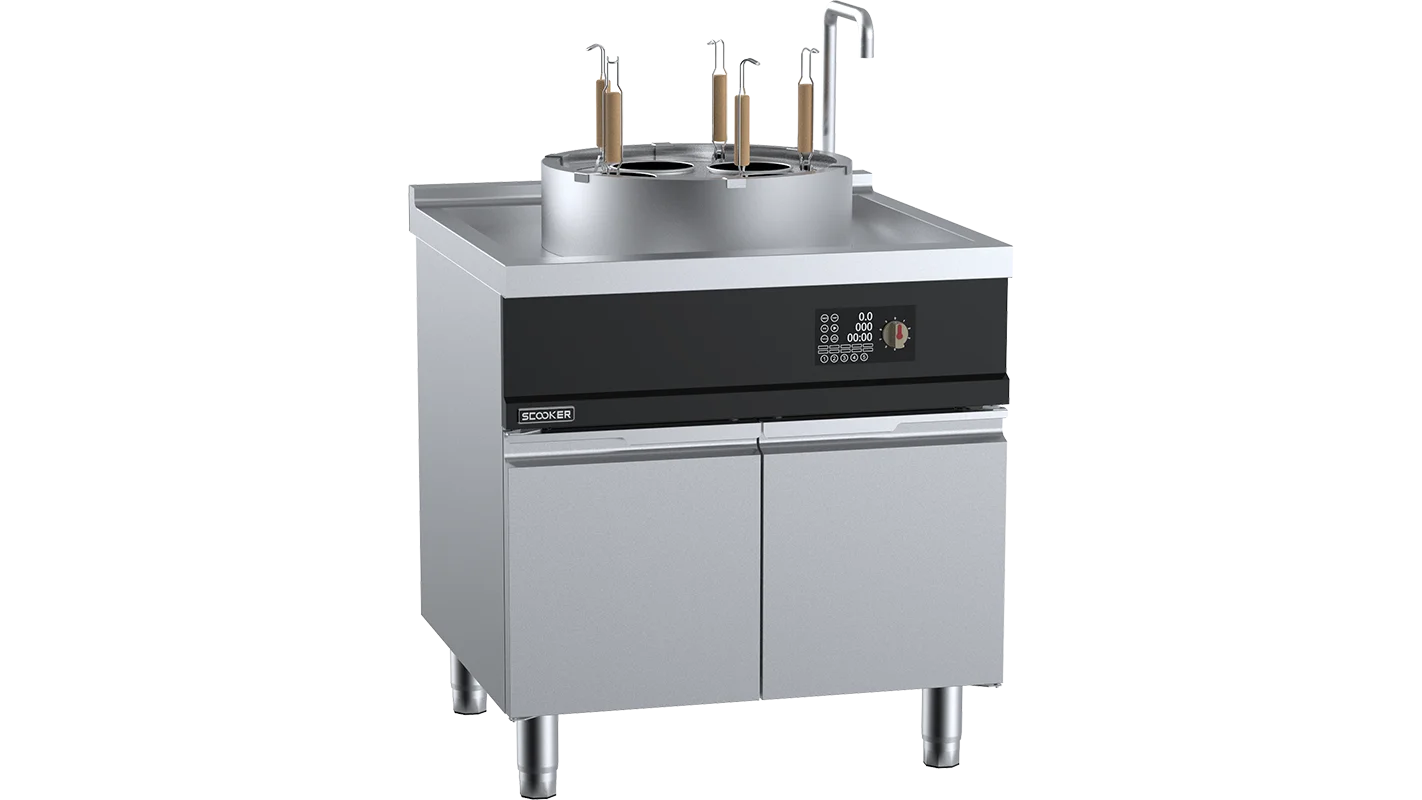

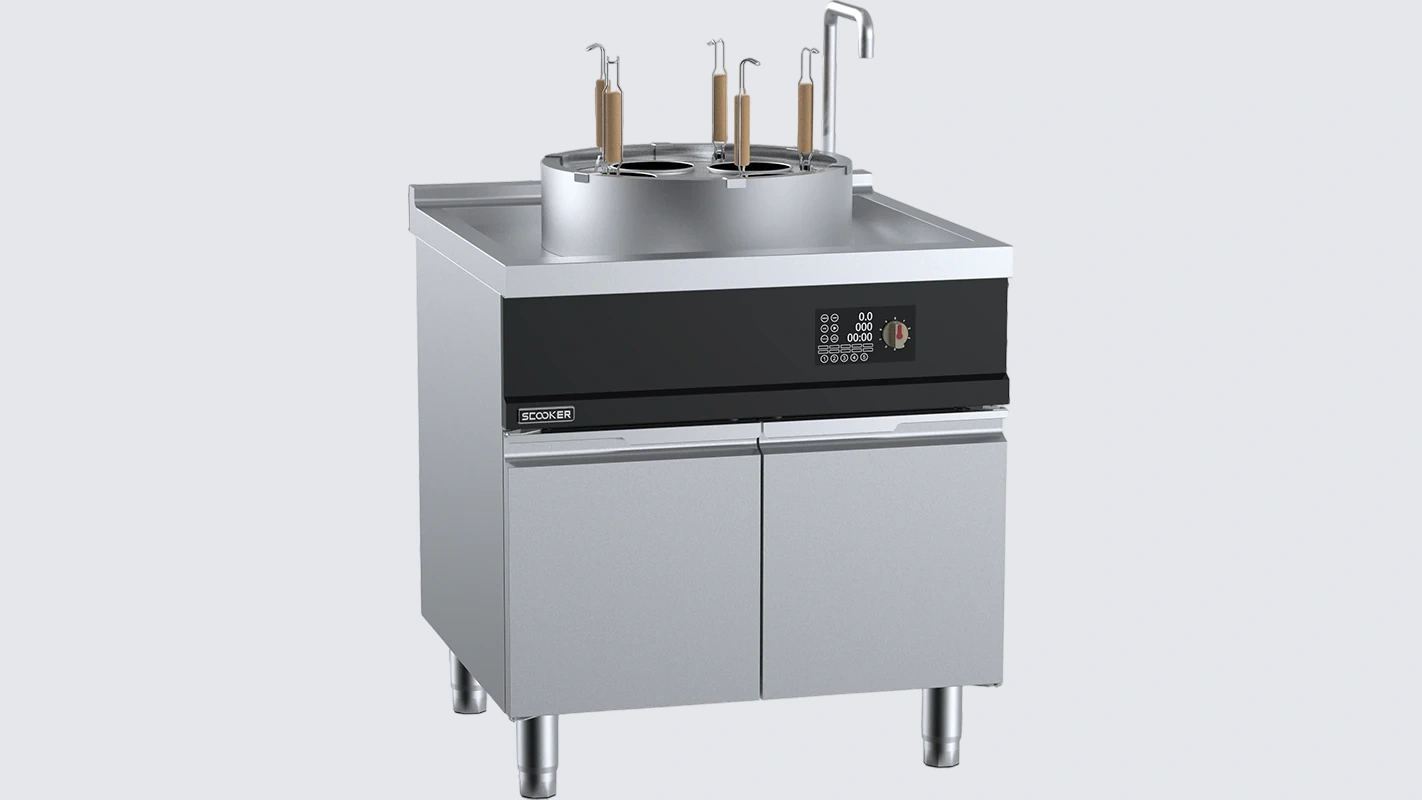

B+S SCOOKER HLZMDN5G-C10 Induction Pan Noodle Cooker – 10 kW
Updated:
At KW Commercial Kitchen, we supply the B+S SCOOKER HLZMDN5G-C10, a heavy-duty 5-basket induction noodle cooker designed for precision, speed and energy efficiency. Delivering 10 kW of power in a compact 800 mm frame, it features smart digital controls, a 50 L capacity pan and full-coverage base coil for even heating — perfect for busy Asian restaurants and modern fusion kitchens.
Built for Australian commercial kitchens
The HLZMDN5G-C10 combines AISI stainless-steel construction, thermal insulation layer and intuitive IPX5 touch display for real-time energy readouts and menu programming.
Key features & specifications
- Model: HLZMDN5G-C10
- Type: Induction pan noodle cooker with 5 baskets & lid
- Power: 10 kW (415 V 3 phase)
- Temperature range: 0 °C – 100 °C
- Capacity: 50 L stainless tank with perforated false base
- Dimensions (W×D×H): 800 × 750 × 880 mm
- Weight: 80 kg
- Construction: 2 mm thick 350 H × 450 Ø cylindrical chamber with inclined top deck & waste gutter
- Controls: Variable power knob + digital display showing power, usage & malfunctions
- Connections: Hard-wired 3P+E / 415 V / 50–60 Hz / 10 kW / 15 A; ½″ water in; 1″ tank drain
- Compliance: AS/NZS 3000 & AS/NZS CISPR 14.1
- Warranty: 24 months parts & labour
Compliance & safety (AU)
- Electrical: RCM compliant (AS/NZS 3000, CISPR 14.1).
- Water & Drain: ½″ inlet / 1″ outlet with false base to reduce clogging.
Convenience & usage advice
- Energy efficient: Induction system heats faster and uses up to 30 % less energy than gas models.
- Smart control panel: Displays power output & cumulative consumption — ideal for energy monitoring.
Ideal applications
- Asian & Japanese noodle bars
- Hotel and canteen service lines
- Quick-service restaurants and food courts
Running Cost (Electric – estimate)
At a glance
- 800 × 750 × 880 mm stainless frame
- 10 kW / 415 V 3 phase input
- 50 L capacity with 5 baskets
- 24-month parts & labour warranty
Frequently Asked Questions
1) How do I clean it daily without harming finishes?
Use mild pH-neutral cleaner and soft cloth; rinse and dry the top deck; never spray directly onto electrical panel.
2) What routine maintenance keeps performance stable?
Check filters and drain weekly; keep intake vents clear; have an electrician inspect annually.
3) What are the power requirements and typical energy use?
10 kW 415 V 3 phase; average running ≈ $12–14/day (4 h use @ $0.32 /kWh).
4) What about installation and Australian compliance?
Must be installed by a licensed electrician per AS/NZS 3000; RCM labelled and CISPR 14.1 tested for EMC.
5) Are spare parts and accessories available?
Yes — baskets, drain kits and control modules available via KW Commercial Kitchen or B+S Australia.
