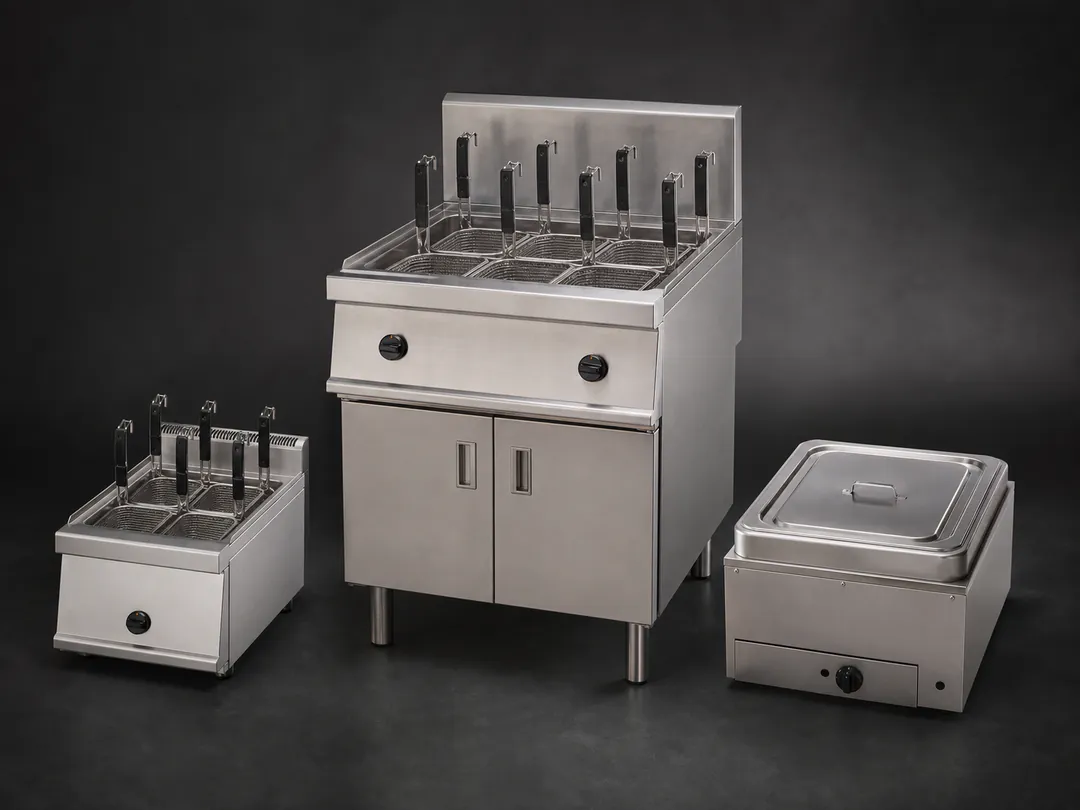

Pasta & Noodle Cooker / Steamer

A commercial pasta or noodle cooker operates in the W4 cookline, one of the hottest and highest-risk areas of any kitchen. These appliances generate intense steam plumes, rapid boiling cycles, starch foam, and heavy basket movement. Correct selection prevents boil-overs, scald injuries, temperature loss and bottlenecks during peak service.

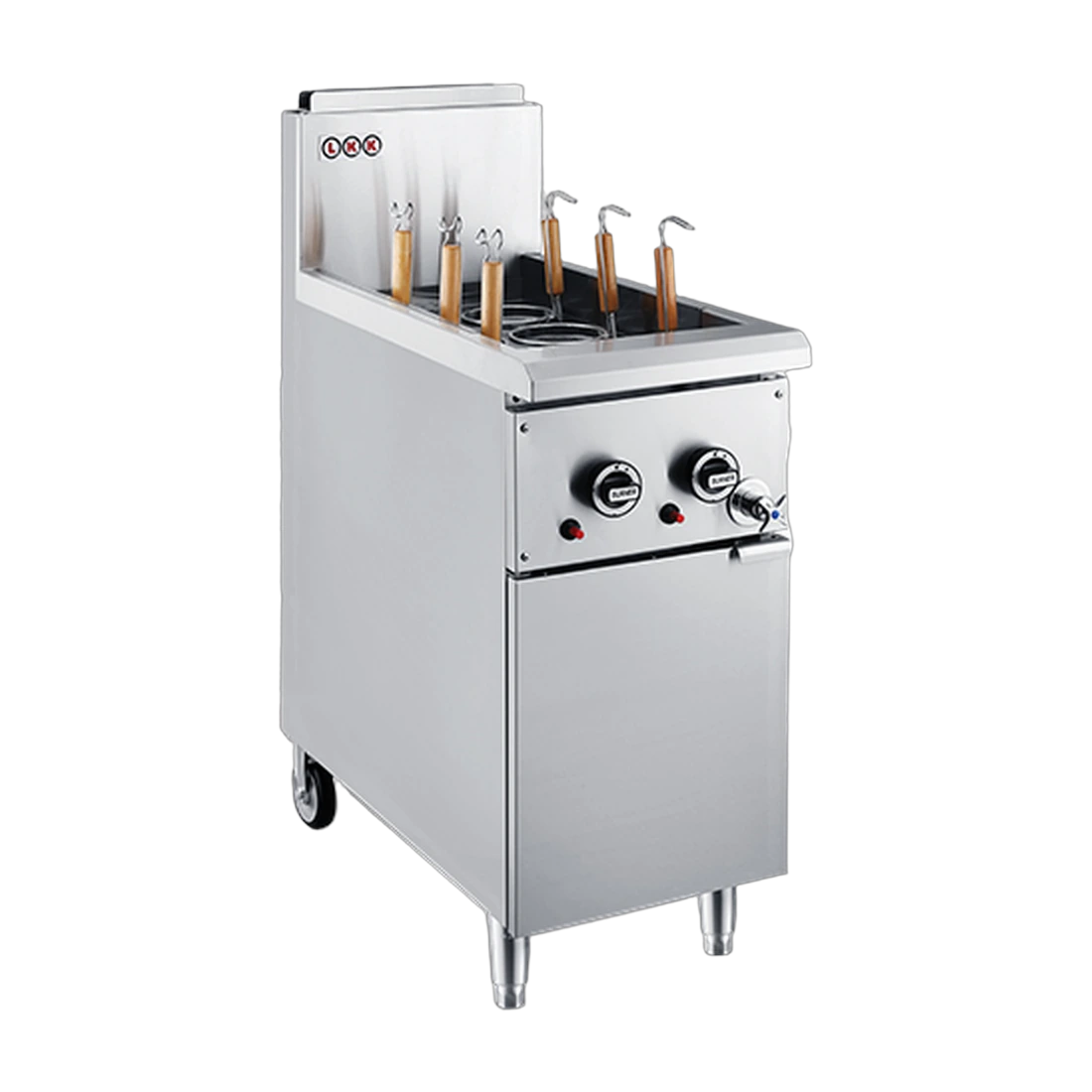

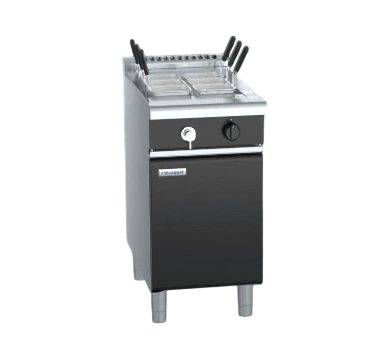

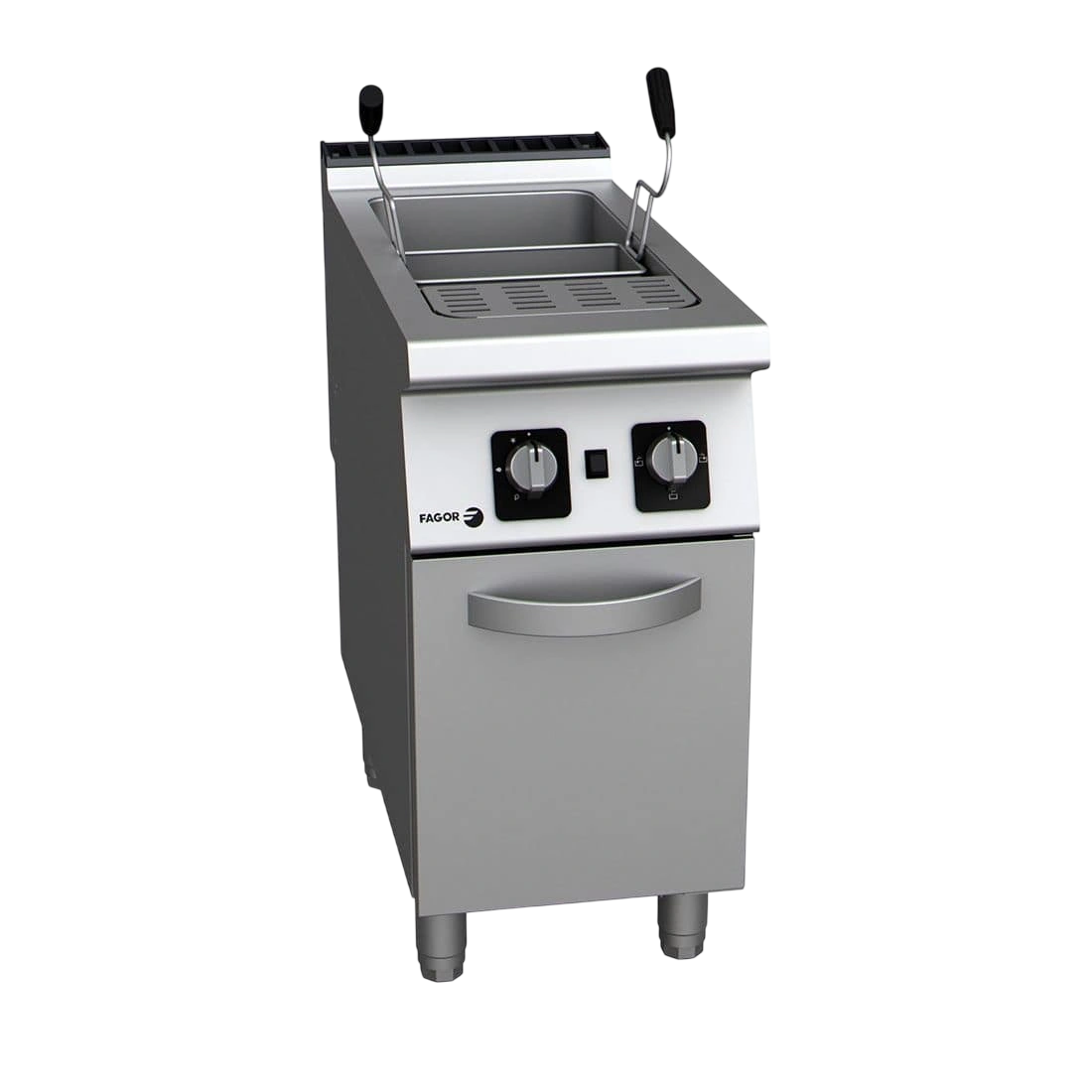

• W4 – Hot Line (primary): Freestanding noodle cookers, pasta boilers and steamers.
• W3 – Prep: Benchtop pasta cookers for light-duty output or gluten-free stations.
• W7 – Dishwash: Basket cleaning, descaling and starch removal.

Fast recovery is the number-one performance factor in commercial noodle cookers:

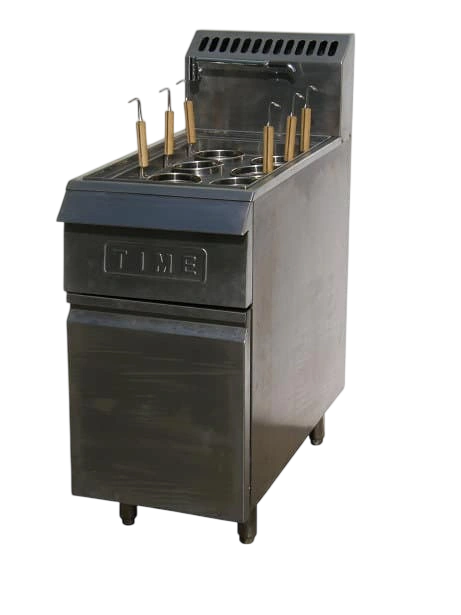

• Gas models: 70–120 MJ/h. Extremely fast heat-up and recovery. Ideal for ramen, pho, udon and continuous pasta demand.

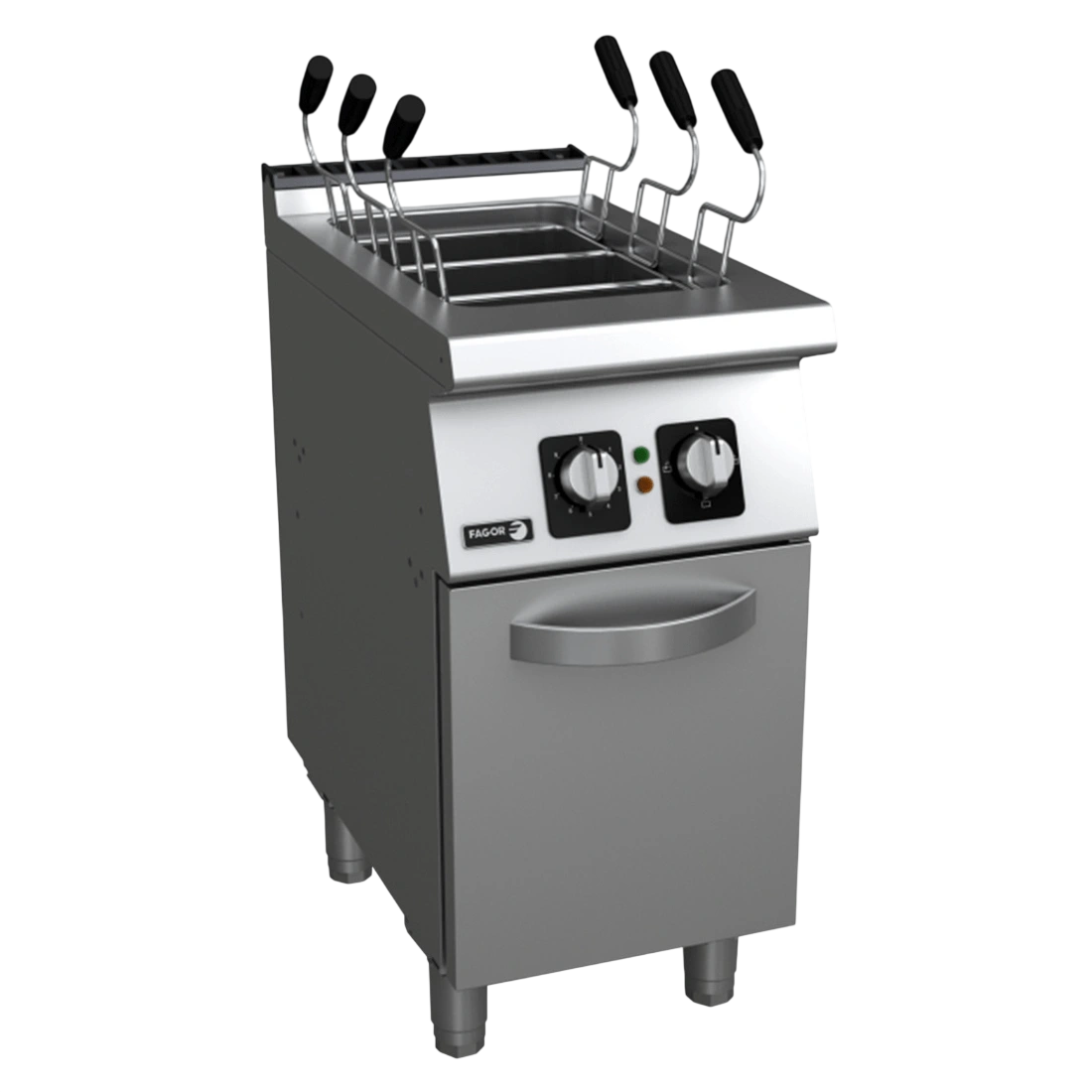

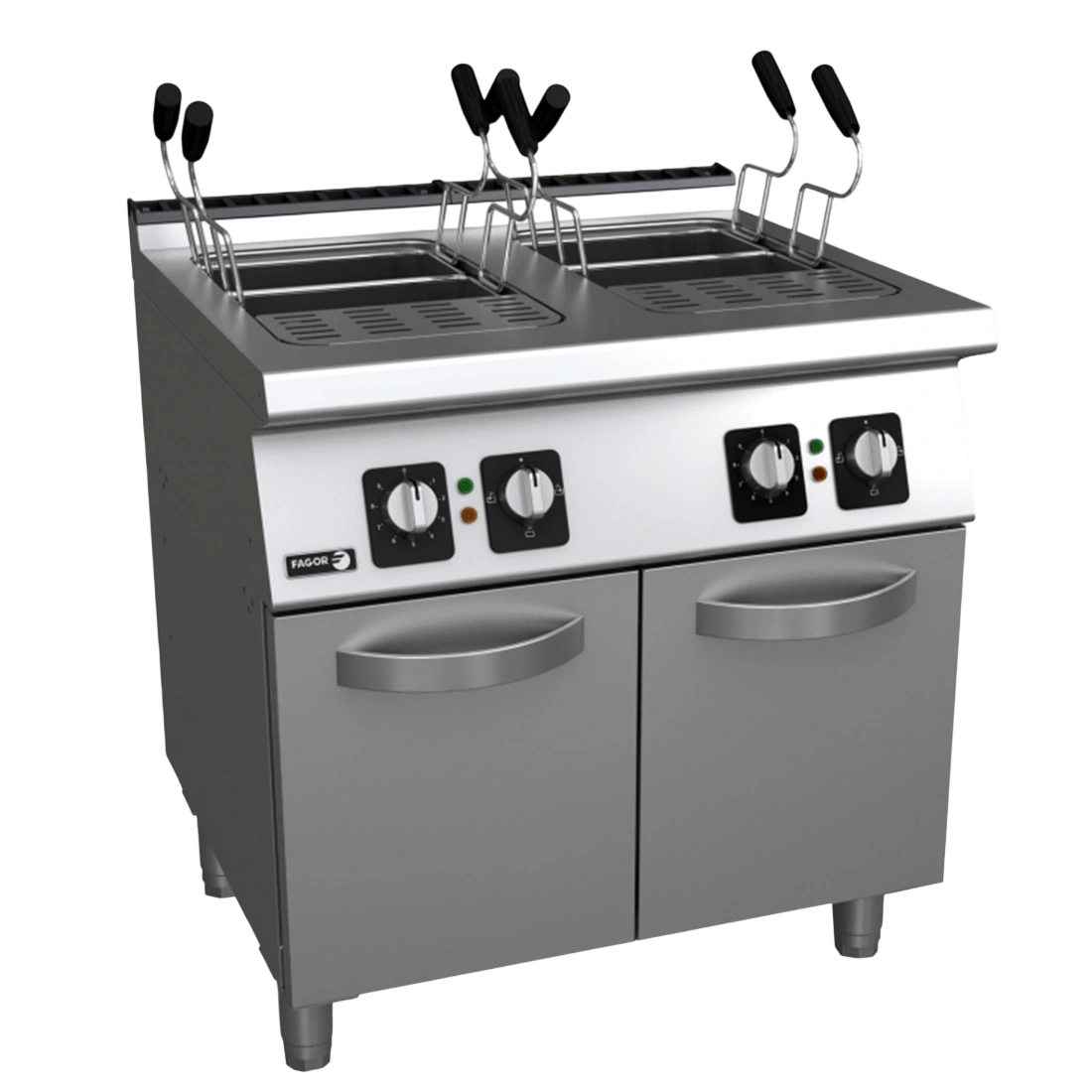

• Electric models: 6–14 kW. Very stable heat and easier installation. Suitable for cafés or sites without gas.
• Boil recovery time: Determines if noodles stay firm or turn soft and waterlogged during rush periods.

Professional noodle texture relies on water turbulence engineering — not just baskets:

• Bottom jet agitation: Prevents noodles settling and sticking.
• Side-flow circulation: Moves starch away from the cooking zone.
• Vertical convection: Ensures even boiling without cold pockets.
• Pump-assisted models: Maintain perfect rolling boil in all baskets simultaneously.

• Starch foam surge: A rapid rise when fresh noodles go in. Can cause dangerous spillover if unmanaged.
• Auto-refill systems: Add fresh water to stabilise the boiling surface and reduce foam thickness.
• Skimming channels: Remove foam and extend water usability.
• Overflow safety: Correct drain size prevents floor flooding and WHS slip hazards.

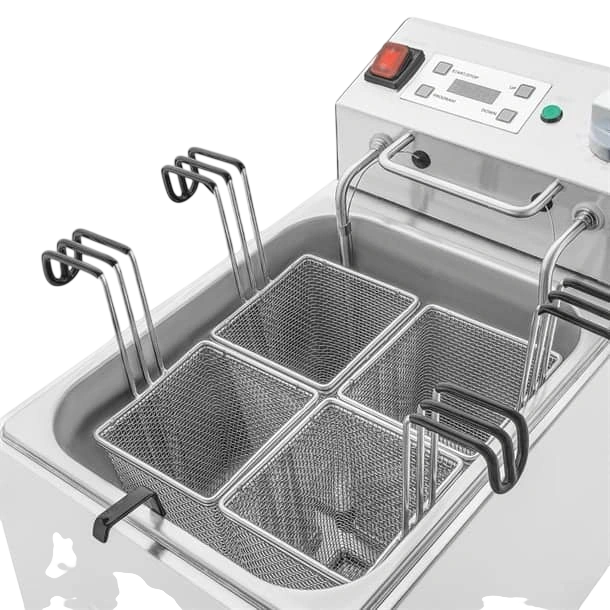

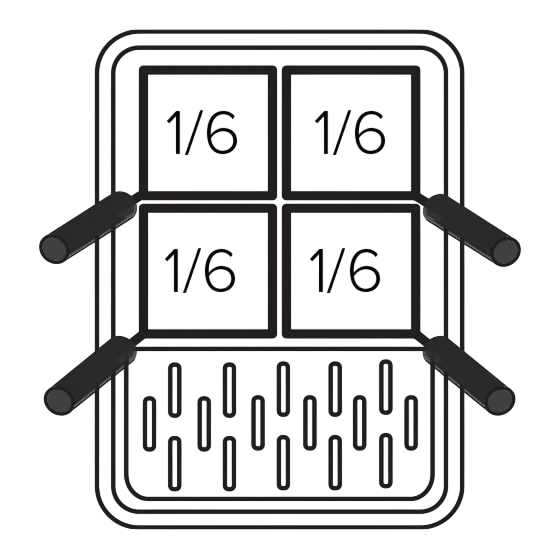

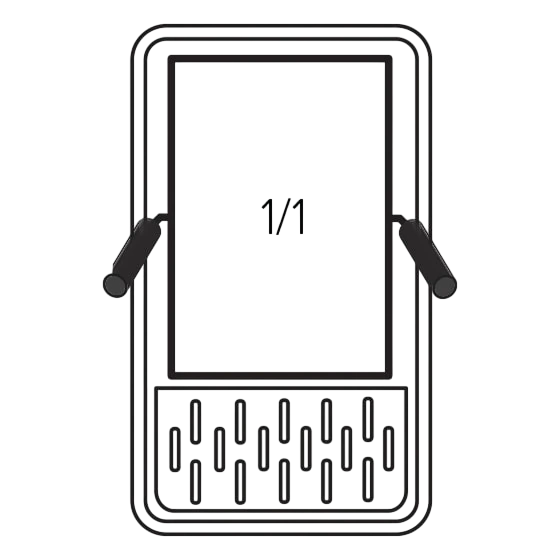

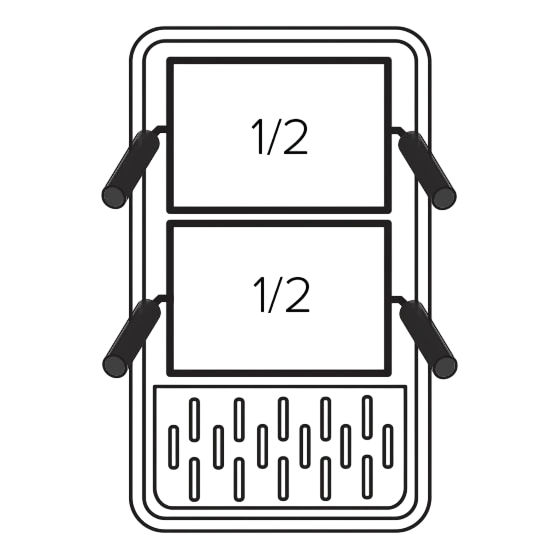

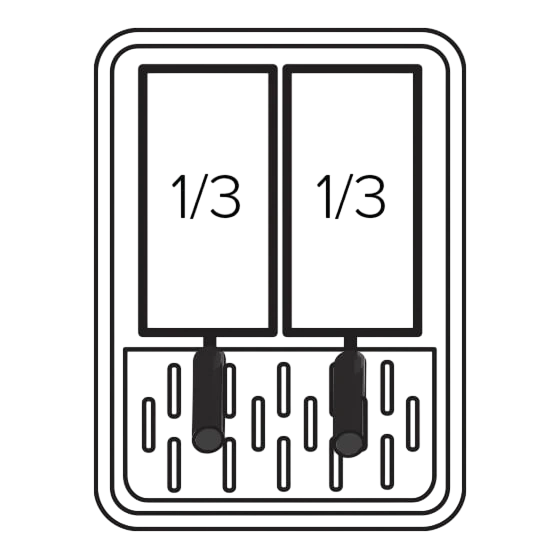

• Fine-mesh baskets: For ramen, thin noodles and vermicelli.
• Medium/large mesh: For Italian pasta and larger cuts.
• Basket depth & volume: Determines portion accuracy and recovery time.
• Ergonomic handles: Reduce wrist exposure to steam bursts when lifting baskets.

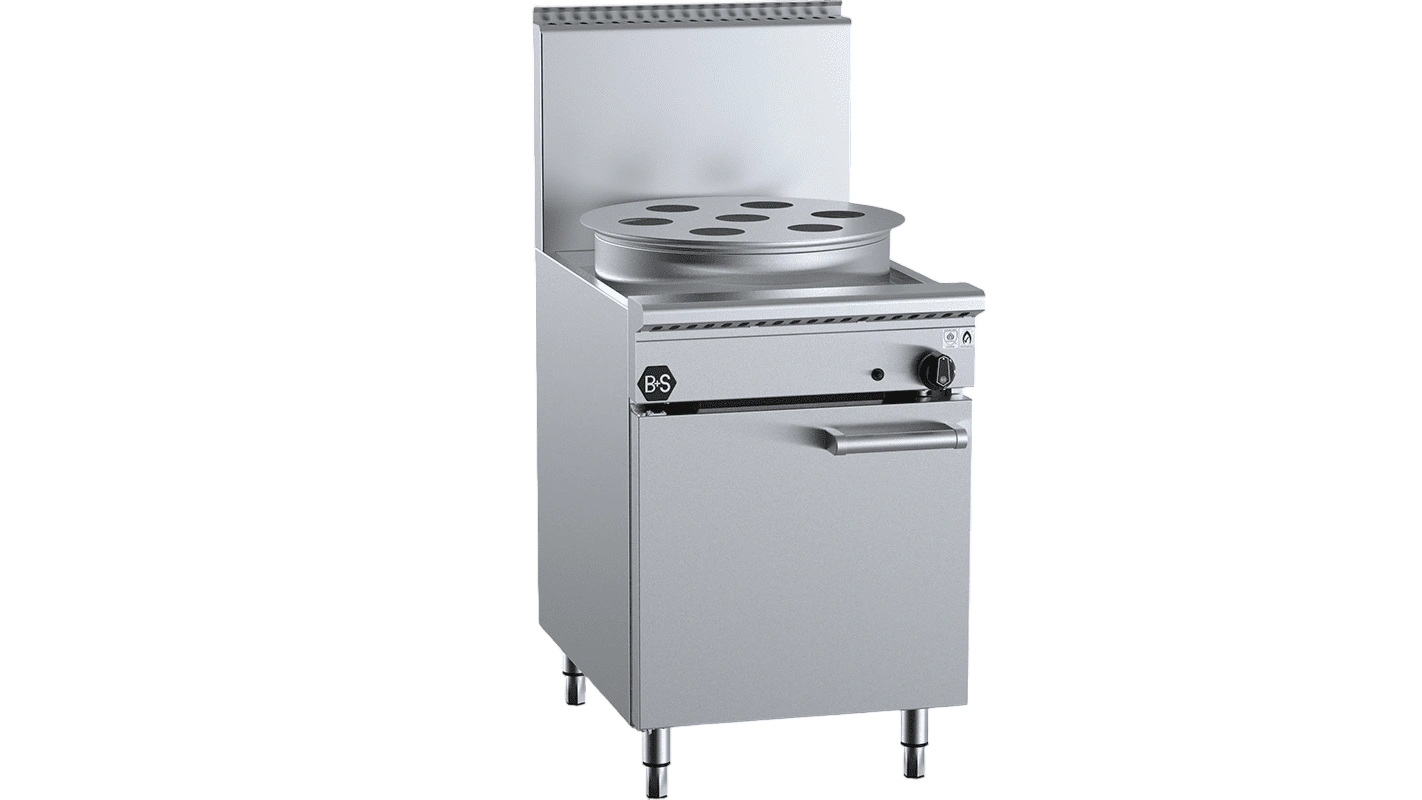

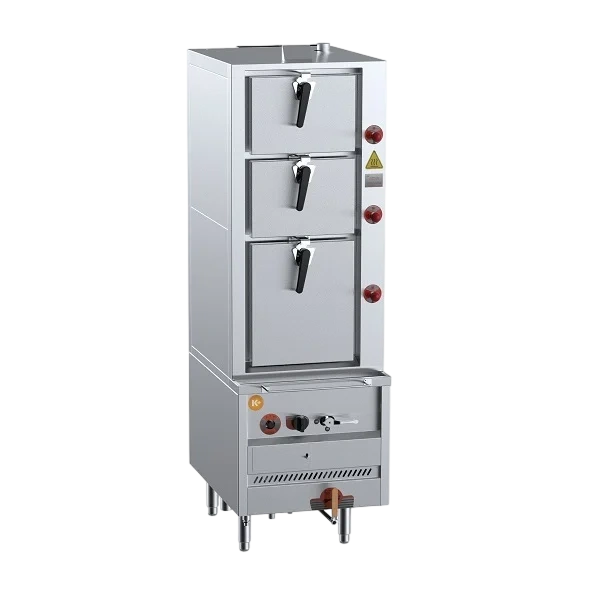

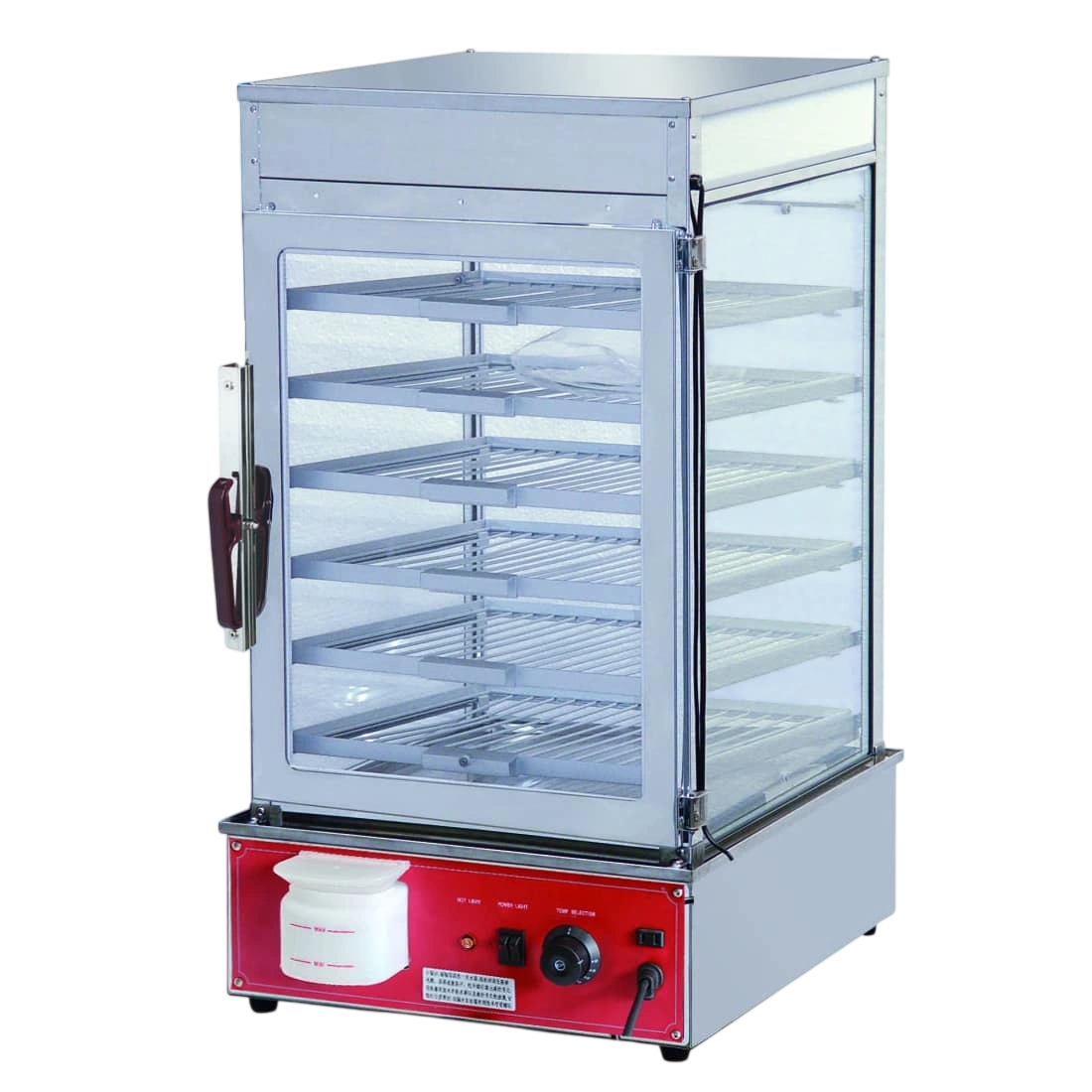

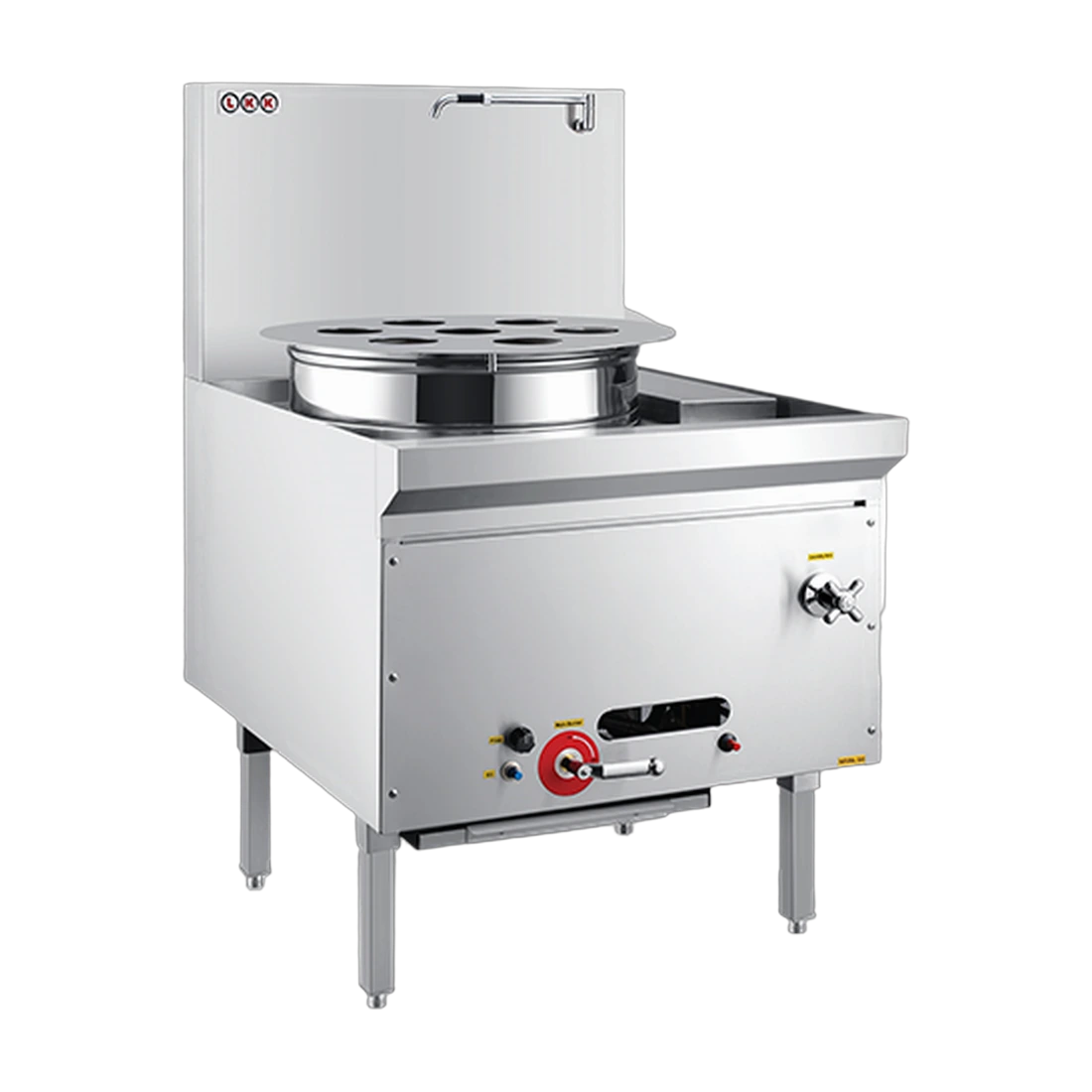

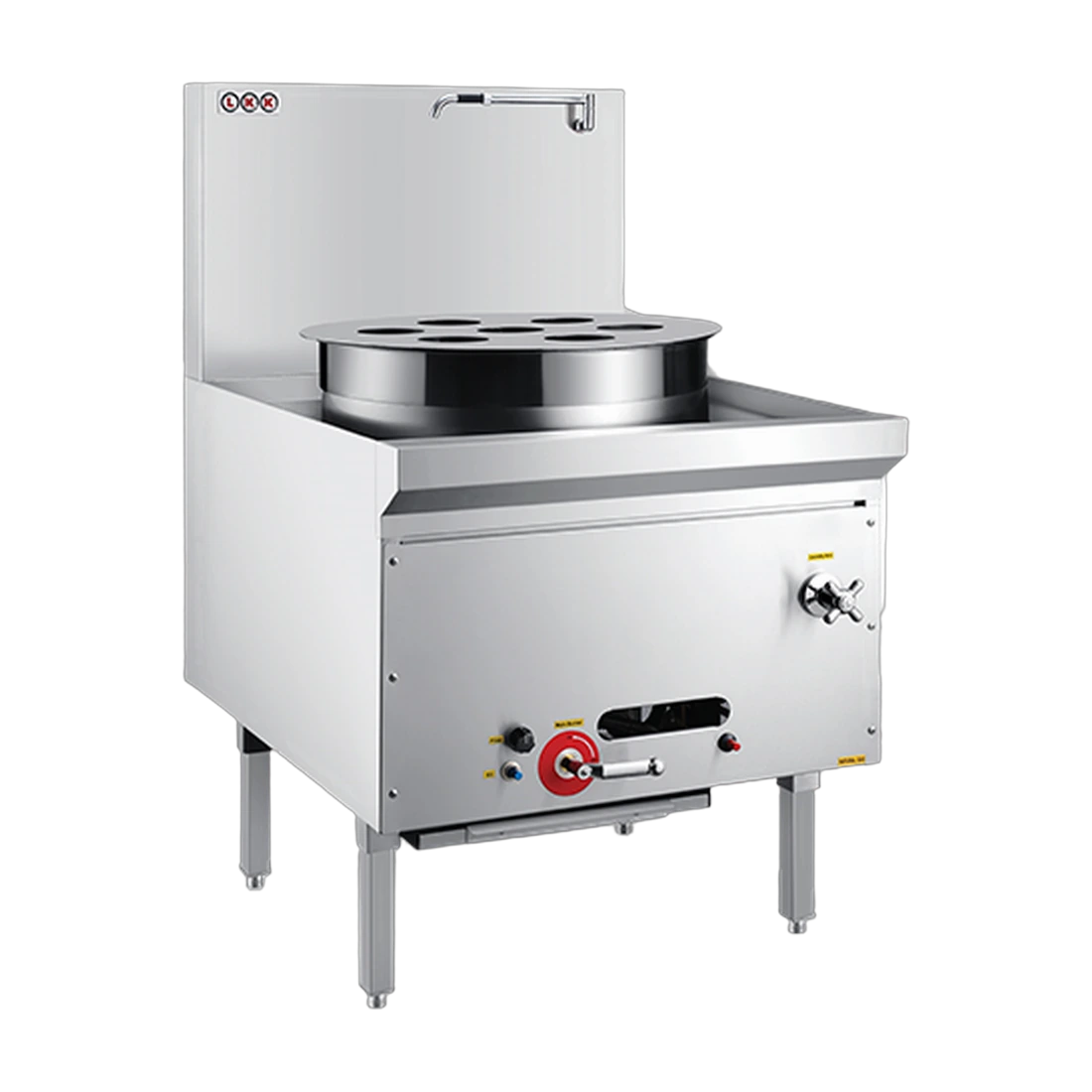

• Stackable steam baskets: For dim sum, vegetables and dumplings.
• Steam plume behaviour: High-moisture plumes saturate canopy filters quickly.
• Condensation drainage: Prevents water dripping back onto food or floor.
• Integrated boil-steam models: Allow simultaneous cooking and steaming in one footprint.

• Backflow prevention: Required for all plumbed cookers to stop contamination.
• Air-gap drainage: Prevents siphon backflow into the tank.
• Descaling: Hard water scale reduces heater efficiency and causes inaccurate temperatures.
• Heat-rated drain valves: Must withstand continuous 100°C discharge.

• Steam burst: When lifting baskets, steam can shoot upward and sideways.
• Overfill risk: Adding too much product causes instant boil-over.
• Condensation drip: Steam contacting cold surfaces (hood edges, shelves) drips onto floors.
• Landing zones: Dedicated resting areas for baskets prevent accidental knocks and burns.
• Handle orientation: Incorrect angle exposes staff to scalding.
