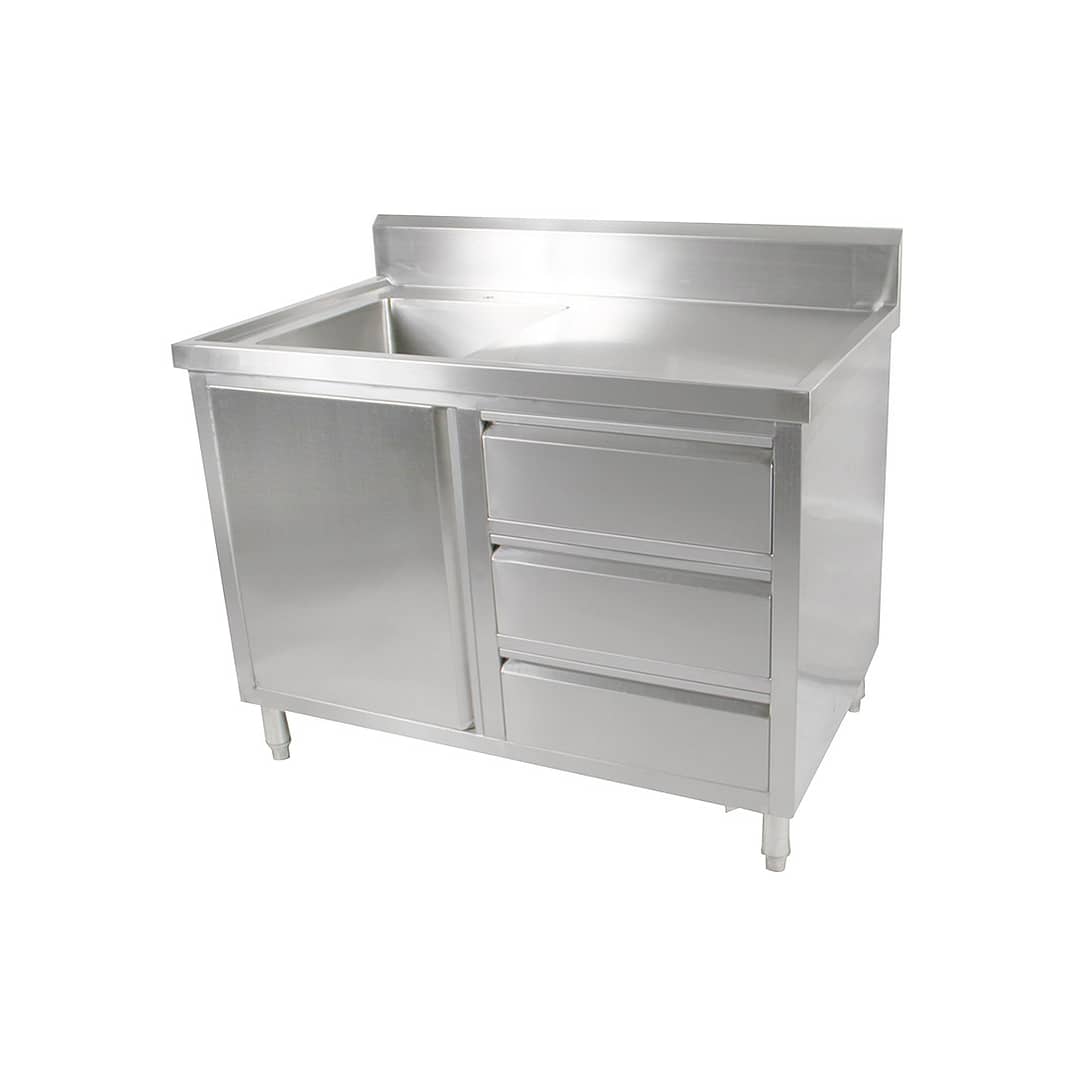

Modular Systems SC-6-1200L-H Cabinet with Left Sink

The Modular Systems SC-6-1200L-H combines a left-hand sink, doors and drawers in an all-stainless-steel cabinet. Its 1200 mm width suits open kitchens needing washing and storage together.

Consider this cabinet for an open kitchen where a single left-hand bowl suits the washing workflow and doors and drawers provide storage beneath the worktop. Check the 400 × 400 × 300 mm bowl against the utensils and containers you wash, and allow room to use the storage fronts.

• Open kitchens needing an all-stainless-steel sink cabinet.
• Work areas arranged around a single left-hand bowl.
• Kitchens wanting doors and drawers beneath the sink worktop.

• Jobs needing two left-hand bowls: compare the DSC-1800L-H double-left-sink cabinet.
• Layouts requiring two right-hand bowls: compare the DSC-1800R-H double-right-sink cabinet.
• Washing oversized items that exceed the 400 × 400 mm bowl footprint: choose a sink cabinet with a larger bowl.

Start with the bowl position. A left-hand sink should suit the movement of items into and out of the washing area; check that adjacent equipment and the door and drawer access support that arrangement.

Measure the largest items you regularly wash against the 400 × 400 × 300 mm bowl. Choose a double-sink cabinet if the job calls for two separate bowls.

Check the available footprint, worktop height, splashback and access route together. The assembled cabinet weighs 71.9 kg, so include handling and positioning in the installation plan.

• Combines a left-hand sink with doors and drawers in one cabinet.
• All-stainless-steel construction with a reinforced 1.2 mm SUS304 top.
• Comes fully assembled with welded joins.

• The single bowl provides one washing compartment; jobs requiring two bowls need a double-sink cabinet.
• The 400 × 400 mm bowl footprint limits the size of items that can sit inside it.
• The assembled cabinet weighs 71.9 kg and requires a suitable access route and handling plan.

• Modular Systems DSC-1800L-H TIDY CABINET WITH DOUBLE LEFT SINKS: The DSC-1800L-H has double left-hand sinks, offering two bowls instead of this model's single left-hand bowl.
• Modular Systems DSC-1800R-H TIDY CABINET WITH DOUBLE RIGHT SINKS: The DSC-1800R-H has double right-hand sinks, changing both the bowl count and sink position from this single-left-sink cabinet.

• Footprint and bench alignment. Allow for a 1200 mm-wide, 600 mm-deep cabinet with a 900 mm worktop and 150 mm splashback, giving a total height of 1050 mm. Check adjoining bench heights and leave access for the doors and drawers.
• Water and drainage. Plan water services and drainage around the left-hand bowl. Check the drain opening and selected waste fitting together before installation.
• Access and handling. Packed dimensions are 1260 × 680 × 1230 mm, and cabinet net weight is 71.9 kg. Check doorways, turns and the final positioning route for the fully assembled cabinet.
• Commissioning and care. Check site services, clearances and installation requirements before ordering. Follow the equipment instructions and your kitchen's procedures for commissioning, cleaning and maintenance.

For body dimensions, see Key Specifications above.
