Frymax VP122LPG V Pan LPG Deep Fryer – 22L Oil Capacity, Stainless Steel

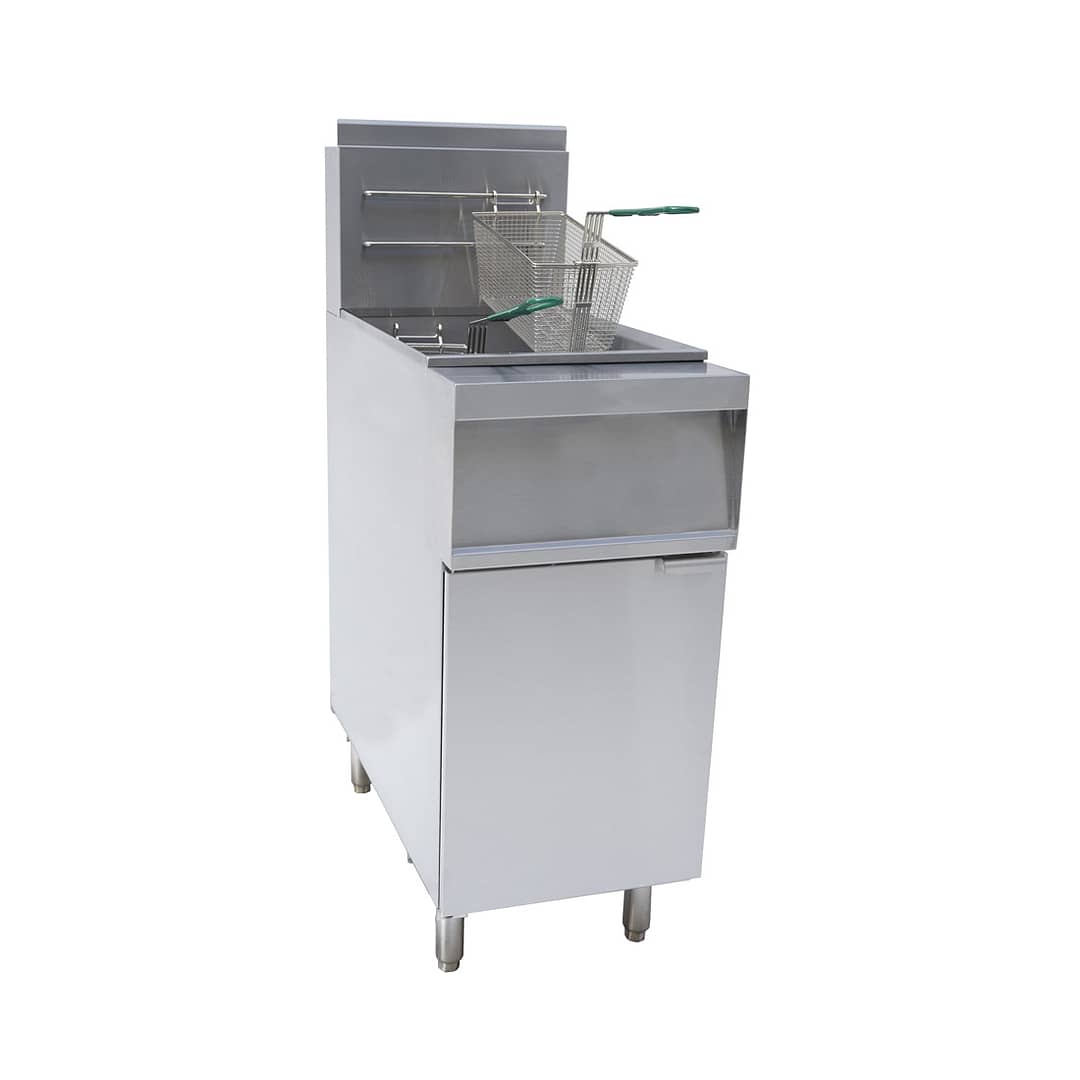

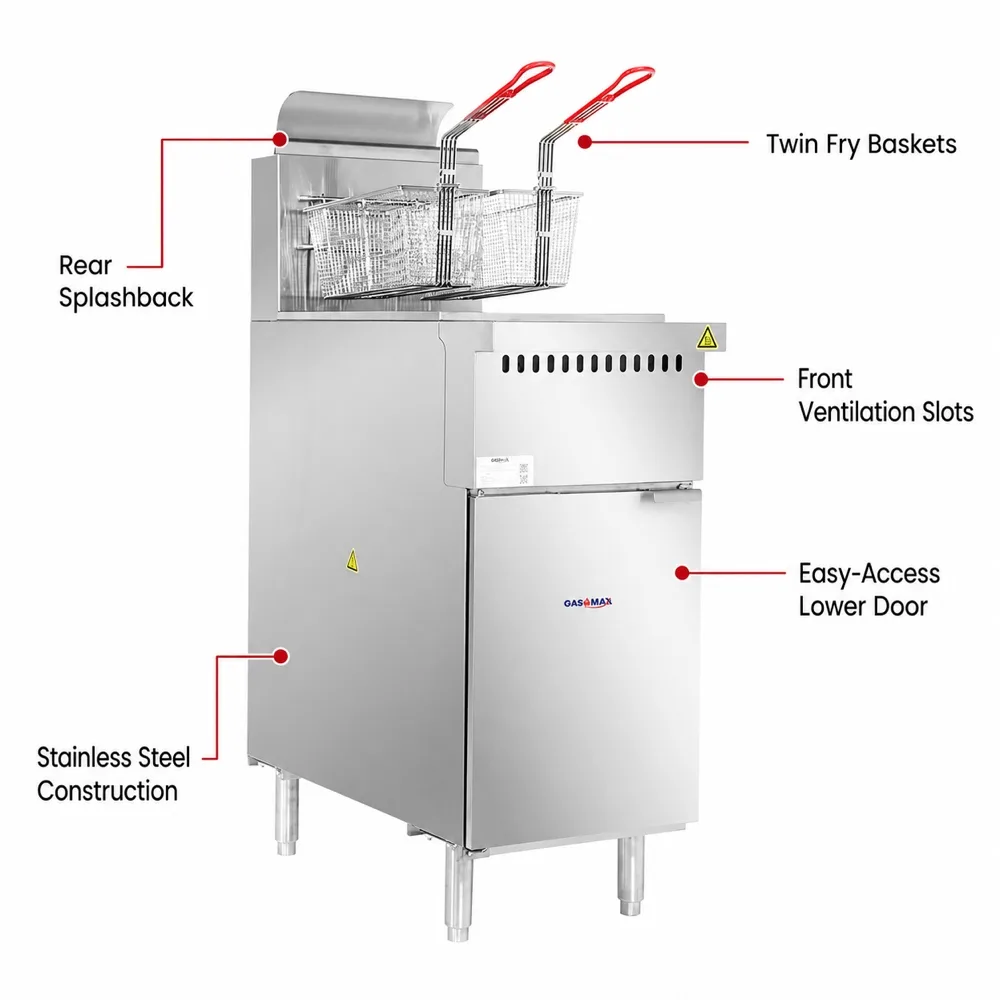

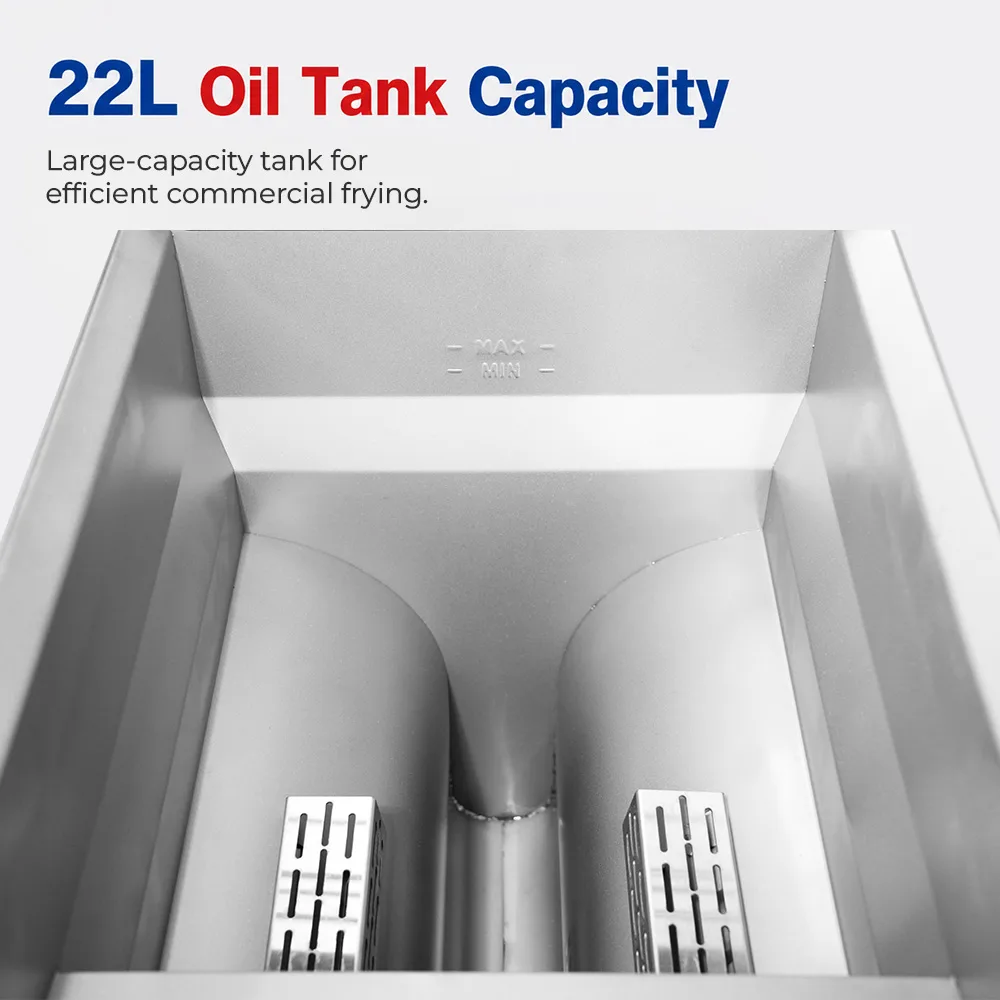

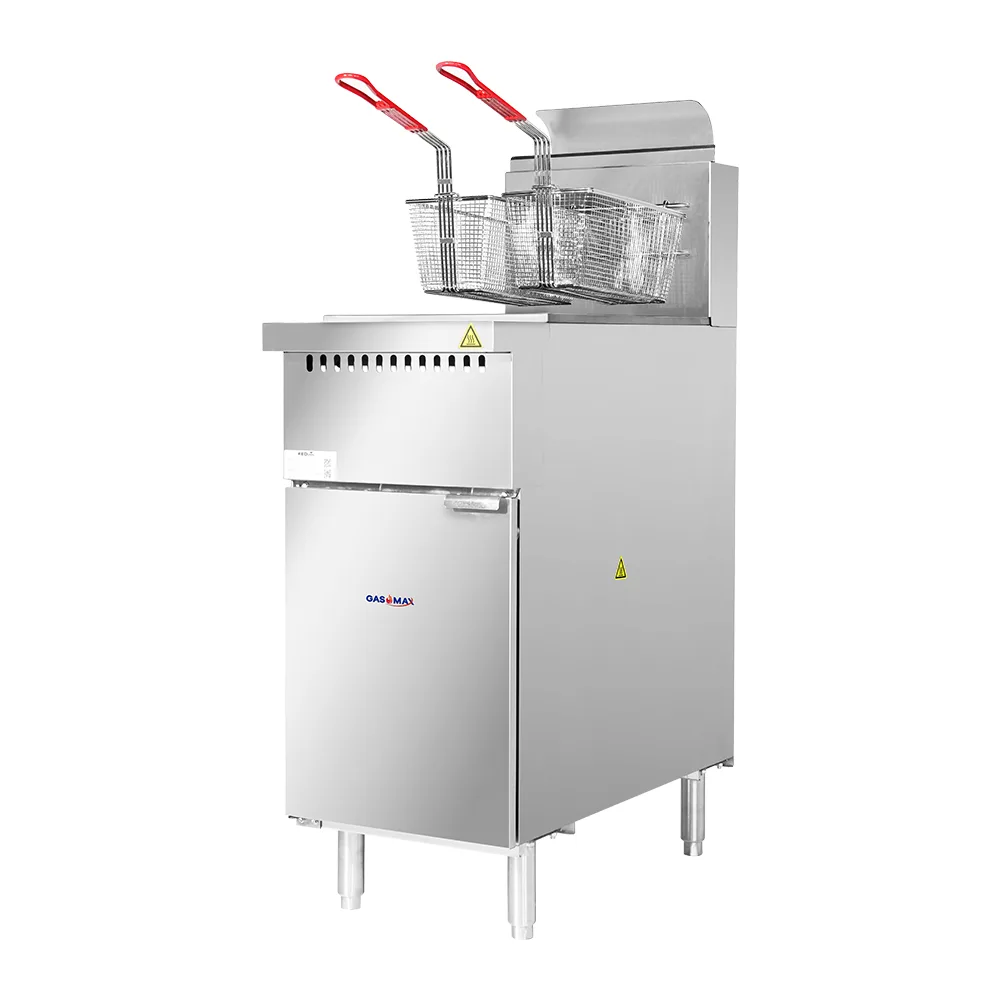

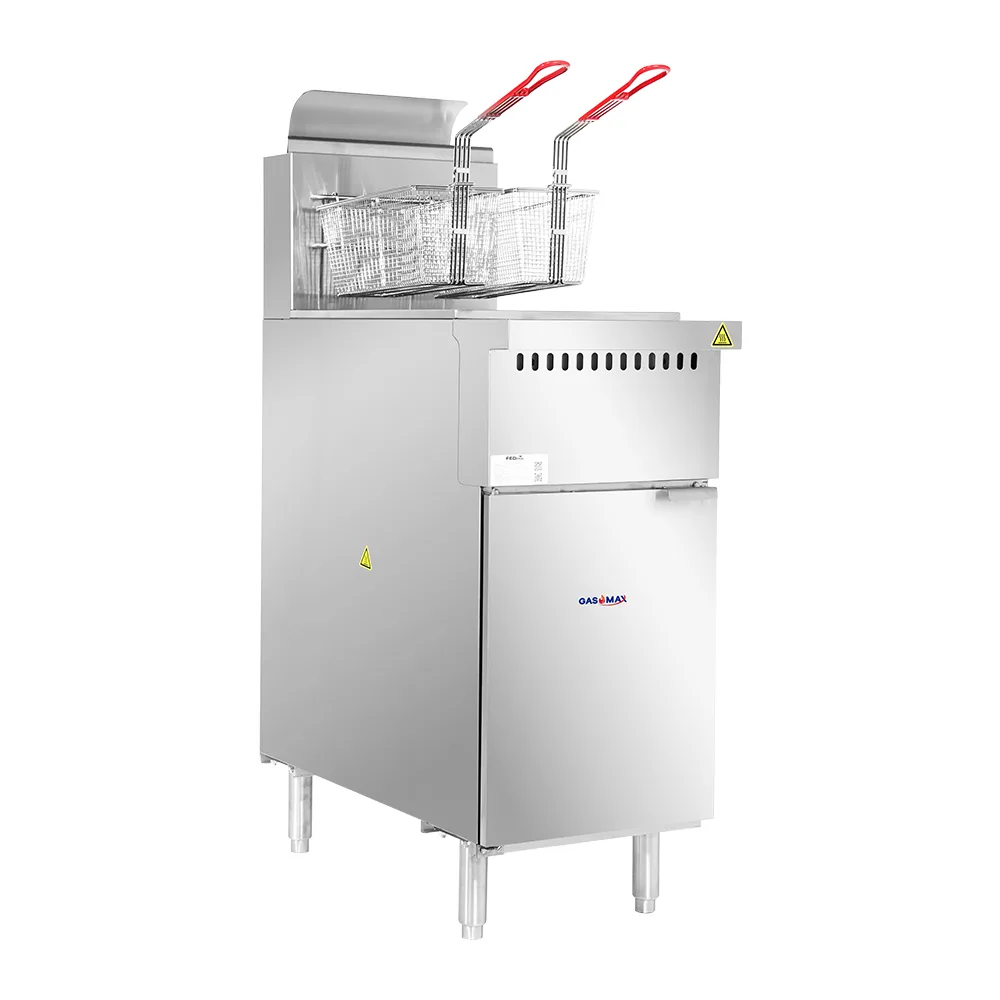

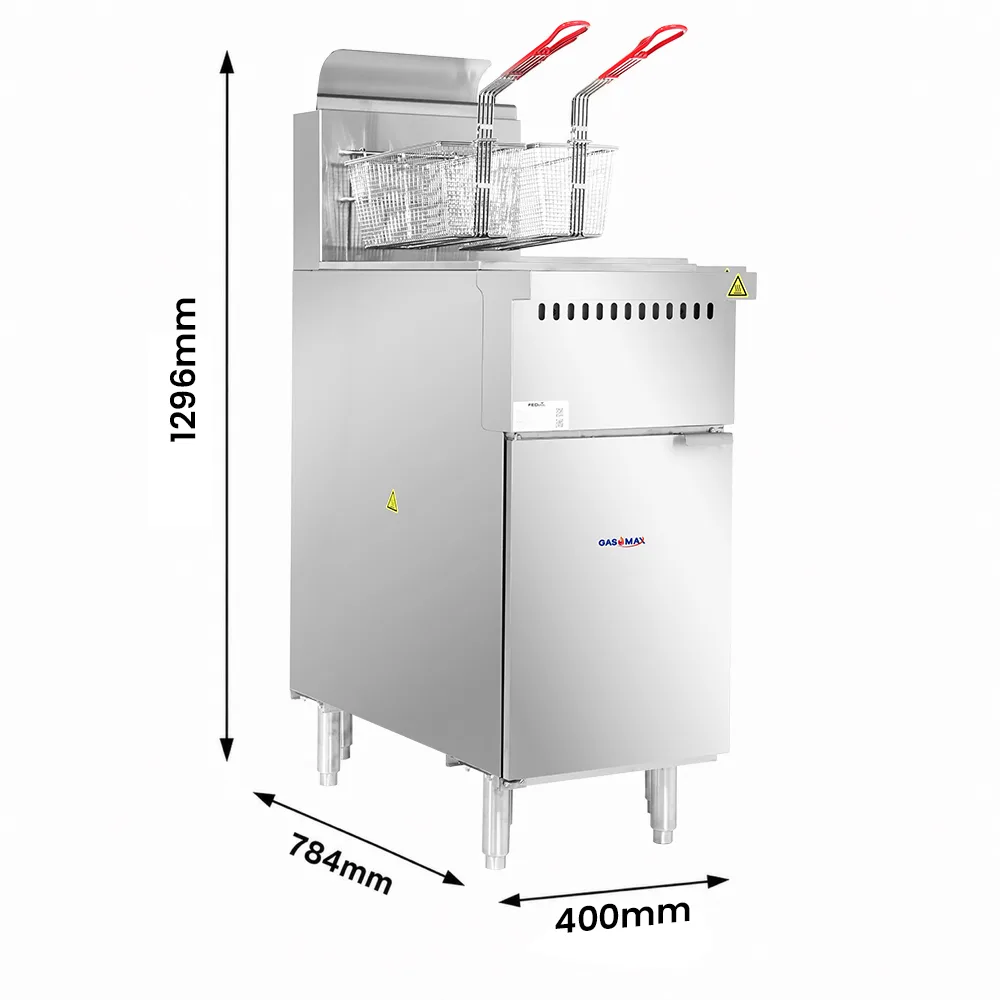

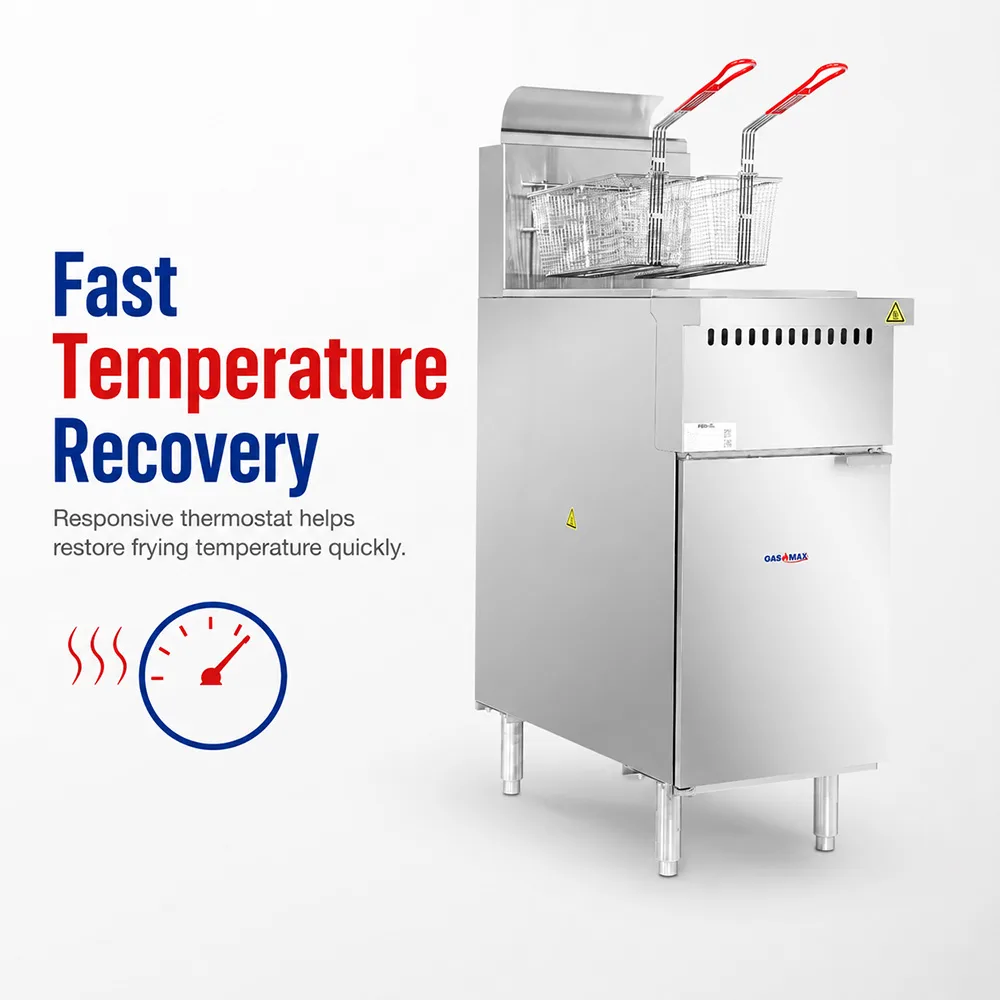

The Frymax VP122LPG is a freestanding LPG deep fryer built around a V-shaped pan, listed at 104 MJ/h with a thermostat range of 93–204 °C. The V-pan geometry is the point of the design: sediment falls away from the burner path into the narrow base rather than circulating through the frying zone. The body is stainless steel and the unit is 400 mm wide, so it drops into a standard cooking line.

A 400 mm gas fryer at 104 MJ/h suits steady fried volume in a compact line: fish and chip shops, takeaway counters, pubs and clubs, chicken shops, and food trucks with a properly installed LPG supply. The V-pan is chosen where batter and crumb sediment would otherwise burn in the frying zone and shorten oil life. If you are frying low volumes intermittently, a benchtop electric fryer is the cheaper and simpler answer.

• Gas connection and commissioning must be carried out by a licensed gas fitter in accordance with local requirements. Do not connect a gas appliance yourself.
• At 104 MJ/h, have your gas fitter confirm supply sizing and metering before you order, particularly if this fryer is joining an existing gas line.
• Confirm your canopy, extraction rate, and make-up air with your mechanical contractor. Deep frying produces heavy grease-laden vapour.
• Site the fryer on a level floor with the manufacturer's clearances to adjacent surfaces. Never site a fryer immediately beside an open flame or a water source.
• Confirm access and doorway widths before delivery day.

• Skim sediment from the oil through service. The V-pan carries debris down, but it still has to be removed.
• Filter or change oil on a schedule set by your throughput and product mix, not by a fixed calendar date.
• Let the oil cool to a safe handling temperature before draining. Hot oil handling is the primary injury risk on any fryer.
• Boil out the pan periodically as the manufacturer directs, and rinse and dry it fully before refilling.
• Check burner ports and the pilot arrangement for debris. Book periodic servicing with a licensed gas fitter and keep the record.

Before you commit, confirm the oil capacity, the gas sizing, and your extraction. Call KW Commercial on 1300 001 366 and we will check the VP122LPG against your line and your gas supply.
