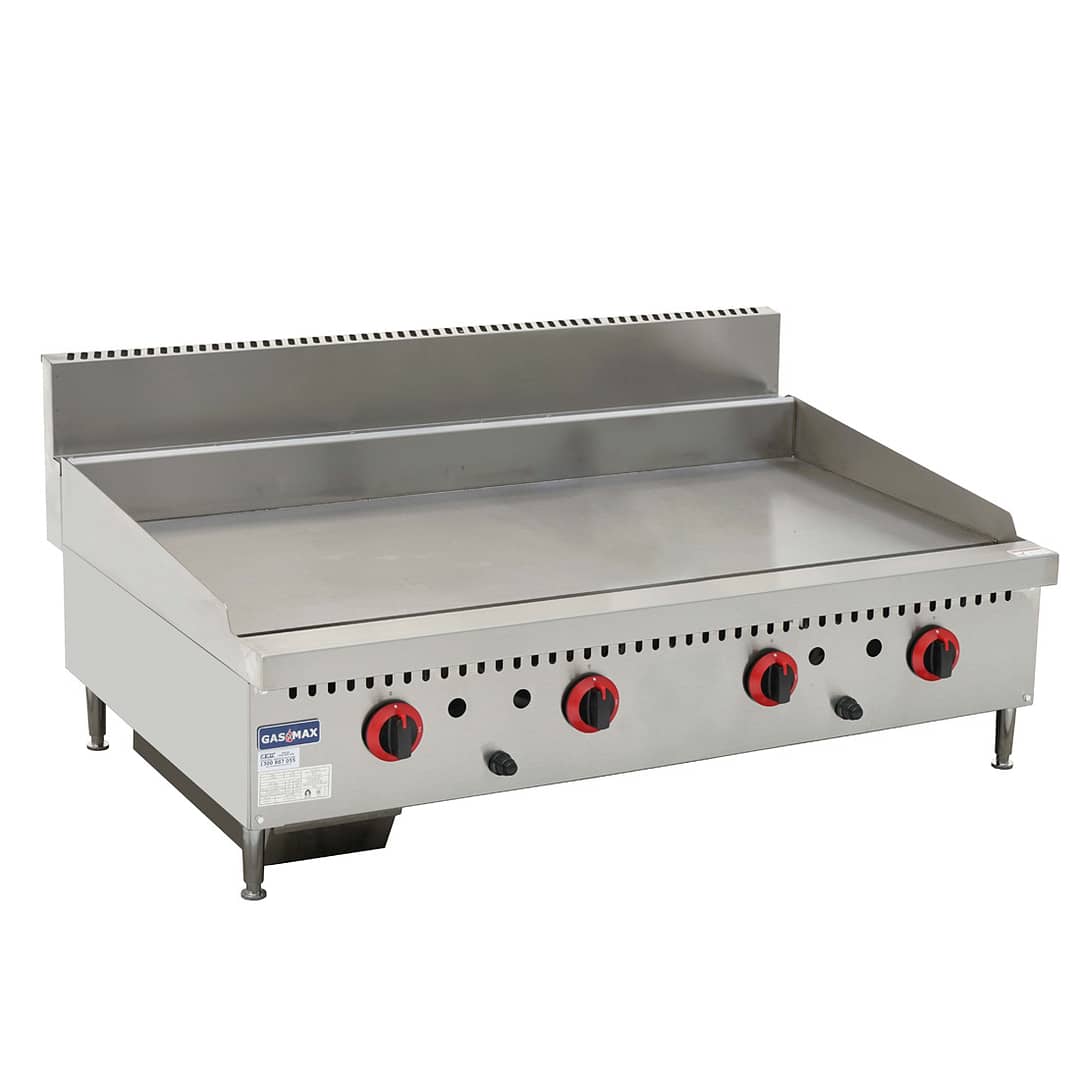

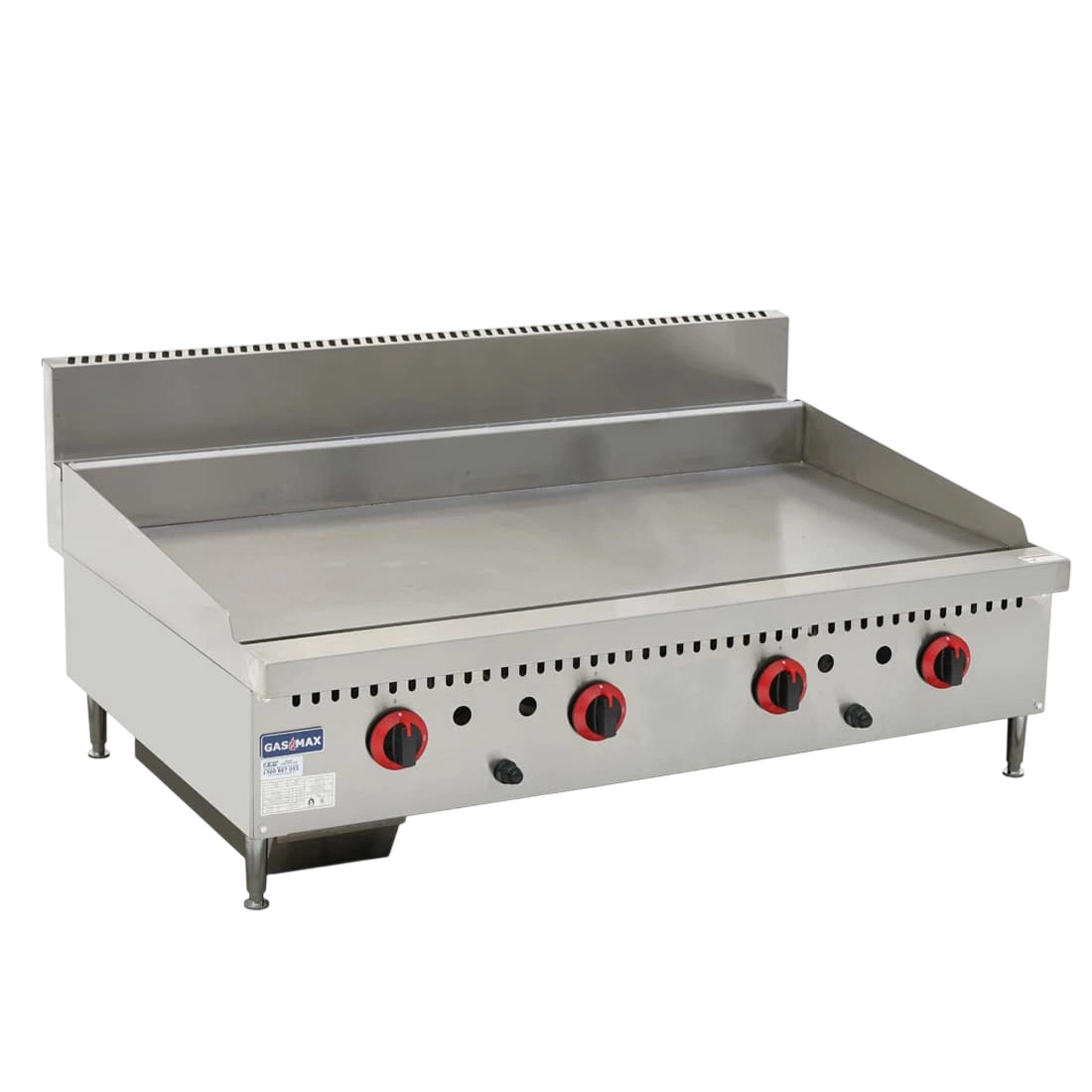

Gasmax GG-48 Four burner NG Griddle Top – 1200 × 824 × 546 mm

The Gasmax GG-48 is a four-burner natural gas benchtop griddle for café, takeaway and restaurant cooking lines. It combines a 22 mm mild steel plate with stainless steel construction, front grease collection and a total gas input of 120 MJ/h.

Consider the GG-48 for a cooking line preparing foods such as burgers, eggs and grilled sandwiches on a flat plate. Its four-burner configuration suits kitchens choosing a wider griddle, provided the bench can accommodate its dimensions and 152 kg net weight and the site has a suitable natural gas supply.

• Cafés and takeaways preparing flat-plate menu items on a natural gas cooking line.
• Restaurant kitchens with space and bench support for a 1200 mm-wide, 152 kg griddle.
• Operators wanting four burners, a thick mild steel plate and front grease collection.

• Kitchens using LPG: compare the Gasmax GG-48LPG four-burner LPG griddle.
• Kitchens needing a narrower natural gas griddle: compare the two-burner GG-24, which measures 610 mm wide.

Start with the gas supply and available bench space. The GG-48 uses natural gas and measures 1200 × 824 × 546 mm; allow for the rear gas connection, installation clearances and access for cleaning.

Choose the four-burner format when it matches the way your team will use the griddle. If a narrower cooking appliance suits the menu and bench better, the GG-24 offers two burners in a 610 mm-wide body.

Compare the cooking surface material as well as the burner count. This model has a 22 mm mild steel plate with stainless steel construction, splash protection and grease collection around it.

• Four steel U-shaped burners, each rated at 30 MJ/h.
• 22 mm heavy-duty mild steel cooking plate.
• Front grease channel and stainless steel oil collector.
• Flame-failure protection, brass control valves and adjustable heavy-duty legs.

• The 1200 mm width and 824 mm depth require substantial bench space.
• At 152 kg net weight, bench support and handling need planning.
• The natural gas configuration requires a suitable gas supply and licensed installation.

• Gasmax GG-48LPG 4-Burner LPG Griddle: The Gasmax GG-48LPG offers a four-burner LPG configuration, while the GG-48 uses natural gas.
• Gasmax GG-24 Two burner NG Griddle Top – 610 × 824 × 546 mm: The Gasmax GG-24 has two natural gas burners and a 610 × 824 × 546 mm body, compared with four burners and a 1200 × 824 × 546 mm body for the GG-48.

• Bench space and support. The body measures 1200 × 824 × 546 mm and weighs 152 kg net. Check the bench support, access route and installation clearances before positioning it.
• Natural gas connection. Plan for a total gas input of 120 MJ/h and a 3/4-inch rear gas connection. Have a licensed gas installer assess the supply, connection, ventilation and commissioning requirements.
• Gas conversion. The design allows gas conversion in the field; arrange conversion through a licensed gas installer. The LPG model or option kit is not offered in New Zealand.
• Packed dimensions. Packing dimensions are 1335 × 890 × 520 mm. Use these separately from the body dimensions when planning the access route.
• Routine care. Allow access to the front grease channel and bottom oil collector for cleaning. Follow the operating instructions and site procedures for commissioning, cleaning and maintenance.

For body dimensions, see Key Specifications above.
