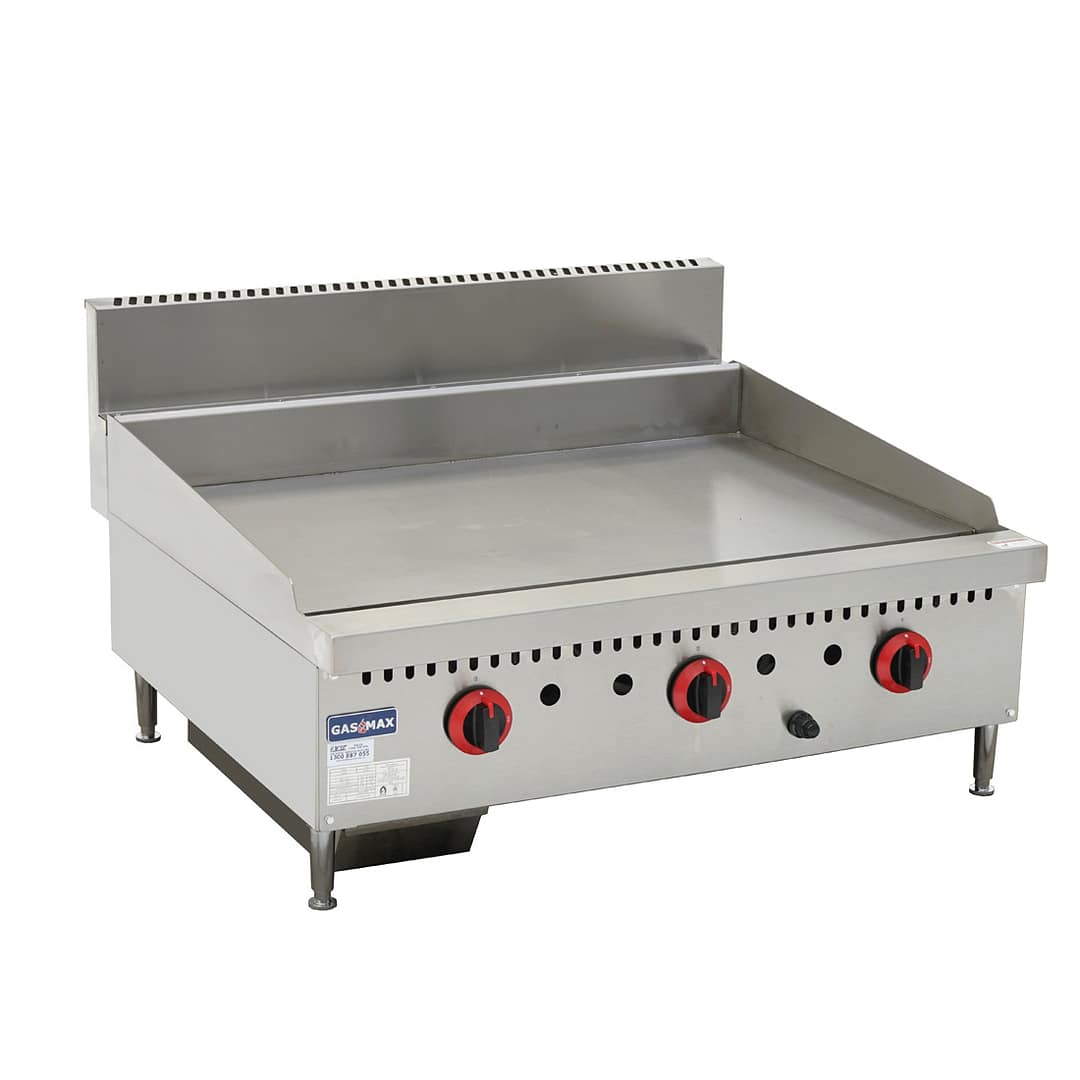

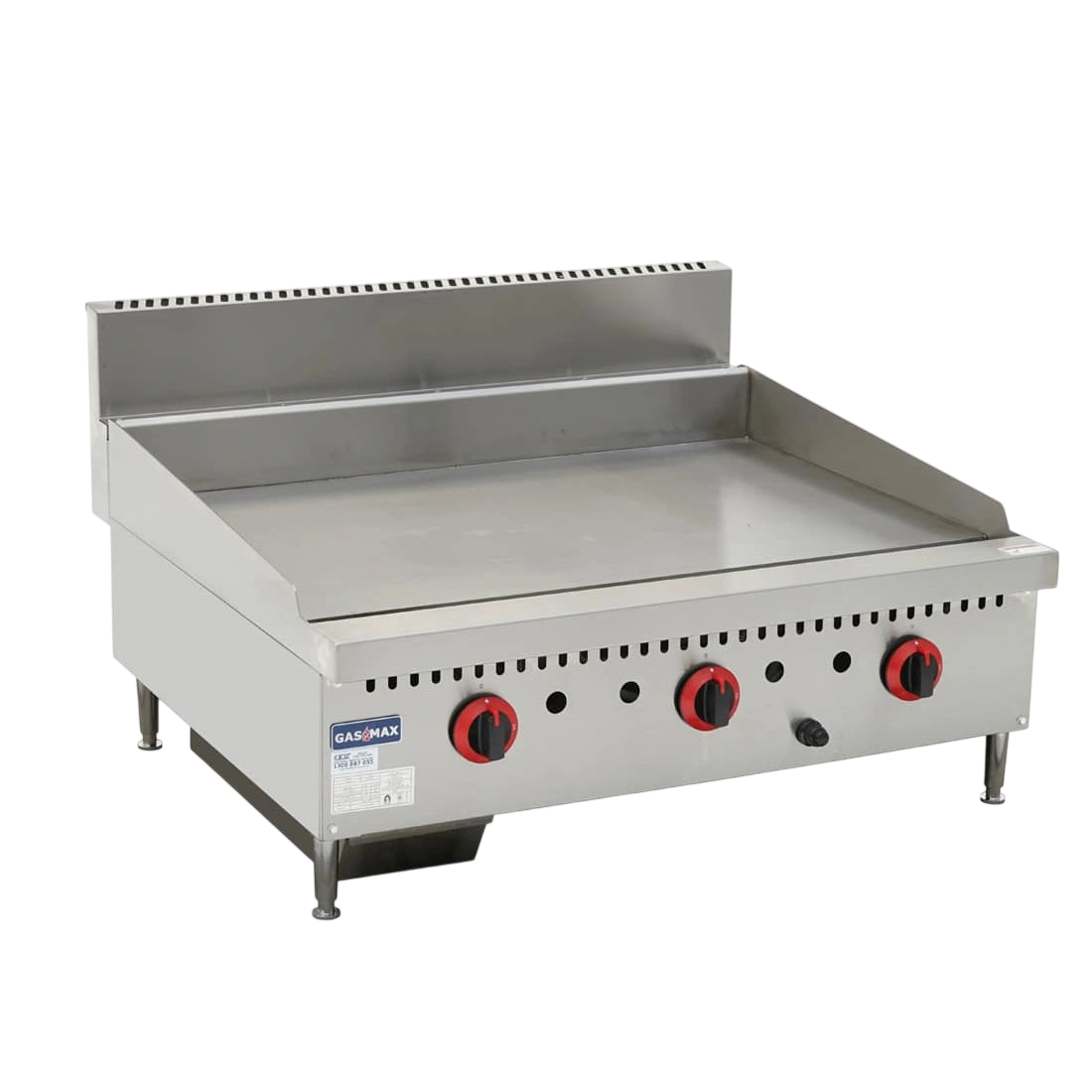

Gasmax GG-36LPG 3-Burner LPG Griddle

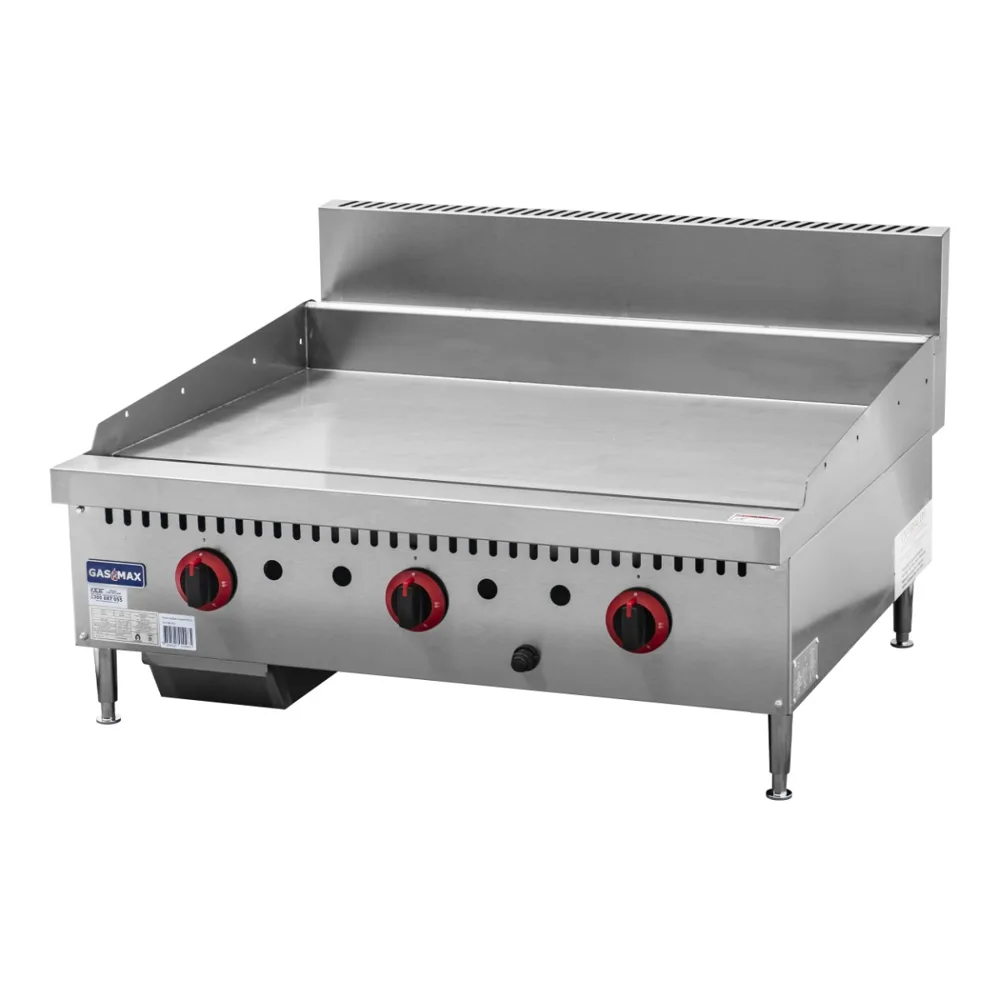

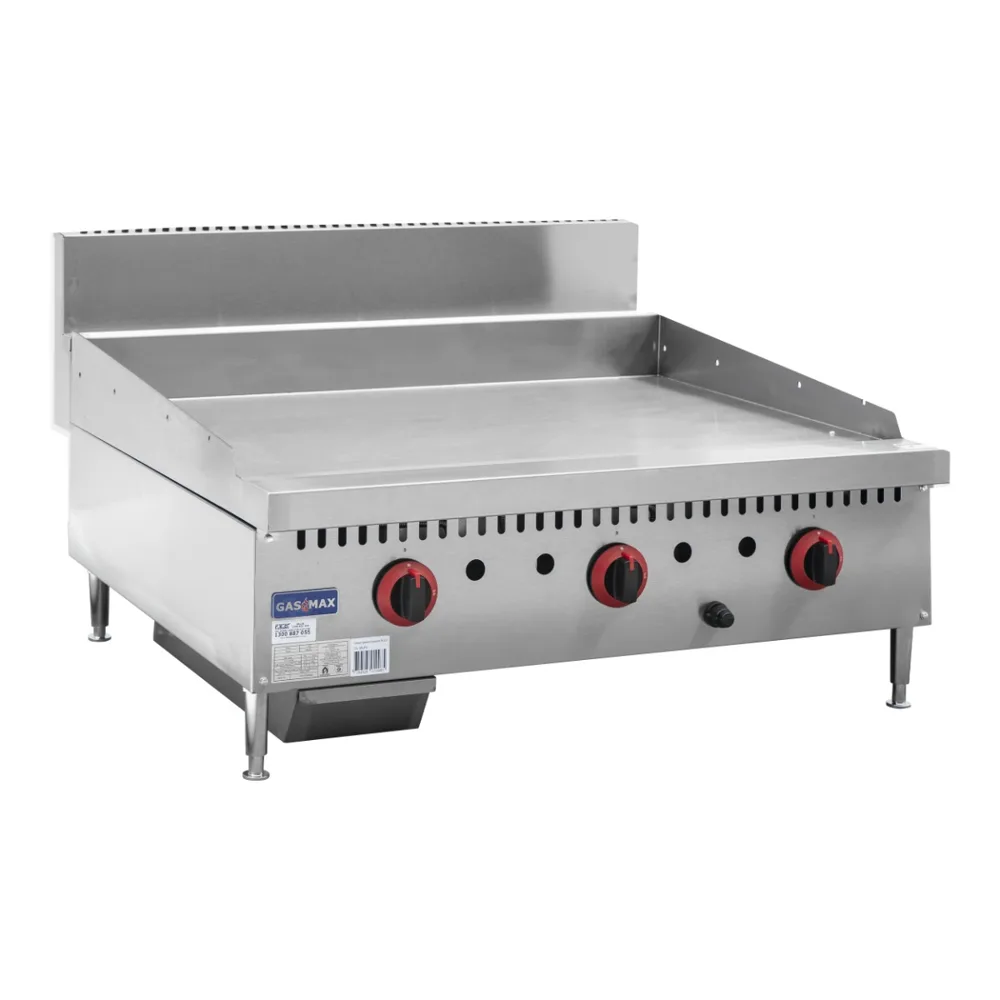

The Gasmax GG-36LPG is a three-burner LPG benchtop griddle for commercial cooking lines. Its 22 mm mild-steel plate provides direct-contact cooking across separately controlled heat zones.

Consider the GG-36LPG for a cooking line that uses LPG and needs separate heat settings across one flat plate. Three burner controls let the operator adjust different zones, while the front grease channel and lower oil collector provide a defined path for cooking residue.

• LPG cooking lines needing three separately controlled griddle zones.
• Kitchens preparing different foods on a flat, direct-contact cooking surface.
• Benchtop installations with space and support for a 900 mm-wide, 110 kg appliance.

• For a natural-gas installation, compare the Gasmax GG-36 three-burner NG griddle.
• For four LPG burners rather than three, compare the Gasmax GG-48LPG.

Start with the fuel supply: this is the LPG model. Choose the GG-36 natural-gas model for an NG installation, and have an authorised technician check the connection and supply requirements.

Choose three separately controlled burners when you want different heat settings across the plate. Compare the four-burner GG-48LPG if another LPG burner is more useful for your cooking layout.

Plan around the complete appliance dimensions of 900 × 824 × 546 mm, its 110 kg net weight and access to the rear gas connection. Allow for installation clearances, extraction and cleaning access as well as the body itself.

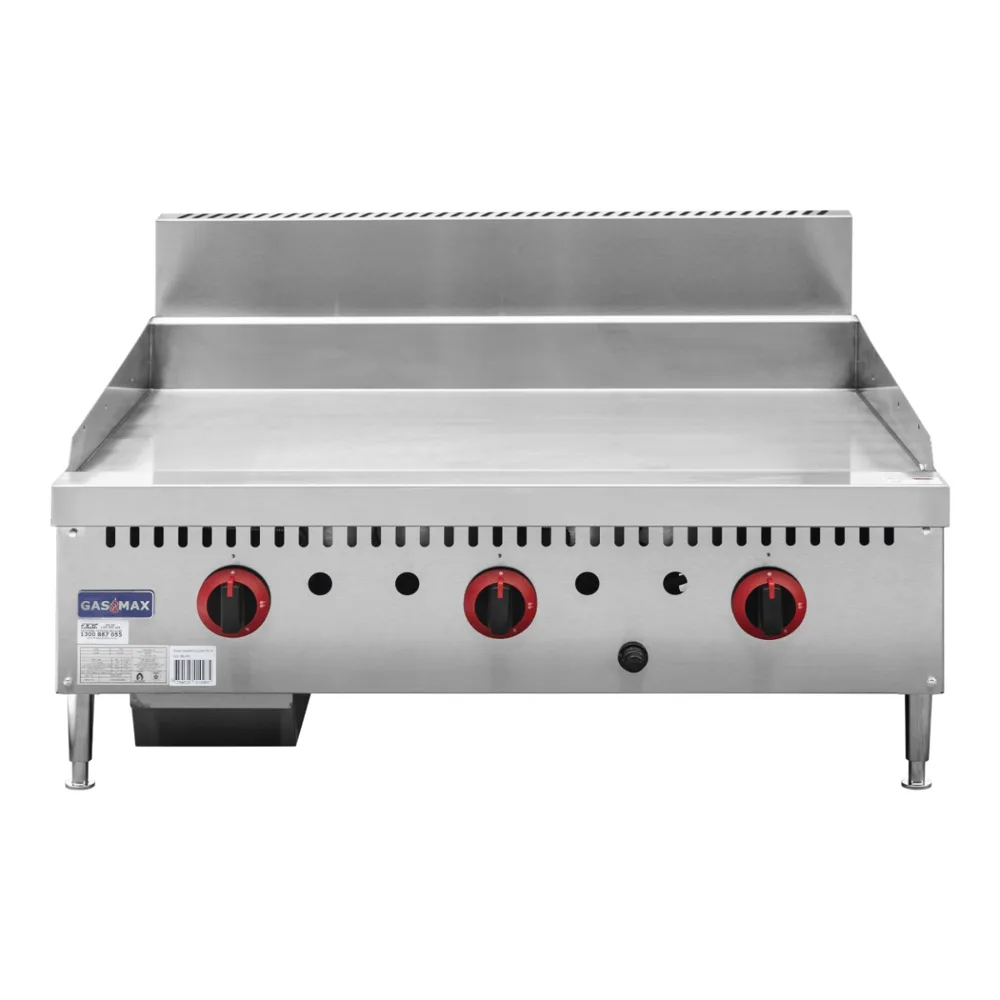

• Three separate burner controls allow different heat settings across one plate.
• 22 mm mild-steel cooking plate with stainless-steel body construction.

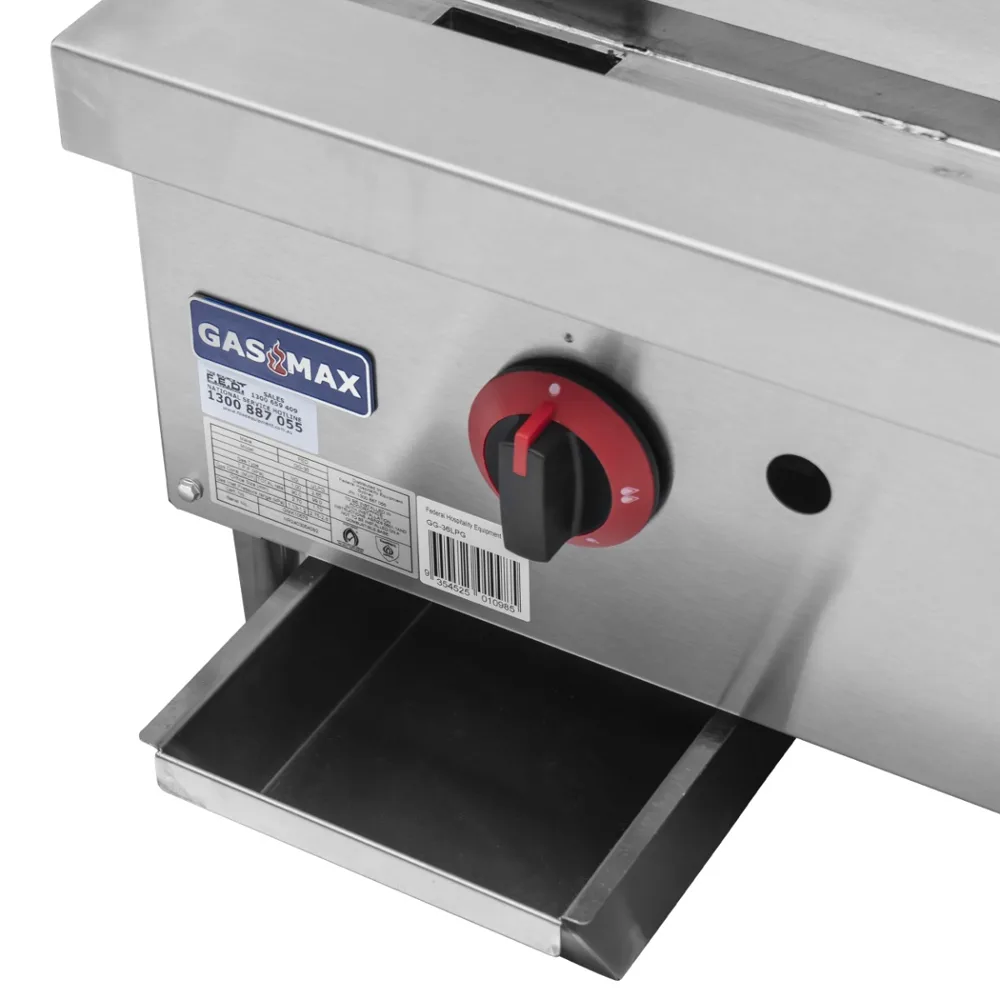

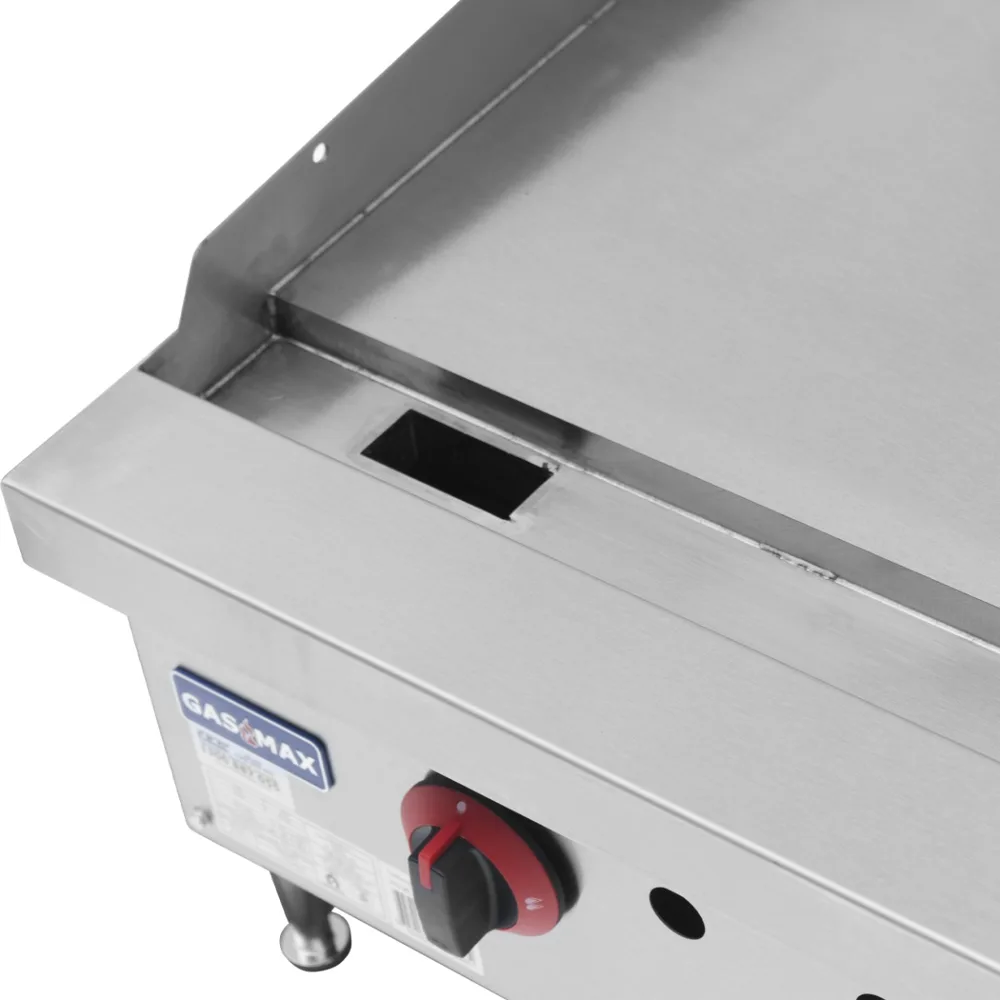

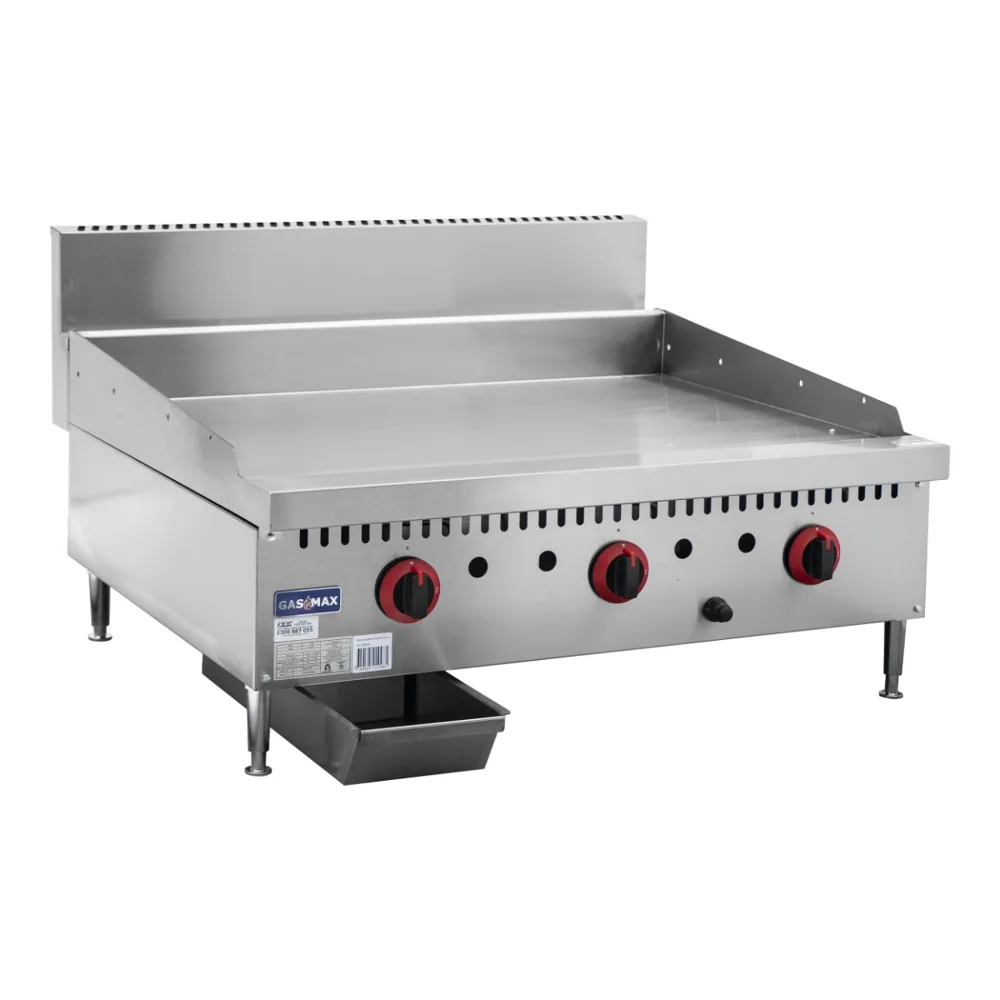

• Front grease channel, lower oil collector and three-sided splash protection support routine clean-down.
• Flame-failure protection and adjustable heavy-duty legs.

• The 110 kg appliance needs suitable bench support and handling arrangements.
• Its 900 × 824 mm body footprint needs space beyond the cooking surface itself.
• The mild-steel plate, grease channel and collector require routine cleaning and care.
• LPG installation and any gas conversion require an authorised technician.

• Gasmax GG-48LPG 4-Burner LPG Griddle: The Gasmax GG-48LPG has four LPG burners, compared with the GG-36LPG's three.
• Gasmax GG-36 Three burner NG Griddle Top – 900 × 824 × 546 mm: The Gasmax GG-36 uses natural gas rather than LPG and has three burners with the same listed 900 × 824 × 546 mm body dimensions.

• Bench space and support. The body measures 900 × 824 × 546 mm (W × D × H) and weighs 110 kg net. Provide suitable support, adjust the heavy-duty legs and allow access for cleaning and servicing.
• Gas connection and commissioning. An authorised technician must install and commission the griddle using its rear 3/4-inch gas connection. Each of the three U-shaped steel burners is rated at 30 MJ/h. Check LPG supply capacity for the 99 MJ/h total input, the regulator, ventilation, clearances and extraction before connection.
• Gas conversion and market. Field gas conversion is supported and must be carried out by an authorised technician. The LPG model and option kit are excluded from New Zealand supply.
• After-service care. Scrape and clean the plate, front grease channel and stainless-steel oil collector after service, following the manufacturer's guidance for the mild-steel surface. Check that the grease path remains clear during routine cleaning and servicing.

For body dimensions, see Key Specifications above.
