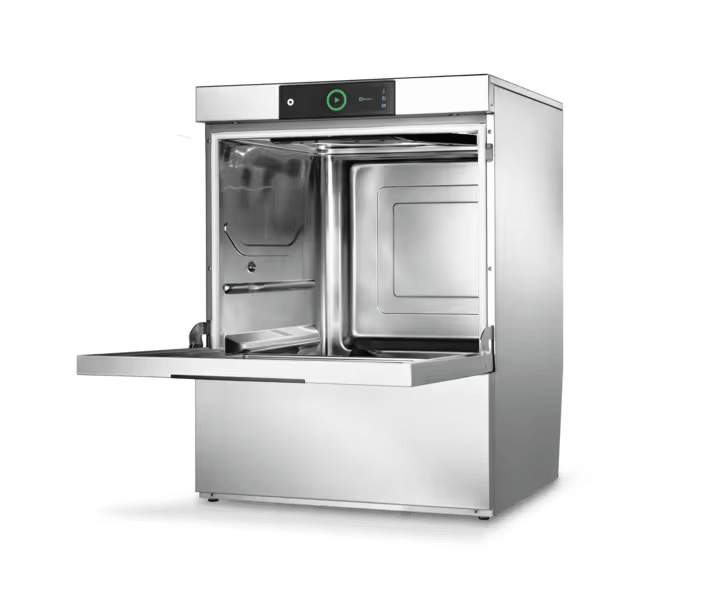

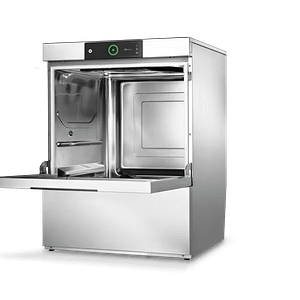

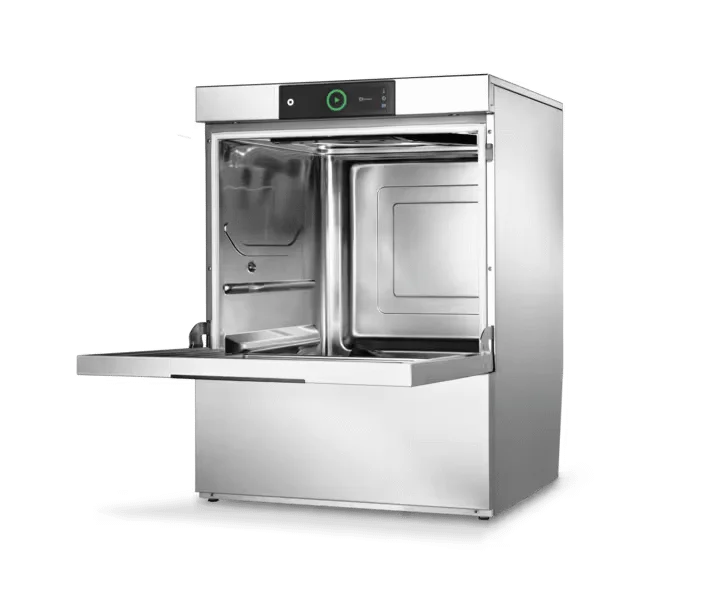

Hobart FXL-90C Large-Chamber Undercounter Dishwasher – XL Tray Capacity
Updated:
At KW Commercial Kitchen, we supply the Hobart FXL-90C, a large-chamber undercounter dishwasher built to wash 600×400 mm trays, racks and utensils alongside plates and glassware. With 4 cycles (90/180/360s + Basic Clean), 1.8 L/rack water use and 425 mm loading height, it delivers fast, hygienic results in a compact footprint — ideal for bakeries, butchers, cafés and fast-casual venues.
Built for Australian high-throughput kitchens
The FXL-90C combines an XL wash chamber for trays, VISIOTRONIC-Touch control, GENIUS-X² fine-filter (reduces detergent use by up to 35%), and SENSO-ACTIVE resource management to minimise rinse water — all with 59 dB(A) low-noise performance. Multi-setting power allows single-phase 240 V or 415 V three-phase connection on site.
Key features & specifications
- Cycles: 90 / 180 / 360 s (fill & dump) + Basic Clean 360 s.
- Water consumption: 1.8 L per rack.
- Tank: 10.6 L capacity | 0.8 kW heating.
- Power: 240 V/50 Hz/1-ph or 415 V/50 Hz/3-ph (switchable); booster 2.0 kW (std) or 6.1 kW (alt).
- Total connected load: 2.6 kW (std) or 6.7 kW (alt).
- Wash pump: 0.5 kW | 350 L/min circulation.
- Rack size: 500 × 500 mm | Loading height: 425 mm (fits 600×400 mm trays).
- Noise level: 59 dB(A) | Weight (gross/net): 70/60 kg.
- Compliance: WaterMark approved; Thermolabel 71 °C mode.
Compliance & safety (AU)
- Electrical: RCM compliant; Thermostop ensures required temperatures on 240 V cold-water feed (cycle time extends accordingly).
- Plumbing: For machine protection, hardness ≤ 3 °dH; use integrated or HYDROLINE softener above this level.
- Finish: Stainless-steel tank, frame, rinse arms and panels (1.4301).
Convenience & usage advice
- 2-in-1 double-rack option: Wash two racks in a single cycle to double rack throughput when needed.
- Filtration & hygiene: GENIUS-X² fine filter plus Hygiene programme remove deposits and scale.
- Smart service: SmartConnect Wi-Fi, USB data download, and intelligent data logging for HACCP and cost control.
Ideal applications
- Bakeries & patisseries (600×400 mm trays)

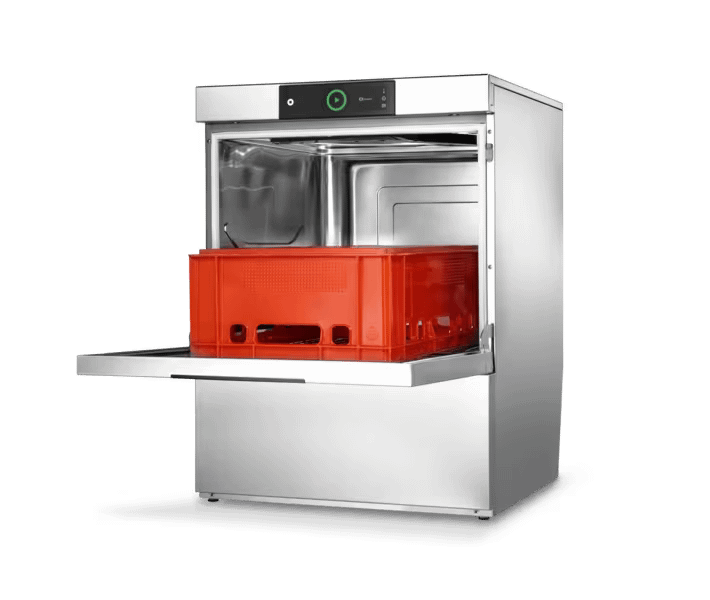

- Butchers & delis (meat trays & utensils)
- Cafés, QSR & snack bars with mixed ware

At a glance

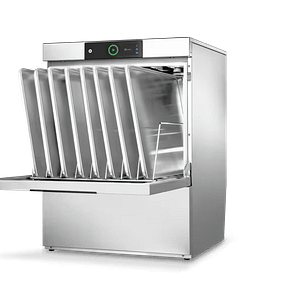

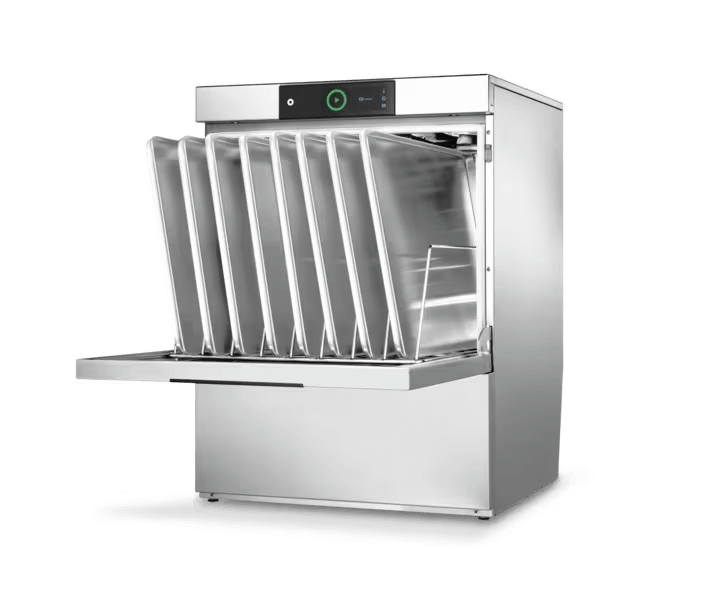

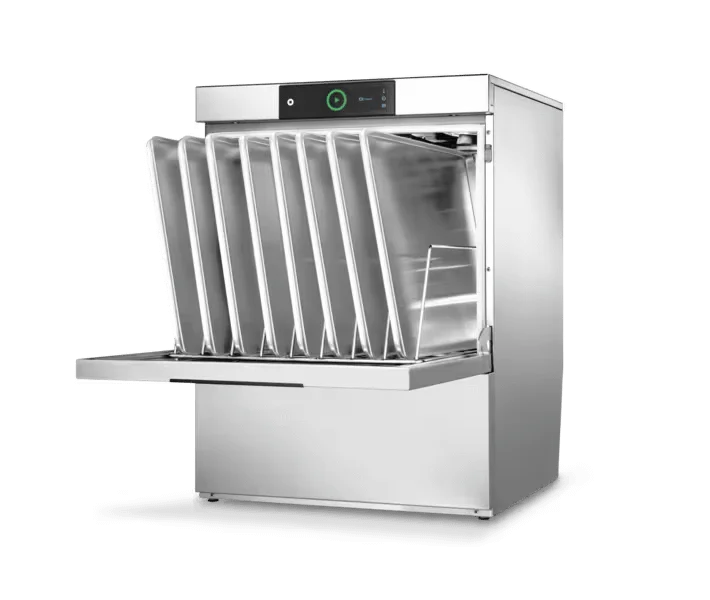

- XL chamber fits 600×400 mm trays | 425 mm loading height.
- 1.8 L per cycle | 59 dB(A) quiet operation.
- 2.6 kW std (6.7 kW alt) | 240 V or 415 V.
- WaterMark approved | GENIUS-X² filtration.
Frequently Asked Questions
1) Can it double throughput during peaks?
Yes — the optional 2-in-1 double-rack system washes two racks per cycle, optimising the full chamber volume.
2) What power do I need?
Standard single-phase 240 V (2.6 kW) or three-phase 415 V alternative (6.7 kW) via on-site multi-setting.
3) How do I minimise spotting on glassware?
Use demineralisation (PURITY / PURITY EXTRA) or HYDROLINE PURE reverse osmosis for polish-free results, as recommended by Hobart.
4) Is it quiet enough for front-of-house?
Yes — typical noise is just 59 dB(A), suitable for bar or servery install.
5) What’s included for installation?
Fill/drain hose, 240 V plug & lead, detergent & rinse-aid dispensers, rinse pump, drain pump and back-flow preventer.
Running Cost (estimate)
