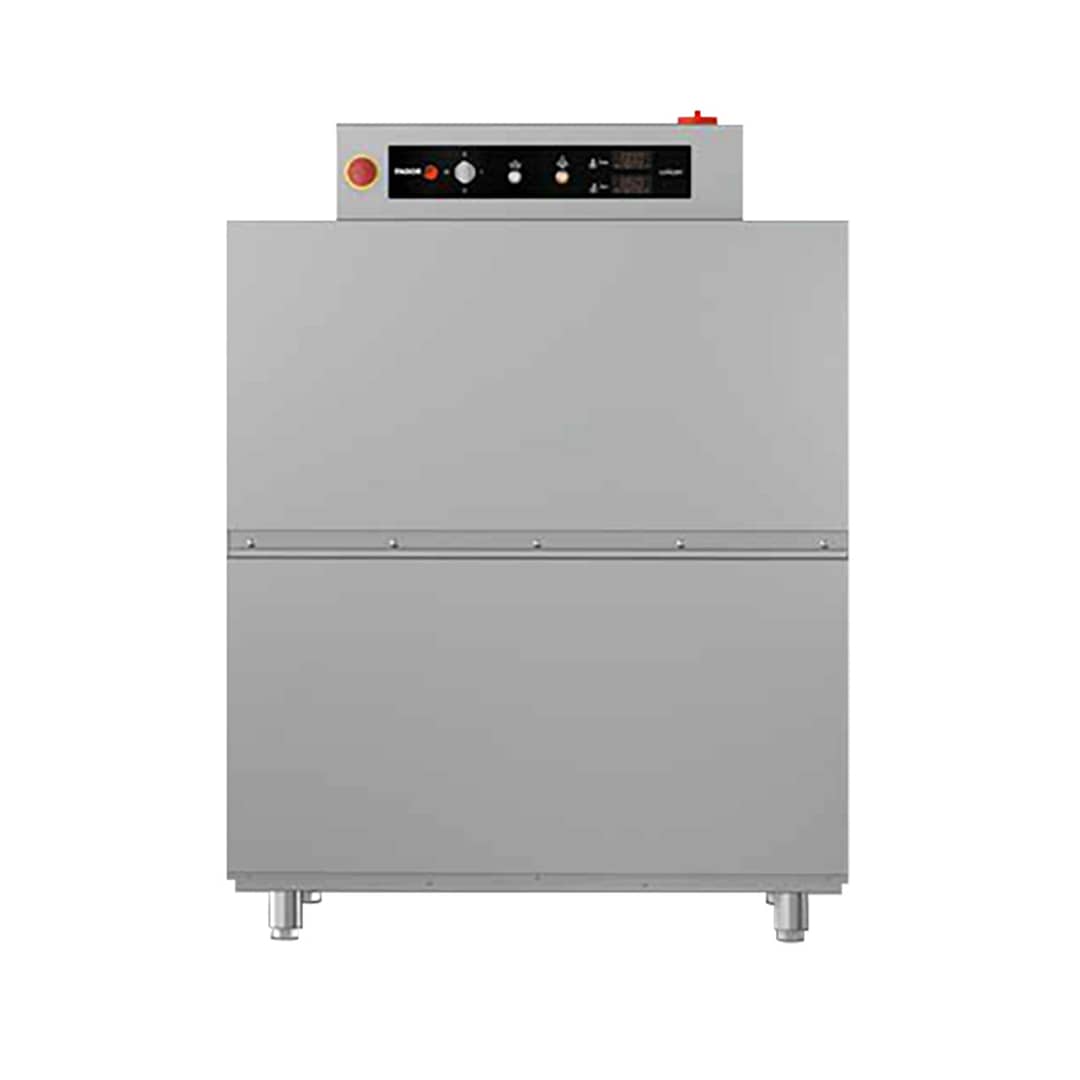

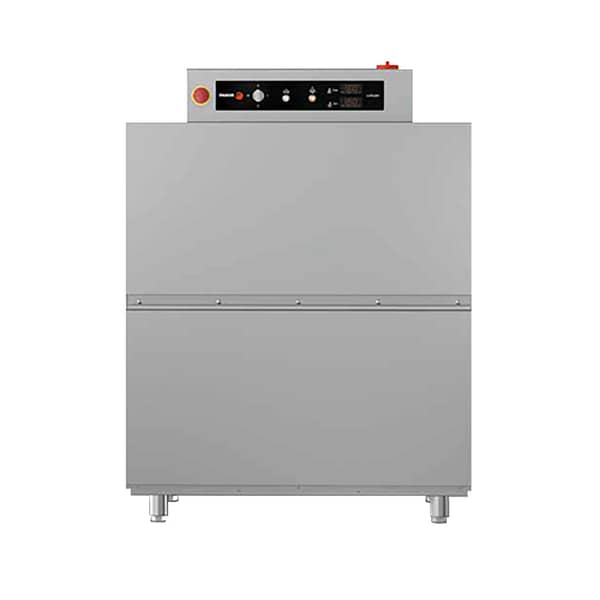

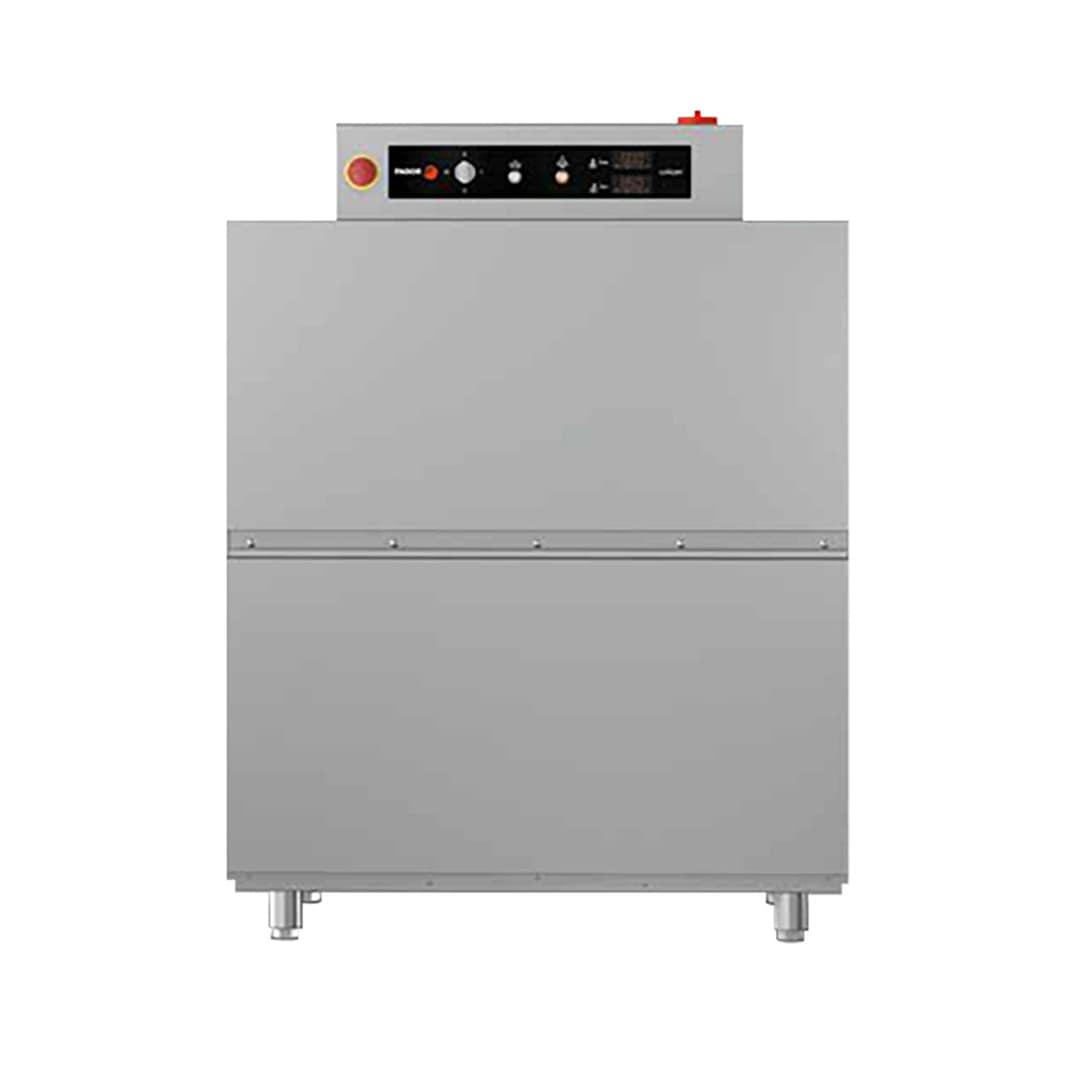

Fagor CCO-120DCW Electric Conveyor Dishwasher – Compact 1180mm Rack System
Updated:
At KW Commercial Kitchen, we supply the Fagor CCO-120DCW, a compact conveyor dishwasher engineered for high-volume sites. With 1180mm width and 28.5kW power, it features stainless AISI-304 construction, removable wash arms, and energy-saving auto-standby. Ideal for restaurants, hotels, hospitals and schools needing reliable throughput and hygiene.
Built for Australian restaurants, hotels & institutions
The CCO-120DCW pairs 8 high-power wash branches (4 upper, 4 lower), double-effect rinse, and a blockage-detection safety system with auto reverse. Its electronic speed control and temperature regulation ensure consistent 85°C sanitising rinses.
Why this model (quick differentiators)
- Compact conveyor format – only 1180mm wide, perfect for tighter kitchens.
- Electronic regulation of wash/rinse temps (50–65°C / 70–85°C) with guarantee at 85°C.
- Auto shut-off and rinse-saver reduce water and energy consumption.
- Open-door block + IPX4 ingress protection for operator safety.
- Delivered with 6 baskets: plates, glasses, cutlery, and bases included.
Key features & specifications
- Dimensions (W×D×H): 1180 × 790 × 1560 mm
- Net weight: 211 kg
- Power: 28.55 kW; heating 27 kW; 400V 3N 50Hz; 46.9 A
- Water: Max consumption 210 L/h; 200–400 kPa pressure
- Construction: All AISI-304 stainless steel (tanks, arms, doors, boiler)
- Ingress rating: IPX4 protection
- Accessories included: 2 base baskets, 2 plate baskets, 1 glass basket, 1 cutlery basket
- Warranty: 2 years parts & labour
Compliance & safety (AU)
- Electrical: RCM compliant; connect to dedicated 3-phase circuit.
- Watermark approved for plumbing compliance in Australia.
- Food safety: FSANZ-aligned sanitising (rinse at 85°C guaranteed).
Convenience & usage advice
- Basket loading: GN-compatible racks included; load plates, glasses, and cutlery with correct basket type.
- Daily clean: Remove wash arms and rinse jets; clean filters; wipe stainless interior with neutral detergent.
Ideal applications
- Restaurants and hotels needing continuous dish throughput
- Hospitals, schools and aged-care kitchens requiring sanitised wash cycles
- High-volume catering facilities with limited floorspace
At a glance
- 1180×790×1560 mm compact conveyor dishwasher
- 8 wash arms + double-effect rinse, 85°C sanitising
- 28.5kW load; 400V 3N 50Hz
- Watermark approved; IPX4 safety rating
- 2-year parts & labour warranty
Frequently Asked Questions
1) How do I clean it daily without harming finishes?
Switch off power, remove wash arms and filters, clean with neutral detergent; avoid abrasives or chlorine; dry thoroughly.
2) What routine maintenance keeps performance stable?
Weekly: inspect rinse jets and filters; Monthly: check conveyor system; Quarterly: service technician inspection.
3) What are the electrical and water requirements?
400V 3N 50Hz, 28.55kW, 46.9 A; connect to cold water inlet <50°C at 200–400kPa; max 210 L/h usage.
4) What about installation and Australian compliance?
RCM compliant; Watermark approved for plumbing; FSANZ-aligned sanitising; install by licensed plumber & electrician.
5) Are spare parts and accessories available?
Yes—baskets, wash arms, rinse jets and filters are stocked; quote model number for ordering.
