Modular Systems SSBD7-1200L/A Left Inlet Single Sink Dishwasher Bench

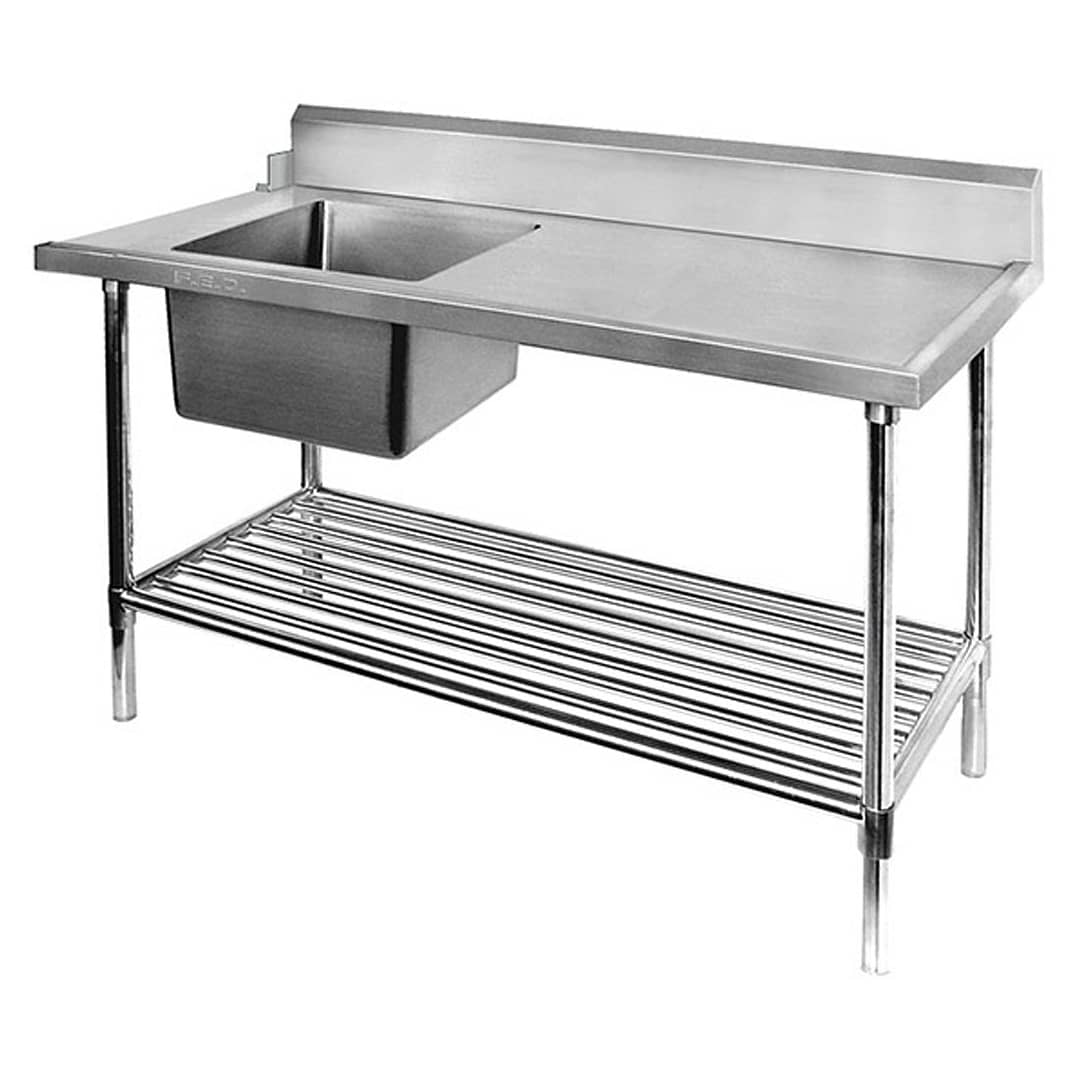

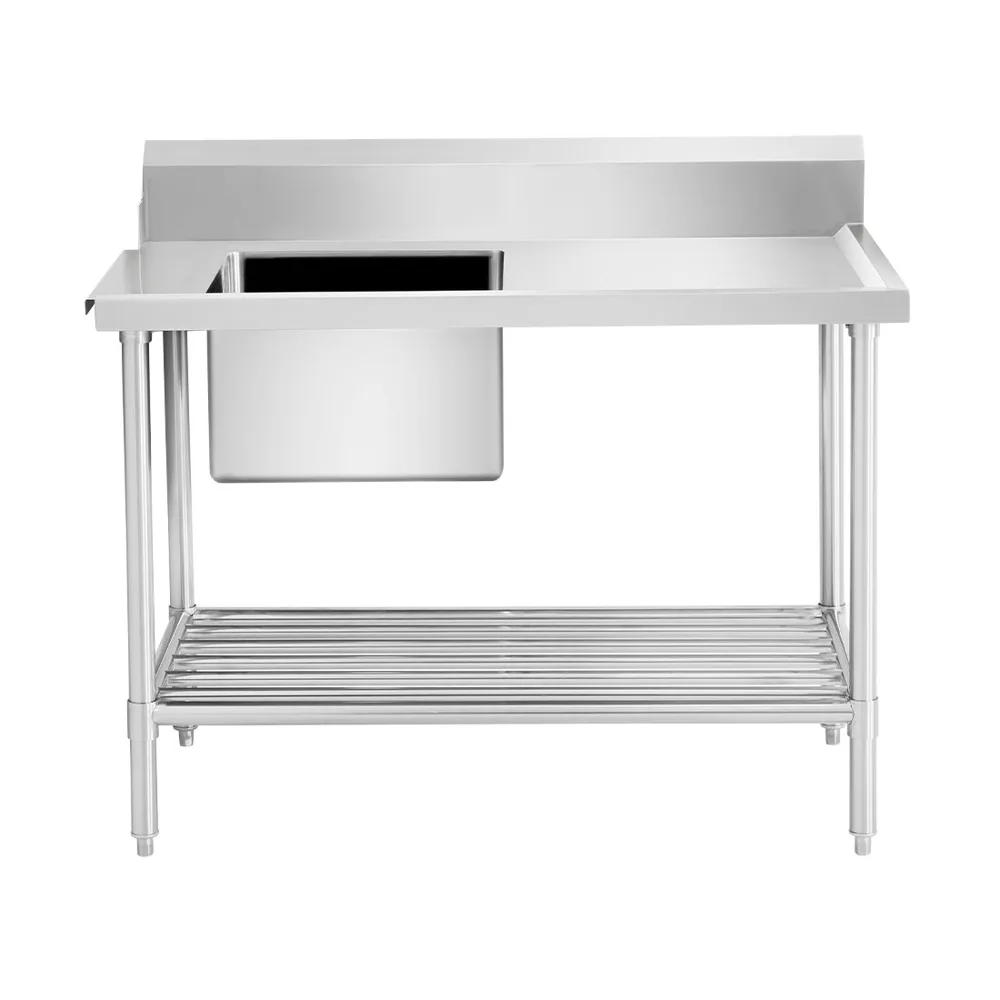

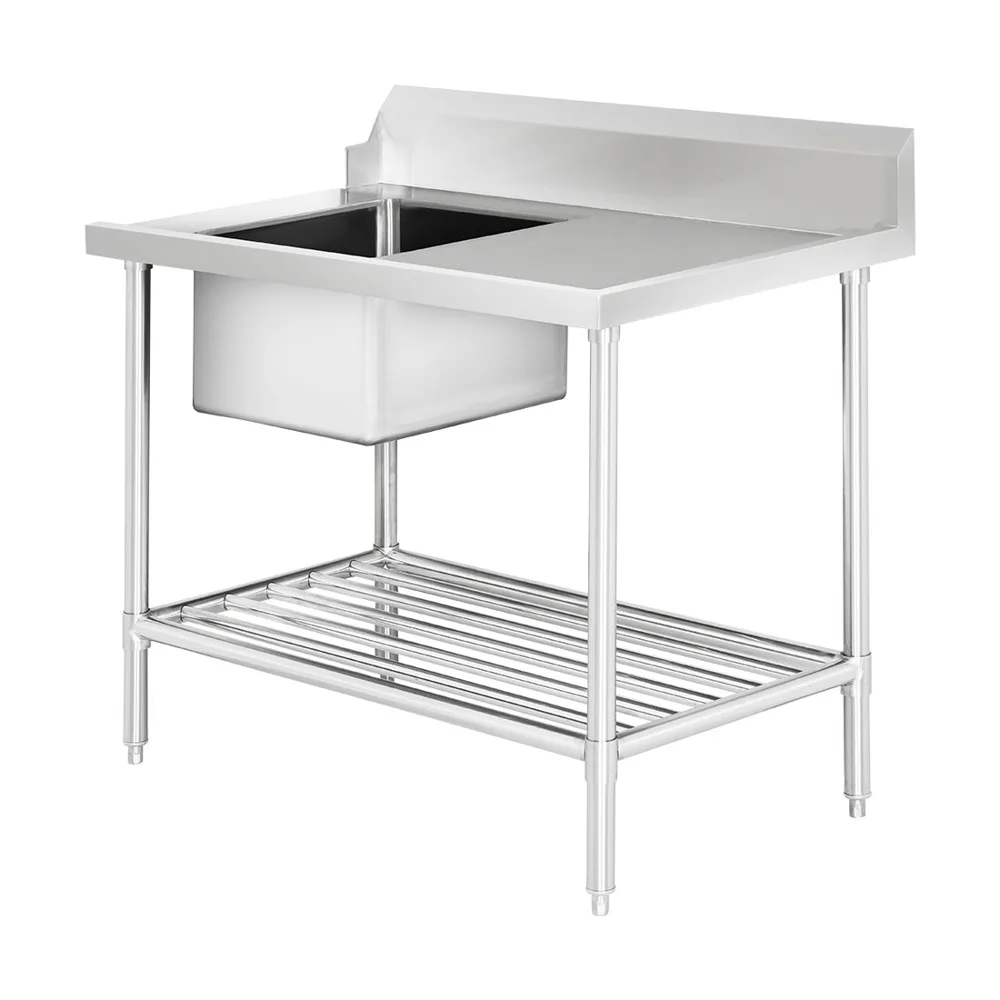

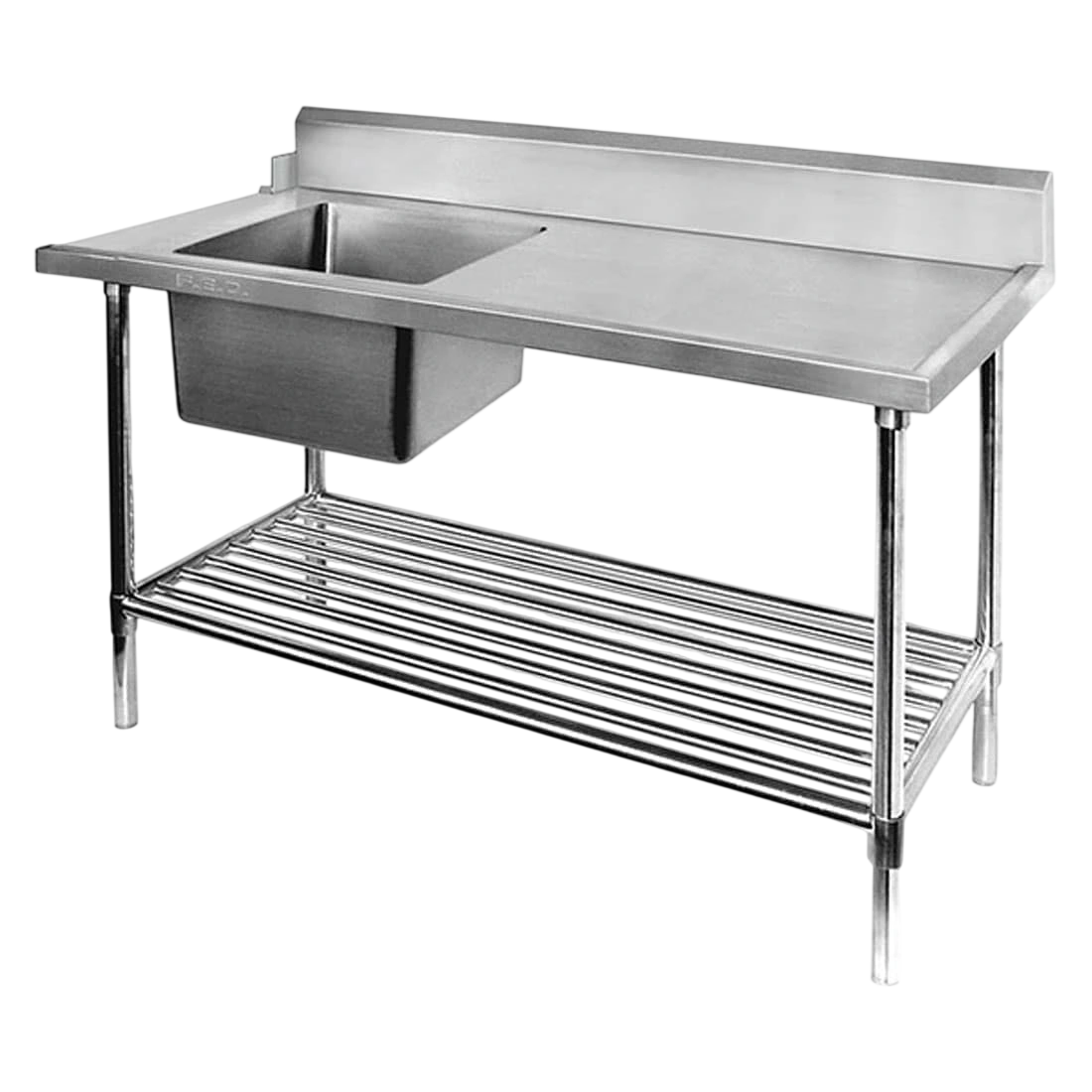

The Modular Systems SSBD7-1200L/A is a left-inlet single-sink dishwasher bench with a SUS304 stainless steel benchtop, wet edge and splashback. The bowl and dishwasher inlet are on your left when you face the bench; adjustable feet help level the installation.

The SSBD7-1200L/A suits commercial wash-up areas needing a single sink at a left-hand dishwasher inlet station. Its welded bowl, wet edge and enclosed splashback support wet-area work, while the reinforced benchtop provides a working surface beside the sink. Choose it after matching the left-hand arrangement to the dishwasher and the available plumbing and bench space.

• Commercial wash-up stations needing the sink and dishwasher inlet on the left when facing the bench.
• Kitchens wanting a single welded sink with a stainless steel work surface beside it.
• Fit-outs using adjustable feet to level a four-leg dishwasher bench.

• Wash-up layouts needing the inlet and sink on the right: choose the SSBD7-1200R/A right-inlet single-sink bench.
• Stations needing two sinks: consider the DSBD7-1800L/A left-inlet double-sink bench and check its fit.
• Sites needing a dishwasher itself: choose a commercial dishwasher and match its inlet arrangement to the bench.

Choose this model when the dishwasher inlet and sink need to sit on your left as you face the bench. Choose the SSBD7-1200R/A for the right-hand arrangement; make this choice against the planned dishwasher position before ordering.

Use the single bowl for a station needing one sink beside its working surface. If the workflow needs two bowls, compare the DSBD7-1800L/A double-sink layout and check the space it requires.

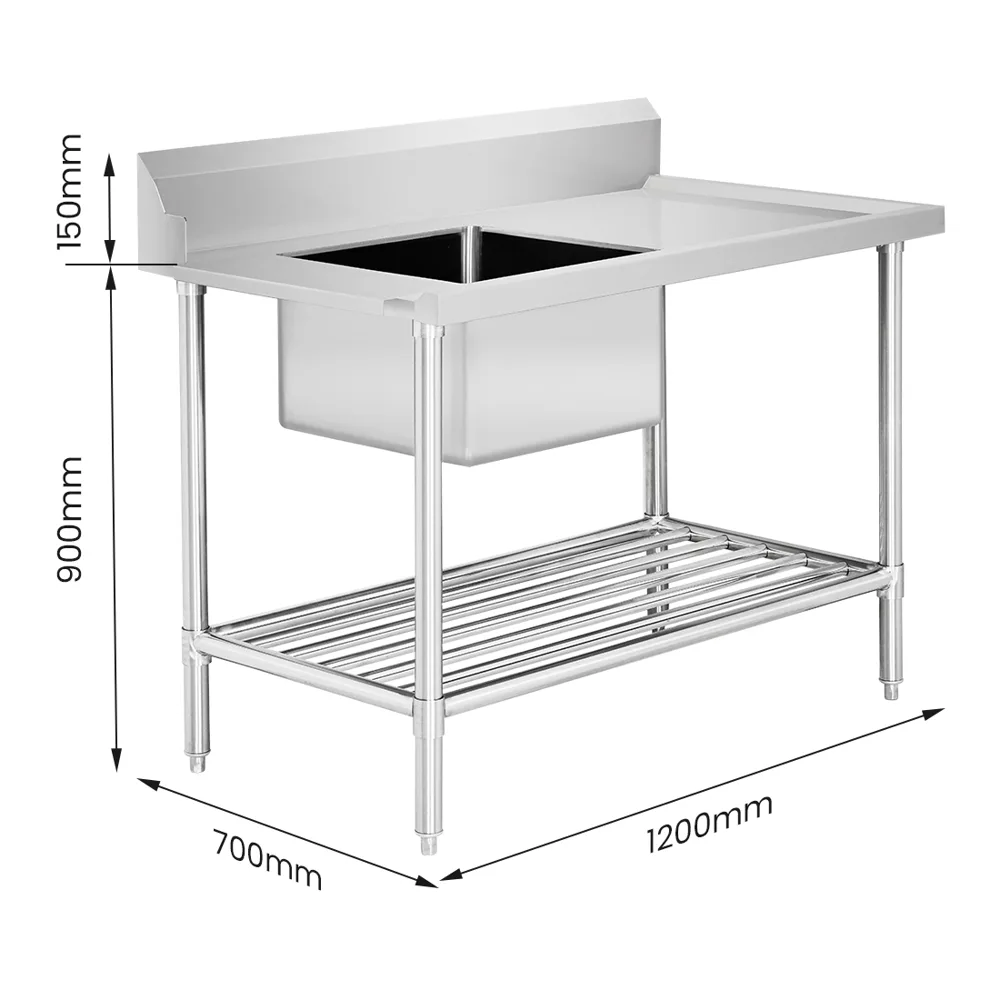

Check the dimensions in Key Specifications above against the installation space and access route. Also allow for the splashback, plumbing access and the dimensional tolerances during fit-out.

Compare the 450 × 450 × 300mm bowl and its 90mm drain hole with the ware and drainage arrangement you plan to use. Confirm the bench-to-dishwasher interface and services with your installer.

Use the adjustable feet for a level fixed installation. If you want to use the optional lockable castor kit, check the resulting working height, dishwasher alignment and plumbing arrangement before choosing it.

• Left-hand inlet and bowl orientation is defined from the front of the bench.
• Fully welded bowl polished inside and out.

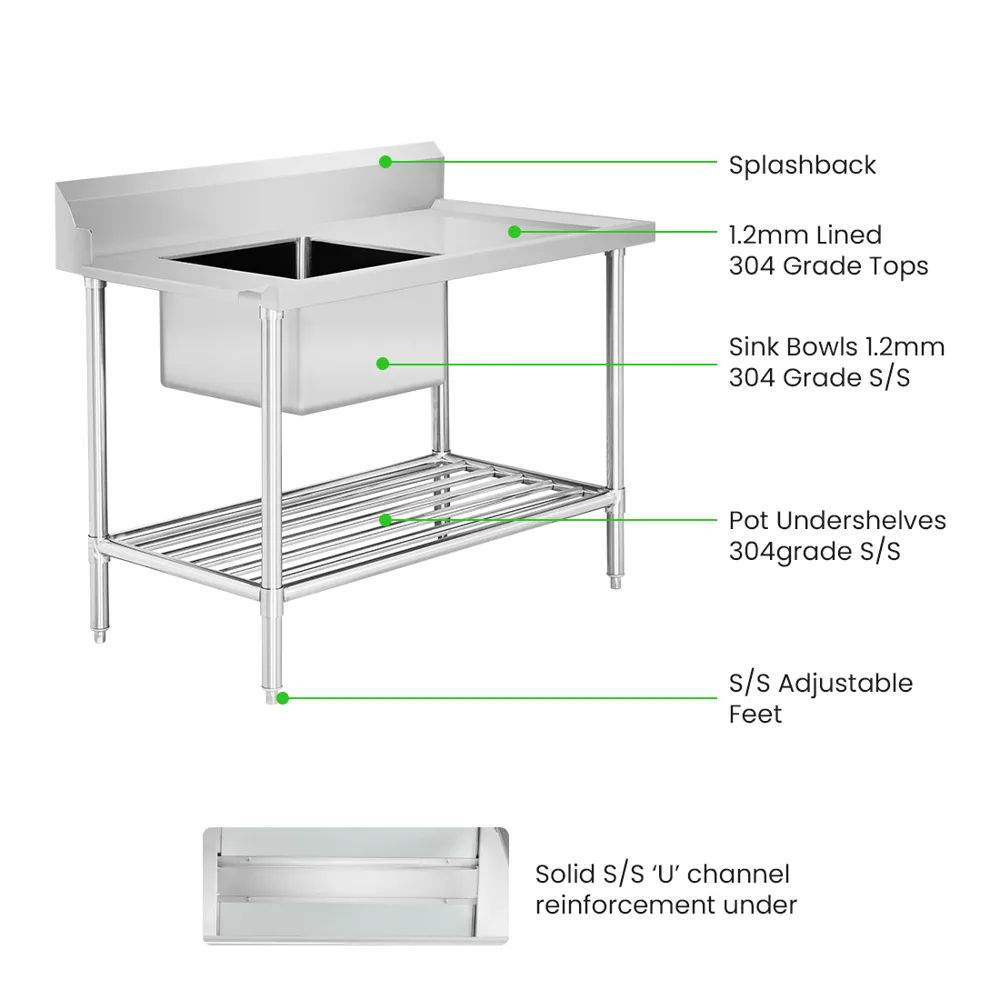

• 1.2mm SUS304 (18/8) benchtop with lining and U-channel reinforcement.

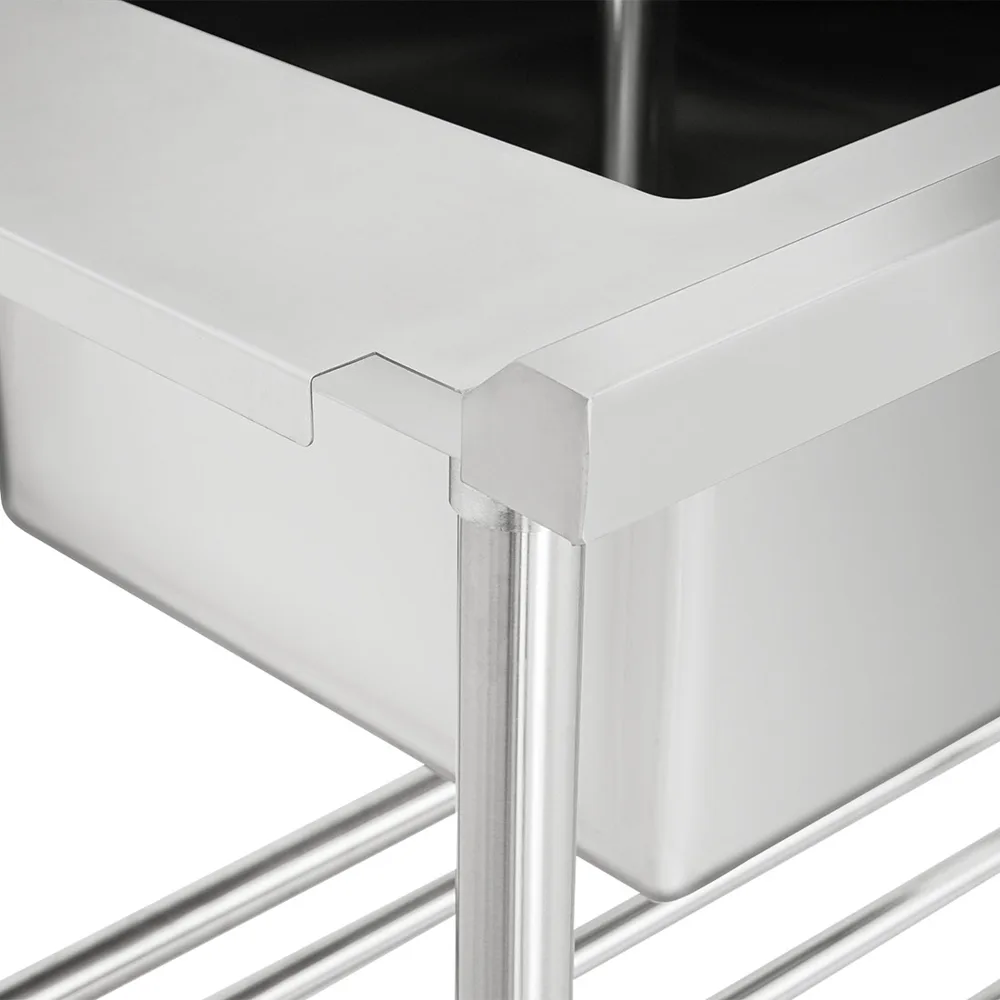

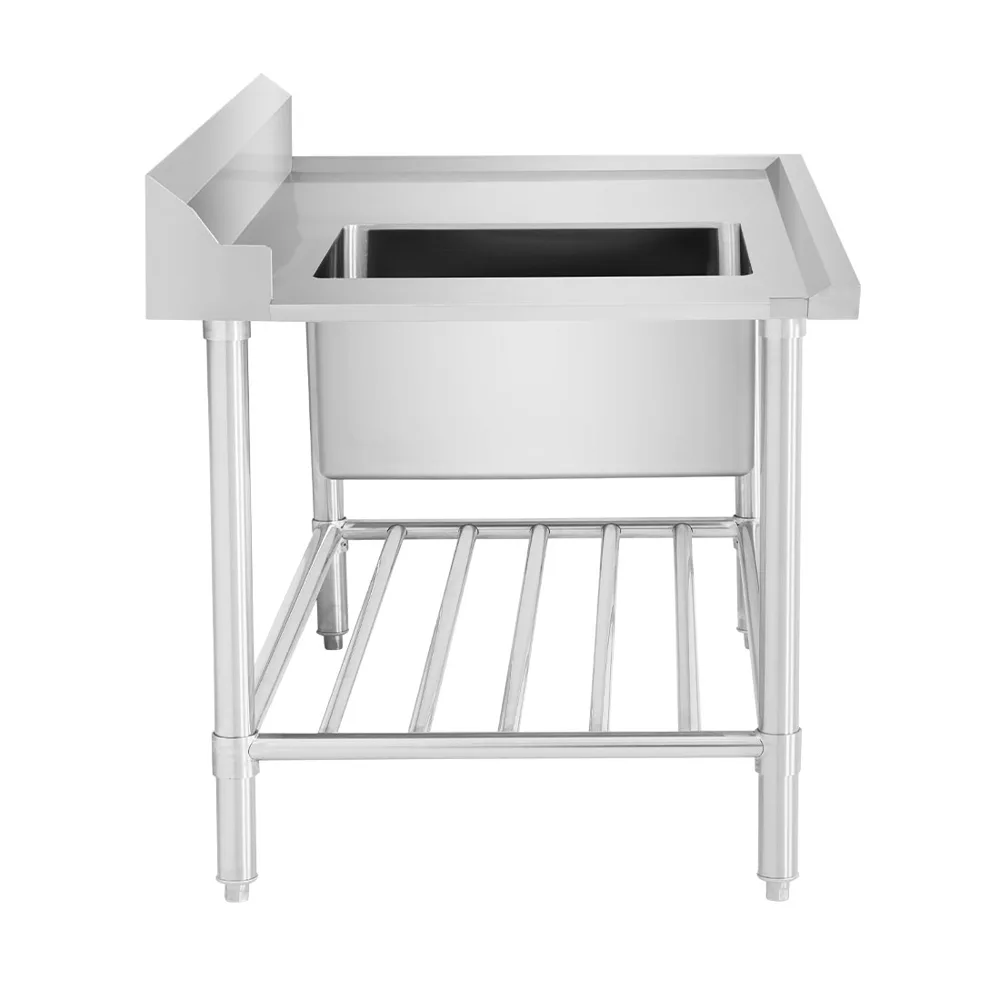

• Wet edge and fully enclosed, stainless steel backed splashback.
• Adjustable feet, with manual and tools supplied for assembly.

• The left-hand arrangement must match the dishwasher position and wash-up layout.
• A single bowl suits workflows needing one sink; two-sink stations need a different bench.
• Assembly, levelling and plumbing coordination are required before use.
• Lockable castors are an optional kit rather than part of the standard foot arrangement.

• Modular Systems SSBD7-1200R/A Right Inlet Single Sink Dishwasher Bench: The SSBD7-1200R/A is a right-inlet single-sink dishwasher bench; choose this SSBD7-1200L/A when you need the left-hand inlet and sink arrangement.
• Modular Systems DSBD7-1800L/A Left Inlet Double Sink Dishwasher Bench: The DSBD7-1800L/A is a left-inlet double-sink dishwasher bench; this SSBD7-1200L/A has a single sink.

• Confirm the handed layout. Face the planned bench position and check that a left-hand sink and dishwasher inlet suit the wash-up flow. Confirm the dishwasher interface and water and waste routing with the installer.
• Allow for installation space. Check the dimensions in Key Specifications above, access route and splashback clearance. Allow −5mm to +10mm dimensional tolerance when planning the installation.
• Assemble and level. Use the supplied instruction manual and tools to assemble the flat-packed bench. Adjust the polished disc feet to level it before the final plumbing and dishwasher alignment checks.

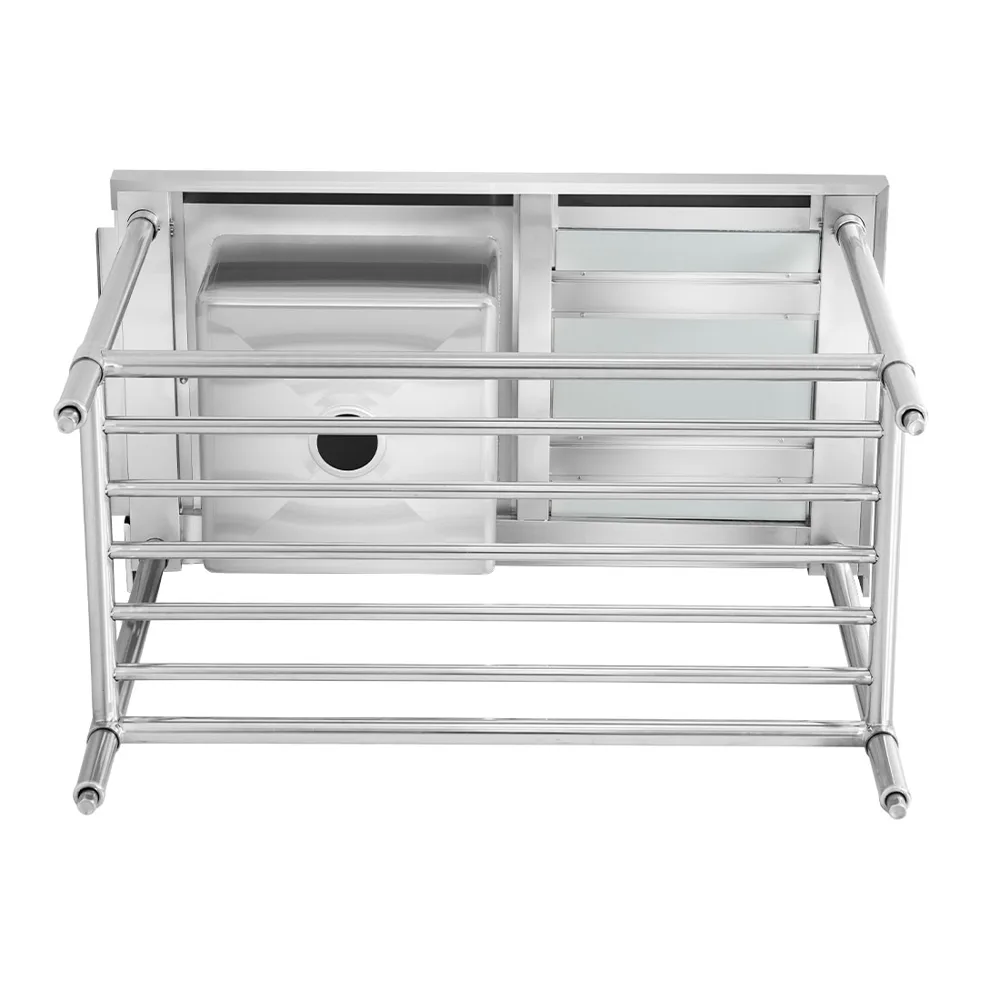

• Plan the drain connection. The bowl has a 90mm-diameter drain hole. Have the installer match the waste fittings and drain route to the site.
• Cleaning and maintenance. Follow the instruction manual and your site's wash-up-area cleaning procedures for the benchtop, bowl and splashback. Keep the drain opening and access to the plumbing clear.

For body dimensions, see Key Specifications above.
