Modular Systems FED DSBD7-1500R/A Double-Bowl Inlet Bench – 1500×700mm, Right Bowls

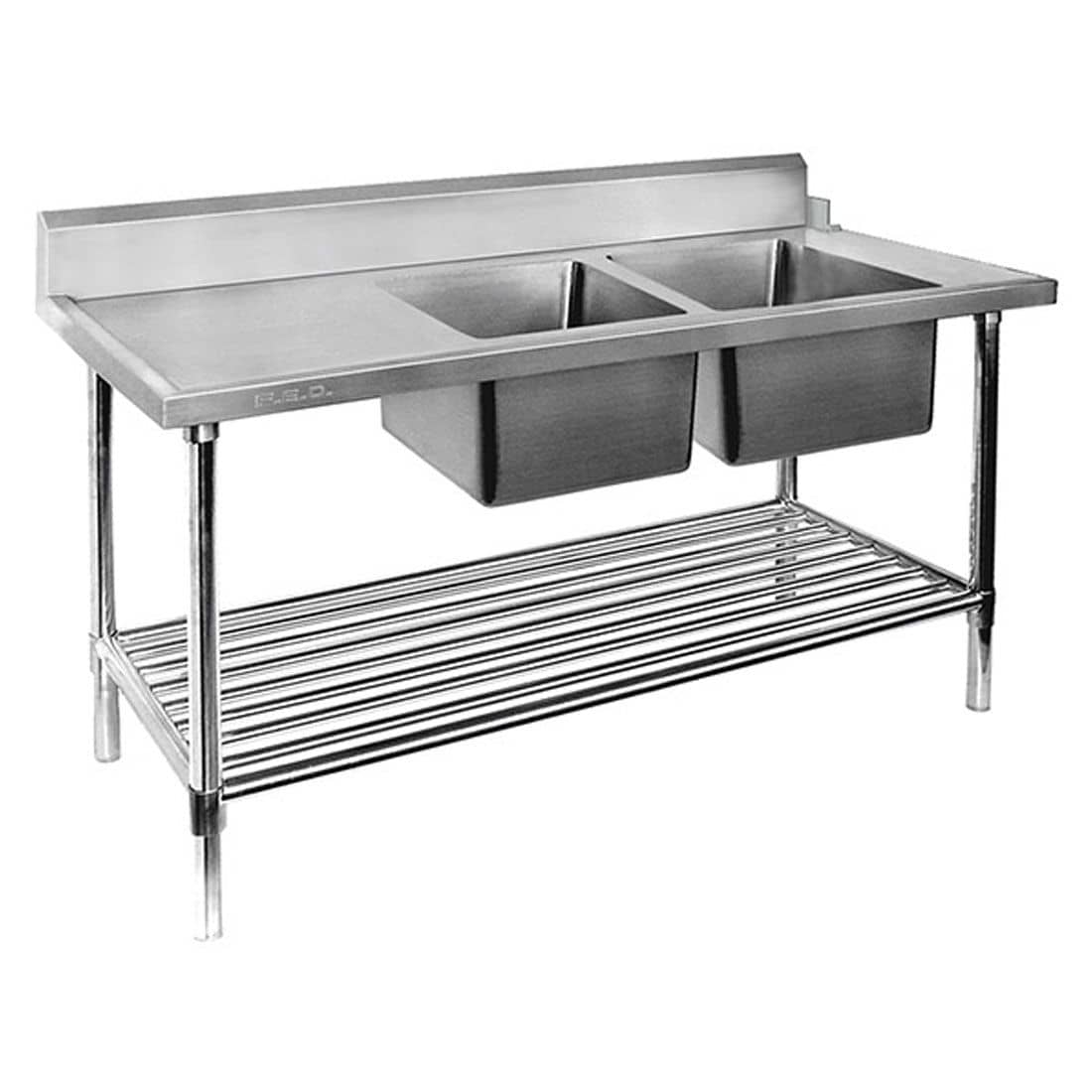

Modular Systems DSBD7-1500R/A is a right-inlet dishwasher bench with two welded sink bowls. Its stainless steel worktop, wet edge and enclosed splashback suit a coordinated wash-station layout.

For a dishwasher line that needs the sink bowls and inlet on the right when facing the bench. Match that orientation to the machine entry and wash sequence before ordering.

• Dishwasher lines requiring a right-hand inlet arrangement.
• Wash stations needing two bowls and a raised wet edge.

• Choose a left-inlet bench when the machine entry and sink arrangement require the opposite direction.

Resolve the inlet direction first. A right-inlet bench is appropriate only when the dishwasher and surrounding stations can be arranged for that orientation.

Check the two bowl sizes against the items washed at this station. Plan the water and waste positions with the installed machine.

Use the dimensions in Key Specifications above for access and placement, and allow room to work around the bowls and drainer.

• Right-inlet orientation with two welded bowls.
• Wet edge, enclosed splashback and adjustable stainless steel feet.

• The inlet direction must match the dishwasher line.
• Requires assembly and site plumbing.

• Kitchen Knock 622365 Double-Sink Dishwasher Inlet Bench – Left, 700mm, ASDD-1870L: 622365 is a double-sink dishwasher inlet bench with a left-hand layout, rather than the right-hand DSBD7-1500R/A arrangement.

• Assembly. Assemble the bench using the supplied instructions and tools. Adjust the disc feet to level it.
• Plumbing and machine layout. Confirm the right-hand inlet position, bowl drain connections and alignment with the dishwasher before commissioning the wash line.
• Care. Clean the welded bowls, wet edge and splashback. Check the adjustable feet and any optional castors as part of routine inspection.

For body dimensions, see Key Specifications above.
