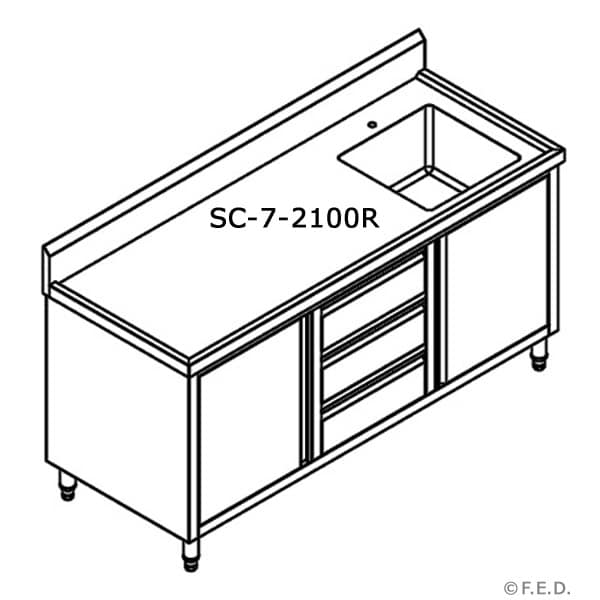

Modular Systems SC-7-2100R-H CABINET WITH RIGHT SINK

The Modular Systems SC-7-2100R-H is a stainless steel sink cabinet with a right-hand 450×450×300 mm bowl, doors and drawers. It is pre-assembled with welded joins, a 1.2 mm SUS304 top and frame, and a 150 mm splashback.

For commercial and open kitchens that want a right-hand sink alongside a work surface and enclosed storage. The punched bowl measures 450 mm wide, 450 mm deep and 300 mm high, with a Φ90 mm drain hole. Doors and drawers help organise supplies out of view; check the sink position and plumbing route against the intended workflow.

• Sink stations where a right-hand bowl matches the workflow and plumbing layout.
• Open kitchens wanting supplies stored behind doors and in drawers.
• Sites planning for a pre-assembled, welded stainless steel sink cabinet.

• For a left-hand sink layout, compare the SC-7-1800L-H.
• For double right-hand sinks, compare the DSC-1800R-H.

Choose the sink position first. Check how the right-hand bowl aligns with the work sequence, water supply and waste route; compare the SC-7-1800L-H if the workflow needs a left-hand sink.

Check the items you intend to wash against the 450 mm bowl width, 450 mm depth and 300 mm height. Have the installer match the waste arrangement to the Φ90 mm drain hole.

Plan stored supplies between the doors and drawers, leaving space in front to reach them. The top and frame are 1.2 mm SUS304 with a hairline finish, while the door and drawer material is 0.9 mm thick.

Use the dimensions in Key Specifications above to check the assembled route and final position, including the splashback. Arrange handling for the 105.6 kg cabinet, and compare the DSC-1800R-H if the job calls for double right-hand sinks.

• The right-hand bowl combines sink use with a work surface and enclosed storage.
• Doors and drawers help organise supplies in an open kitchen.
• The top and frame are 1.2 mm SUS304 stainless steel with a hairline finish.
• The cabinet is supplied pre-assembled with welded joins.

• The right-hand sink layout needs to match the workflow and plumbing position.
• The route and handling plan must accommodate a pre-assembled 105.6 kg cabinet.
• Door, drawer and plumbing access need space around the final installation.

• Modular Systems SC-7-1800L-H CABINET WITH LEFT SINK: The SC-7-1800L-H has a left-hand sink, while the SC-7-2100R-H has a right-hand sink.
• Modular Systems DSC-1800R-H TIDY CABINET WITH DOUBLE RIGHT SINKS: The DSC-1800R-H is a cabinet with double right-hand sinks, compared with this model's right-hand sink and 450×450×300 mm bowl.

• Route and handling. Check the assembled route and final location against the dimensions in Key Specifications above. Plan handling for the 105.6 kg cabinet and leave room for access to its doors and drawers.
• Plumbing layout. Have the installer check the right-hand bowl position, water-supply route and waste connection for the Φ90 mm drain hole. Keep access available for plumbing inspection and servicing.
• Wall and storage arrangement. Plan the wall position around the splashback and arrange stored supplies between the doors and drawers. Check that the workstation remains accessible during washing, storage and cleaning.
• Routine care. Include the bowl, worktop, splashback, doors and drawers in routine stainless steel cleaning. Follow the cabinet and plumbing-care instructions, and check drawer, door and drain operation during routine inspection.

For body dimensions, see Key Specifications above.
