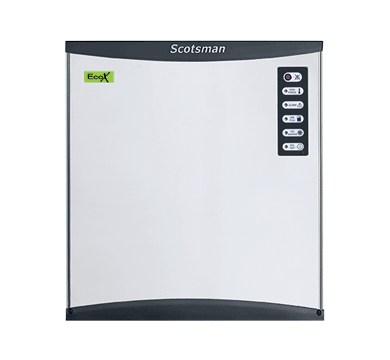

Scotsman NW 307 AS OX Modular Dice Ice Maker – 175kg Head Only

• Electrical: RCM compliant.
• Plumbing: WaterMark-aligned installation; follow local plumbing codes.
• Food safety: FSANZ-aligned ice handling; maintain sanitation per manual.

• Match the right bin: Use NB 193 or NB 393+cover for hygienic storage and peak service.
• Optimise airflow: Keep 100 mm rear and 400 mm top clearance for best production.

• Bars, pubs & cocktail lounges
• Restaurants, cafés & QSR
• Function venues & hotels

At a glance

• 175 kg/day dice ice (22×22×22 mm)
• EcoX R290 + XSafe sanitation
• 910 W input • 10 A plug
• 560 × 610 × 662 mm head-only

Use warm water with a pH-neutral cleaner; wipe stainless with a microfibre cloth; run one-touch clean as needed; sanitise bin per schedule.

Rinse the removable air filter weekly; descale/sanitise per water hardness; check inlet screen & drain; verify clearances.

230–240 V, 910 W, 10 A plug; cold water 5–38°C, 100–500 kPa; outlet Ø20 mm.

Install by a licensed electrician/plumber; maintain 100 mm rear & 400 mm top clearance; follow WaterMark/RCM and FSANZ food-area practice.

NB 193 (≈129 kg) or NB 393 with CBT 30-52 AMCD cover (≈181 kg) are recommended.

Specs source: Scotsman NW 307 AS OX datasheet (AU).
