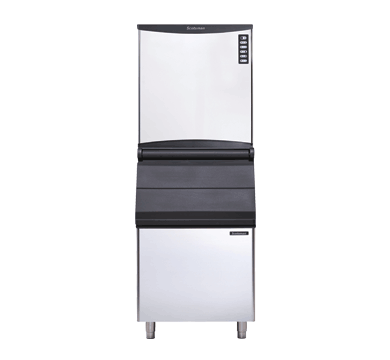

Scotsman NWL 1008 AS OX Dice Ice Maker – 456kg Modular Head
Powerful, Modular Ice Production with Sanitation Built-In
The Scotsman NWL 1008 AS OX Modular Ice Maker delivers up to 456kg of large dice ice per 24 hours. Designed for commercial-scale beverage, hospitality, and food production environments, this air-cooled unit features XSafe™ sanitation, Agion™ antimicrobial technology, and T304 stainless steel construction to ensure pure, reliable ice at scale. This is a head-only unit and requires a separate compatible ice storage bin.
Key Features
- Ice Production: 456kg per 24 hours (ambient 21°C / water 10°C)
- Ice Type: Large Dice Cube (15g, 28mm W x 22mm D x 28mm H)
- Cooling System: Air cooled
- Technology: XSafe™ sanitation & Agion™ anti-microbial protection
- Evaporator System: Vertical spray-system technology with front access
- Construction: Heavy-duty T304 stainless steel housing
- Control Panel: Auto-alert LED indicators for operation & maintenance
- Maintenance: One-touch cleaning button for easy hygiene
Technical Specifications
- Model: NWL 1008 AS OX
- Dimensions: 760mm (W) x 620mm (D) x 800mm (H)
- Net Weight: 105kg | Packed Weight: 122kg
- Power: 230–240V, 1P+N+E, 50Hz, 2100W (Single Phase) or 400–415V, 3P+N+E, 2500W (Three Phase)
- Energy Consumption: 50.3kW/24h (Single Phase) or 23.1kW/24h (Three Phase)
- Water Consumption: 22.3L/hr
- Refrigerant: R404a
- Ambient Operating Range: 10–43°C | Water Inlet Temp: 5–38°C
- Clearances: 100mm rear, 150mm sides
Compatible Storage Bins (Sold Separately)
- NB 393: 181L capacity
- NB 530: 243L capacity
- NB 948: 406L with CBT 48 EAMCD cover
- UBH 1100: 553L upright storage bin
- Optional Stacking Kit: KSC 1000
Ideal For
- Bars, Clubs & Nightclubs
- Hotels, Banquet Halls & Beverage Counters
- Large-Scale Food Production & Processing
- Catering & Ice Delivery Services
Why Choose Scotsman NWL 1008 AS OX?
Scotsman’s modular series is designed for continuous operation in commercial environments. With XSafe™, Agion™, vertical evaporators, and easy-access service features, this model is a powerhouse built for performance, hygiene, and longevity.
Frequently Asked Questions (FAQ)
Is this a complete ice machine?
No – this is the head-only unit. You’ll need a compatible Scotsman ice bin (sold separately).
Can it be stacked for higher output?
Yes – with the KSC 1000 stacking kit, you can stack two heads to double production capacity.
What electrical configuration is required?
It supports both single-phase and three-phase power. See specs above for voltage and amperage requirements.
Need assistance? Contact KW Commercial Kitchen or browse more modular ice makers.
