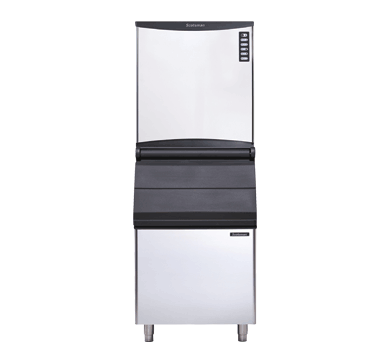

Scotsman NWL 1408 AS OX Large Dice Cube Ice Maker Head – 600kg/Day
The Scotsman NWL 1408 AS OX is a modular, head-only ice maker that produces up to 600kg of large dice ice cubes every 24 hours. Designed with air cooling, vertical evaporator spray-system, XSafe ozone sanitation, and Agion antimicrobial coating, this unit delivers hygienic, long-lasting ice for high-volume beverage, food, or bagging applications
Key Features
- 600kg/day output (21°C ambient / 10°C water) | 620kg @10/10°C | 510kg @32/21°C
- Large dice cube: 15g, size 28mm × 22mm × 28mm
- XSafe – built-in ozone-based sanitation system
- Agion antimicrobial protection in all internal contact surfaces
- T304 grade stainless steel body with front air filter access
- Electronic status indicators for diagnostics and maintenance
- One-touch cleaning cycle
- Vertical evaporator spray-system technology for efficient ice formation
Technical Specifications
- Model: NWL 1408 AS OX
- Dimensions: 760mm (W) × 620mm (D) × 1000mm (H)
- Weight: 130kg net | 145kg packed
- Power: 230–240V, 1P+N+E, 50Hz, 3365W, 20A plug
- Compressor: 1050W
- Energy Consumption: 52.8kWh/24hr
- Water Consumption: 27.6L/hr
- Refrigerant: R404A
- Drain Type: Gravity | Ø 20mm
- Installation Clearance: 100mm rear | 150mm sides
Recommended Storage Bins
- NB 530 – 243kg capacity
- NB 948 with CBT 48 EAMCD cover – 406kg
- UBH 1100 – 553kg upright storage bin
Applications
- Hospitality venues with high drink volume
- Ice bagging and food preservation
- Supermarkets, production kitchens, beverage stations
Frequently Asked Questions
What size are the large dice cubes?
Each cube is 15g, measuring 28mm × 22mm × 28mm – ideal for slow melt and bulk chilling
Is this a complete ice machine?
No – it’s a head-only modular unit. Requires a compatible storage bin such as UBH1100 or NB948.
How does the sanitation system work?
The XSafe system releases ozone internally to continuously sanitize surfaces, reducing microbial buildup and contamination risk.
Order the Scotsman NWL 1408 AS OX Today
Ensure consistent, large-format cube ice with the Scotsman NWL 1408 AS OX. Call 1300 001 366 or order online at KW Commercial Kitchen.
