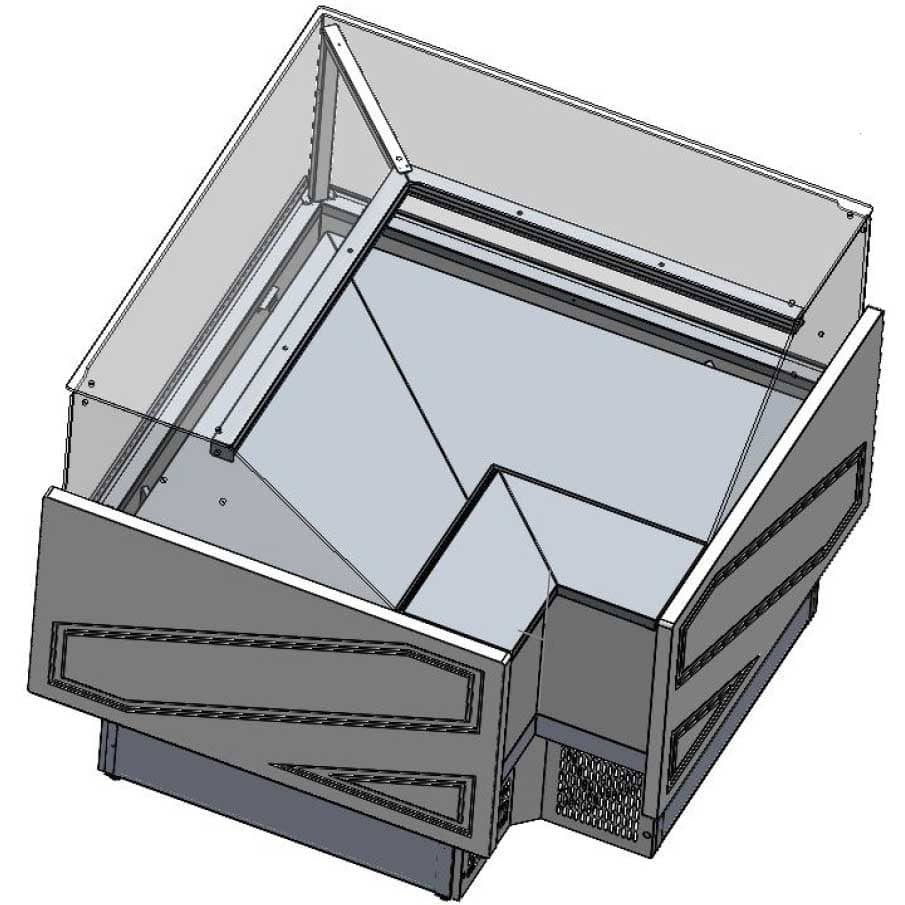

Tecnodom TDMR-E Corner Deli Display – 0–4°C, LED, Storage, Castors
Elegant Corner Display for Maximum Product Visibility
The Tecnodom TDMR-E MR Series Black Corner Deli Display offers an ideal solution for delis and butcheries looking to elevate presentation and maximize floor space. Its stylish black finish, front-opening tempered glass, and panoramic display make it perfect for showcasing meats, poultry, and chilled delicacies with visual impact.
Key Features
- Corner Configuration: Maximizes layout efficiency and creates a visually striking focal point
- Tempered Front Glass: Flat panoramic display ensures optimal product visibility
- LED Illumination: Energy-efficient lighting highlights your offerings
- Rear Cold Storage: Generous storage section for convenient stock rotation
- High-Density Insulation: 50mm CFC/HCFC-free polyurethane insulation for thermal efficiency
- Castors Included: Easy to reposition for layout flexibility and cleaning
- Electric Defrost & Water Tray: Simplified maintenance with automatic evaporator tray
- Triple Filtration System: Includes polyester and carbon filters to maintain air quality
- Temperature Range: 0–4ºC, ideal for meats and perishable goods
- Warranty: 2 Years Parts and Labour
Specifications
- Model: TDMR-E
- Capacity: Display area 1.54 m²
- Temperature Range: 0°C to 4°C
- Ambient Conditions: 25°C / 60% RH
- Dimensions: 1468mm (W) x 1468mm (D) x 1230mm (H)
- Packing Dimensions: 1295mm x 1110mm x 1620mm
- Power: 240V; 1.54kW; 10A plug
- Weight: 180kg
Ideal For
- Delicatessens
- Butcher Shops
- Specialty Food Stores
- Retail Grocery Displays
Why Choose the Tecnodom TDMR-E?
With its striking corner design and professional-grade refrigeration, the TDMR-E offers more than just aesthetics—it delivers efficiency, storage, and merchandising power. The flat glass front and black finish complement modern retail décor, while the large rear storage keeps your display stocked and your operation running smoothly.
Frequently Asked Questions
How do I install the Tecnodom TDMR-E Deli Display?
Ensure the unit is level and positioned correctly in the corner of your layout. Plug into a 10A outlet and allow sufficient airflow around the vents. For optimal results, professional installation is recommended.
What items can I store in this unit?
This corner deli display is ideal for fresh meats, poultry, sausages, cheese, cold cuts, and prepared deli items.
What’s included in the filter system?
The unit includes removable triple filters: two polyester filters (changed every 8–12 weeks) and one carbon filter (changed every 12 months).
