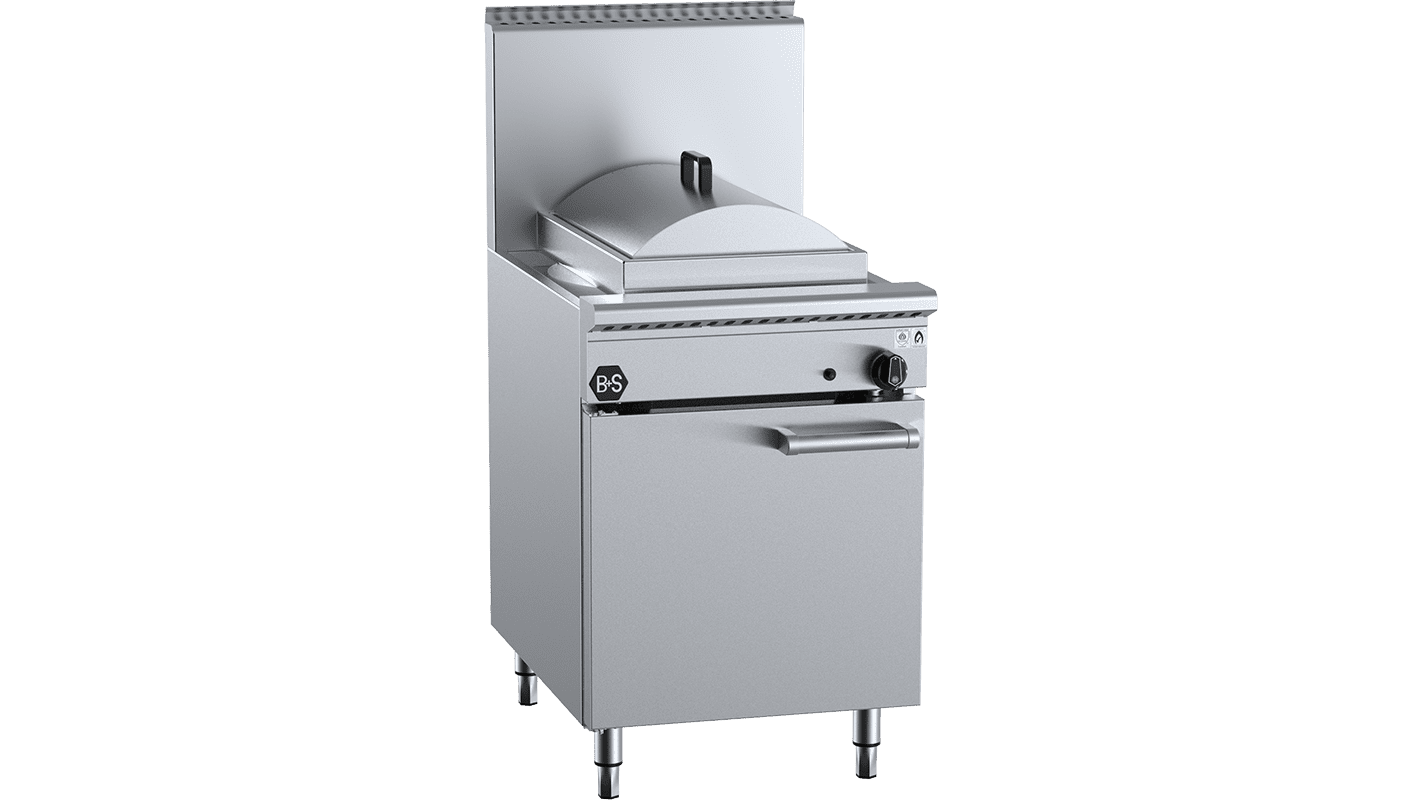

B+S Black CFPSF-1HE Single Hole Waterless Heat Exchange Steamer with Cheung Fun Insert – 600 mm
Updated:
At KW Commercial Kitchen, the B+S Black CFPSF-1HE is a specialised heat-exchange Cheung Fun steamer designed for high-volume rice-roll and dim sum production. Equipped with an 87.5 MJ 18-jet duckbill burner and an automatic refill system, it delivers consistent steam output while reducing gas use by around 35 % compared with conventional deck-cooled units.
Built for modern Asian and fusion kitchens
The CFPSF-1HE combines a 2 mm insulated heat-exchange chamber with an aluminium 5 mm perforated plate and a lightweight Cheung Fun lid for faster cycle times and energy efficiency.:contentReference[oaicite:1]{index=1}
Key features & specifications
- Model: CFPSF-1HE
- Configuration: Single-hole heat exchange steamer with Cheung Fun adapter and lid
- Burner: 18-Jet Duckbill (87.5 MJ/h NG | 84 MJ/h LPG)
- Dimensions (W×D×H): 600 × 840 × 1300 mm
- Water Capacity: 37 L
- Construction: AISI stainless steel cabinet + 2 mm insulated heat-exchange chamber
- Steam Plate: 5 mm thick aluminium perforated tray with Cheung Fun insert
- Safety Systems: Overheat tank protection + flame failure device
- Operation: Automatic ball-float refill mechanism for hands-free control
- Gas Connection: ¾″ BSP (M) | NG 1.0 kPa | LPG 2.6 kPa
- Water Inlet: ½″ Copper | Drain ¾″ F | Waste 1½″ M
- Approval No.: GMK 10697
Compliance & safety (AU)
- Gas: GasMark GMK 10697 approved; installation per AS/NZS 5601.1 by licensed fitter.
- Hygiene: Waterless deck construction meets FSANZ 3.2.3 food-equipment standards.
Convenience & usage advice
- Automatic refill system: Ball-float valve maintains precise water levels for continuous operation.
- Cheung Fun ready: Supplied with tray insert and lid for fast, even steaming of rice roll batter.
Ideal applications
- Dim sum and Cheung Fun production stations
- Chinese restaurants and yum-cha venues
- Energy-efficient Asian and fusion kitchens

Running Cost (Gas – estimate)
Compare with YCJSF-1HE
| Feature | CFPSF-1HE (Cheung Fun) | YCJSF-1HE (Standard) |
|---|---|---|
| Burner / Gas Input (MJ/h) | 18-Jet Duckbill – 87.5 NG | 84 LPG | 18-Jet Duckbill – 87.5 NG | 84 LPG |
| Water Capacity | 37 L | 37 L |
| Accessories | Cheung Fun tray & lightweight lid included | Standard 7-hole steaming plate |
| Application | Rice-roll and dim sum steaming | General dumpling and seafood steaming |
| Efficiency & Safety | Auto refill + overheat protection identical to YCJSF-1HE | Auto refill + overheat protection |
💡 Tip: Choose CFPSF-1HE if you need a dedicated Cheung Fun insert and lid for rice-roll production. For general steaming tasks, the YCJSF-1HE offers the same heat-exchange platform without the insert.
At a glance
- 600 × 840 × 1300 mm compact cabinet profile
- Automatic ball-float refill & safety cut-off
- Cheung Fun tray & lightweight lid included
- 24-month parts & labour warranty (Australia)
