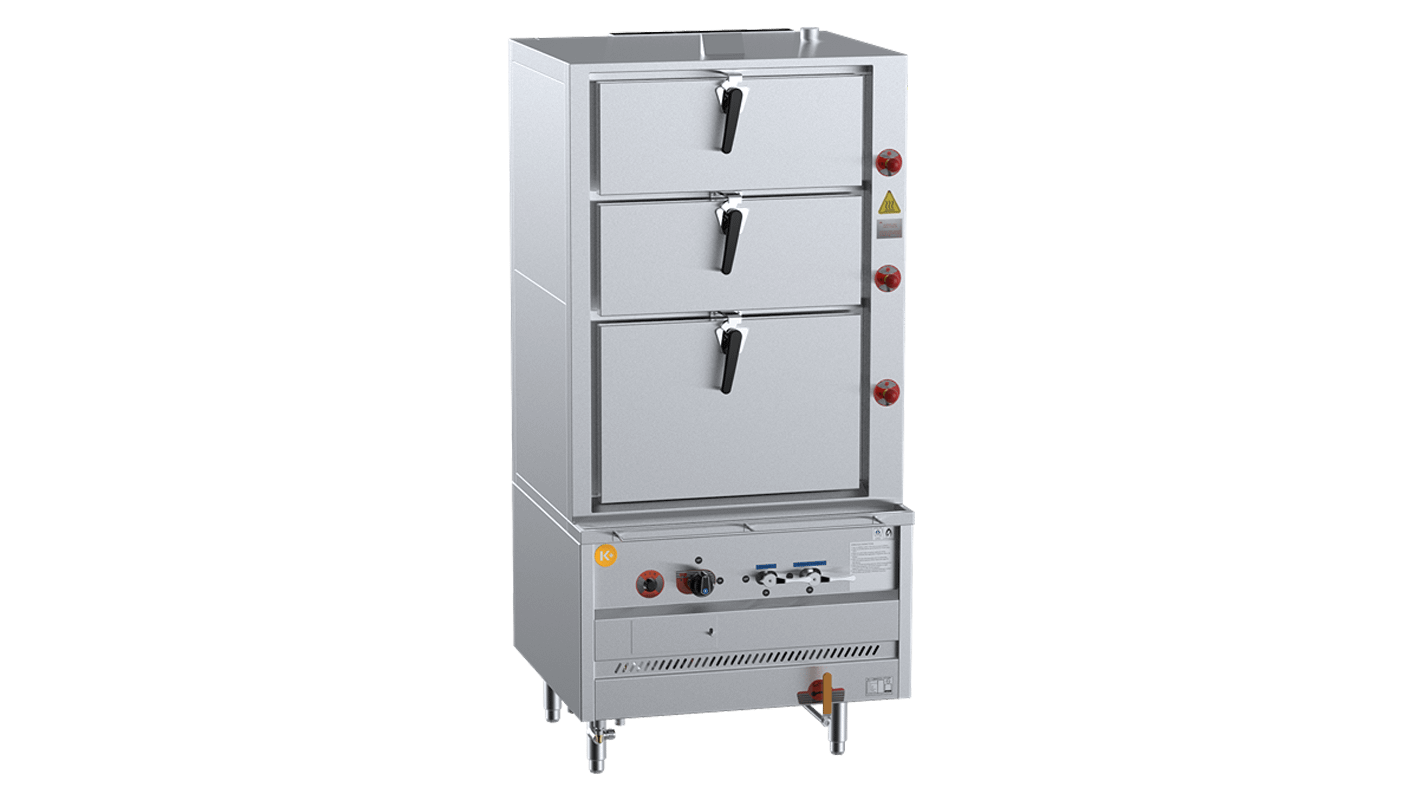

B+S K+ DSK-3 Triple Deck Steamer – 900 mm
Updated:
At KW Commercial Kitchen, the B+S K+ DSK-3 is the largest and most powerful unit in the K+ series triple-deck steamers. Built for bulk dumpling, seafood and banquet production, it delivers 150 MJ/h of even steam through an energy-efficient heat-exchange system with full auto refill and flame-failure protection.
Built for Australian commercial kitchens
The DSK-3 features an insulated heat-exchange chamber, 100 L main tank and 10 L refill tank for continuous service. Its triple jet burner and rotary door lock ensure stable pressure and safety during high-volume use.:contentReference[oaicite:2]{index=2}
Key features & specifications
- Model: DSK-3
- Configuration: Triple deck steamer with heat-exchange system
- Burner System: 3 × jet burners (150 MJ/h NG | LPG)
- Dimensions (W×D×H): 900 × 885 (body) × 1950 mm (940 mm with rail)
- Weight: 270 kg
- Tank Capacity: 100 L main / 10 L refill tank
- Construction: AISI stainless steel with insulated chamber and rotary door locks
- Controls: Auto ignition, flame failure protection, pressure release valve
- Water Filtration: XSENTIAL XC8000 system included (essential for warranty)
- Gas Connection: ¾″ BSP (M); Pressure NG 1.0 kPa | LPG 2.6 kPa
- Water Connection: 15 mm (F) non-return valve; Waste & Drain 2″ BSP
- Approval No.: GMK 10677
Compliance & safety (AU)
- Gas: GasMark GMK 10677 approved; installation per AS/NZS 5601.1 by licensed fitter.
- Hygiene: Complies with FSANZ 3.2.3 food-equipment standards.
Convenience & usage advice
- Triple deck output: Cook large batches simultaneously while maintaining separate temperature zones.
- Auto refill system: Ensures consistent steam pressure with minimal downtime.
- Service access: Front panel maintenance simplifies daily inspection and cleaning.
Ideal applications
- Chinese restaurants & yum-cha kitchens
- Seafood restaurants & banquet operations
- Commercial canteens & central production kitchens
Compare models – DSK-3 vs DSK-3S
| Feature | DSK-3 (900 mm) | DSK-3S (600 mm Compact) |
|---|---|---|
| Gas Input (MJ/h) | 150 (NG / LPG) | 90 (NG / LPG) |
| Cabinet Size (W×D×H mm) | 900 × 885 × 1950 | 600 × 885 × 1950 |
| Tank Capacity | 100 L main / 10 L refill | 65 L main / 10 L refill |
| Burner System | Triple jet burner | Dual jet burner |
| Internal Cabinet Dims | Bottom 650×600×300 H / Top 650×600×450 H | Bottom 380×600×400 H / Top 380×600×200 H |
| Best for | Large banquet or seafood restaurants needing maximum throughput | Compact kitchens with moderate output requirements |
💡 Tip: If your kitchen has limited space or lower demand, the DSK-3S offers the same build quality in a narrower 600 mm footprint and 90 MJ input. For high-volume operations, the DSK-3 delivers higher capacity and faster recovery.
At a glance
- 900 × 885 × 1950 mm cabinet
- 150 MJ/h gas input with triple jet burner
- Automatic refill & pressure release safety
- 100 L main tank / 10 L refill tank
- 18-month parts & labour warranty (Australia)
Frequently Asked Questions
1) What is the difference between DSK-3 and DSK-3S?
The DSK-3 has a larger footprint (900 mm) and a more powerful 150 MJ/h burner system, offering greater steam volume and faster heat recovery for large batches. The DSK-3S is a compact 600 mm variant with a 90 MJ input and smaller tank capacity.
2) Is the DSK-3 automatic?
Yes – it includes an auto-refill system, pressure-release valve and flame-failure device for continuous operation and safety.
3) What maintenance is required?
Check the XSENTIAL XC8000 filter regularly and flush the tank weekly to prevent scale. Gas burners should be inspected quarterly by a qualified technician.
4) Can it run on LPG as well as Natural Gas?
Yes – the unit can be configured for either LPG or Natural Gas at installation.
5) Are spare parts available in Australia?
Yes – B+S and KW Commercial Kitchen stock burner jets, pressure valves and door locks for the DSK series nationwide.
