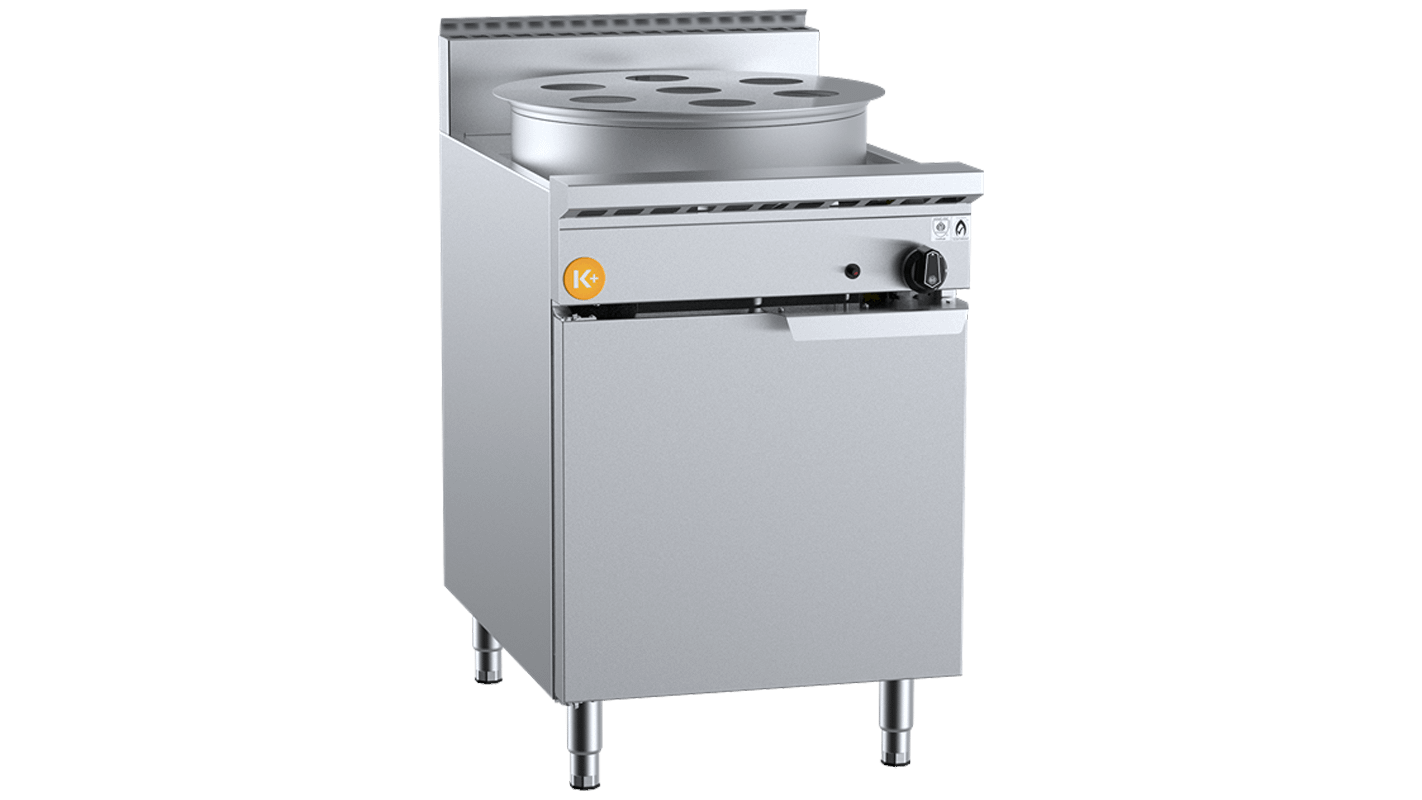

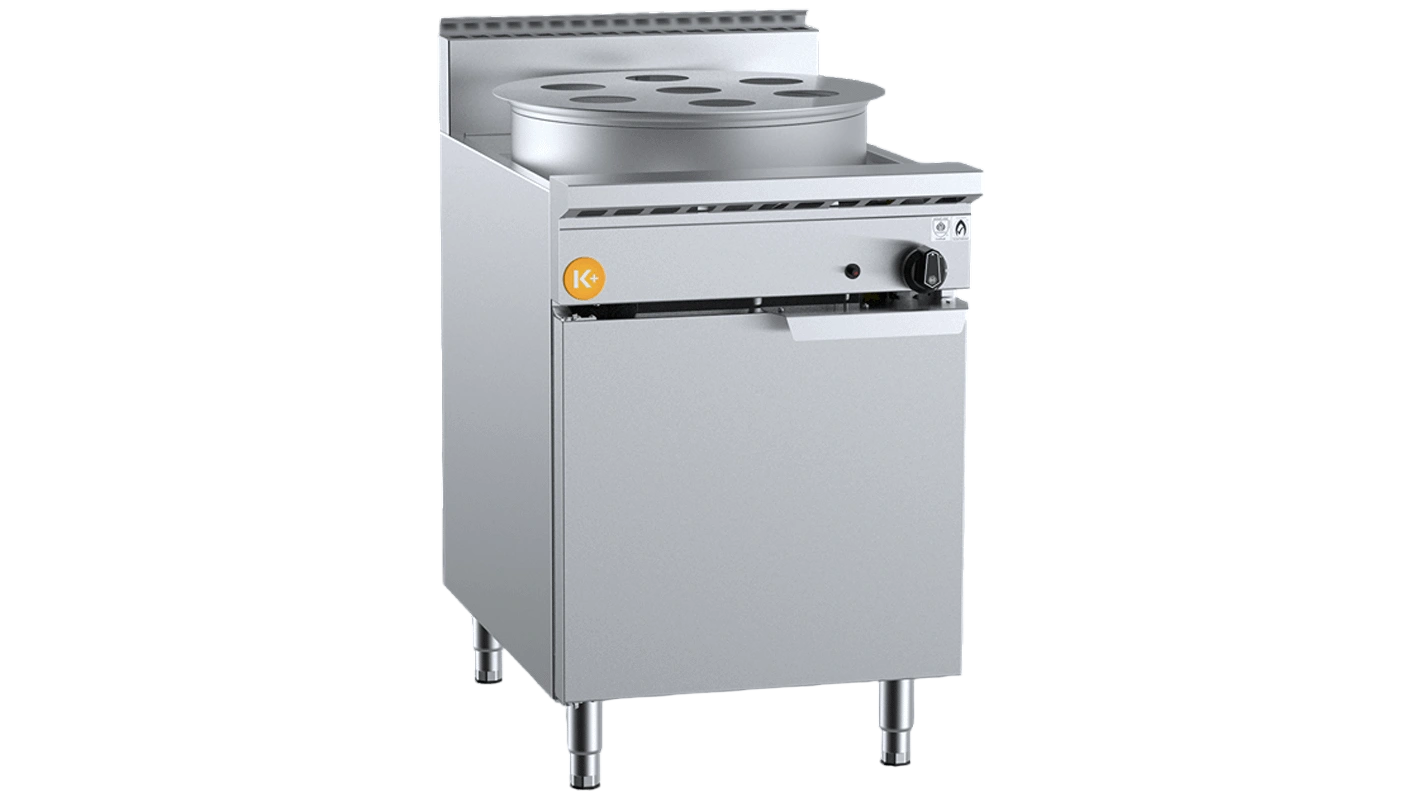

B+S K+ KYCJSF-1HE Single Hole Waterless Heat Exchange Steamer – 600 mm
Updated:
At KW Commercial Kitchen, the B+S K+ KYCJSF-1HE is a premium waterless heat-exchange steamer designed for faster heat transfer and lower gas consumption. With an 87.5 MJ/h 18-jet duckbill burner and 2 mm heat-exchange chamber, it delivers consistent, even steam for dumplings, seafood and rice dishes in busy commercial kitchens while using 40 % less water than traditional deck-cooled models.
Built for Australian chefs & high-efficiency kitchens
The KYCJSF-1HE combines a robust stainless cabinet frame, automatic ball-float refill system and overheat protection for reliable daily operation. It’s compact, safe and designed for continuous service.:contentReference[oaicite:1]{index=1}
Key features & specifications
- Model: KYCJSF-1HE
- Configuration: Single-hole heat exchange steamer with 37 L tank and 7-hole plate
- Burner: 18-jet duckbill burner (87.5 MJ/h NG | 84 MJ/h LPG)
- Dimensions (W×D×H): 600 × 840 × 1030 mm
- Weight: 120 kg
- Construction: AISI stainless cabinet with 2 mm heat exchange chamber and perforated vent design
- Controls: Lever gas valve with piezo ignition to pilot
- Water Connections: ½″ inlet + ¾″ tank drain + 1½″ waste
- Gas Connection: ¾″ BSP (M); Pressure NG 1.0 kPa | LPG 2.6 kPa
- Approval No.: GMK 10697
Compliance & safety (AU)
- Electrical: RCM compliant ignition system.
- Gas: Installed by licensed gas fitter per AS/NZS 5601.1; GasMark approved (GMK 10697); FSANZ 3.2.3 hygiene compliant.
Convenience & usage advice
- Automatic water refill: Ball-float mechanism keeps tank level steady for hands-free use.
- Safety feature: Overheat tank protection prevents dry firing for longer unit life.
Ideal applications
- Seafood restaurants & dumpling shops
- Asian fusion kitchens with continuous service
- Hotels & canteens requiring efficient steam production
Running Cost (Gas – estimate)
Compare models – KYCJSF-1HE vs KYCJSF-1
| Feature | KYCJSF-1HE (Heat Exchange) | KYCJSF-1 (Standard) |
|---|---|---|
| Gas Input (MJ/h) | 87.5 NG | 84 LPG | 130 NG | 98 LPG |
| Burner Type | 18-Jet Duckbill Heat Exchange | 32-Jet Mongolian |
| Water Capacity | 37 L | 64 L |
| Safety & Features | Overheat protection + Auto refill ball float | Manual refill & water retaining lip |
| Best For | Energy-efficient daily steaming & smaller footprint | Large-batch steaming & traditional control |
👉 If you need greater capacity and traditional power output, choose the KYCJSF-1 Standard Model. If you prefer smaller footprint, automatic refill and lower gas use, the KYCJSF-1HE is ideal.
At a glance
- 600 × 840 × 1030 mm compact design
- 87.5 MJ/h NG | 84 MJ/h LPG duckbill burner
- Automatic refill + overheat safety device
- 18-month parts & labour warranty
Frequently Asked Questions
1) How do I clean it daily without harming finishes?
Use pH-neutral cleaner and soft cloth; avoid chlorine or abrasives; rinse tank and dry deck after service.
2) What routine maintenance keeps performance stable?
Check duckbill burner jets weekly; flush tank drain daily; inspect ball-float and safety sensor quarterly.
3) What are the gas requirements and energy use?
Natural Gas 87.5 MJ/h | LPG 84 MJ/h via ¾″ BSP connection; see calculator for daily cost.:contentReference[oaicite:2]{index=2}
4) What about installation and Australian compliance?
Installed by licensed gas fitter per AS/NZS 5601.1; GasMark approved; meets RCM & FSANZ 3.2.3 requirements.
5) Are spare parts and accessories available?
Yes — burner kits, ball-float valves, and overheat sensors are stocked locally by B+S and KW Commercial Kitchen.
