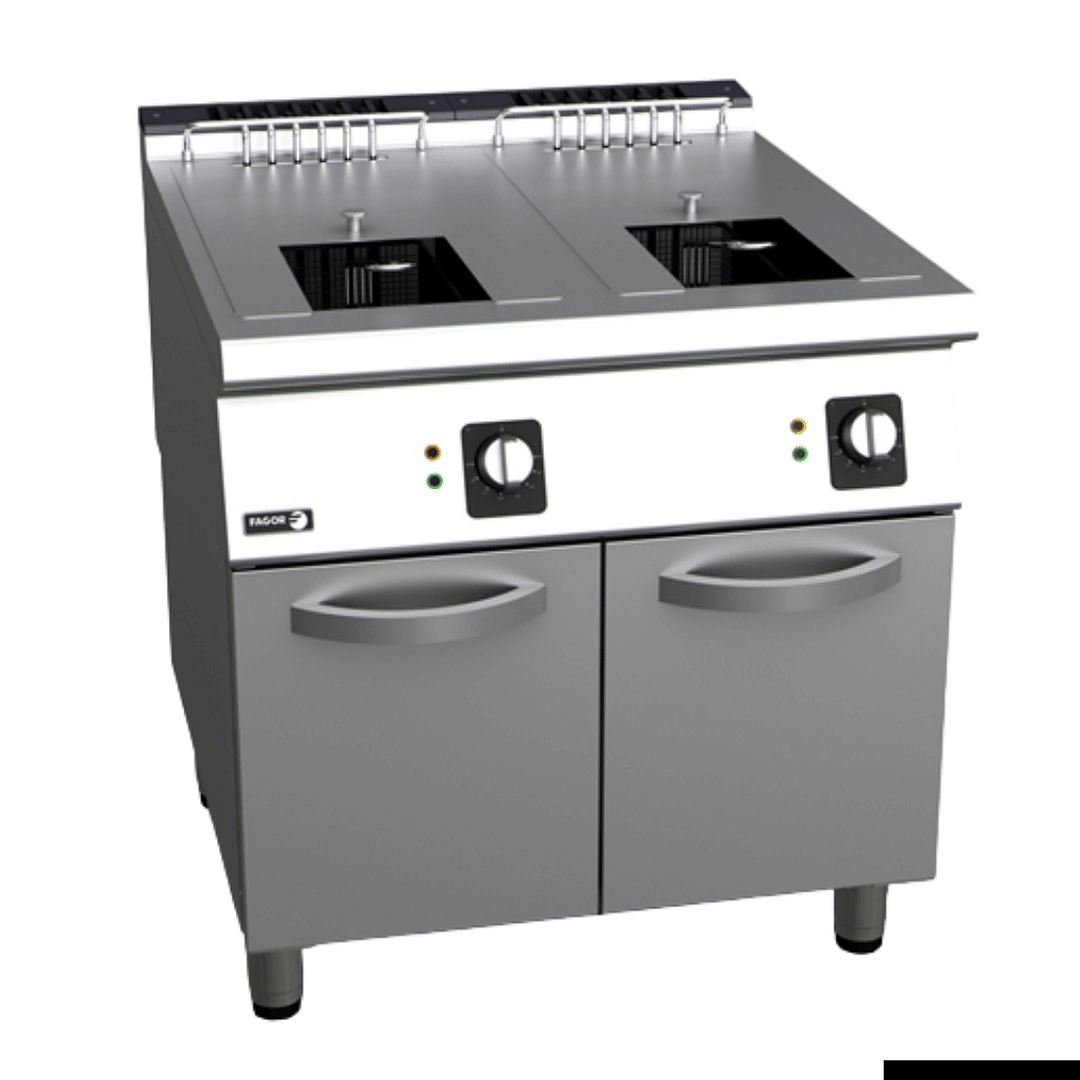

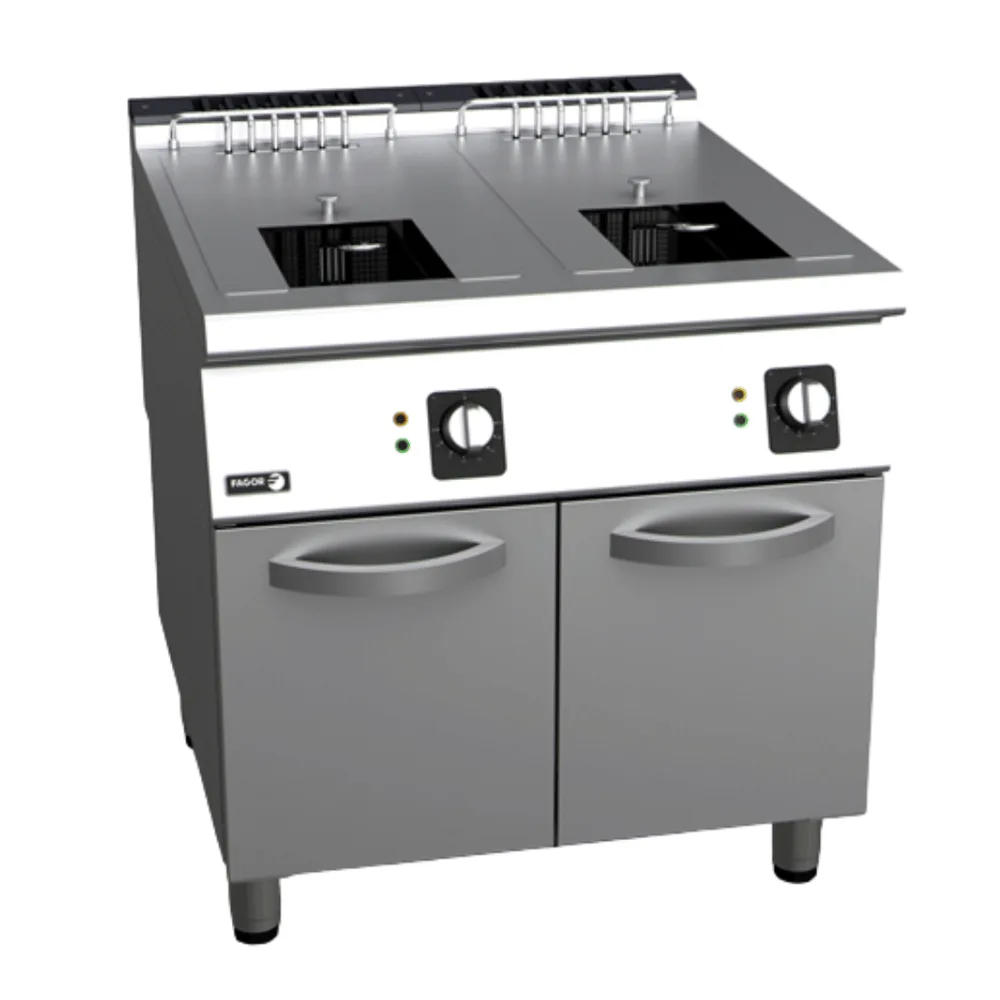

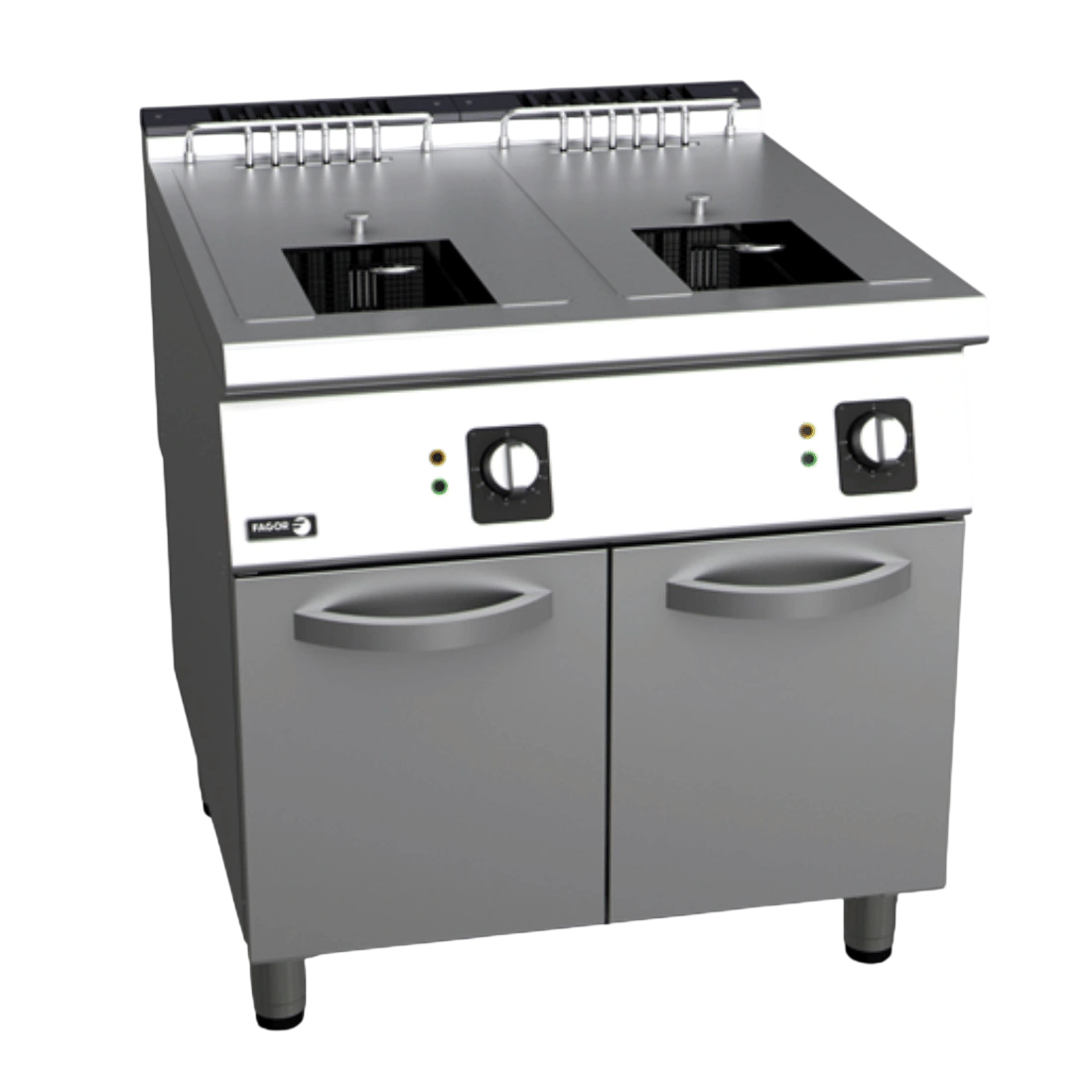

Fagor F-E9221 Kore 900 Electric Fryer with 2x21L Tank and 4 Baskets

The Fagor F-E9221 Kore 900 is a freestanding electric fryer with two 21 L tanks and four baskets. It provides 60–200°C thermostatic control, individual tank lids and heating elements that swivel for cleaning.

Consider this fryer for commercial kitchens that need two oil tanks and four baskets in one freestanding unit. The configuration provides separate tanks for organising frying tasks, but requires a substantial 36 kW electrical supply. Choose a smaller fryer if two 21 L tanks exceed your normal demand or the site cannot support the electrical requirement.

Check whether two 21 L oil tanks and four baskets match your frying workload. Plan the cooking line around the 800 × 930 × 850 mm body size, with access for basket handling, tank lids, oil draining and front servicing.

Have the site's electrical capacity assessed for a 36 kW, three-phase-plus-neutral connection. Follow the installation, commissioning, cleaning and maintenance instructions; plan the operating footprint around the body dimensions.

Register the product within 14 days of invoice to meet the condition for the additional two-year parts-only warranty.

• Electrical supply. The fryer requires a three-phase-plus-neutral connection and has a total electrical input of 36 kW.
• Cabling and protection. The three-phase-plus-neutral connection uses two cable runs, each with three 4 mm² phase conductors plus earth and neutral, and a 63 A differential device. Have the installer assess the applicable site requirements.
• Earthing and bonding. The fryer has protective-earth and equipotential-bonding connections.
• Access and maintenance. Keep the front component-access area available and allow access for the heating elements to swivel during cleaning. Follow the operating and maintenance instructions when draining oil and cleaning the tanks.

For body dimensions and weight, see Key Specifications above.
