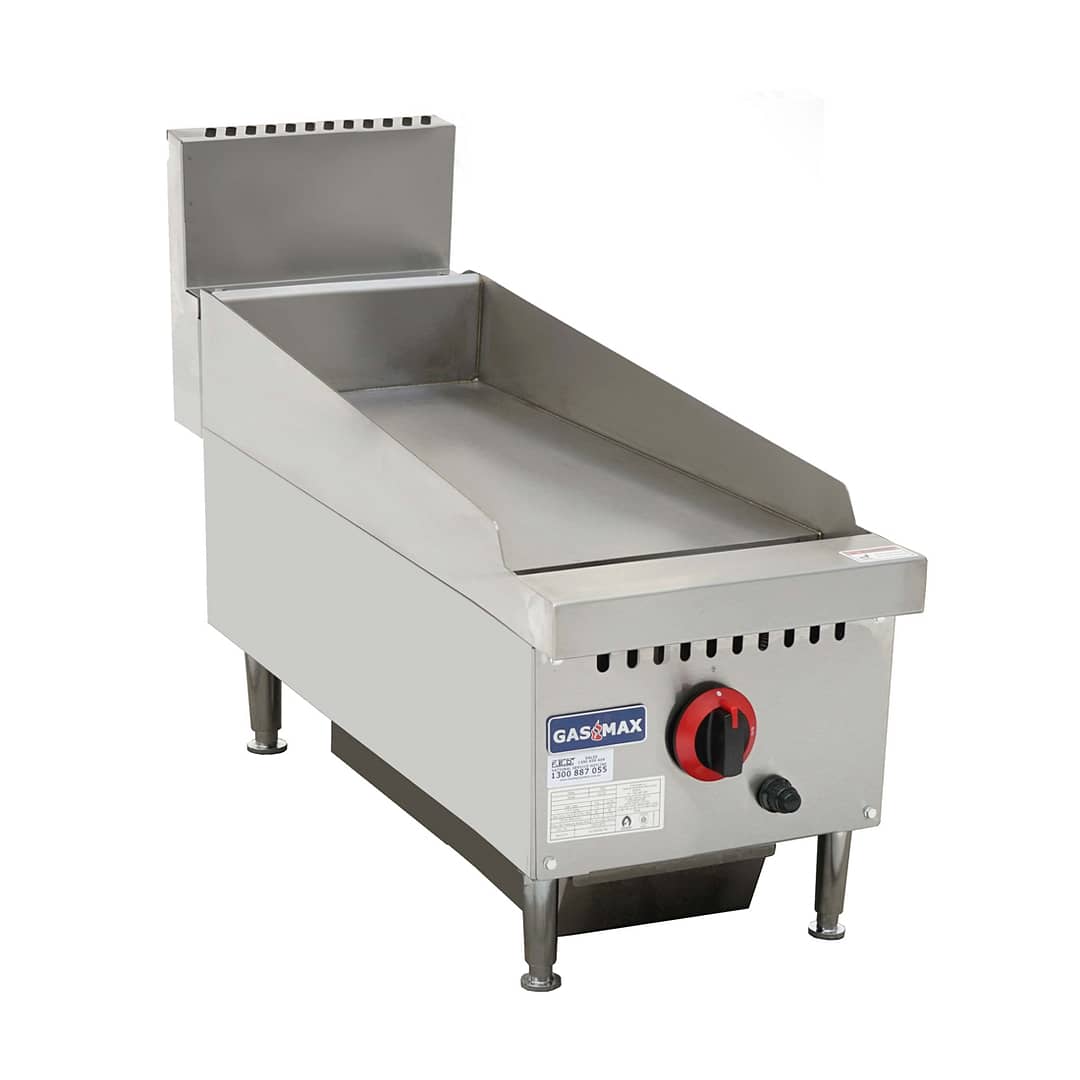

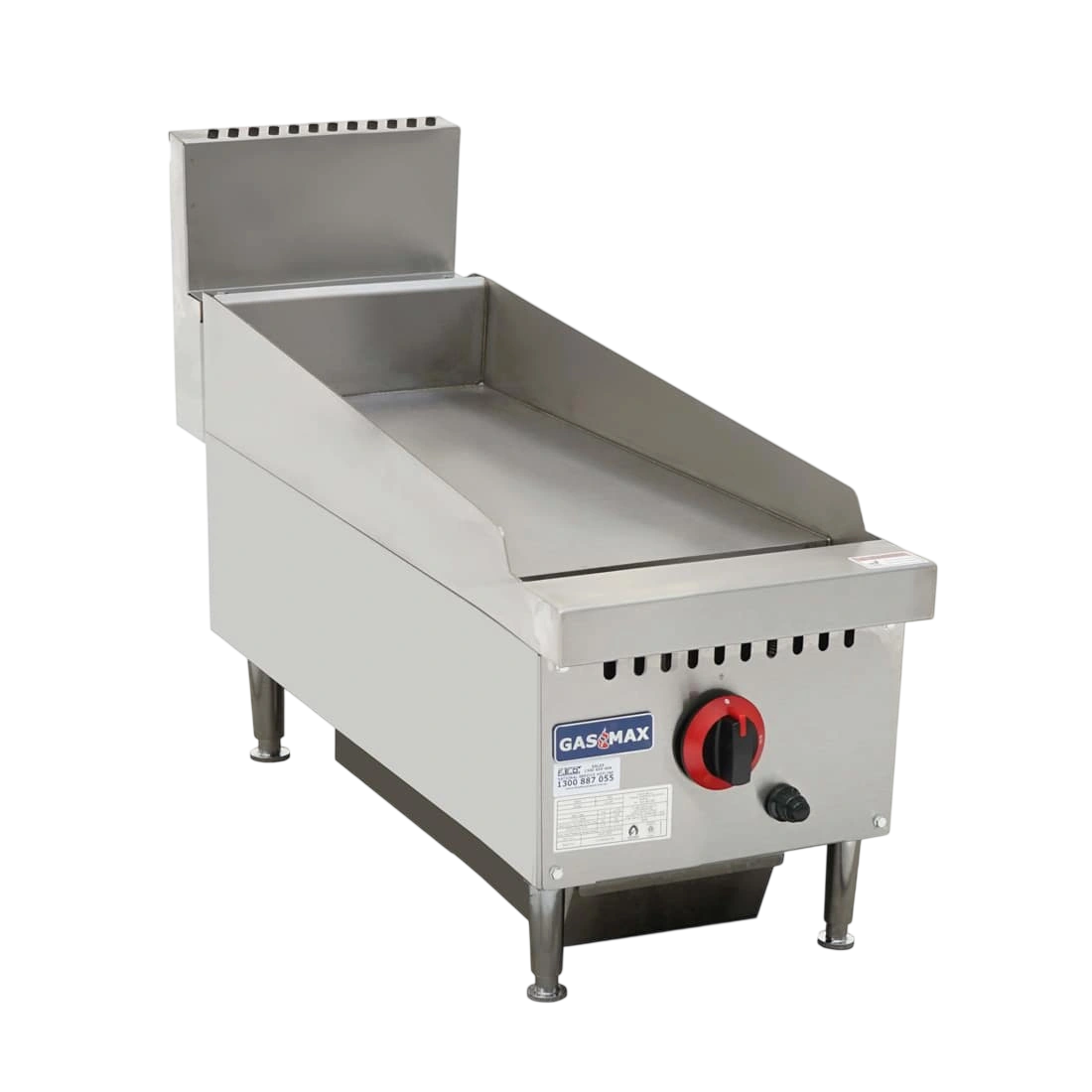

Gasmax GG-12 Single-Burner Natural Gas Griddle — 30 MJ/h

The Gasmax GG-12 is a single-burner natural gas griddle for commercial kitchens fitting a flat-top station into a narrow cooking line. It combines a 22 mm mild-steel plate with 30 MJ/h input and flame-failure protection.

Consider the GG-12 when you need a dedicated flat-top cooking surface alongside other equipment. Its 336 mm body width helps with planning a narrow station, while the single burner and one control knob keep operation straightforward. Plan the full depth, supporting bench or stand, and gas installation before choosing its position.

• Commercial kitchens adding a narrow, dedicated flat-top cooking station.
• Natural gas cooking lines needing a single-burner benchtop griddle.
• Installations using a suitable bench or one of the matching GG-12 stands.

• Kitchens using LPG: choose the GG-12LPG single-burner model.
• Operators needing a wider surface and two burners: compare the 610 mm-wide natural gas GG-24.

Start with the fuel available at the site. GG-12 is the natural gas model; GG-12LPG is the LPG variant. Field gas conversion is supported, but order the required fuel model and have any conversion handled by an authorised technician.

Choose the single-burner layout when a narrow, dedicated griddle station suits the job. Compare the two-burner GG-24 if you need a wider cooking station, allowing for its 610 mm body width.

Decide whether the griddle will sit on a bench or matching stand. Compare the GG-12-SE and GG-12-SEN by their construction and height, then check working height, rear connection access and the installation clearances.

• The 336 mm body width supports a narrow cooking-line layout.
• A 22 mm mild-steel plate and U-shaped steel burner provide a substantial single-burner cooking setup.
• Front grease collection and three-sided splash protection support the cleaning routine.
• Adjustable legs provide levelling on a suitable bench or stand.

• The single-burner layout offers less cooking width than the two-burner GG-24.
• The body is 824 mm deep, so bench planning needs to account for depth as well as width.
• The 45 kg net weight requires a suitable supporting bench or stand.
• Natural gas installation and commissioning require an authorised technician.

• Gasmax GG-24 Two burner NG Griddle Top – 610 × 824 × 546 mm: The GG-24 uses natural gas and has two burners in a 610 × 824 × 546 mm body, compared with the GG-12's single burner and 336 × 824 × 546 mm body.
• Gasmax GG-12LPG Single-Burner LPG Griddle — 33 MJ/h: The GG-12LPG is a single-burner LPG griddle rated at 33 MJ/h, while the GG-12 uses natural gas at 30 MJ/h.

• Body size and support. Allow for a 336 × 824 × 546 mm body, measured W × D × H, and a 45 kg net weight. Use a suitable supporting bench or compatible stand and level the unit with its adjustable legs.
• Gas installation. Have an authorised technician install and commission the griddle using its 3/4-inch rear gas connection. Confirm natural gas supply, regulator, ventilation, extraction and clearances before use.
• Fuel selection and conversion. Order GG-12 for natural gas or GG-12LPG for LPG. Any field gas conversion must be carried out by an authorised technician rather than used as a substitute for choosing the required fuel model.
• Matching stand choices. The GG-12-SE measures 336 × 650 × 650 mm, while the taller GG-12-SEN measures 334 × 650 × 689 mm and includes a solid undershelf; dimensions are W × D × H. Order the stand whose construction and height suit the installation.
• Packed dimensions. Packing dimensions are 440 × 890 × 520 mm, measured W × D × H. Use these separately from the assembled body dimensions when planning handling and access.

For body dimensions, see Key Specifications above.
