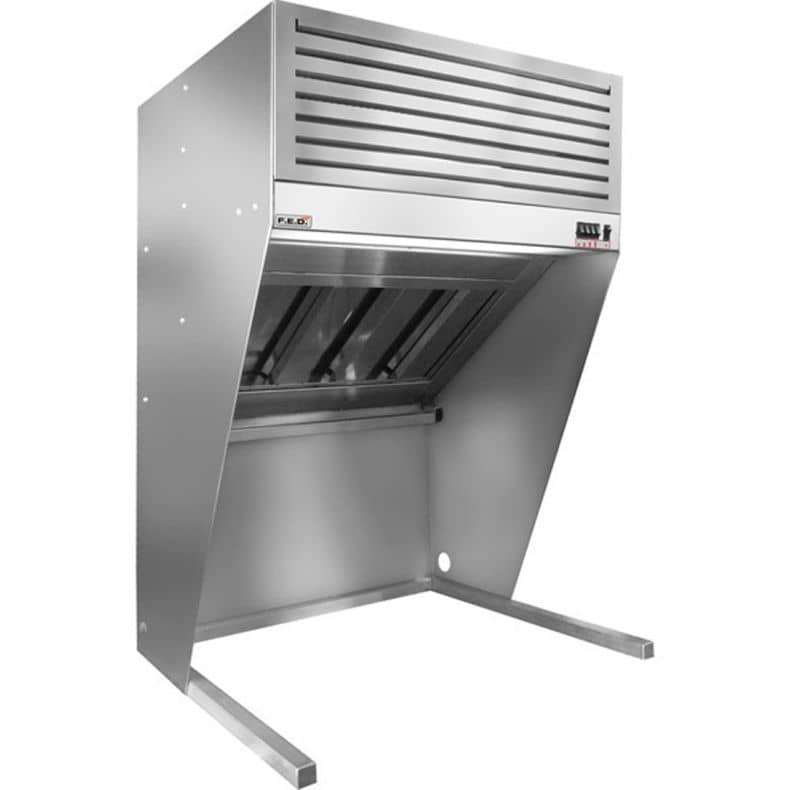

Modular Systems HOOD1500A Modular System Bench Top Filtered Hood

The Modular Systems HOOD1500A is a stainless steel benchtop filtered hood with two four-speed motors and three-stage filtration. It is for countertop cooking installations that meet its equipment limits and site requirements.

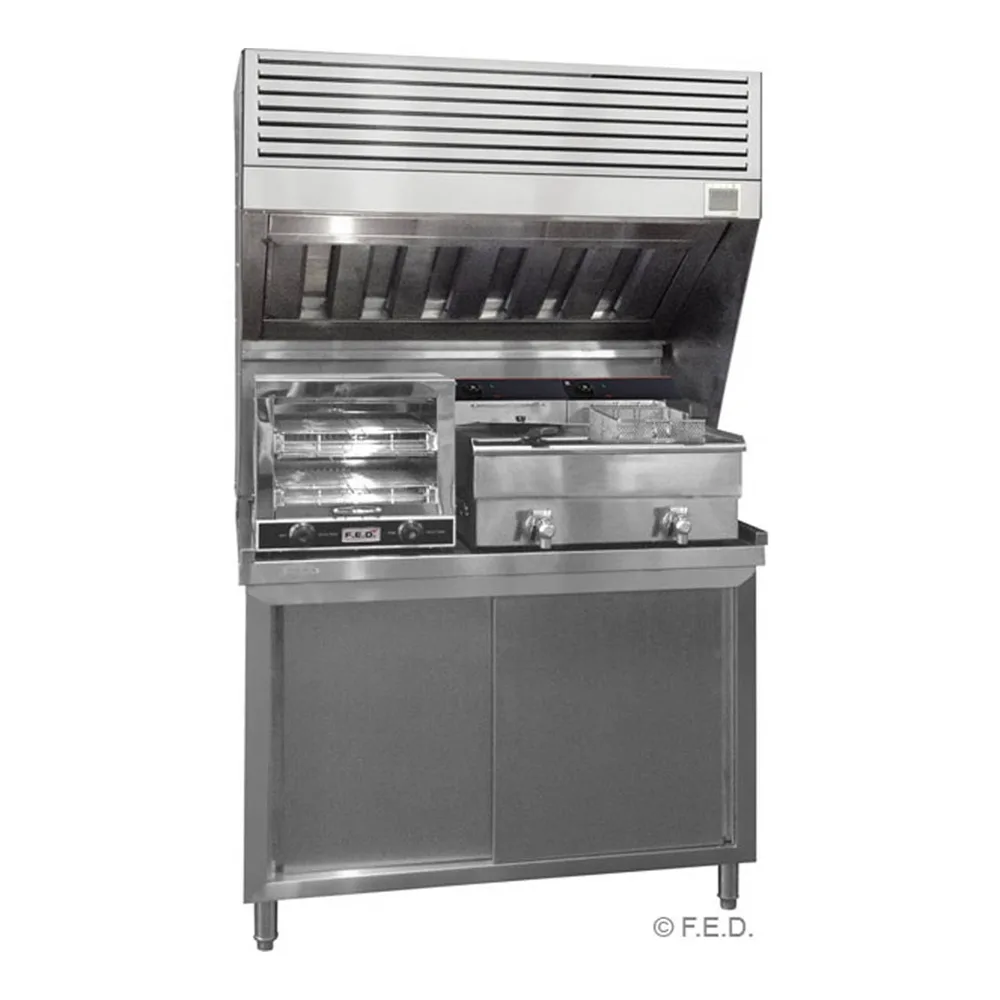

Consider the HOOD1500A for a countertop cooking station where a filtered hood is appropriate for the equipment and site. It is generally suitable for electric equipment up to 8 kW where AS1668.2 does not stipulate exhaust. Choose another extraction arrangement where those conditions are not met, and consult the local council before specifying it over an electric fryer.

Check the 1500 × 700 × 1150 mm overall dimensions against the bench, surrounding space and access route. Use the separate packed dimensions of 750 × 1560 × 1650 mm in width, depth and height order when planning access.

Compare the cooking equipment with the hood's application limits before choosing it. It is generally suitable for electric equipment up to 8.0 kW and gas equipment up to 29 MJ, subject to local council requirements. Electric-equipment use is limited to applications where AS1668.2 does not stipulate exhaust; electric fryers require prior consultation with the local council.

• Power supply. The hood uses a 240 V supply.
• Mounting and extraction suitability. The hood mounts to a benchtop and requires no ducting within its permitted applications. Check the equipment limits and local council requirements before installation.
• Commissioning and maintenance. Follow the supplied operating and maintenance instructions and site procedures for commissioning, cleaning and maintenance. Check access and installation clearances before ordering.

For body dimensions and weight, see Key Specifications above.
