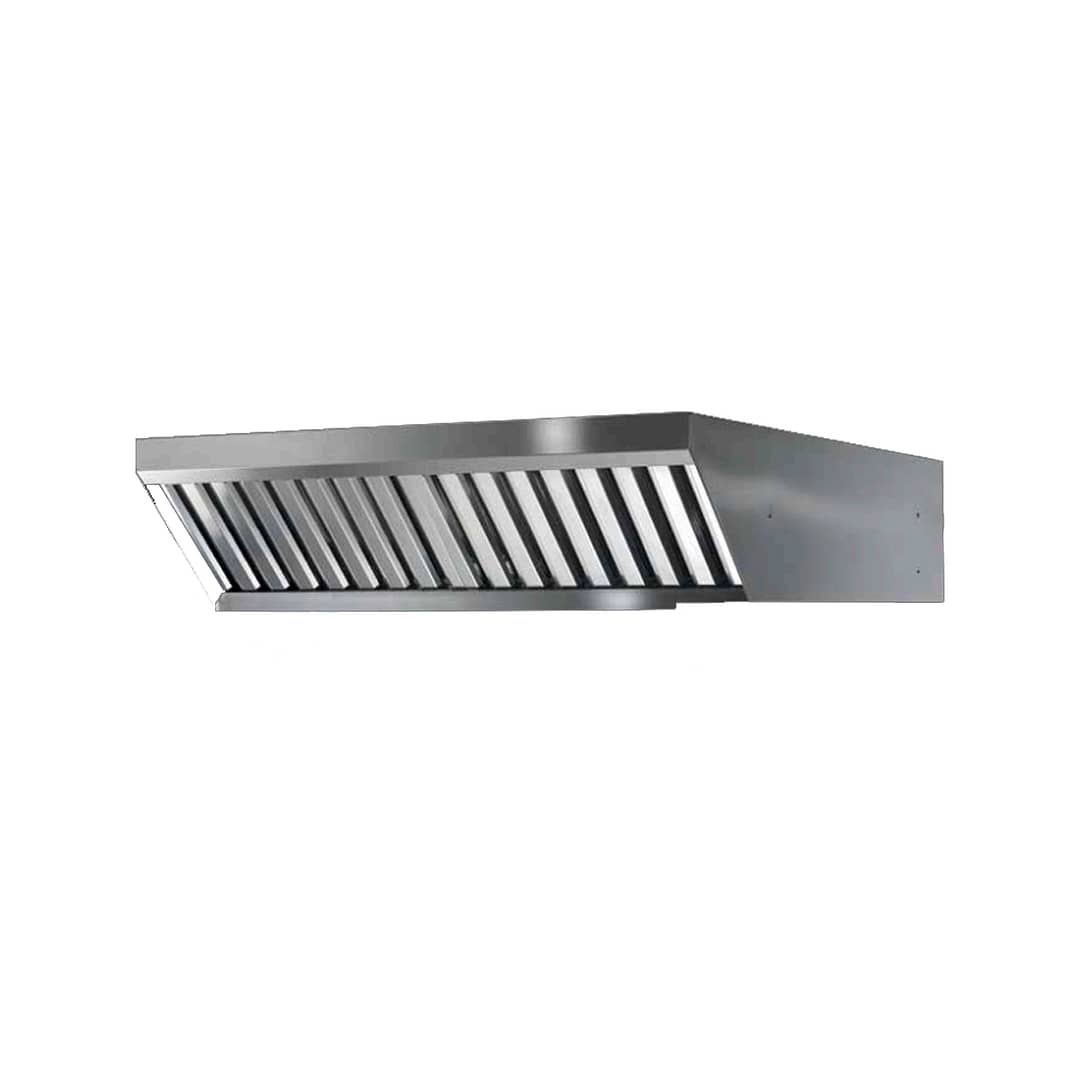

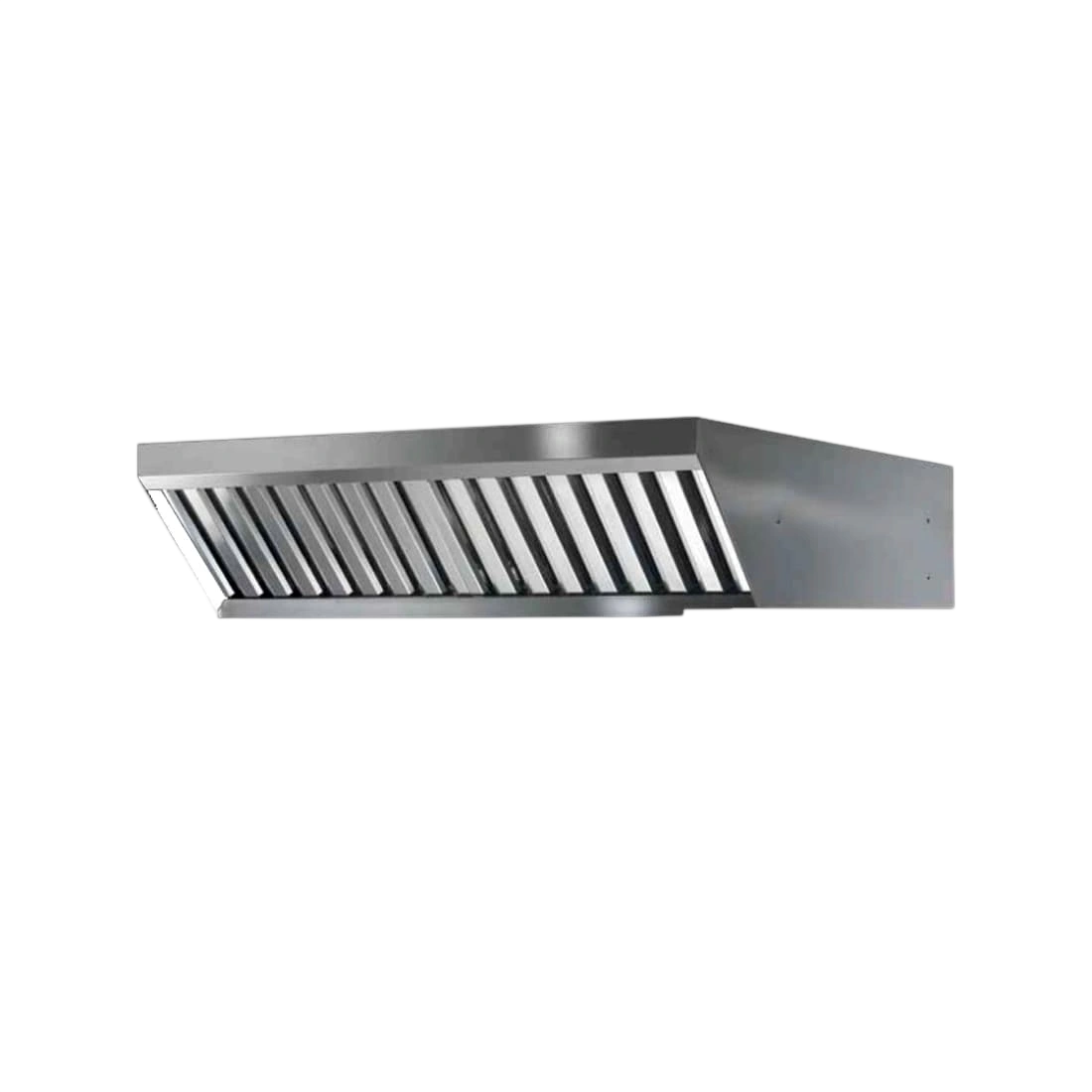

Tecnodom TD-FECL Steamless Canopy for TDC Tecnodom Oven Range

• TDC-5VH installations requiring the matching steam-condensing canopy.

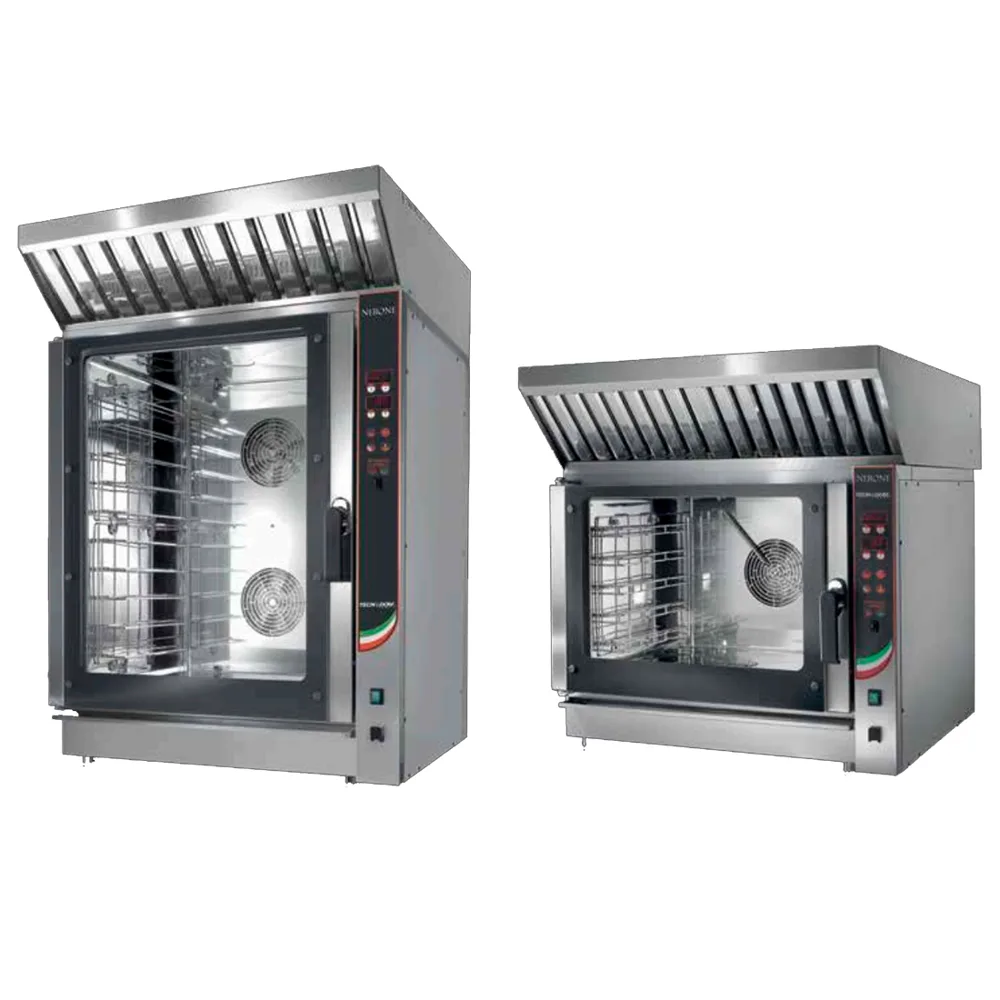

• TDC-10VH installations using canopy operation integrated with the oven.
• Projects assessing a stacked-oven arrangement with the installer before ordering.

• For other oven models, choose a canopy specified for the exact oven and installation.
• For a bench-top filtered-hood project, compare HOOD1200A and have the hood matched to the equipment and site.

Check the oven nameplate first: TD-FECL is specified for TDC-5VH and TDC-10VH. For a stacked arrangement, agree the complete oven-and-canopy layout with the installer.

Review the dimensions in Key Specifications above against the oven station, access path and available mounting space. Give the installer the 33 kg net canopy weight and allow room to remove filters and the drainer for cleaning.

Plan the water inlet and both outlets before positioning the equipment. Confirm the mating fittings for the male 3/4 inlet, the 120 mm fumes connection and the 30 mm outlet route for the installation.

Check the 240 V, 250 W and 10 A electrical specifications with the installation team. Include oven integration, the door-open extraction response and visual alarm display in commissioning.

• Steam condenser supplied with the canopy.
• Specific compatibility with TDC-5VH and TDC-10VH ovens.
• Adjustable extraction with a maximum-speed door-open response and oven-display alarm.

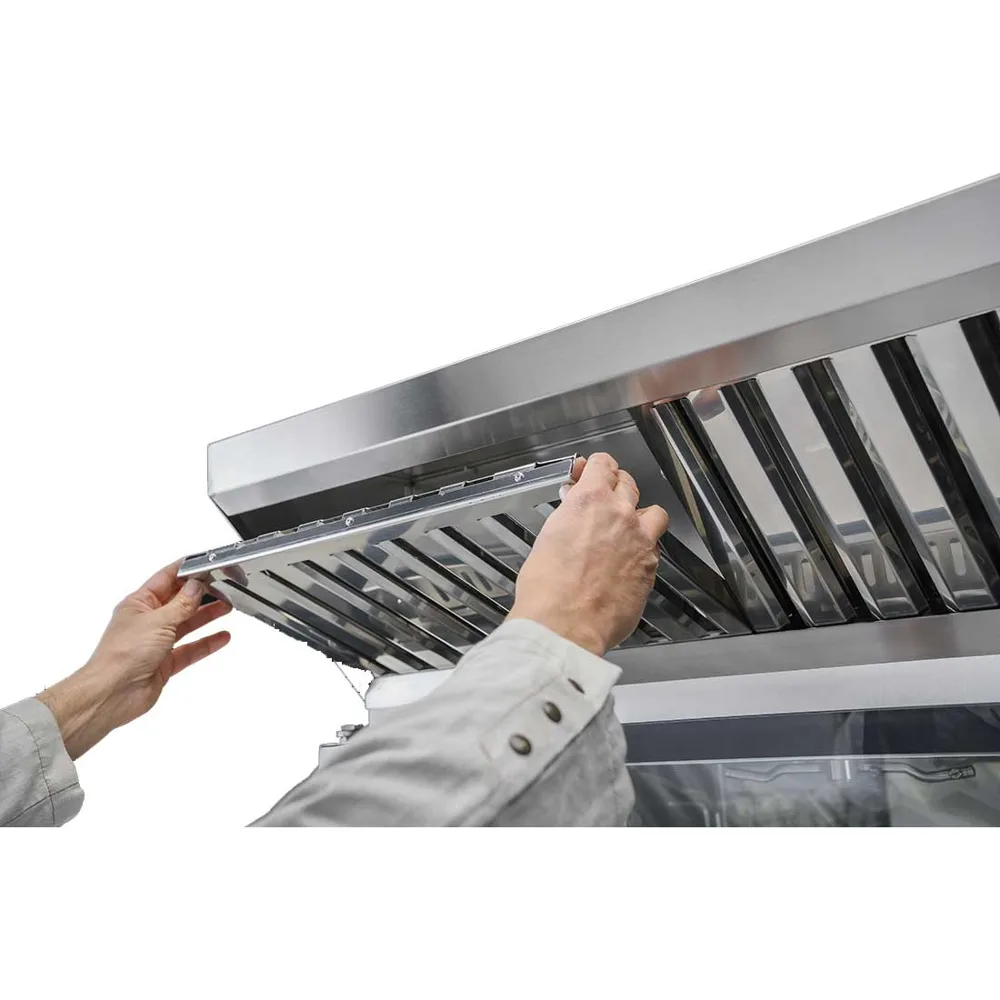

• Removable filters and drainer provide access for routine care.

• Selection is tied to the two specified oven models and the planned installation.
• Water, outlet routing and oven integration need to be included in the fitout.
• The 33 kg canopy requires a handling and support plan.

• Modular Systems HOOD1200A Modular System Bench Top Filtered Hood: HOOD1200A is a 240 V bench-top filtered hood, while TD-FECL is an oven-integrated canopy with a steam condenser for TDC-5VH and TDC-10VH.

One TD-FECL canopy with steam condenser.

Fits: TDC-5VH, TDC-10VH

• Confirm the oven and mounting layout. Match the oven to TDC-5VH or TDC-10VH and review the dimensions in Key Specifications above. Have the installer assess the mounting, cleaning access and any stacked-oven arrangement, allowing for 33 kg net canopy weight.
• Arrange water, outlets and electrical services. Plan the male 3/4 water connection, 120 mm fumes outlet and separate 30 mm outlet with the installation team. Check the site supply against the 240 V, 250 W and 10 A specifications and follow the installation instructions.
• Commission oven-linked functions. Check integrated operation, extraction-speed adjustment, the maximum-speed response to an open oven door and the visual alarm on the oven display. Explain these functions to staff before normal service.
• Keep cleaning access usable. Follow the shutdown and cleaning instructions when removing filters or the drainer and cleaning the ventilator. Keep the installed canopy accessible for maintenance and service.

For body dimensions, see Key Specifications above.
