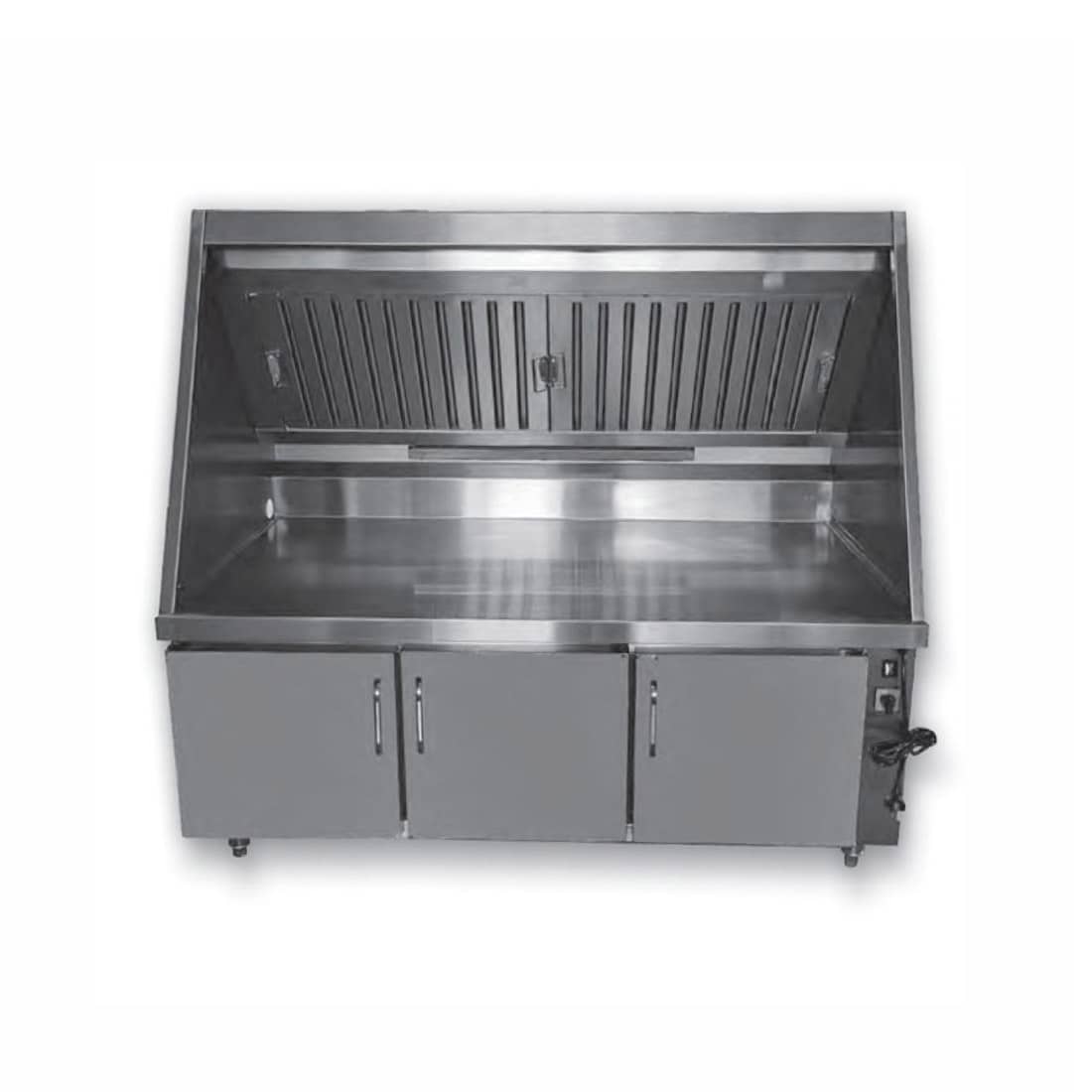

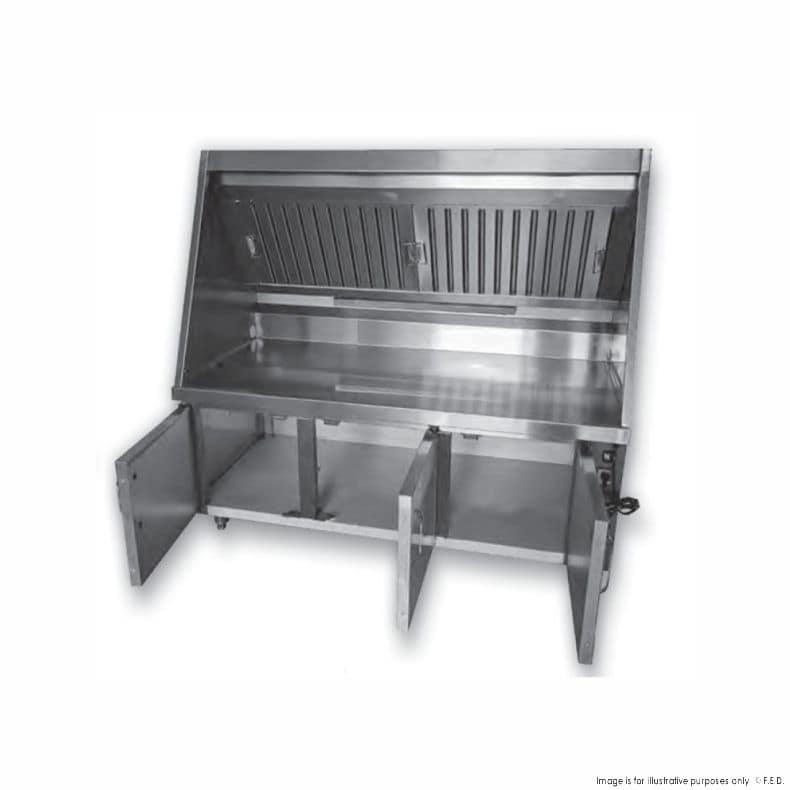

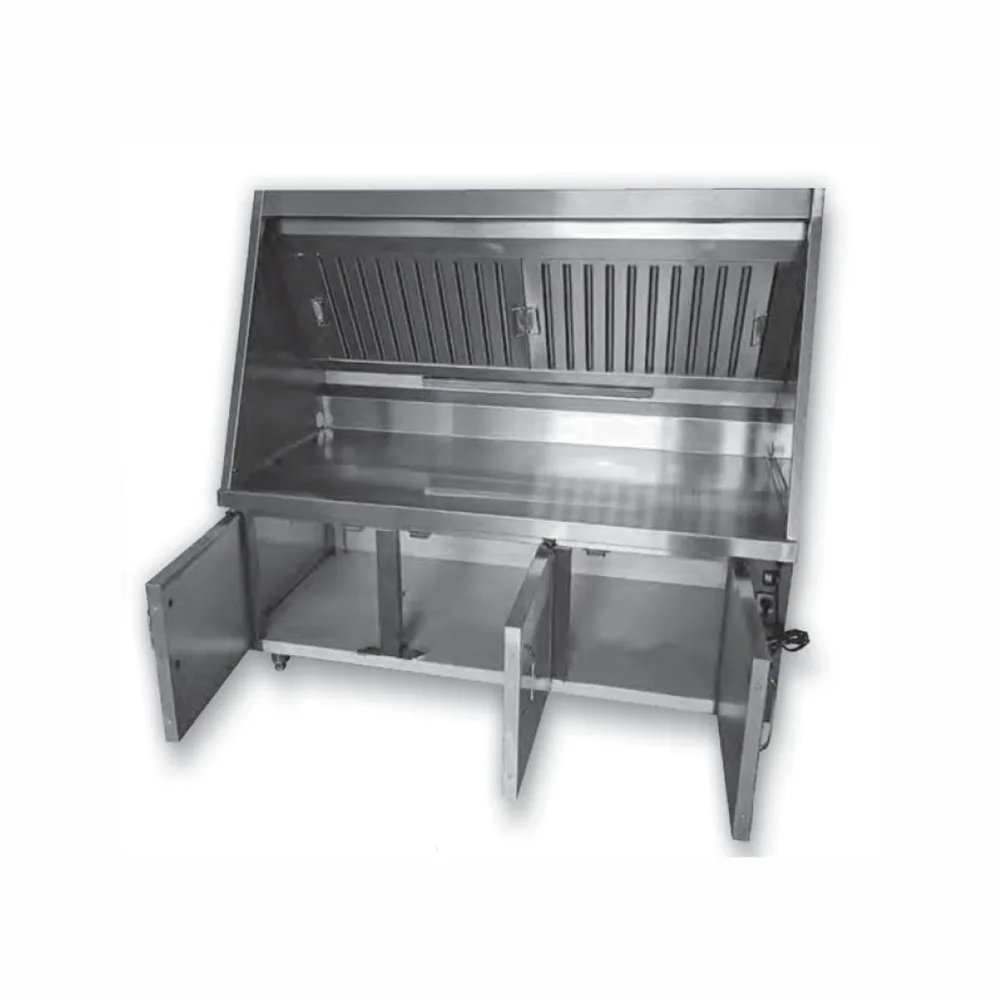

Modular Systems HB1500-850 Range Hood and Workbench System

The Modular Systems HB1500-850 combines a range hood and workbench for commercial electric cooking stations. It accommodates three or four appliances with a combined load up to 8 kW, with LED lighting and a removable-filter system.

Consider the HB1500-850 for a commercial kitchen bringing several electric cooking appliances together at one workstation. Its 850 mm depth, integrated hood and workbench suit a grouped cooking layout where the appliances fit the available space and their combined load stays within 8 kW.

• Kitchens grouping three or four electric cooking appliances within an 8 kW combined load.
• Operators wanting a 304 stainless steel hood and workbench with lighting over the cooking area.
• Cooking stations that include a three-phase appliance, with the appliance supply planned separately from the hood connection.

• Cooking line-ups exceeding 8 kW combined appliance load: choose an extraction system rated for the proposed equipment.
• Gas cooking installations: choose a hood system intended for the gas appliances being installed.
• Buyers prioritising mobility: compare the Woodson W.MVS850 Mobile Ventilation Station.

Start with the cooking appliances: add their electrical loads and keep the combined total within 8 kW. Then check whether the three- or four-appliance arrangement fits the workbench and allows the required operating access.

Separate the hood's electrical requirement from the appliances it serves. The hood requires 240 V, 800 W and 10 A; accommodating a three-phase appliance also means planning the appropriate supply for that appliance.

Check the station footprint, access route and installation requirements before ordering. Include ongoing filter replacement in the operating routine alongside cleaning and service access.

• Combines a workbench and range hood for a grouped electric cooking station.
• Accommodates three or four appliances within an 8 kW combined load.
• 304 stainless steel construction and three removable standard filters support cleaning access.
• LED cooking-area lighting and heavy-duty support legs are included.

• The combined electrical appliance load is limited to 8 kW.
• The polyester filter needs replacement every 8–12 weeks, and the carbon filter every 12 months.
• The 115 kg net weight requires planning for handling and positioning.
• Three-phase appliances require their own suitable electrical supply.

• Woodson Mobile Ventilation Station W.MVS850 - Portable Ductless Exhaust Hood: The Woodson W.MVS850 is a mobile, portable ductless ventilation station rated at 480 W; the HB1500-850 combines a range hood and workbench and has an 800 W electrical rating.

• Footprint and access. Allow for the 1500 × 850 × 1400 mm body dimensions (W × D × H), with access for operation, cleaning and servicing. Check the access route against the packed dimensions of 1600 × 950 × 1500 mm and plan handling for the 115 kg net weight.
• Electrical connections. Provide the hood with a suitable 240 V, 800 W, 10 A supply. Check the connected appliances' individual supply requirements, including any three-phase unit, and keep their combined load within 8 kW.
• Installation and commissioning. Check site services, clearances and installation requirements against the final cooking layout before ordering. Follow the operating instructions and site procedures for commissioning, cleaning and maintenance.
• Filter care. Include the three removable standard filters in the cleaning routine. Schedule polyester filter replacement every 8–12 weeks and carbon filter replacement every 12 months.
