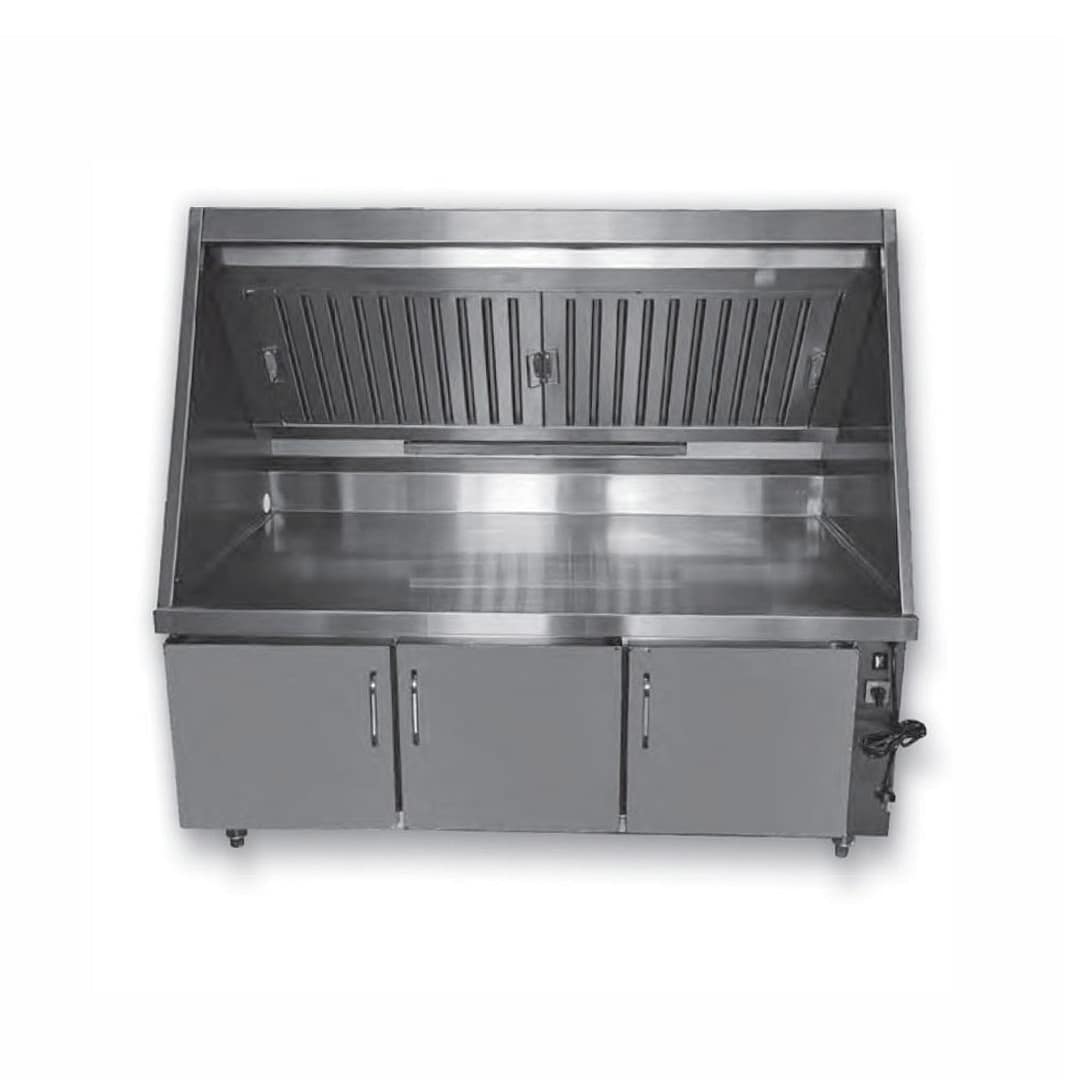

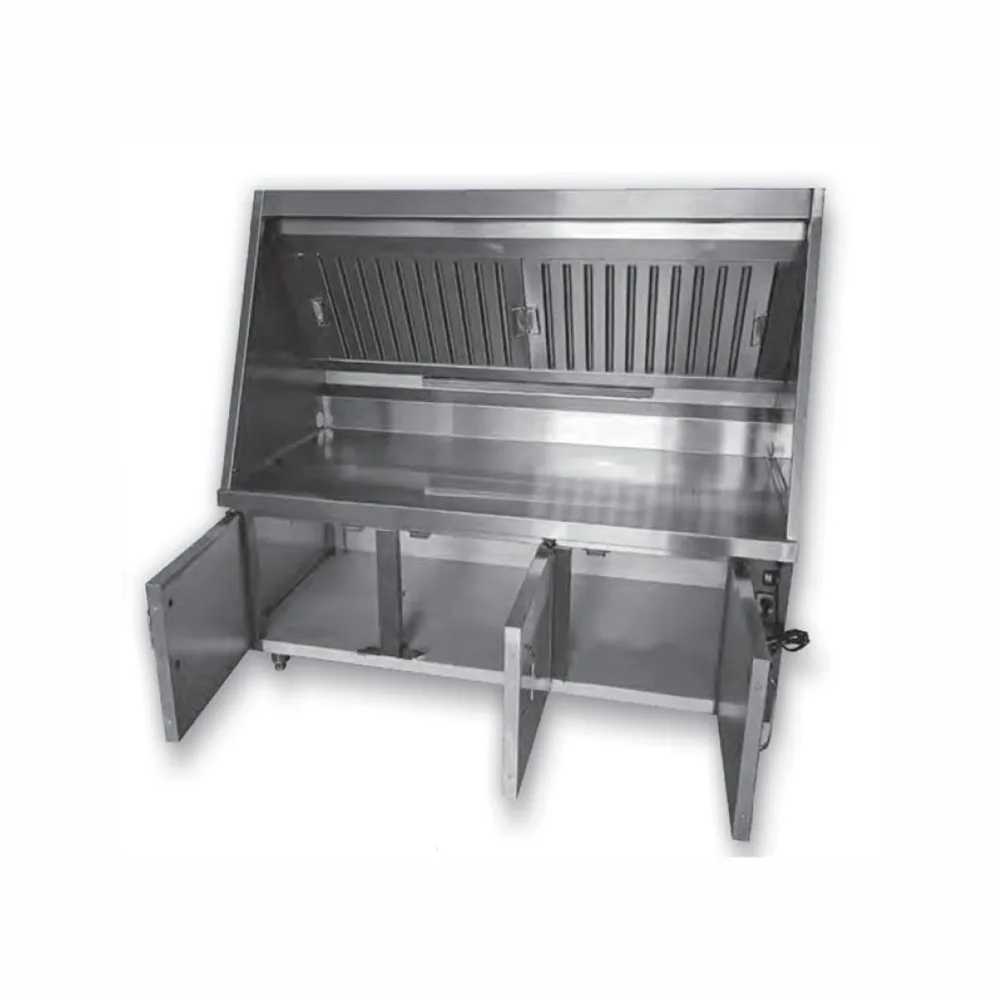

View all Modular Systems products→The Modular Systems HB1800-850 combines a stainless steel workbench and range hood for an electric cooking station. It accommodates three or four appliances, subject to their dimensions and a combined appliance load of up to 8 kW.
Consider this system when you need a work surface and hood together for several electric appliances. Check the actual appliance layout against the available bench space and the combined 8 kW appliance limit. Choose another arrangement if the appliances exceed that limit or do not fit the working area.
Check the 1800 × 850 × 1400 mm overall dimensions against the installation footprint and access route. Leave access for filter removal, cleaning and routine servicing.
Add together the ratings of the appliances you intend to place beneath the hood and compare them with the limit of up to 8 kW total. The system can accommodate a three-phase appliance.
| Product type | Range hood and workbench system |
|---|---|
| Material | 304 stainless steel |
| Voltage | 240 V |
| Connection rating | 10 A |
| Supported electric appliance load | Up to 8 kW total |
| Appliance arrangement | Three or four appliances, subject to individual appliance dimensions |
| Appliance compatibility | Can accommodate a three-phase appliance |
| Lighting | LED |
| Standard removable filters | 3 |
| Polyester filter replacement | Every 8–12 weeks |
| Carbon filter replacement | Every 12 months |
| Packed dimensions (W × D × H) | 1900 × 950 × 1500 mm |
For body dimensions and weight, see Key Specifications above.
1 Year Parts and Labour Read KW warranty information.
Compare the verified dimensions, capacity, utilities, access path and installation requirements with your site and intended workflow before ordering.
Check voltage, phase, plug type, and circuit capacity before purchase. Commercial electrical installation must be completed by a licensed electrician.
| SKU | HB1800-850 |
| Brand | Modular Systems |
| Category | Stainless Steel |
| Weight | 135 kg |
| Dimensions (W×D×H) | 1800 × 850 × 1400 mm |
| Stock Status | In Stock |
| Material | Stainless Steel |
| Voltage | 240 V |
| Phase | Three Phase |
| Amperage | 10 A |
| Power | 8 kW |
| Compliance | RCM |
