Woodson W.CHD750 Countertop Ductless Exhaust Hood – Compact Recirculating System
Updated:
Built for Australian cafés, restaurants & catering kitchens

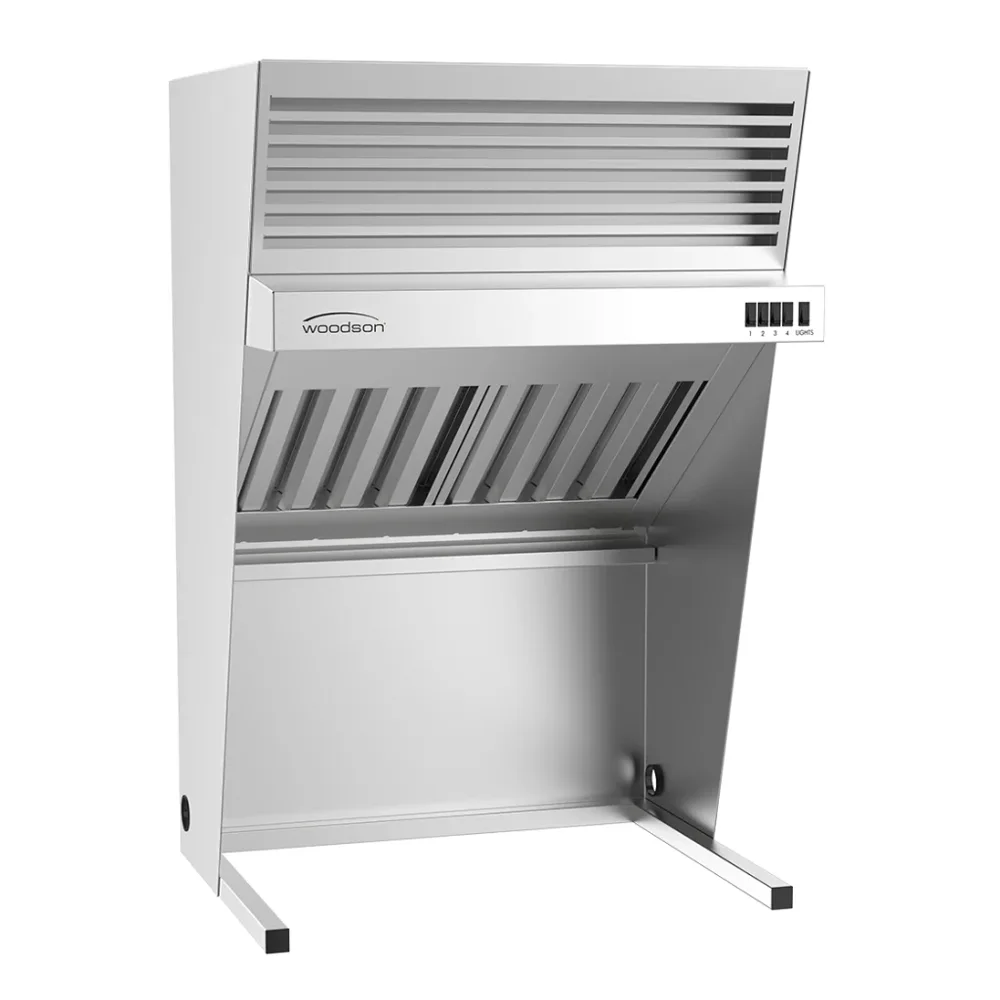

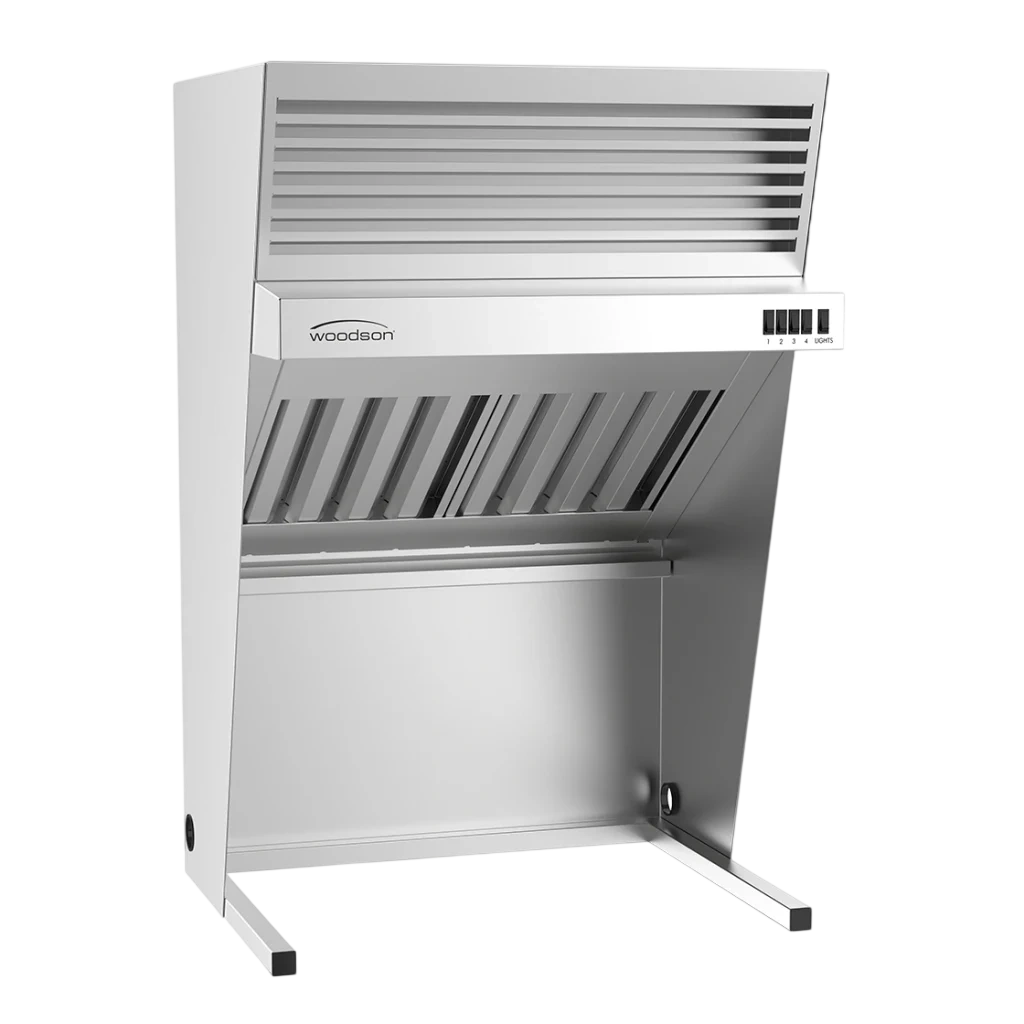

The Woodson W.CHD750 is a compact, commercial-grade ductless exhaust hood designed for benchtop cooking equipment. It combines multi-stage filtration, LED lighting and a multi-speed fan in a 750-mm wide footprint to improve kitchen air quality without ductwork.
Key features & specifications
- Capacity: For electric cooking equipment up to 10kW
- Temperature range: N/A – filtration system
- Ambient rating: Indoor installation
- Power/Voltage: 0.5kW, 10A 240V single phase
- Dimensions (W×D×H): 750 × 660 × 1150 mm
- Weight: 69kg
- Construction: Stainless steel with integrated multi-stage filters, LED lighting and fan system
- Warranty: 12-month onsite warranty
Compliance & safety (AU)
- Electrical: RCM compliant
- Energy: GEMS/MEPS not applicable (air recirculation unit)
- Food safety: Improves air quality & reduces grease build-up; FSANZ-aligned practices
- Gas: Not for use with gas or solid-fuel equipment
Convenience & usage advice
- Easy cleaning: Filters are accessible and removable for routine maintenance
- Compact design: Freestanding unit allows flexible benchtop placement
Ideal applications
- Cafés using electric griddles or fryers
- Restaurants with benchtop cooking stations
- Catering and function venues without ducted exhaust
Frequently Asked Questions
1) How do I clean it daily without harming finishes?
Use a damp microfibre cloth and mild detergent on the stainless surfaces; wash filters as instructed and avoid harsh abrasives.
2) What routine maintenance keeps performance stable?
Inspect and clean multi-stage filters weekly; check fan intake quarterly; replace filters as required by usage intensity.
3) What are the power requirements and typical energy use?
Connect to a dedicated 10A 240V circuit; consumption is approx. 0.5kW depending on fan speed.
4) What about installation and Australian compliance?
RCM compliant; requires adequate background ventilation per NCC; not suitable for gas appliances.
5) Are spare parts and accessories available?
Replacement filters, LED modules and fan parts are available. Quote model W.CHD750 when ordering.
Specs source: official datasheet for Woodson W.CHD750.
