A bratt pan is a batch-cooking vessel used for tasks such as braising, boiling, simmering and shallow frying. Its value comes from handling several stages in one pan, but the menu must justify the batch size and the kitchen needs a safe method for loading ingredients and removing the finished food.

Tilting models can pour or discharge a batch into a suitable container, while other arrangements rely more on manual transfer. Before comparing pan sizes, write down the normal recipe volume, the maximum batch the team can handle safely and the receiving trolley or vessel used at the end of cooking.

Review heat source and controls alongside the production schedule. Gas or electric services must be confirmed for the exact model, and staff should be able to reach the control panel without standing in the tilt or discharge zone.

Floor area is needed not only for the appliance but also for lid travel, ingredient loading, tilting and the receiving container. Check drainage strategy, ventilation where required and access to clean the pan, pouring lip and surrounding floor.

Its versatility and capacity. A single unit can sauté, braise, steam, shallow fry or boil in bulk, replacing multiple pots and pans.

It provides uniform heating with no direct flame or hot spots, reducing the risk of scorching and improving safety for staff.

Yes. They generate dense steam plumes, moisture and grease vapour. AS1668 ventilation rules apply to both gas and electric models.

A bratt pan suits repeatable batches that need braising, boiling, simmering, shallow frying or staged cooking in one vessel. It is less suitable when the menu only needs small individual portions or when rapid changes between incompatible recipes would make cleaning and turnaround impractical.

KW can examine the recipes that would share the bratt pan, the batch volumes and the proposed discharge method before discussing energy and floor-space constraints. Call 1300 001 366 to work through a production-kitchen application.

A commercial bratt pan is one of the most powerful and versatile pieces of equipment in the W4 hot line. Operating at 90–250 °C with large cooking surfaces, these industrial appliances handle boiling, shallow frying, braising, steaming, sautéing and batch cooking. Their combination of thermal load, steam generation and tilting movement makes them essential—but also one of the highest-risk units in any production kitchen.

W4 – Hot / Production Line (primary): Main cooking location for bulk meals, sauces, proteins and vegetables.
W3 – Prep Zone: Light-duty electric models for pre-cook steaming.
W7 – Dishwash: Cleaning large pans, baskets, lids and drain components.

Gas bratt pans: 60–120 MJ/h. Fast heat-up and excellent surface loading for sauté and shallow frying.

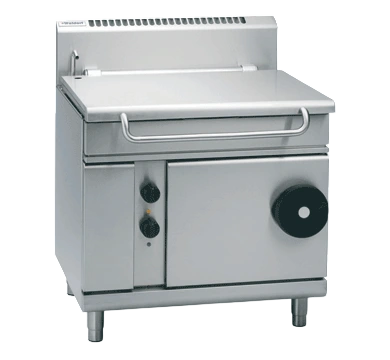

Electric plate heated pans: 6–18 kW. Even surface heating and stable control.
Steam-jacket bratt pans: The most uniform heating method for hospitals and institutions—reduced hot spots, gentle cooking and lower burn risk. Requires steam pressure release safety.

Plate thickness: 10–12 mm for general use; 16–20 mm for high-load and commercial production.
Thermal mass: High mass ensures stable temperatures when adding large batches of cold product.
Heat gradient: Burner layout (U-shape, straight, serpentine) and insulation patterns influence hot and cold zones.
Warping prevention: Thick plates, controlled preheat and avoiding cold-water shock protect the surface.

Tilting angles the cooking vessel so liquid or food can discharge into a correctly positioned container. It can reduce manual ladling and lifting, but staff still need a stable receiving vessel, a clear pour path and control of the flow to prevent splashing.

Start with the normal recipe yield and the maximum practical production batch, then allow working space for stirring, boiling or simmering. Check that the finished amount can be received, portioned and cooled safely; do not choose a larger pan solely for an occasional oversized recipe.

Confirm the specified gas or electrical connection, ventilation, water if fitted, drainage plan and floor support for the selected model. Also measure lid and tilt travel, service access and the space needed to position a receiving trolley at the discharge side.

Typical capacities: 40 L, 60 L, 80 L and 100+ L units.
Surface loading: Food weight per square metre affects browning, braising and reduction time.
Maximum fill line: Prevents boil-over when adding proteins or starch-heavy foods.

Manual tilt (worm gear): Reliable, controlled but slower for large volumes.
Electric tilt: Fast and efficient; requires attention to load shift and sudden surge.
Programmable tilt: Highest safety—consistent pour angles and reduced operator fatigue.
Tilt-surge risk: Large volumes can shift quickly; clear chef positioning is essential.

Direct water fill: Hot or cold fill lines with backflow prevention.
Descaling: Hard-water scale reduces heating efficiency and temperature accuracy.
Hot drain valves: Must withstand 100 °C water and fat mixtures.
Drain alignment: Incorrect placement can cause floor flooding when tilting.

Braise temperature: 90–110 °C for consistent cooking without scorching.
Sauté & shallow fry: 160–200 °C depending on oil type.
Poaching: 75–95 °C for delicate proteins.
Batch cooling: Large pans must follow FSANZ cooling guidelines (<60 °C → 21 °C in 2 hours).

Steam burst: Lifting lids and high-moisture foods can cause sudden steam release.
Oil film flash: Thin oil layers can pop when water contacts the plate.
Condensation floor hazard: Moisture creates slippery surfaces—especially in hospitals and aged care.
Handle reach & height: Ensure ergonomic pour control.

Daily: Drain, scrape and wash with mild detergent; avoid cold-water shock.
Weekly: Descale interior if used for boiling/stewing; clean heating surfaces.
Mechanical maintenance: Lubricate tilt gears; check motor duty cycle and hinges.

Use recipe yield and safe fill level to estimate the working batch rather than selecting by the largest occasional job. Allow room for stirring and simmering, and consider whether several smaller batches would fit the service schedule better than one batch that is difficult to cool, move or portion.

Empty the vessel safely, isolate heat and follow the specified cleaning method for the cooking surface. Pay attention to the lid, corners, pouring lip and tilt-area splash, while keeping water away from controls or mechanisms not designed for washdown.

Position the receiving container before releasing the tilt control and keep staff outside the discharge path. A controlled pour can reduce ladling and lifting, but only when the trolley height, vessel opening and floor space let the batch move without splashing or an unstable reach.

Group compatible recipes so the surface can move from braising to simmering or shallow frying without an impractical clean and cool-down between every batch. Reserve enough time for discharge and full cleaning before an allergen or flavour change demands a fresh setup.
