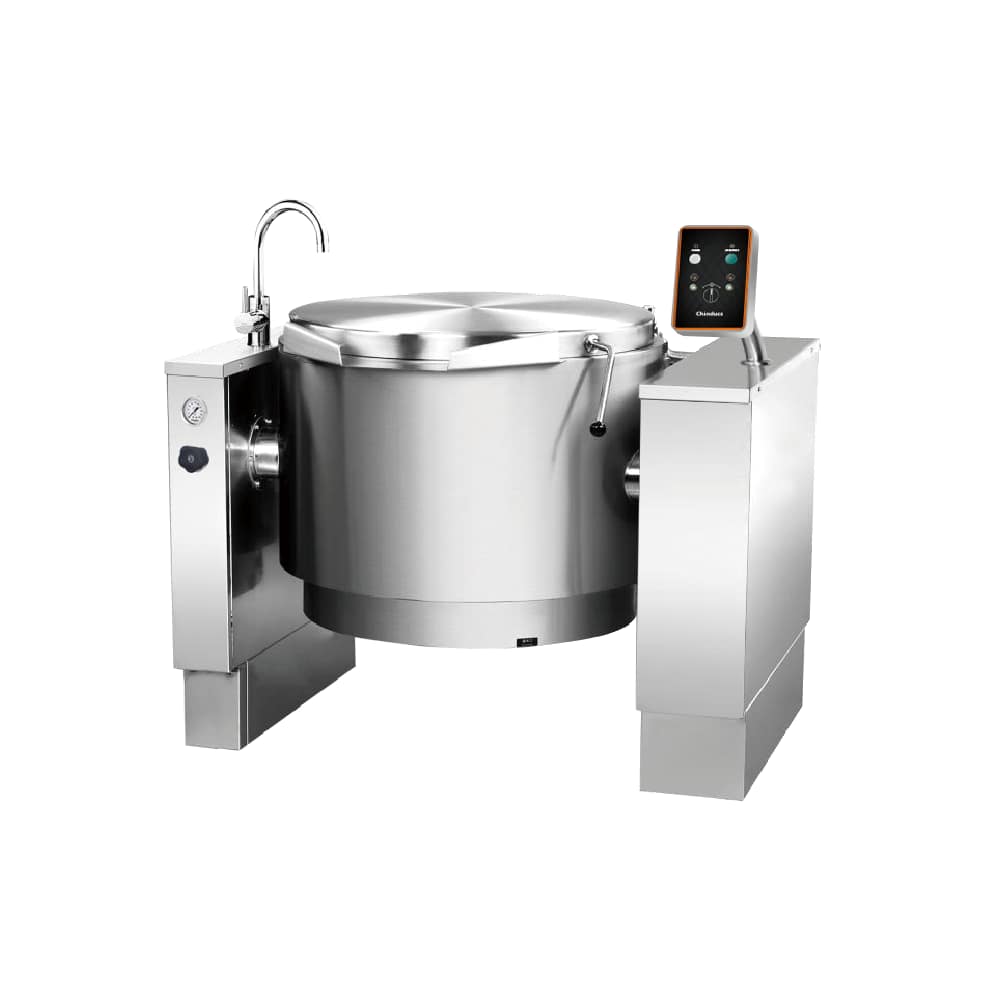

Ecoinduct SGT-E100BU Electric Tilting Boiling Pan – 100 Litre, 15 kW

Updated: 4 Nov 2025

At KW Commercial Kitchen, the Ecoinduct SGT-E100BU is a heavy-duty electric tilting boiling pan engineered for commercial kitchens that demand precision, hygiene and safety. With a 100 L capacity, triple-jacketed vessel and motorised tilting design, it’s ideal for boiling, poaching, steaming, simmering and braising operations across Australian hospitality venues.

Built for Australian commercial kitchens

The SGT-E100BU combines indirect steam heating, automatic safety protection and a SUS304 stainless structure for durability and ease of cleaning. Its triple-jacketed design with an independent steam generator ensures uniform heat distribution while avoiding food scorching and sticking.:contentReference[oaicite:1]{index=1}

Key features & specifications

• Capacity: 100 L cooking well
• Heating type: Electric, indirect steam generation for even heat
• Power: 15 kW / 380 V / 3P + N + E / 50 Hz
• Construction: SUS304 stainless steel body and cooking well
• Vessel design: Triple-jacketed with integrated steam generator
• Tilt system: Motorised; pan tilts over 90° for easy discharge
• Safety features: Over-pressure, over-temperature & low-water protection
• Additional safety: Water-level sensor and safety relief valve
• Dimensions (W×D×H): 1210 × 1020 × 1465 mm
• Pan diameter: Ø 650 mm
• Warranty: 1-year parts & labour (AU)

Compliance & safety (AU)

• Electrical: RCM compliant, 380 V 3-phase installation required.
• Food safety: FSANZ 3.2.2A-aligned hygienic stainless construction.
• Safety: Built-in pressure relief valve & auto cutoff for low-water protection.

Convenience & usage advice

• Ease of operation: Tilt pan with motorised lever for smooth decanting; monitor parameters via side control panel.
• Cleaning: Use warm water and pH-neutral detergent after each cycle; avoid abrasive scouring.

Ideal applications

• Restaurants and canteens
• Food manufacturing and batch cooking
• Hotel, catering and healthcare kitchens

At a glance

• 100 L capacity | 1210 × 1020 × 1465 mm
• 15 kW electric heating | 380 V / 3-phase
• Triple-jacketed SUS304 pan | motorised 90° tilt
• 1-year parts & labour warranty (AU)

Frequently Asked Questions

1) How do I clean it daily without harming finishes?

Use warm soapy water and a soft cloth on cool surfaces; rinse and dry thoroughly. Avoid metal brushes and strong acids.

2) What routine maintenance keeps performance stable?

Check water level weekly; clean steam generator every 3 months; verify safety valves annually.

3) What are the power requirements and typical energy use?

Requires 380 V 3-phase connection (15 kW). Approx. 12–15 kWh per hour at full load; use a dedicated circuit with 20 A breaker.

4) What about installation and Australian compliance?

RCM compliant; must be installed by a licensed electrician and plumber per AS/NZS 3000 and AS/NZS 3500.

5) Are spare parts and accessories available?

Yes – replacement heating elements, valves and gaskets available through Ecoinduct AU service partners.
