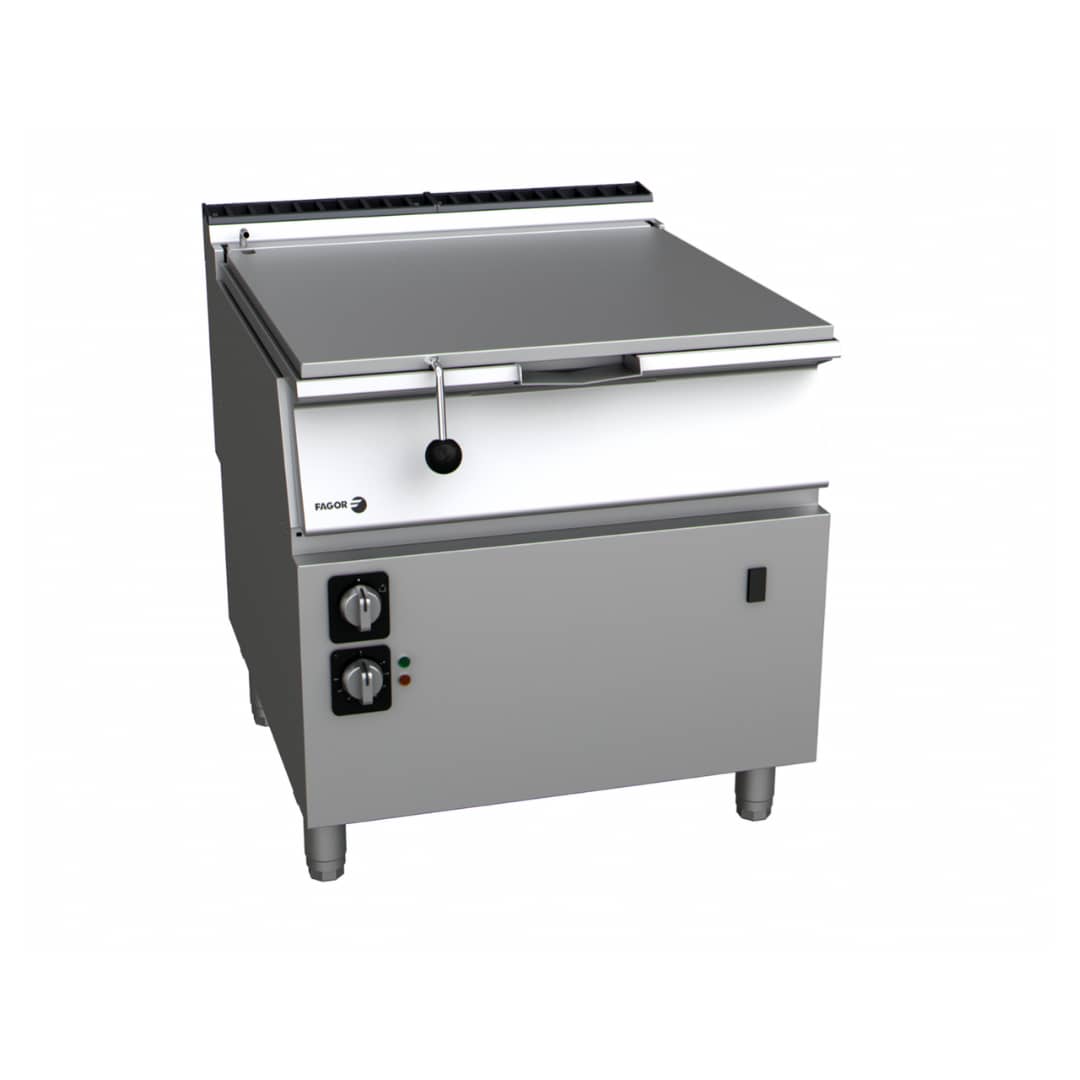

Fagor SB-G910IM Gas Tilting Bratt Pan – 90L, Kore 900 Series
Versatile High-Capacity Bratt Pan for Multi-Method Cooking
The Fagor SB-G910IM Gas Tilting Bratt Pan is engineered for large-scale commercial kitchens needing maximum versatility and efficiency. With a 90L capacity, motorised tilting system, and thermostatic control from 50°C–310°C, this Kore 900 Series unit handles boiling, braising, frying, poaching, roasting, and more. A thick stainless steel base ensures even heat distribution, while the motorised tilt allows smooth and safe emptying of contents.
Key Features
- Pan Capacity: 90L with rounded corners and wide discharge opening
- Gas Power: 18kW (1.88 m³/h NG consumption)
- Heating: Branched burners located directly beneath thick stainless steel base (10mm)
- Temperature Range: 50°C – 310°C, thermostatically controlled
- Construction: AISI 304 stainless steel with laser-cut, welded joints
- Tilting System: Motorised lifting to vertical position for safe unloading
- Water Filling: Electric fill valve controlled from front panel
- Lid System: Double-wall lid with spring-assisted balance and back-positioned drainer
- Steam Control: Flange perimeter prevents condensation spill-over
- Safety: Micro switch halts burner operation when pan is raised
- Protection: IPX5 water ingress rating
Technical Specifications
- Model: SB-G910IM
- Gas Type: Natural Gas (NG G20/G25/G25.1 – 20/25/25 mbar)
- Gas Consumption: 18.00kW (1.88 m³/h)
- Electrical: 230V / 1N / 50Hz / 0.09kW / 0.7A
- Water Inlet: ¾” (200–400 kPa)
- Gas Inlet: R3/4”
- Dimensions (WxDxH): 800 × 930 × 850mm
- Net Weight: 211kg
- Warranty: 2 Years Parts & Labour + 2 Years Parts Only (with registration)
Customer Benefits
- Reduces prep time by combining multiple cooking methods in one unit
- Motorised tilt prevents injury and speeds up kitchen workflow
- Highly durable with industry-standard IPX5 protection and thick stainless base
Perfect For
- Large restaurants and central production kitchens
- Hospitals, aged care, or bulk foodservice venues
- Operators needing multifunctional, high-volume cooking appliances
Order Now – Multi-Purpose Gas Tilting Bratt Pan for Heavy-Duty Kitchens
Call 1300 001 366 or shop online at KW Commercial Kitchen.
Frequently Asked Questions (FAQ)
What cooking tasks can I perform in the SB-G910IM?
It supports boiling, braising, stewing, frying, roasting, poaching, and more—making it one of the most versatile appliances in the kitchen.
How is water added to the pan?
It includes an electric fill valve controlled from the front panel, with a ¾” inlet at the back of the unit:contentReference[oaicite:0]{index=0}.
Is it safe to use in a high-moisture kitchen?
Yes. With an IPX5 water protection rating, sealed electrical components, and a flange system that prevents condensation spills, it is safe for wet kitchens:contentReference[oaicite:1]{index=1}.
