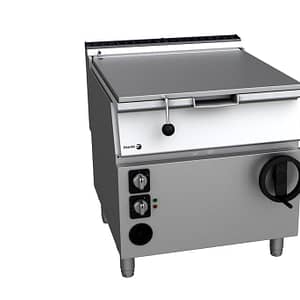

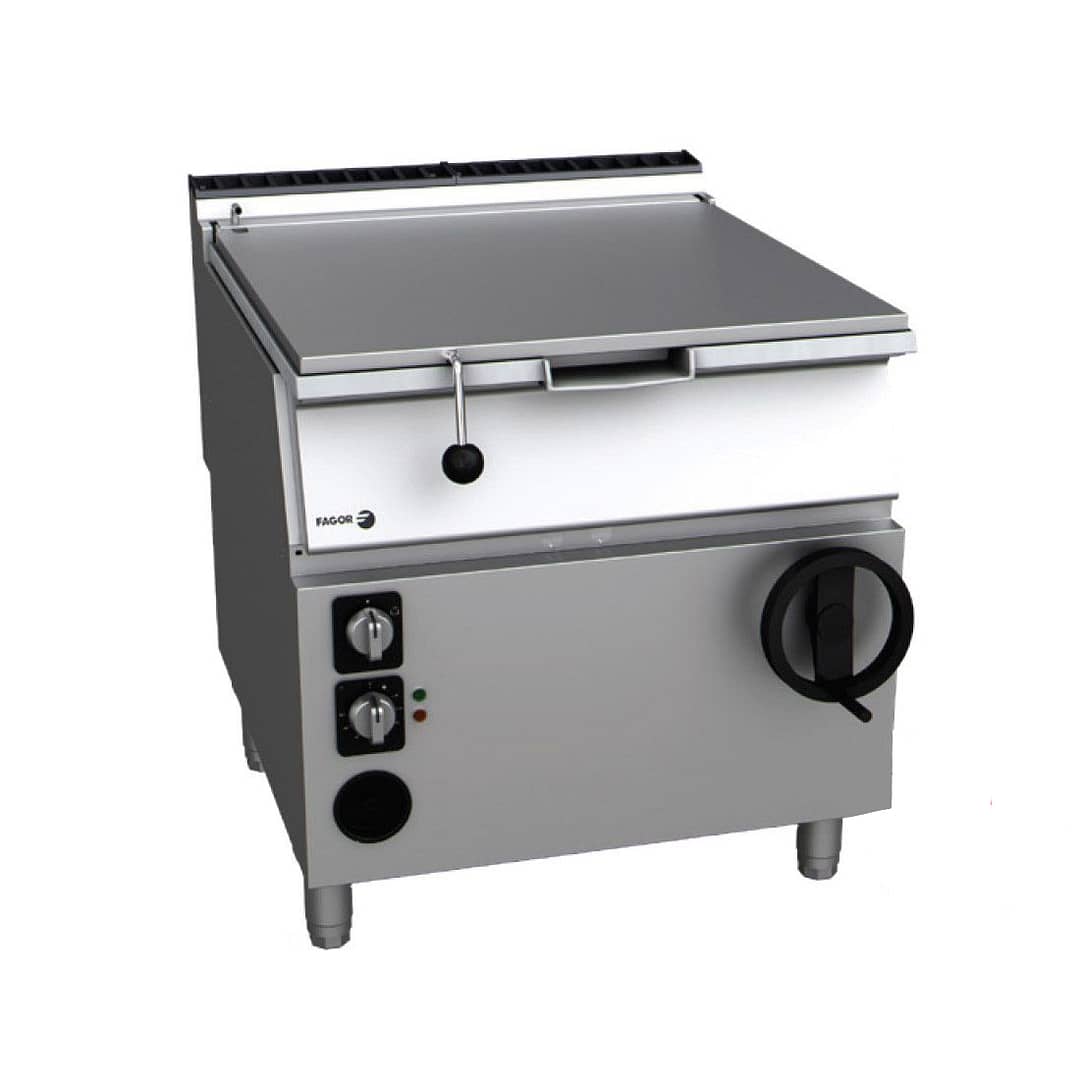

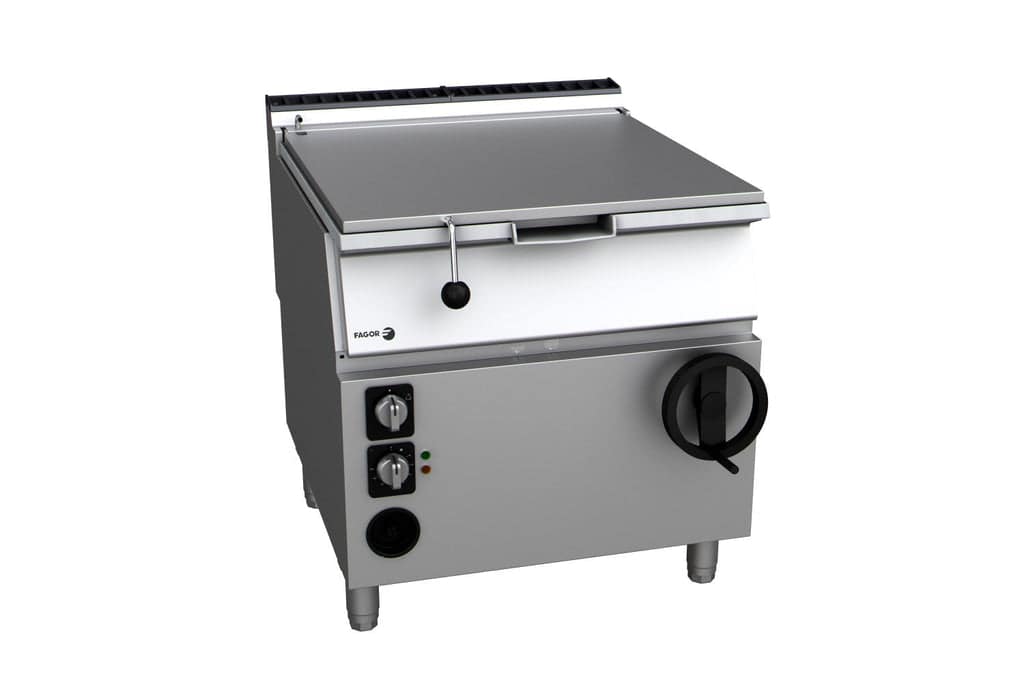

Fagor SB-G910I Gas Tilting Bratt Pan – 90L, Motorised/Manual Lift

Updated: 25 Sep 2025

Why this model: Even 8–10 mm base ensures uniform heat for braise-to-sear menus.

At KW Commercial Kitchen, we supply the Fagor SB-G910I, a compact commercial gas tilting bratt pan delivering a 90L cook well, 50–310°C thermostat control, and motorised or crank tilt in an 800-mm footprint—ideal for hotels, cafés and production kitchens.

Built for Australian production kitchens

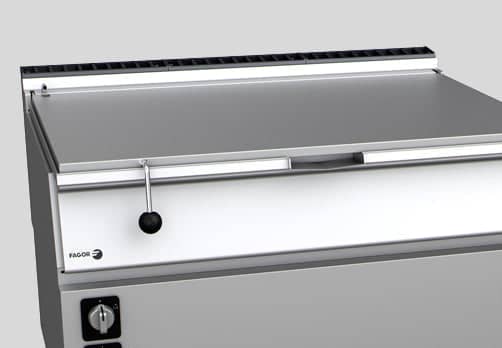

The SB-G910I combines uniform heat (8 mm cast iron / 10 mm stainless base), fast, safe tilting (motorised or manual), and clean water management (electric fill valve, rear pipe, double-walled lid with condensate return).

Key features & specifications

• Capacity: 90 L
• Temperature range: 50–310 °C (thermostat control)
• Power/Voltage/Fuel: Gas: 18 kW / 64.8 MJ/h (NG/LPG)
• Dimensions (W×D×H): 800 × 930 × 850 mm
• Weight: 211 kg

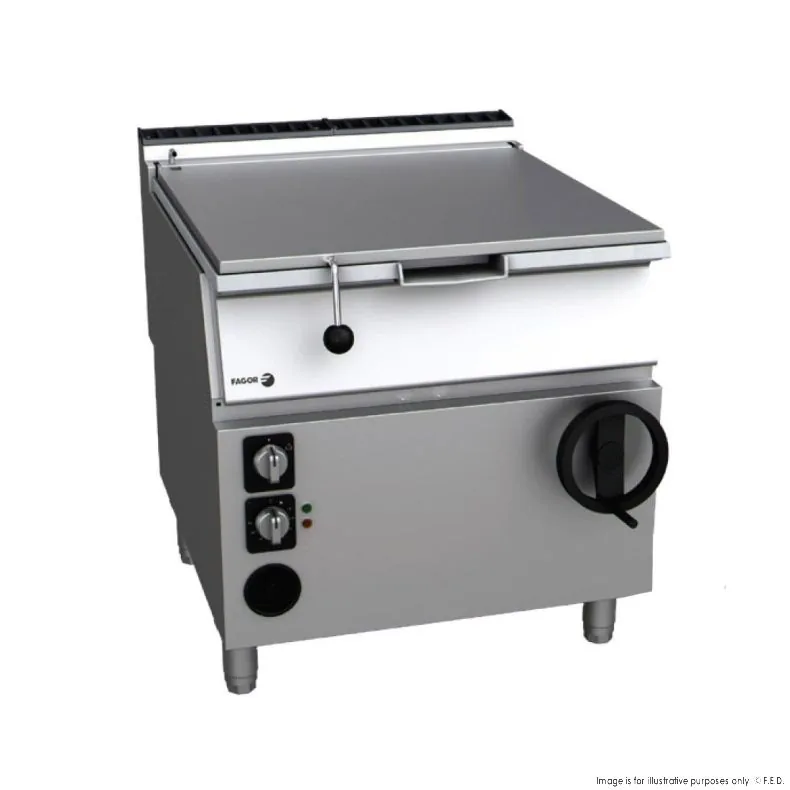

• Construction: Laser-cut joints; automatic welding with hidden fasteners; rounded-corner pan with wide unloading; perimeter flange for condensate; base thickness 8 mm (iron) / 10 mm (stainless); IPX5 water protection; double-walled lid with rear drainer; high-temp enamel flue guard; front service access; thermostat controller; branched base burners for even heat.
• Warranty: 24 months parts & labour (extendable to 4 years on parts with timely registration).

Compliance & safety (AU)

• Electrical: RCM compliant (control circuit where applicable).
• Gas: Install by a licensed gas fitter per AS/NZS 5601.1; verify NG/ULPG jets.
• Food safety: FSANZ-aligned practices; smooth radiused pan for hygienic clean-down.

Convenience & usage advice

• Faster decanting: Use motorised tilt for hot liquids; hold lid half-open to return condensate.
• Consistent browning: Preheat to target; avoid over-oiling—the 8–10 mm base spreads heat evenly.

Ideal applications

• Hotels & institutional kitchens
• Cafés and restaurants with batch sauces/risottos
• Catering & production cook-chill

At a glance

• Pan volume 90 L; 800 mm wide
• Gas output 18 kW / 64.8 MJ/h
• 8–10 mm heavy base; IPX5
• 2-year parts & labour (parts extendable to 4 years)

Frequently Asked Questions

1) How do I clean it daily without harming finishes?

Use pH-neutral degreaser and a microfibre pad; avoid abrasives/chlorine; rinse and dry; clean gasket and drain channel.

2) What routine maintenance keeps performance stable?

Weekly deep clean; inspect lid springs and tilt mechanism; check gas flames for uniformity; quarterly service by a licensed tech.

3) What are the power or gas requirements and typical energy use?

Connect to rated NG/ULPG supply via licensed fitter; typical high-fire consumption up to 64.8 MJ/h; actual usage varies by batch size and duty cycle.

4) What about installation and Australian compliance?

Install per AS/NZS 5601.1, with adequate ventilation and clearances; verify IPX5 wash-down practices; position away from direct drafts.

5) Are spare parts and accessories available?

Common parts include gaskets, thermostats, burner components and handles. Provide model/serial for exact items.

Specs source: Fagor Kore 900 Series SB-G910I official materials.
