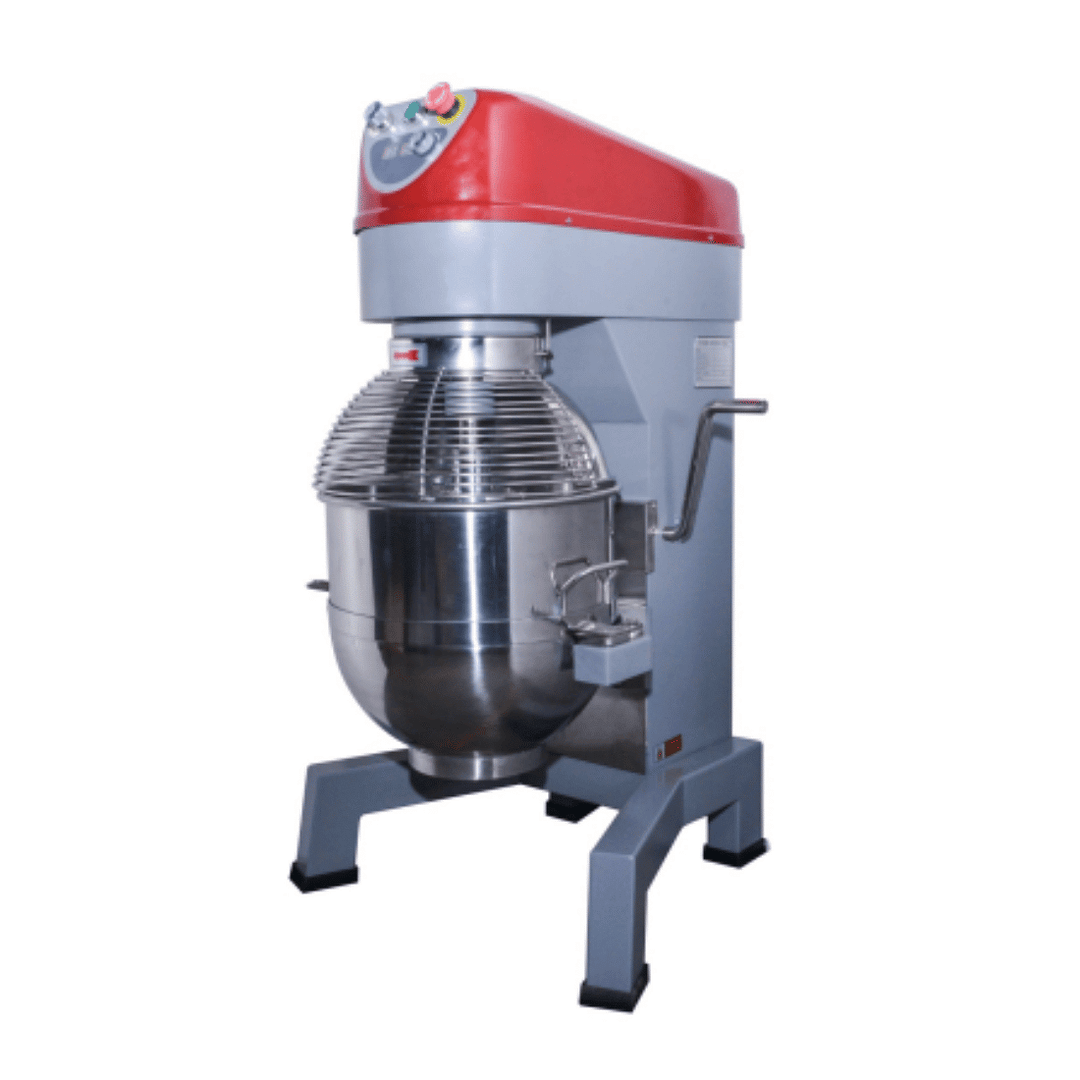

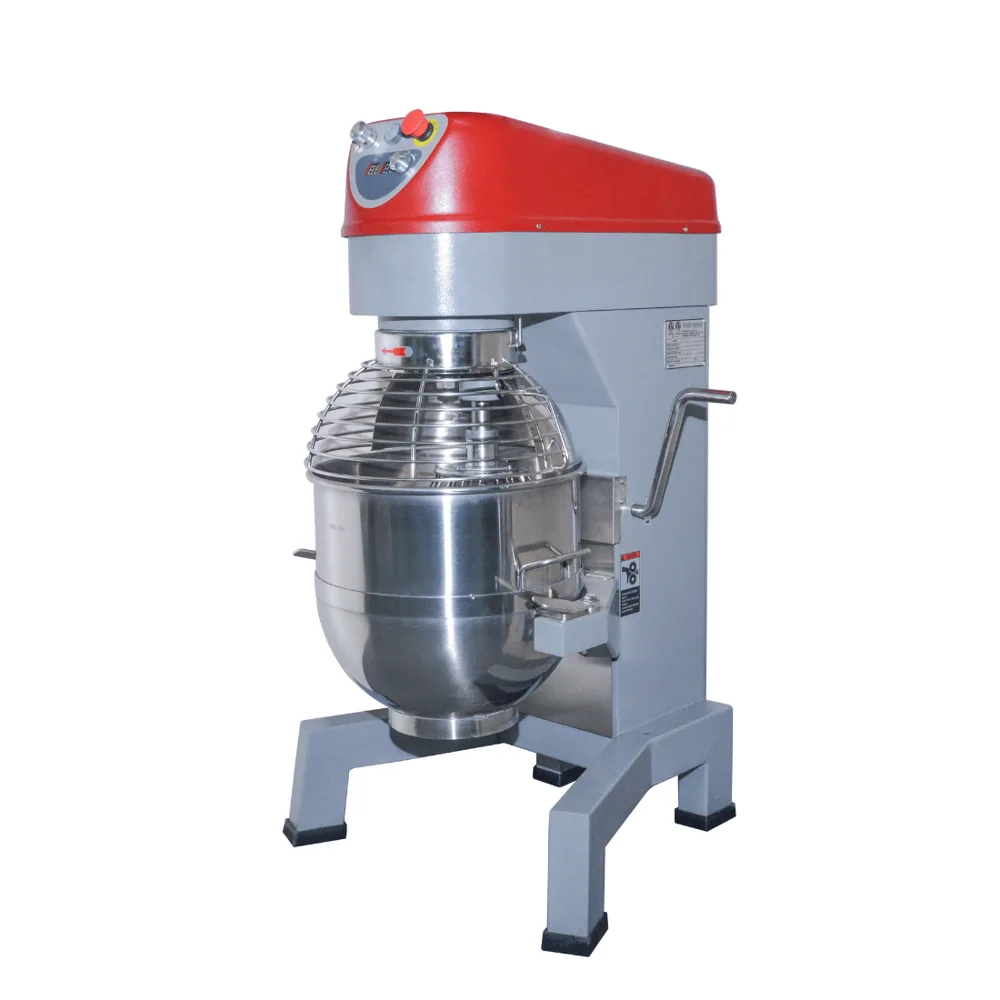

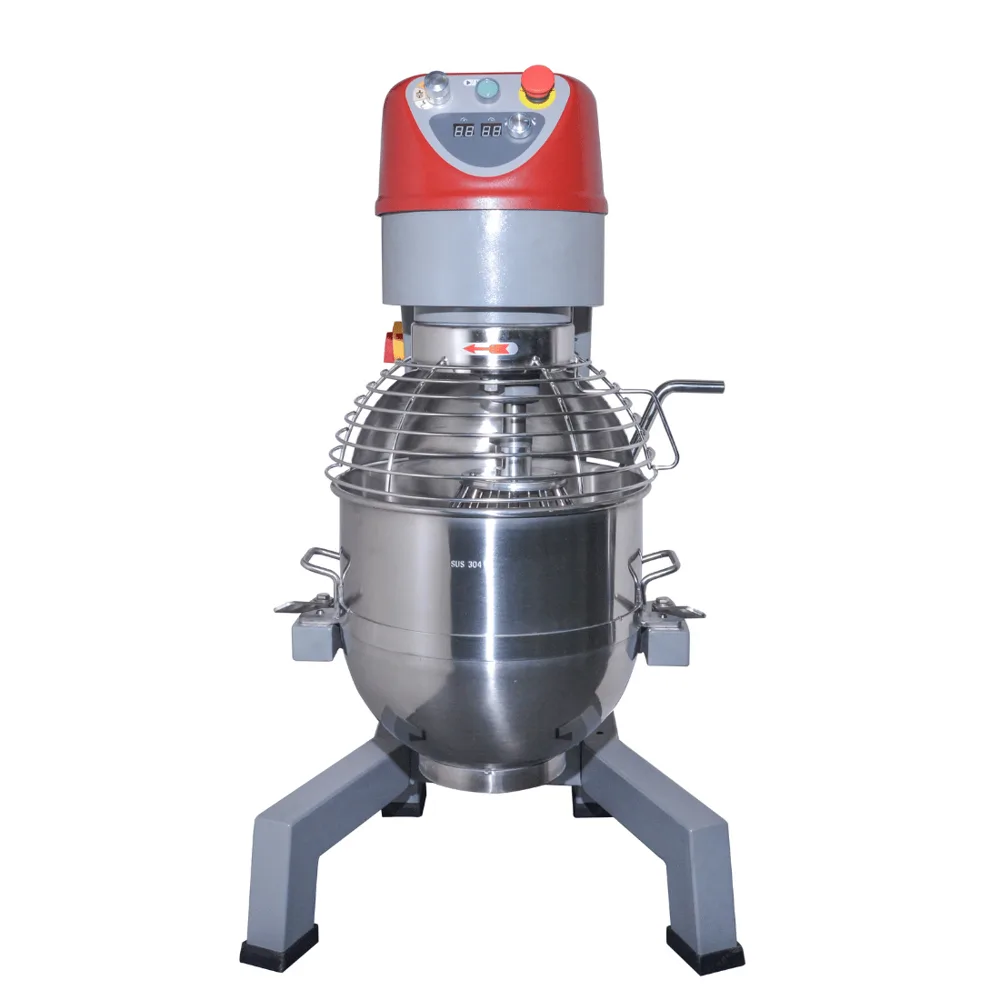

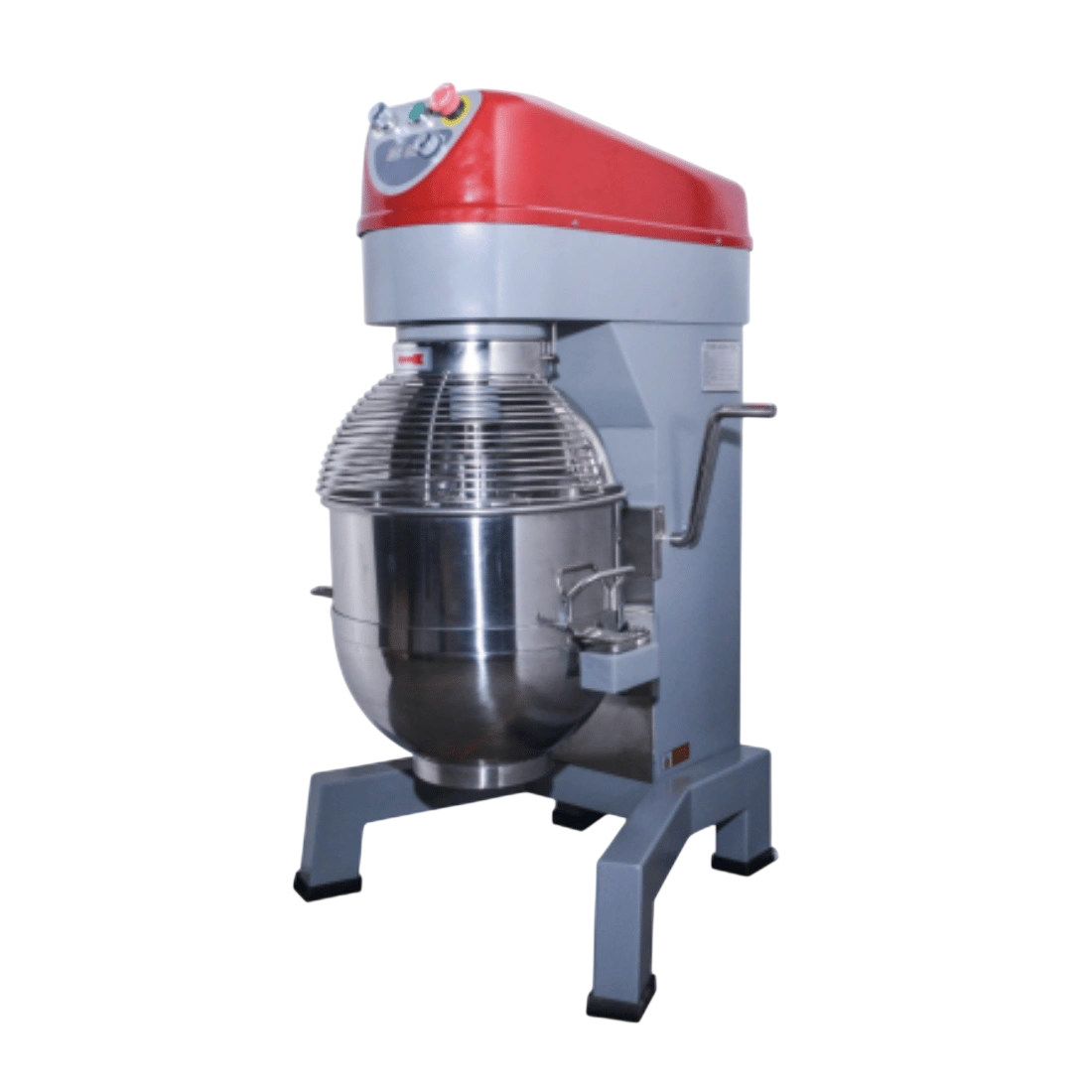

Tyrone B40GX Heavy Duty Planetary Mixer 40L

The Tyrone B40GX is a 40 L heavy duty planetary mixer for bakery and kitchen preparation. Ten variable speeds, speed memory and a digital timer support different mixing tasks, with a wire whisk, dough hook and flat beater included.

Consider the B40GX for bakery and kitchen preparation where one mixer needs to handle kneading, beating and whisking. Its 40 L bowl, three included tools and adjustable speed suit teams working across different recipes. Select it around your actual batch weights: maximum kneading capacity is 13.5 kg, with a maximum flour load of 9 kg.

• Bakery preparation teams whose dough batches fit within the 13.5 kg maximum kneading capacity and 9 kg maximum flour load.
• Kitchens needing a dough hook, flat beater and wire whisk for different preparation tasks.

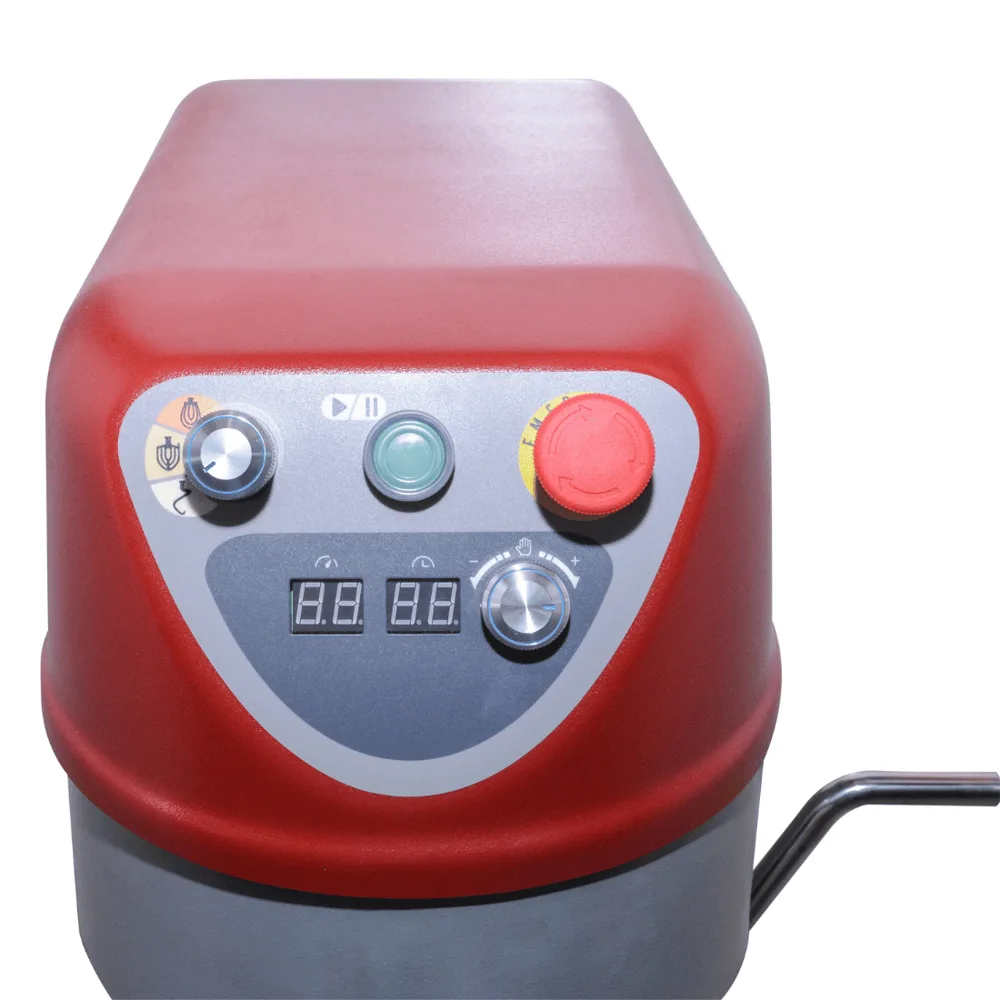

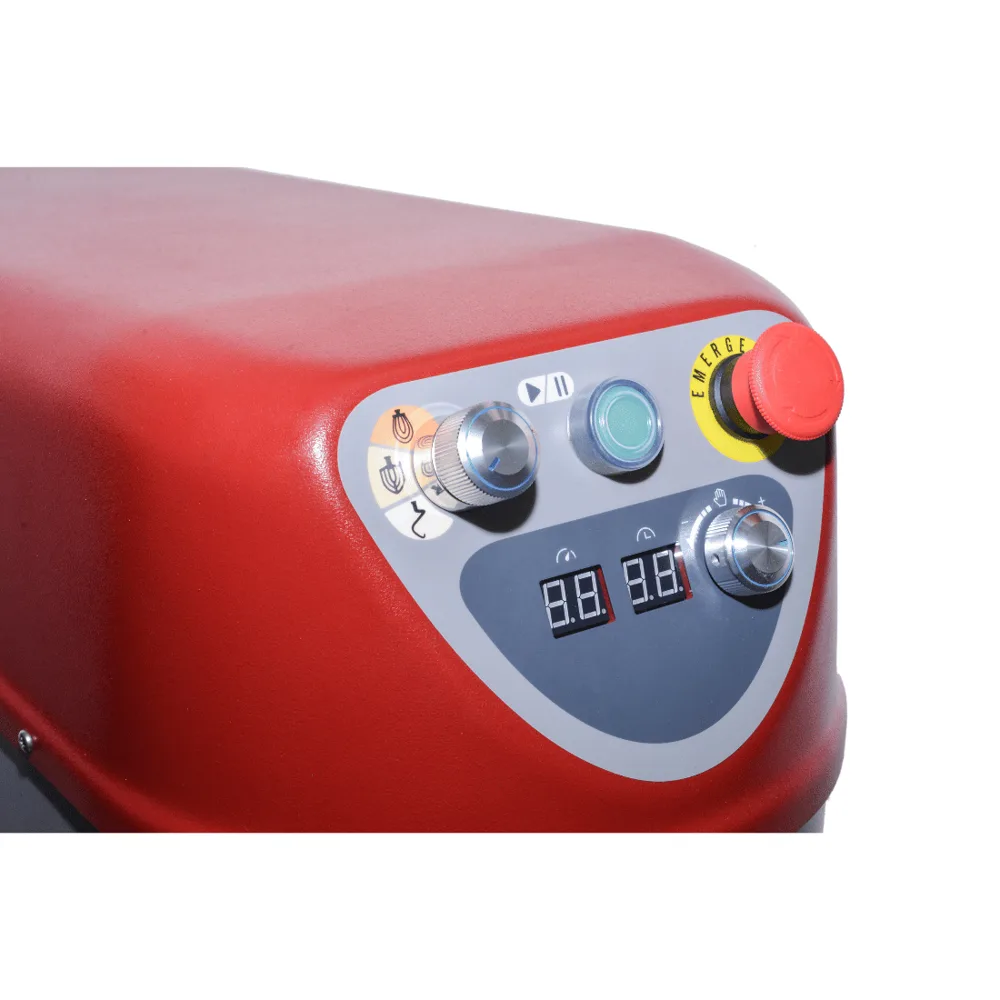

• Operators who want ten speed settings, preferred-speed memory and timed mixing on front-mounted controls.

• Small-batch operations needing a smaller bowl and footprint should compare the 10 L Tyrone B10GX.
• Operations needing more than a 40 L bowl should compare the 80 L Tyrone B80GX and assess its batch requirements separately.
• Teams seeking automatic bowl positioning and a trolley should consider the larger B60GX or B80GX models; the B40GX uses a manual bowl lift.

Start with the heaviest recipe you expect to mix. The 40 L figure describes bowl volume; use the separate 13.5 kg maximum kneading capacity and 9 kg maximum flour load when checking dough batches.

Match the included tool to each job, then plan the required speed and mixing time. Speed memory and the digital timer help operators return to a chosen preparation setting.

Check the dimensions in Key Specifications above against the working position and access route. Allow room to load ingredients, operate the bowl lift, remove the bowl and clean the machine.

Compare bowl size before moving to another model. The B10GX offers a smaller 10 L bowl and footprint, while the B80GX provides an 80 L bowl with a higher electrical load.

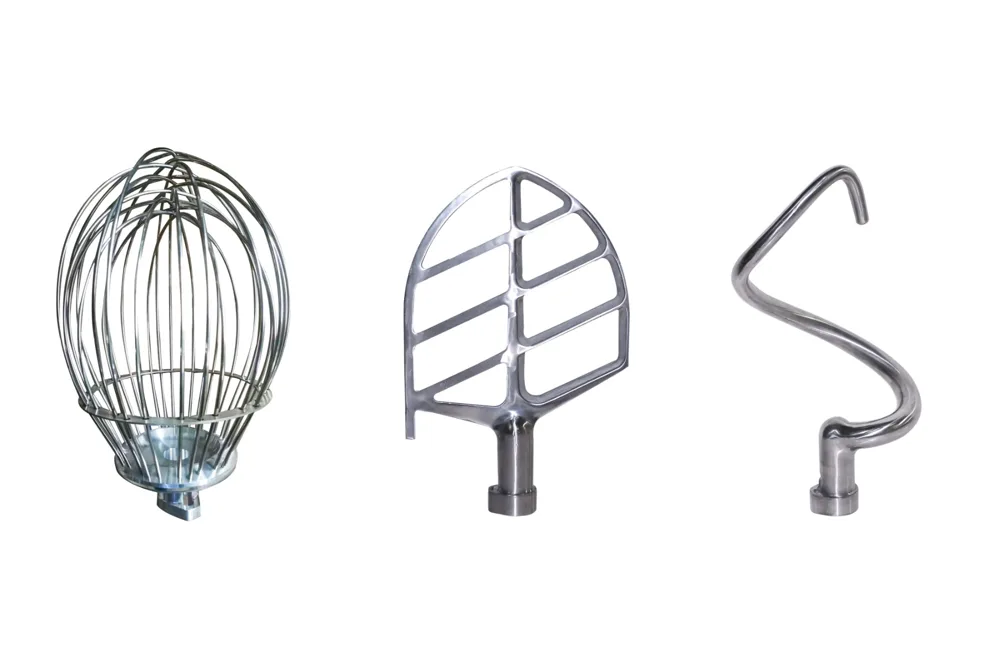

• Wire whisk, dough hook and flat beater included.
• Ten variable speeds, preferred-speed memory and a digital timer.
• Guard and bowl-position interlocks, plus overload and overheating protection.
• 240 V, 1,500 W / 10 A electrical requirement.

• The 40 L bowl has separate load limits: maximum kneading capacity is 13.5 kg and maximum flour load is 9 kg.
• Manual bowl lifting requires operator involvement.
• At 128 kg net weight, installation and repositioning require a planned handling arrangement.
• The 675 × 741 × 1154 mm body needs working space for loading, bowl handling and cleaning.

• Tyrone B10GX Heavy Duty Planetary Mixer 10L – 447 × 518 × 690 mm: The Tyrone B10GX has a 10 L bowl and a smaller 447 × 518 × 690 mm body, compared with the B40GX’s 40 L bowl and 675 × 741 × 1154 mm body; both use 240 V.
• Tyrone B80GX Heavy Duty Planetary Mixer 80L: The Tyrone B80GX increases bowl capacity from 40 L to 80 L and power from 1.5 kW to 2.5 kW, with both models using 240 V.

• Position and access. Check the 675 × 741 × 1154 mm body dimensions against the installation space and access route. Allow additional working room for ingredients, bowl movement, cleaning and maintenance.
• Electrical supply. Provide a supply suitable for 240 V, 1,500 W / 10 A operation at 50 Hz. Include the electrical connection and commissioning checks in the installation plan.
• Handling and packaging. Plan handling around the 128 kg net weight and 740 × 850 × 1340 mm packed dimensions. Account for the packed size when checking doorways and the route to the preparation area.

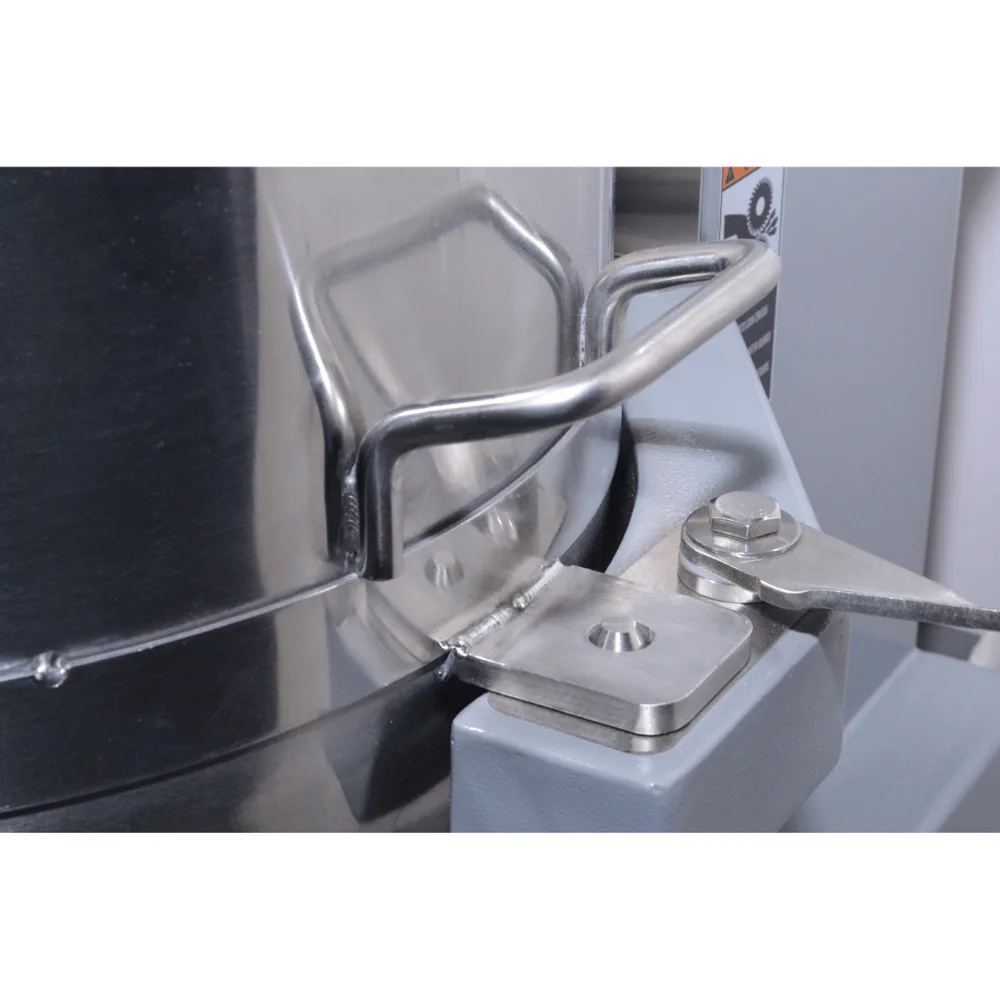

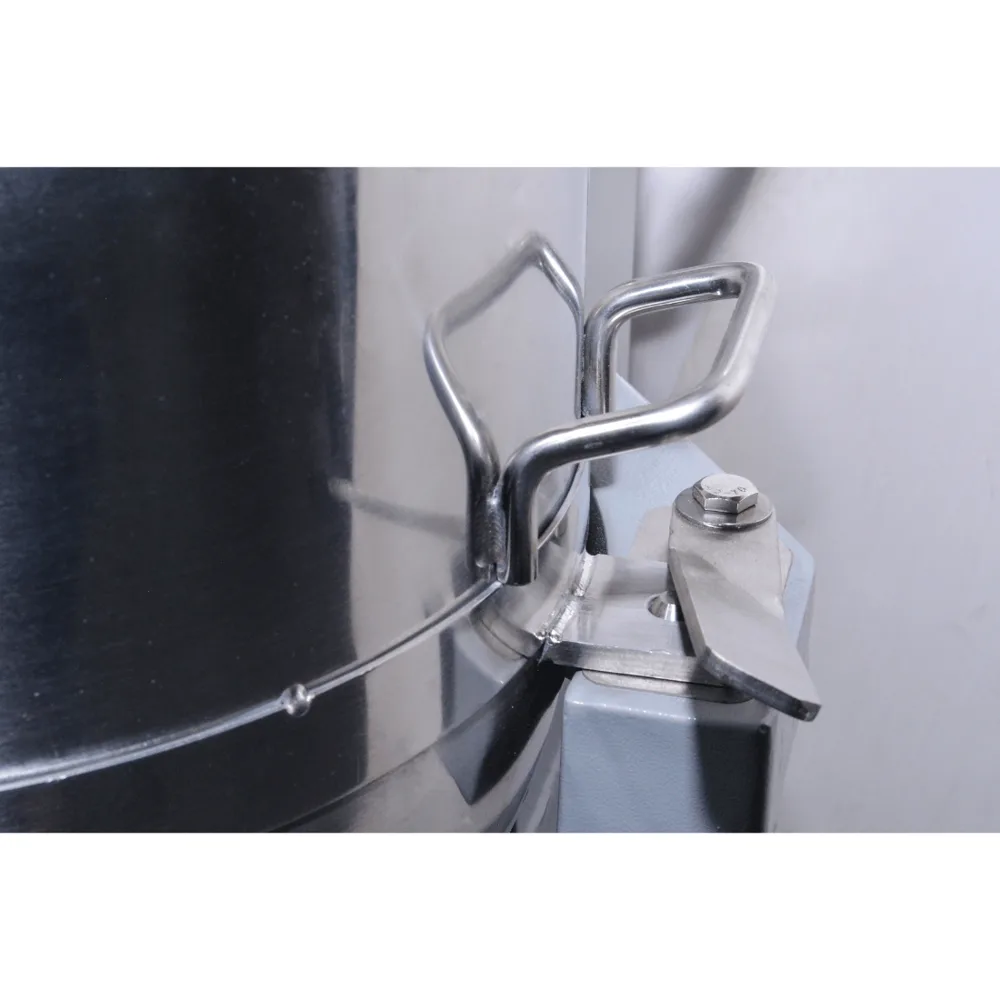

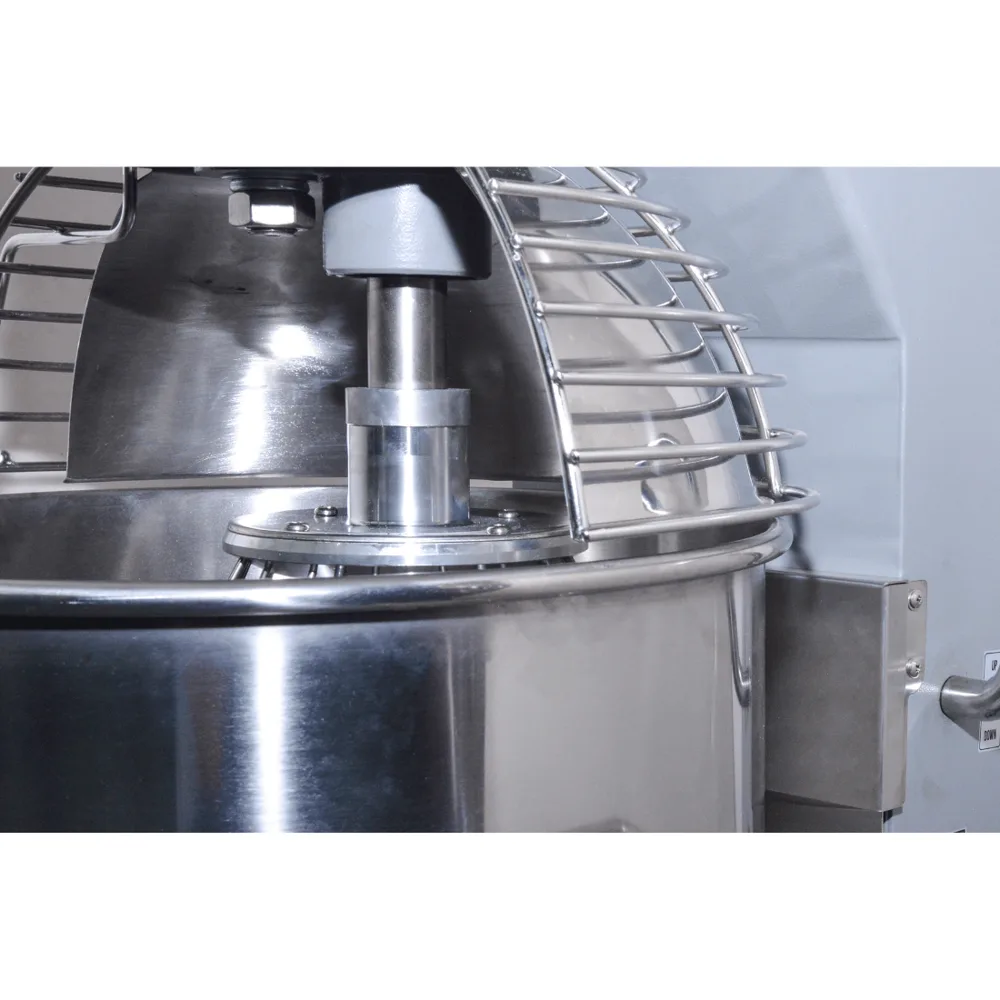

• Bowl and guard. Raise and secure the bowl, then close the guard before starting. The B40GX agitator must travel clockwise around the bowl.
• Operator routine. Use trained, supervised operators aged 18 or over who have read the operating instructions. Follow the operating instructions and site procedures for commissioning, cleaning and maintenance.

For body dimensions, see Key Specifications above.
