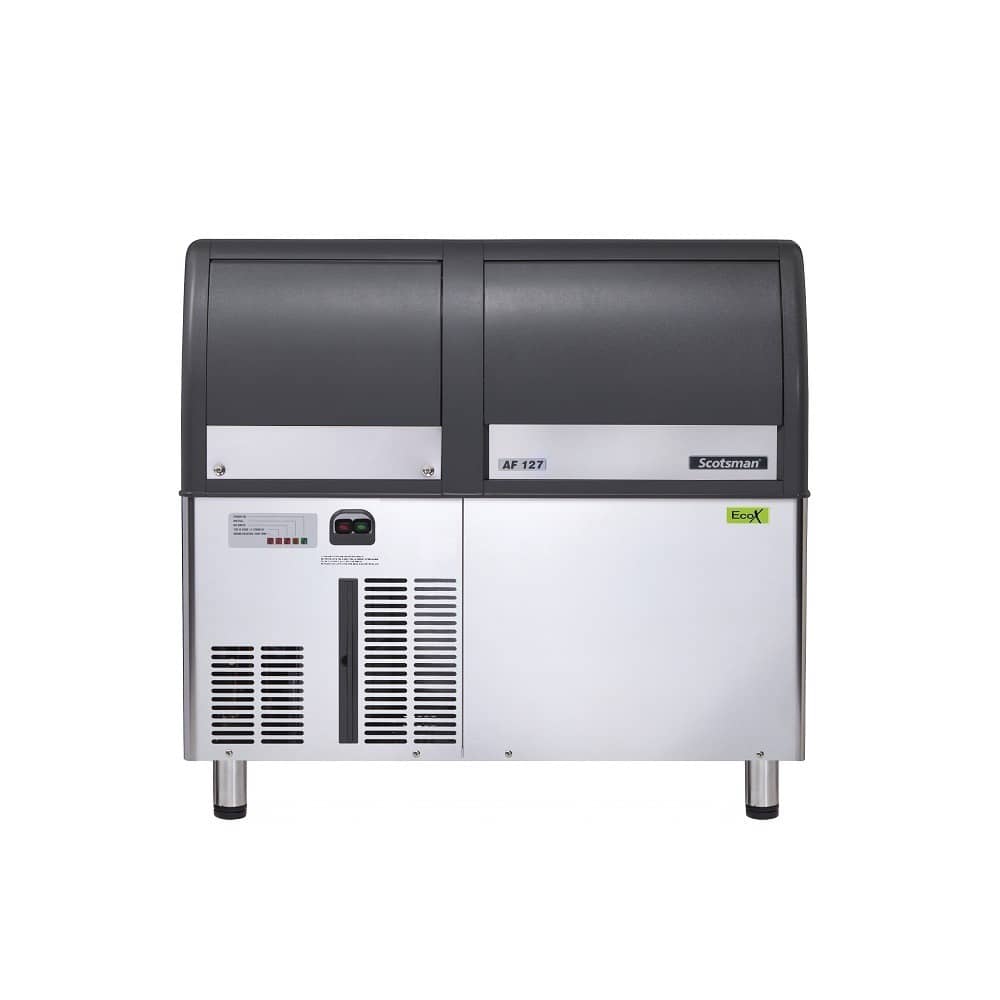

Scotsman AF 127 AS OX Self-Contained Flake Ice Maker – 121 kg/24 h

Updated: 6 Nov 2025

At KW Commercial Kitchen, the Scotsman AF 127 AS OX is a self-contained flake ice maker engineered for high-capacity, hygienic, and efficient performance. Producing up to 121 kg of flake ice per day with a 40 kg built-in storage bin, it’s the ideal solution for restaurants, bars, seafood displays, and medical environments in Australia.

Built for Australian commercial and healthcare use

The AF 127 AS OX combines XSafe natural sanitation, Agion® antimicrobial technology, and stainless-steel construction for exceptional hygiene and long-term reliability. The water-in / ice-out design minimises waste while maintaining consistent ice quality.

Key features & specifications

• Daily production rate: 121 kg/24 h (@21°C ambient / 10°C water)
• Storage bin capacity: 40 kg (integrated)
• Cooling system: Air-cooled (vented front condenser)
• Ice type: Flake – residual water content 25%
• Sanitation system: XSafe Natural Sanitation + Agion® antimicrobial protection
• Construction: Stainless steel auger & freezing cylinder evaporator
• Operation: Simple electromechanical controls with external status lights
• Maintenance: Front condenser filter access + Clean alert indicator
• Power: 450 W compressor / 230–240 V, 1P+N+E, 50 Hz / 10 A cordset
• Energy use: 9.6 kWh/24 h | Water use: 4.1 L/h
• Refrigerant: R404A (EcoX hydrocarbons R290 optional)
• Dimensions (W×D×H): 950 × 605 × 872 mm (incl. legs)
• Weight: 66 kg net | 77 kg packed
• Warranty: 3 Years parts & labour (Moffat / Scotsman AU)

Compliance & safety (AU)

• Electrical: RCM-compliant plug-in 10 A cordset (1P+N+E, 50 Hz)
• Refrigerant: R404A or EcoX R290 – GEMS-approved refrigerant system
• Food safety: FSANZ-compliant materials with Agion® anti-microbial coating
• Water compliance: WaterMark-approved inlet & drain hose assembly

Convenience & usage advice

• Hygienic design: XSafe UV sanitation and Agion®-treated surfaces inhibit microbial growth.
• Efficient operation: Water-in / ice-out design saves energy, time, and water.

Ideal applications

• Seafood and butcher displays
• Bars, cafés, and restaurants
• Hospitals and laboratories

At a glance

• 121 kg/24 h flake ice | 40 kg bin
• R404A / R290 refrigerant | 450 W
• XSafe & Agion® antimicrobial system
• 3-Year warranty | FSANZ compliant

Frequently Asked Questions

1) How do I clean it daily without harming finishes?

Use warm water with mild detergent; avoid chlorinated or acidic cleaners. Rinse surfaces and filters thoroughly, dry before restart.

2) What routine maintenance keeps performance stable?

Clean air filter weekly, wipe bin interior, and descale evaporator every 3–6 months depending on water hardness.

3) What are the power requirements and energy use?

230–240 V single phase / 10 A cordset, 450 W power, approx. 9.6 kWh/24 h.

4) What about installation and Australian compliance?

Allow 100 mm rear and 150 mm side clearance for air flow. RCM & WaterMark certified, install by a licensed technician per AS/NZS 60335 & 3500.

5) Are spare parts and accessories available?

Yes – includes removable air filter, water and drain hose, and scoop. Replacement kits stocked by KW Commercial Kitchen.

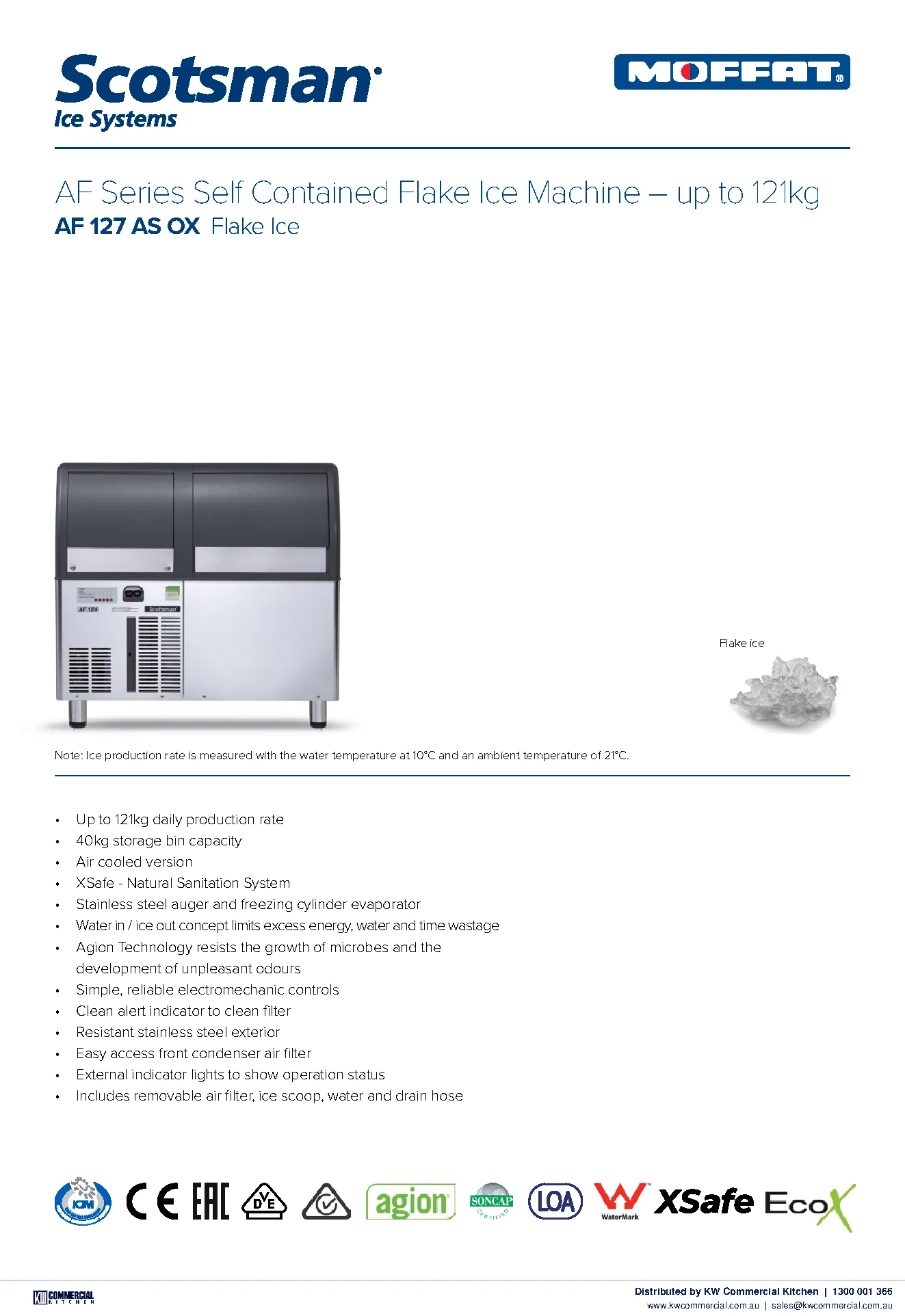

Specs source: Scotsman AF 127 AS OX datasheet (Moffat AU, 2025):contentReference[oaicite:0]{index=0}.
