Scotsman ECM 47 AS OX Ice Maker – 24kg, Gourmet Cube, EcoX & XSafe
Compact, Premium Gourmet Ice Maker for Professional Bars and Cafés

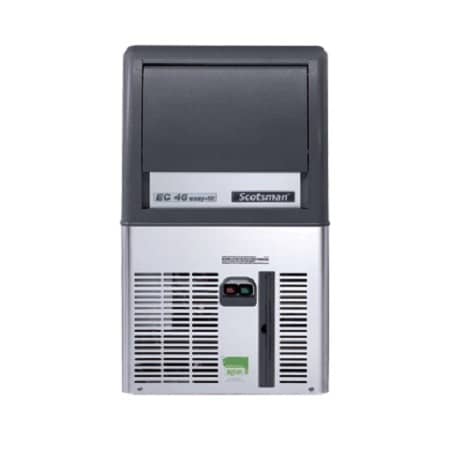

The Scotsman ECM 47 AS OX is a self-contained, compact ice maker that produces up to 24kg of gourmet ice per day with a 9kg internal bin. Featuring Agion antimicrobial technology, the XSafe natural sanitation system, and EcoX R290 refrigerant, this unit delivers hygienic, energy-efficient performance for commercial beverage operations.
Key Features
- Production: 24kg/day with 9kg integrated storage bin
- Ice Type: Solid gourmet cube – 30mm dia x 34mm H, 20g per cube
- Cooling System: Air-cooled version
- Refrigerant: EcoX R290 hydrocarbon
- Technology: Agion antibacterial protection and XSafe UV & ozone sanitation
- Evaporator: Horizontal spray-system for crystal-clear ice
- Water Drain: PWD – Progressive Water Discharge pumps water up to 15m
- Maintenance: Washable air filter, maintenance indicator light
- Controls: Reliable electromechanical interface
- Door Design: Ergonomic disappearing door with dampened close
- Power: 230-240V / 320W / 10A plug
- Construction: Stainless steel exterior, built-in bin
- Dimensions: 386mm (W) x 600mm (D) x 645mm (H)
- Warranty: 3 Years Parts & Labour
Ideal For
- Premium Cocktail Bars
- Wine Bars and Gin Bars
- Upscale Cafés and Restaurants
- Specialty Beverage Retailers
Why Choose the Scotsman ECM 47 AS OX?
This gourmet ice maker is engineered for hygiene, durability, and ease of use. Its compact footprint fits easily into tight commercial layouts, while its crystal-clear cubes melt slower—ideal for upscale beverage service.
Frequently Asked Questions (FAQ)
How do I install the Scotsman ECM 47 AS OX?
Installation requires a 10A power outlet, a cold water inlet, and a drain connection. The PWD system allows flexible installation without gravity-fed drainage.
Is this ice machine eco-friendly?
Yes, it uses R290 refrigerant and XSafe technology, offering low environmental impact and superior sanitation without chemicals.
What maintenance is needed?
Clean the condenser filter monthly, sanitize the ice bin, and inspect the Agion and XSafe systems regularly. A front-panel light alerts you when maintenance is due.
Need assistance? Contact our team or explore more Scotsman Ice Makers.
