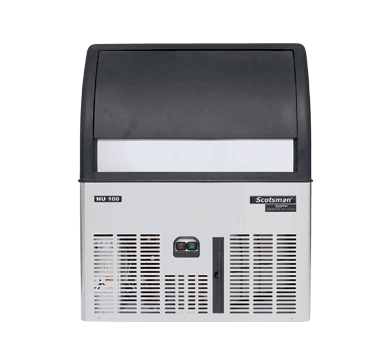

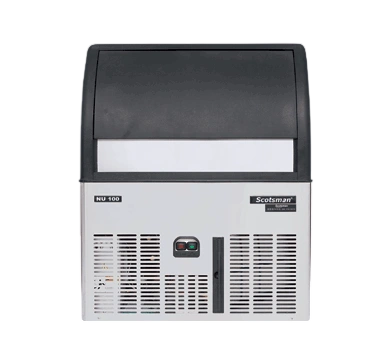

Scotsman NUH 100 AS OX XSafe Self-Contained Half Dice Ice Maker – 45kg Output
Premium Half Dice Ice Maker with XSafe & Agion Antimicrobial Technology
The Scotsman NUH 100 AS OX XSafe Self Contained Ice Maker delivers up to 45kg of hygienic half dice ice cubes per day, with a 20kg storage bin. This model features industry-leading XSafe UV sanitation, Agion antimicrobial protection, and advanced vertical evaporator spray-system technology for crystal-clear, slow-melting half dice cubes ideal for high-turnover hospitality, bar, and beverage operations.
Key Features
- 45kg Daily Ice Production – Consistent, reliable output even in peak demand.
- 20kg Storage Bin – Large built-in storage keeps service flowing.
- Half Dice Ice Cubes – Each cube: 10mm (W) x 22mm (D) x 28mm (H), weight 6g; rapid chilling, perfect for mixed drinks and fast beverage cooling.
- XSafe Natural Sanitation System – Integrated UV-based cleaning solution operates 24/7, eliminating bacteria, viruses, mould, and yeast for odourless, clean ice.
- Agion Antimicrobial Technology – Silver-ion protection resists microbe growth and prevents unpleasant odours.
- Vertical Evaporator Spray-System – Delivers high quality, clear half dice cubes with rapid freezing cycles.
- One-Touch Cleaning – Simplifies routine cleaning and maintenance for time and labour savings.
- Ergonomic Sliding Disappearing Door – Easy ice access without occupying workspace.
- Easy-Access Front Air Filter – Removable and washable condenser filter with maintenance alert on front panel.
- Stainless Steel Exterior – Durable, corrosion-resistant housing for demanding commercial environments.
- Routine Maintenance Alert – Visible front-panel alarm for optimal performance.
- Includes – Removable air filter, ice scoop, water and drain hose.
Technical Specifications
- Dimensions: 600mm (W) x 610mm (D) x 770mm (H) (including feet)
- Nett Weight: 50kg | Packed Weight: 60kg
- Water Consumption: 3.2 litres/hour (air cooled version)
- Electrical: 230–240V, 1P+N+E, 50Hz, 450W, 10A cordset supplied
- Compressor: 780W | Energy Use: 8.9kWh/24hr
- Refrigerant: R404a
- Ambient Temp Range: 10–43°C
- Water Inlet: R ¾” | Pressure: 100–500kPa | Temp: 5–38°C
- Water Outlet: ؾ”
- Minimum Installation Clearance: Rear 100mm, Sides 150mm
- Ice Output (per 24 hours):
- 56kg at 10°C water/10°C ambient
- 45kg at 21°C water/10°C ambient
- 32kg at 32°C water/21°C ambient
Ideal For
- Bars, Nightclubs & Hotels
- Cafés, Restaurants & Fast Food Chains
- Healthcare & Aged Care Facilities
- Food Courts & Beverage Stations
Why Choose the NUH 100 AS OX?
Combining XSafe 24/7 UV sanitation, Agion antimicrobial, robust build, and user-friendly cleaning, the NUH 100 AS OX guarantees hygienic, rapid-chill half dice ice and hassle-free maintenance for busy, safety-conscious commercial environments.
Frequently Asked Questions (FAQ)
What is the size and shape of half dice ice cubes?
Each half dice cube is 10mm (W) x 22mm (D) x 28mm (H), weighing 6g—designed for rapid chilling and slow dilution in beverages.
What is the maximum ice output under optimal conditions?
Up to 56kg per day at 10°C water and ambient; 45kg at 21°C/10°C; 32kg at 32°C/21°C ambient/water temperature:contentReference[oaicite:1]{index=1}.
How is hygiene ensured?
XSafe UV sanitation and Agion antimicrobial silver-ion technology work together to prevent bacteria, viruses, and odours 24/7, while the machine’s alert system reminds you to clean the air filter for top performance.
