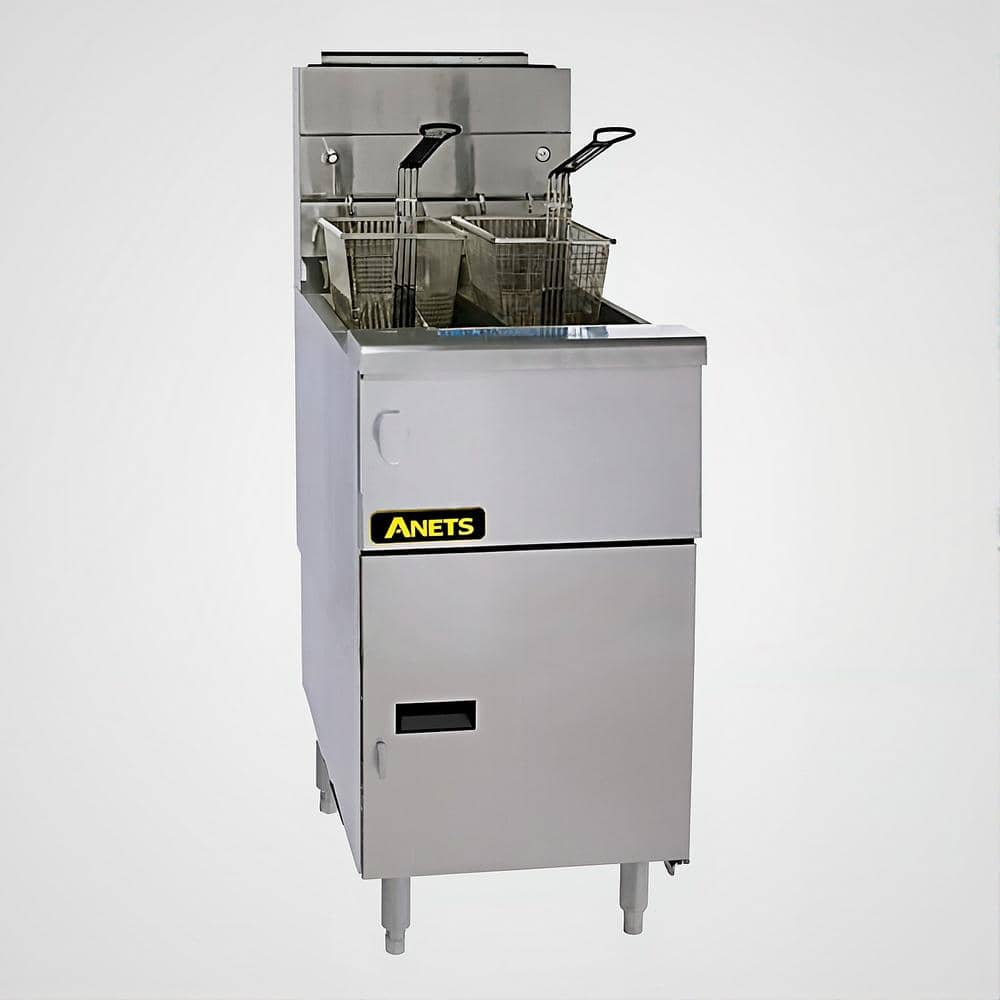

Anets FDAGG114R Goldenfry Gas Tube Fryer – Oil Filter Drawer System
Updated:
At KW Commercial Kitchen, we supply the Anets FDAGG114R Goldenfry Gas Fryer, a heavy-duty gas tube fryer with a self-oil filtering drawer system. With 19–21L oil capacity per tank and a 258MJ/h total gas output, it is designed for consistent frying, fast filtration and energy-efficient operation in demanding kitchens.
Built for Australian restaurants, QSRs and catering kitchens
The FDAGG114R combines millivolt controls, a 30 L/min filter pump, and an inverted burner system for improved recovery and lower energy usage. Supplied with washdown hose, filter papers, cleaning tools and lids, it arrives ready to support high-volume frying.
Key features & specifications
- Oil capacity: 19–21 L per tank
- Production rate: High-output, commercial-grade
- Burner system: Inverted gas tube burners for efficiency
- Filter system: Self-contained drawer with 30 L/min pump
- Gas input: 258 MJ/h, 3/4” BSP gas inlet
- Power: 240V / 10A for filter pump
- Dimensions (W×D×H): 794 × 876 × 1172 mm
- Weight: 190 kg
- Accessories: Includes hose, filter powder, papers, tools & lids
- Warranty: 12 months parts & labour + 10-year frypot warranty
Compliance & safety (AU)
- Gas: Install per AS/NZS 5601.1 by licensed fitter.
- Electrical: RCM compliant (240V / 10A for pump).
- Food safety: FSANZ-aligned filtration system ensures clean oil.
Convenience & usage advice
- Quick filtering: Drawer system cleans oil in minutes, reducing downtime.
- Gas efficient: Inverted burners improve heat transfer and cut energy costs.
Ideal applications
- Restaurants & cafés
- Quick service chicken/fish kitchens
- High-volume catering operations
Frequently Asked Questions
1) How does the filter drawer system work?
Simply pull out the drawer, start the pump, and filter oil in 2 quick steps. Rear oil return ensures bottom cleaning.
2) What routine maintenance is needed?
Empty crumbs, replace filter paper regularly, and wash down components daily.
3) What are the gas & power requirements?
258 MJ/h via 3/4” BSP gas line + 240V 10A outlet for filter pump.
4) Is it easy to move?
Yes – rear wheels and adjustable castors make repositioning easier.
5) What accessories are included?
Washdown hose, 100 filter papers, filter powder, cleaning tools, and lids are supplied as standard.
