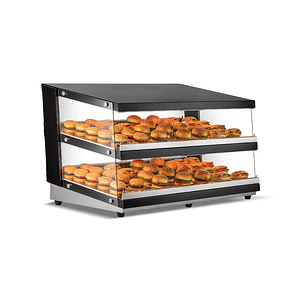

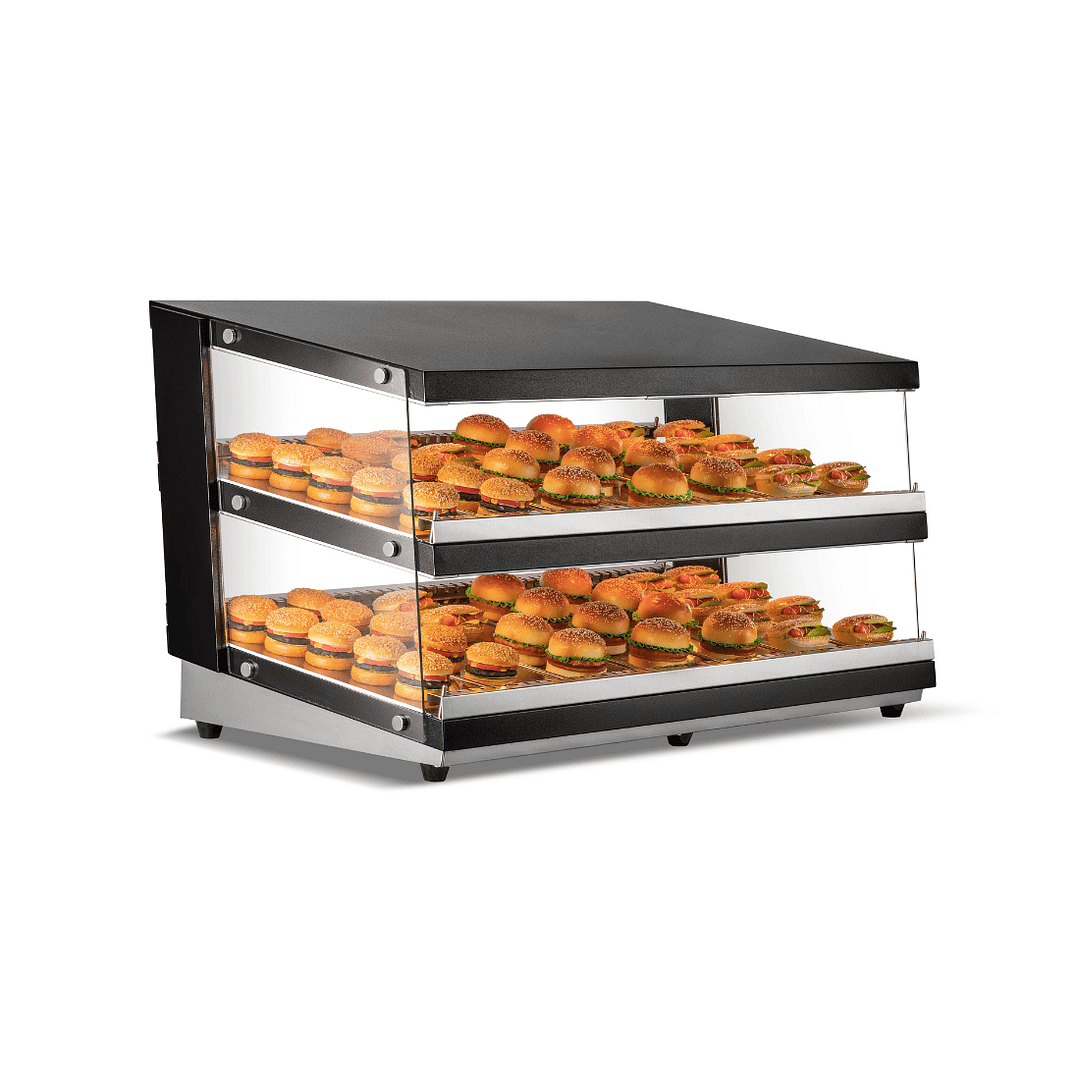

Bonvue HWB2-138 Backfill Heated Display Cabinet – 1259 mm / 1880 W

Updated: 2 Nov 2025

At KW Commercial Kitchen, the Bonvue HWB2-138 is a commercial backfill heated display cabinet featuring 1.38 m² of display area, dual-tier shelves, and 30–90 °C temperature control. Its rear-feed design and stainless slide guide make it ideal for cafés, bakeries and hotels requiring back-of-house refill access while maintaining a professional presentation at the front counter.

Built for Australian hot food passes & self-serve counters

The HWB2-138 combines black stainless styling, mechanical temperature control, and IPX4 splash-proof protection to ensure reliability, hygiene, and durability in high-traffic food service environments.

Key features & specifications

• Display area: 1.38 m² dual-tier configuration with stainless food slide guide
• Temperature / Power: 30 – 90 °C range; 1880 W rated input; 8.2 A current draw
• Electrical: 220–240 V / 50 Hz / 10 A plug & lead
• Dimensions (W×D×H): 1259 × 703 × 704 mm:contentReference[oaicite:0]{index=0}
• Weight: 63.5 kg; height tolerance ±10 mm (see drawing):contentReference[oaicite:1]{index=1}
• Construction: Stainless-steel accents; full glass visibility; dual-tier shelving; mechanical temperature controller; visible temperature display; black body design; robust leg supports; IPX4 splashproof rating
• Controls: Manual dial with analog temperature indicator
• Origin: Bonvue commercial heated display series
• Warranty: 1-year parts & labour

Compliance & safety (AU)

• Electrical: RCM compliant.
• Food safety: FSANZ-aligned hot food holding ≥ 60 °C.
• Ingress protection: IPX4 – safe for busy counters and kitchen splash zones.

Convenience & usage advice

• Rear feed design: Smooth stainless slide allows quick refilling from kitchen side while customers view the front.
• Low-maintenance setup: Simple mechanical controller, no digital calibration required.

Ideal applications

• Bakery hot pie and pastry display
• Restaurant or hotel buffet pass
• Café or canteen hot snack counter

At a glance

• 1259 × 703 × 704 mm | Display 1.38 m² | 63.5 kg
• 30–90 °C adjustable | 1880 W / 8.2 A | 240 V plug-in
• Dual-tier stainless shelves | IPX4 splashproof | Mechanical temperature control
• Warranty 1 year parts & labour | RCM compliant

Frequently Asked Questions

1) How do I clean it daily without harming finishes?

Switch off, allow to cool, then wipe glass and shelves with pH-neutral cleaner and microfibre cloth; avoid abrasive tools; dry thoroughly.

2) What routine maintenance keeps performance stable?

Weekly wipe food slide guide; check thermostat accuracy; quarterly inspect electrical cable and temperature display.

3) What are the power requirements and typical energy use?

Operates on 240 V / 10 A plug; rated 1.88 kW. Use calculator below to estimate daily cost by local tariff and hours of use.

4) What about installation and Australian compliance?

Install on a level counter with rear access for backfill service; RCM electrical compliance; FSANZ ≥ 60 °C food safety requirement.

5) Are spare parts and accessories available?

Common replacements include shelves, thermostats, and glass panels — quote model and serial when ordering.

Specs source: Bonvue HWB2-138 engineering drawing & datasheet (1259 × 703 × 704 mm, 1.38 m² display, IPX4, 240 V / 1880 W).:contentReference[oaicite:2]{index=2}
