2 years parts and labour, plus 2 years parts-only warranty when registered within 14 days of invoice.

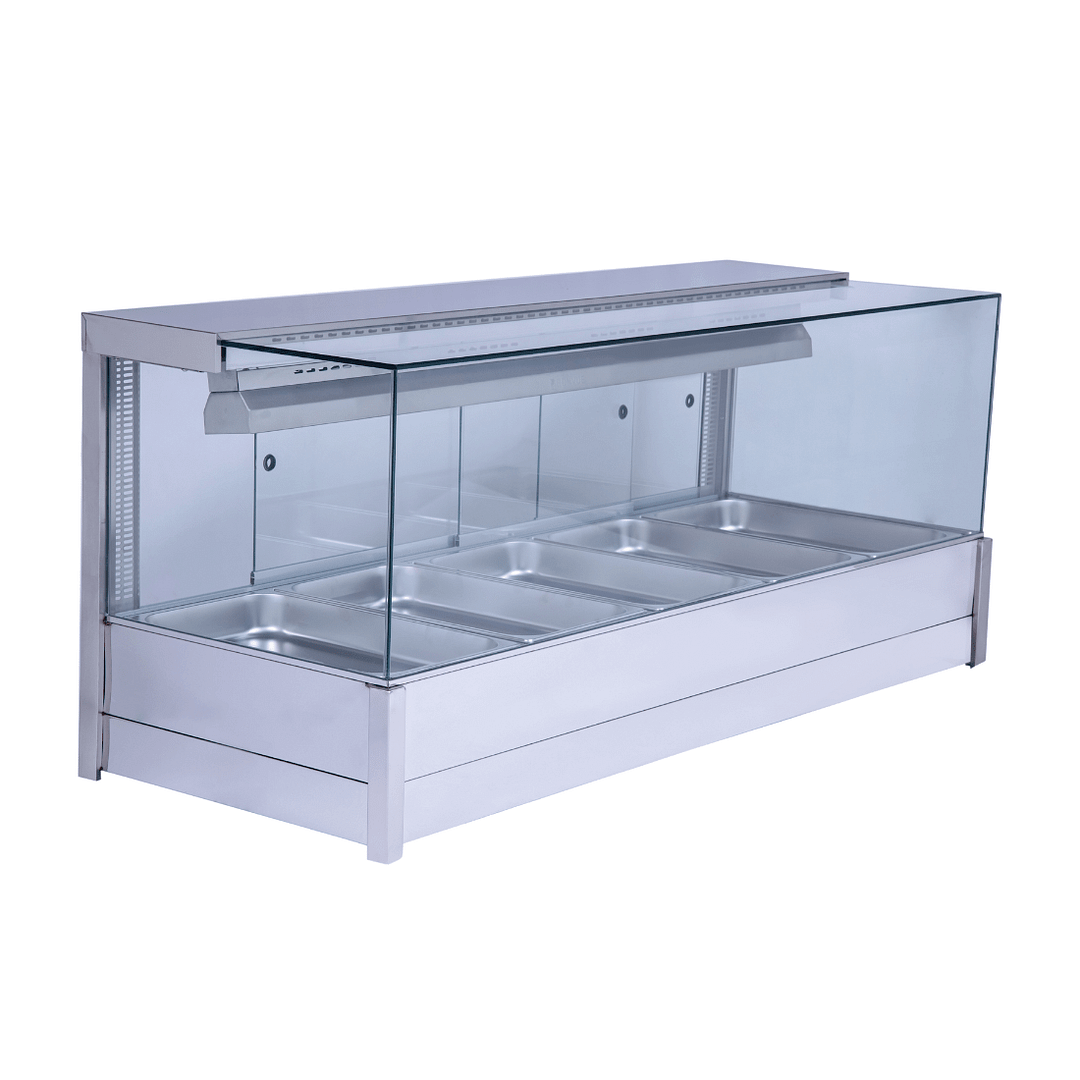

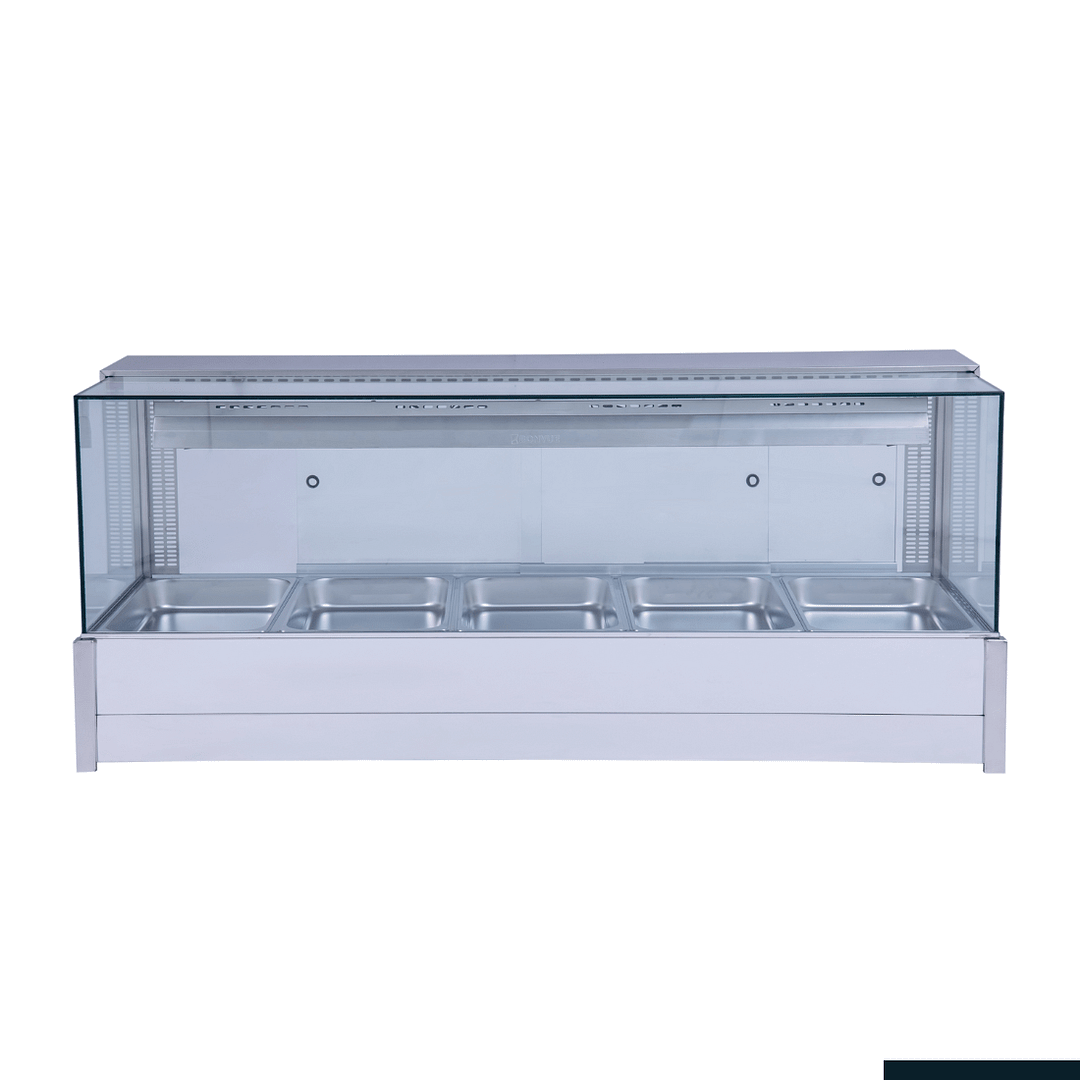

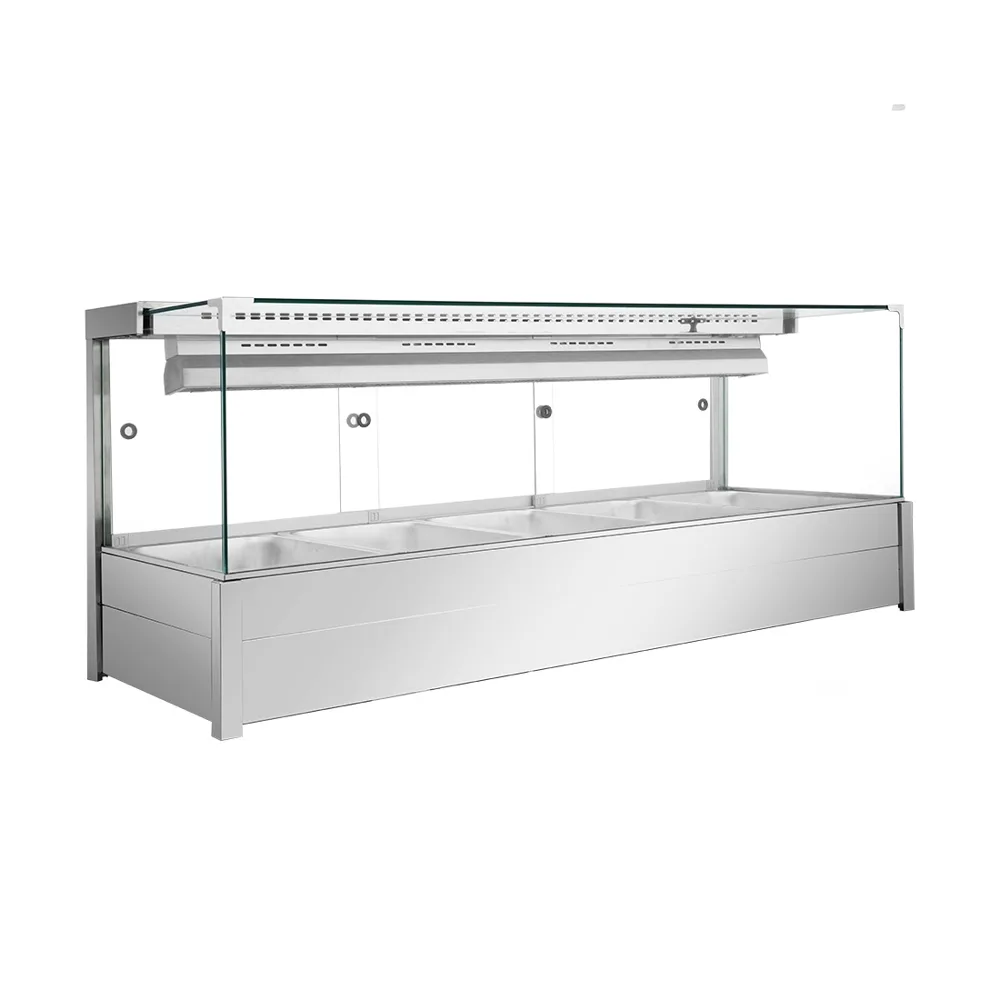

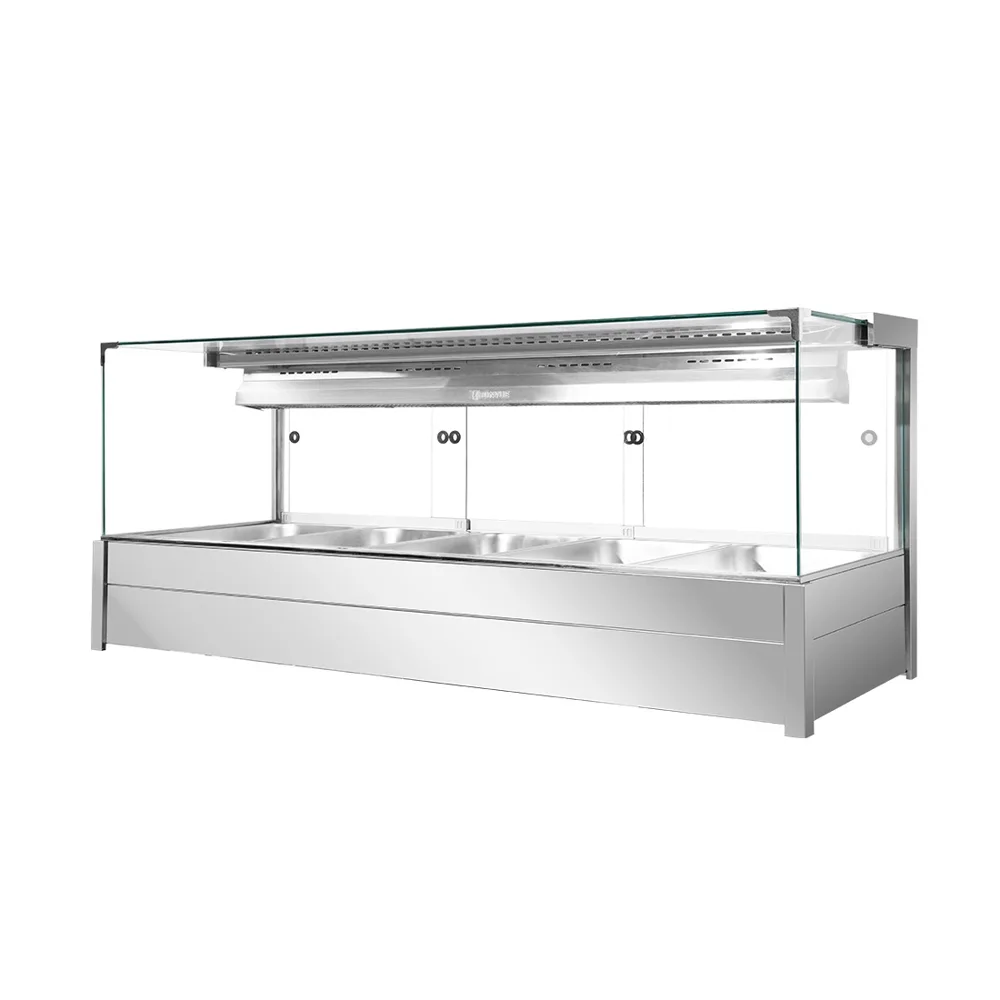

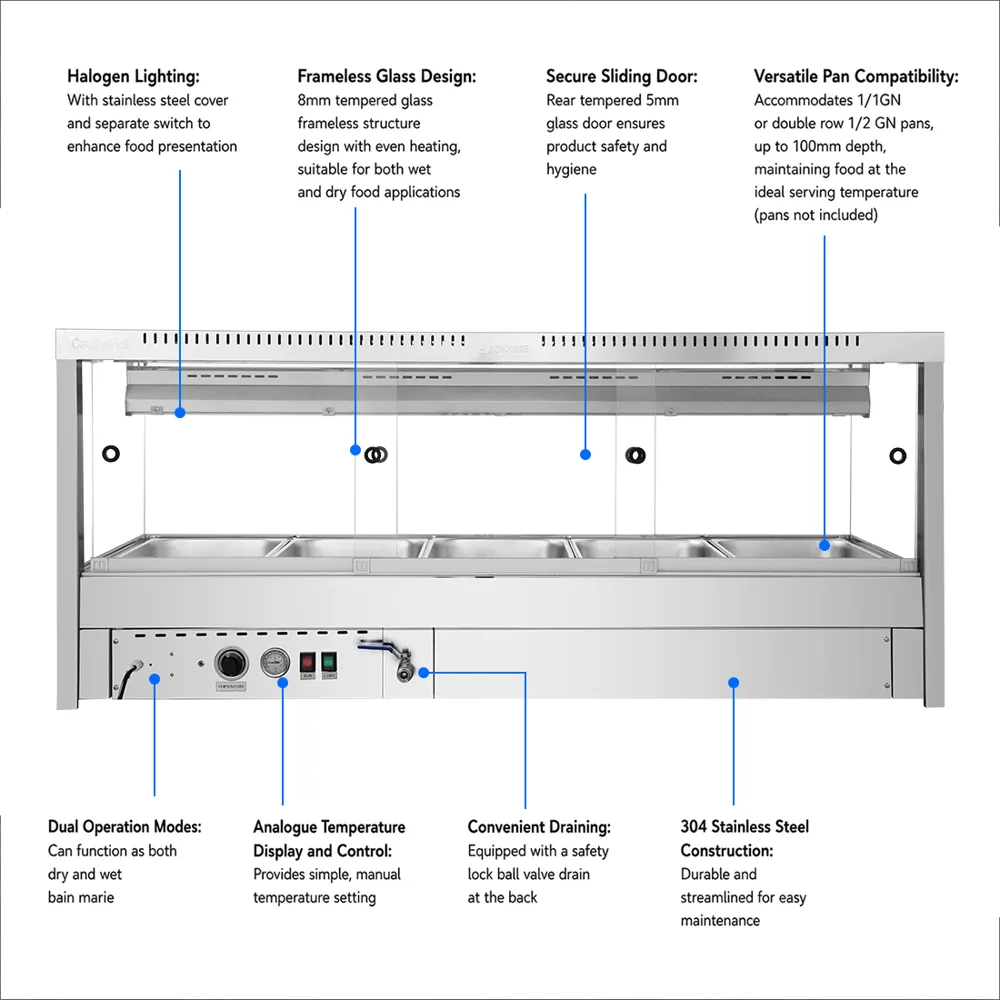

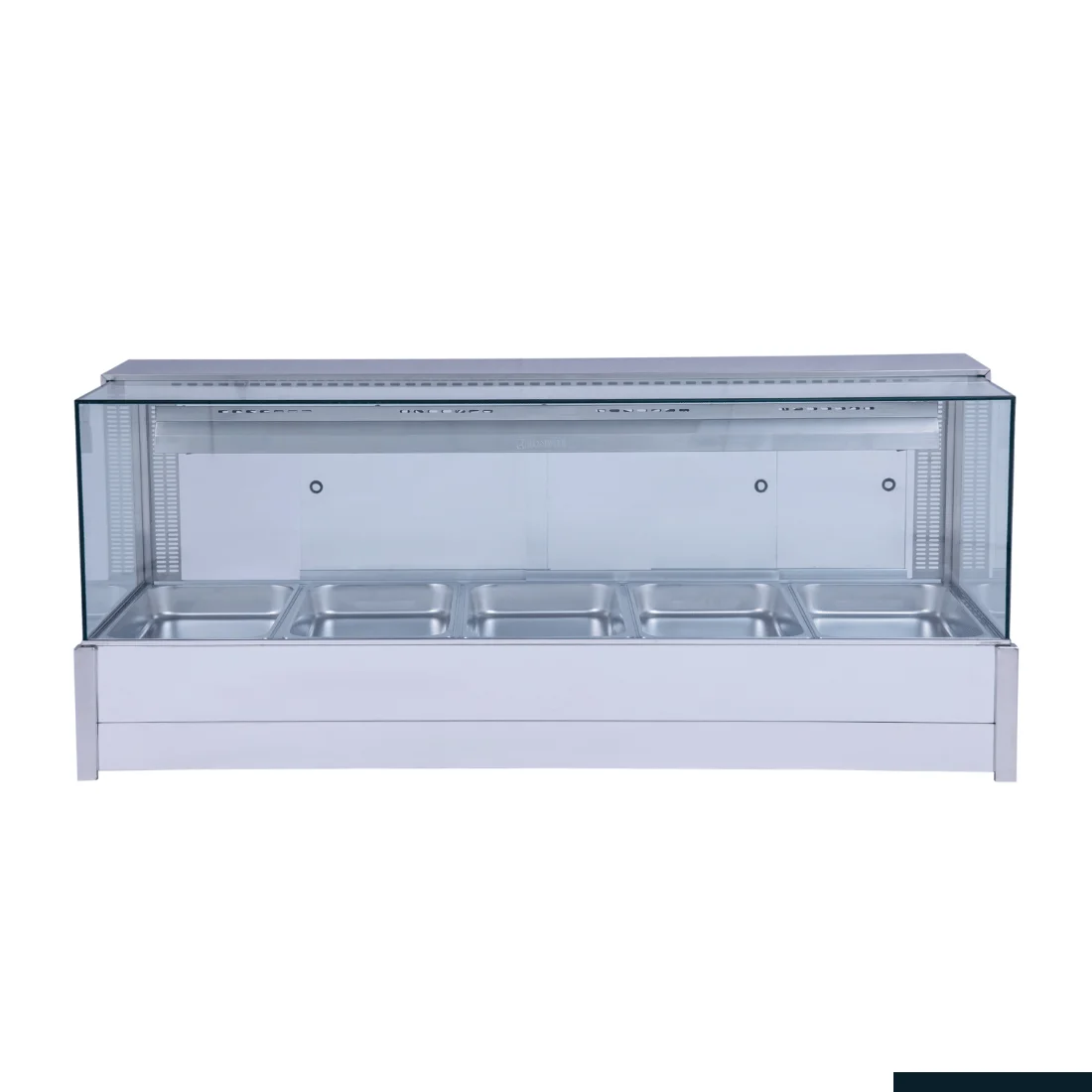

The Bonvue BM17SC is a square countertop wet and dry bain marie for commercial hot-food service. It fits five GN 1/1 pans or double-row GN 1/2 pans up to 80 mm deep; pans are sold separately and a pan divider is included.
A countertop hot-food display for commercial service counters needing five GN 1/1 pan positions or a double-row GN 1/2 arrangement. Rear sliding access, overhead heating lamps and a separately switched warm-white display light support a staffed serving counter.

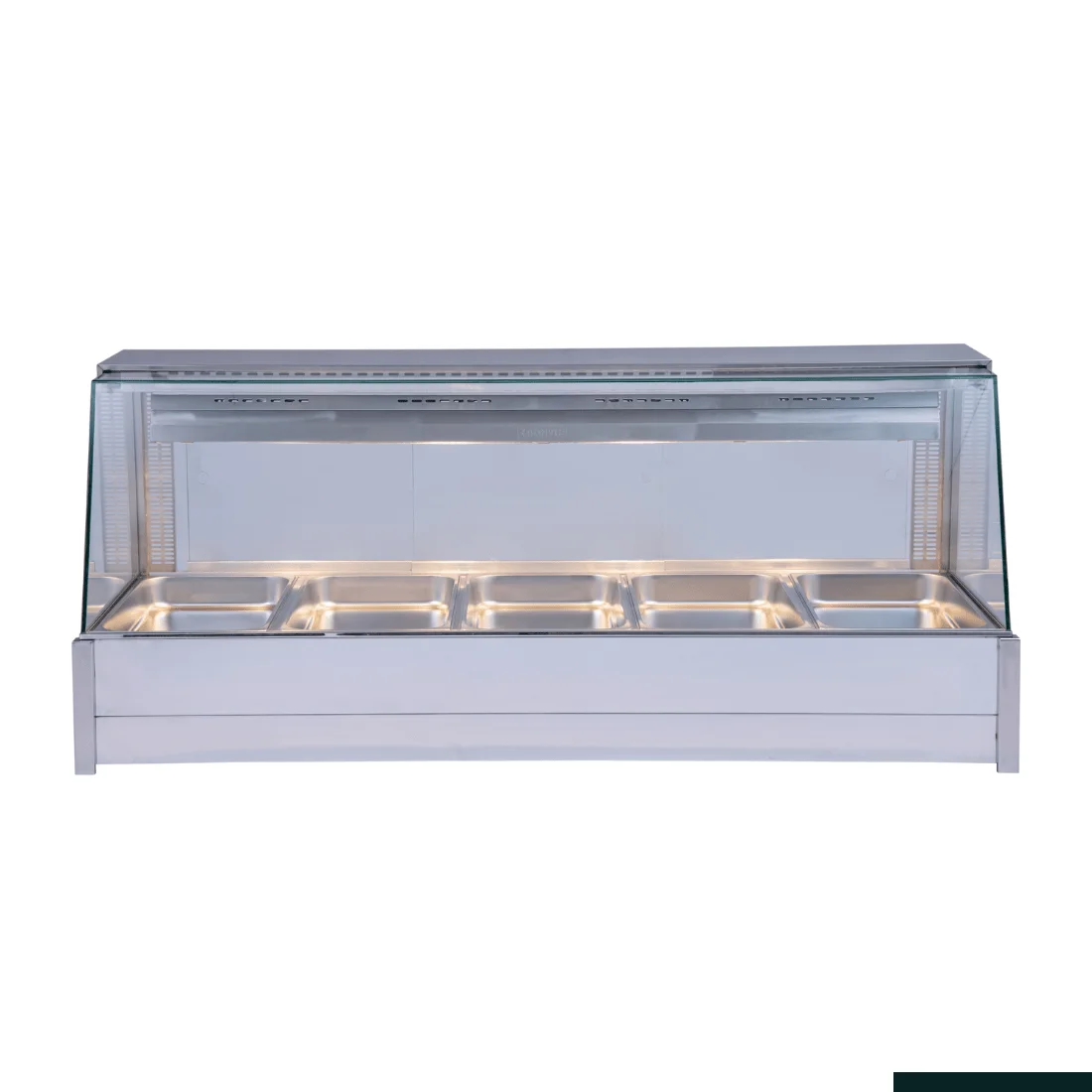

Choose the BM17SC for five GN 1/1 pan positions in a square countertop display. Choose the BM14SC for four GN 1/1 positions, or the BM17TC for five GN 1/1 positions in an angled display.
Select GN pans no deeper than 80 mm and include them in your order, as pans are sold separately. The included pan divider supports the layout; a double-row GN 1/2 arrangement is also available within the well.

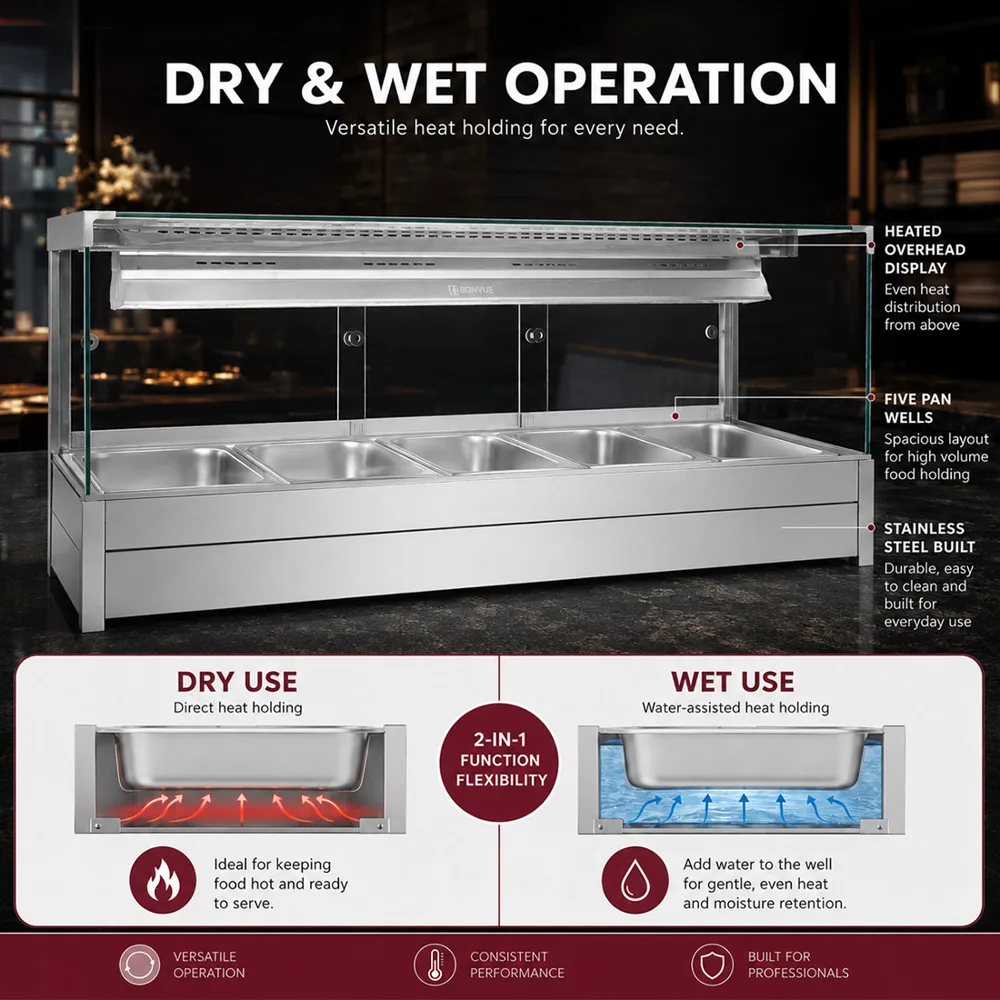

Plan wet or dry operation around the food you intend to serve and the operating instructions. Match the +35 to +85°C equipment range to the display task and your venue procedures.

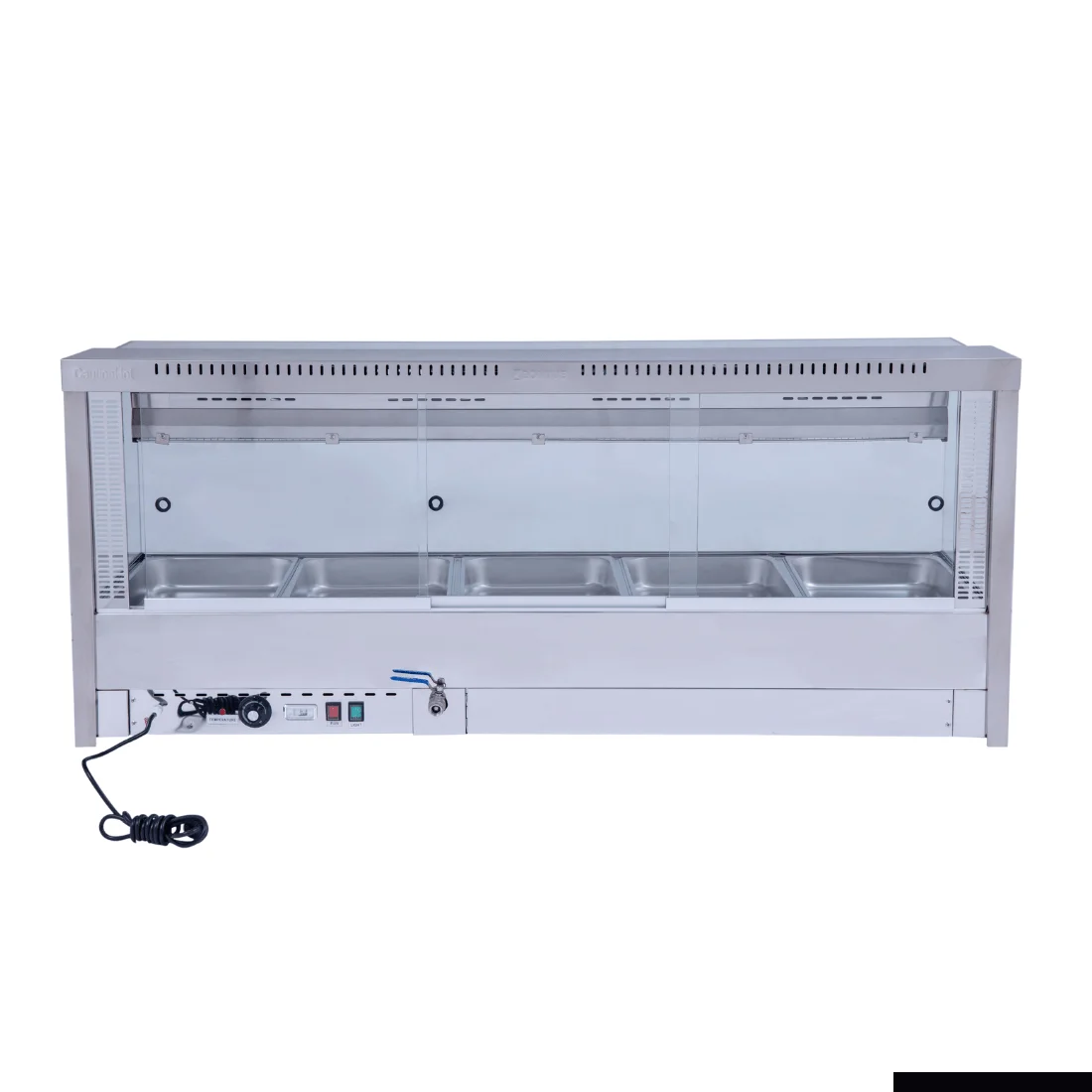

Check the dimensions in Key Specifications above against the counter and access route, and plan handling for the 86 kg unit. Leave working room at the rear for the sliding door and safety-lock drain valve.
For a trolley-based fit-out, ask KW to confirm the appropriate optional BMT trolley model. The BM17SC is supplied as a countertop unit.
| Model | BM17SC |
|---|---|
| Product type | Square countertop bain marie |
| Operating modes | Wet and dry |
| GN pan layout | 5 × GN 1/1 or double-row GN 1/2 |
| Maximum pan depth | 80 mm |
| Pans | Sold separately |
| Pan divider | Included |
| Temperature range | +35 to +85°C |
| Temperature control | Analogue |
| Temperature display | Analogue |
| Temperature indicator | Temperature-reached light |

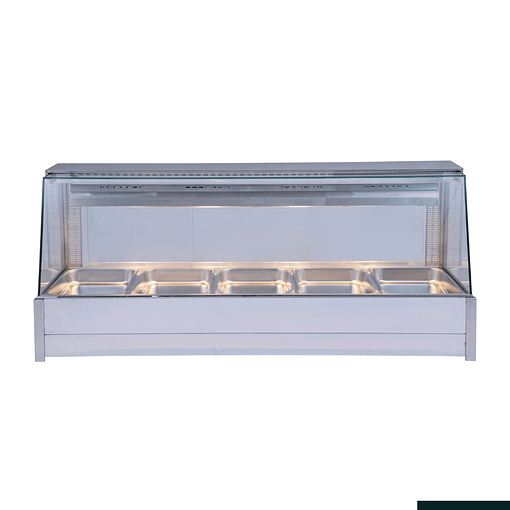

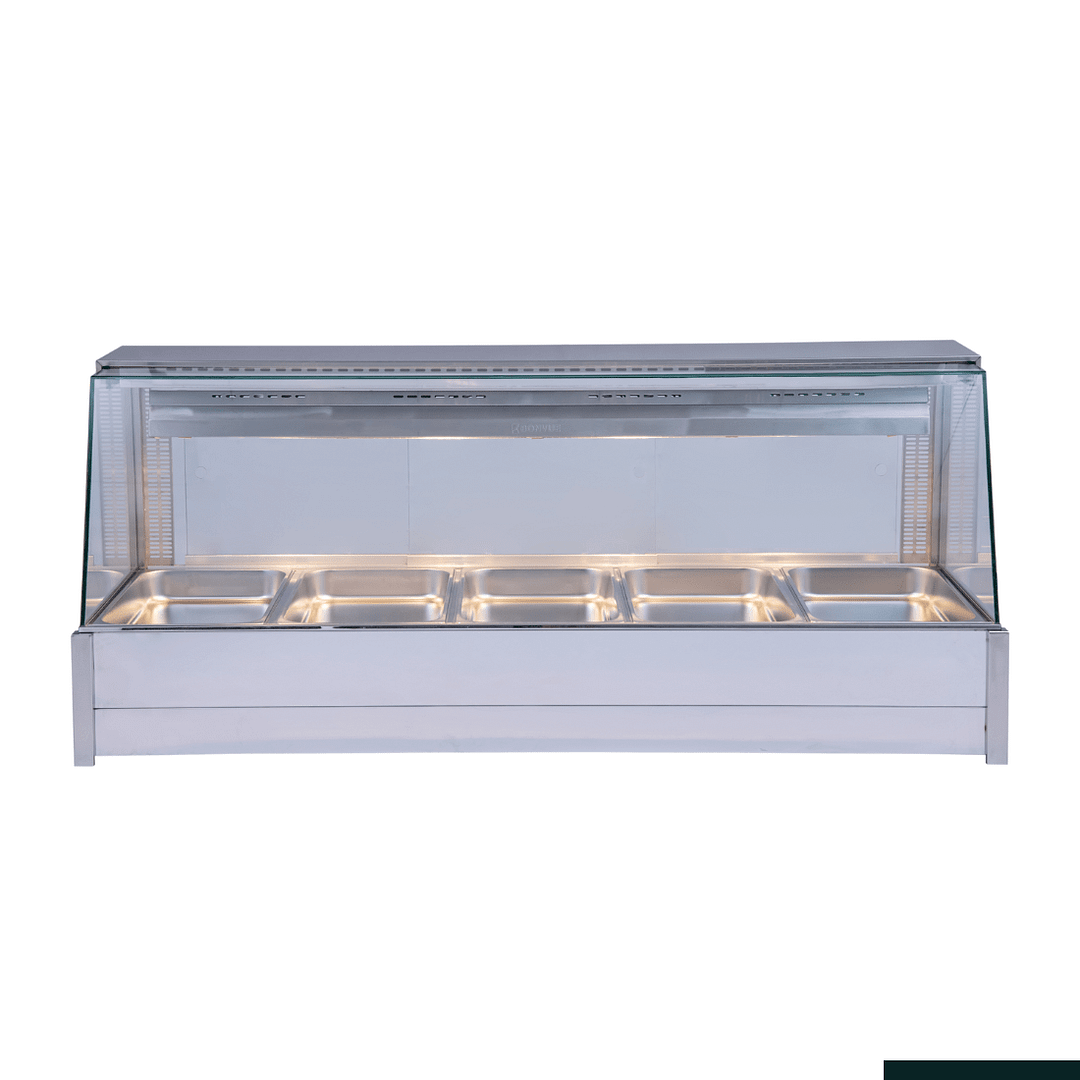

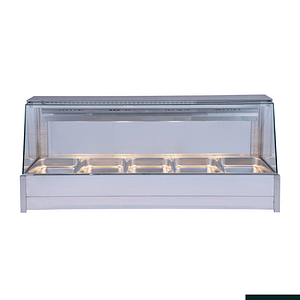

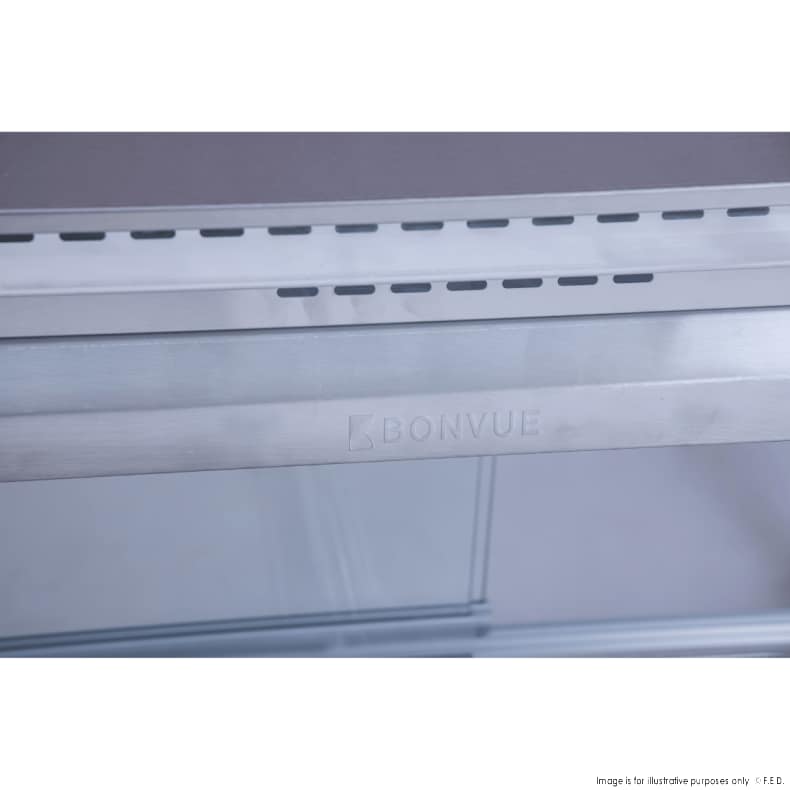

| Display lighting | Warm white |
| Light cover | Stainless steel |
| Light switch | Separate |

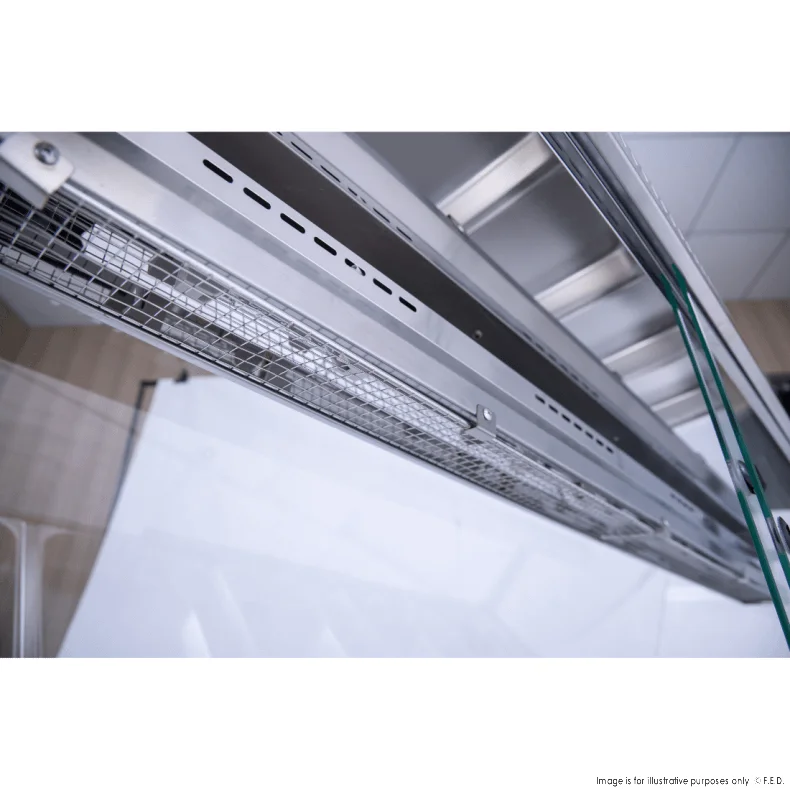

| Overhead heat | Heating lamps |
| Construction | 304-grade stainless steel |

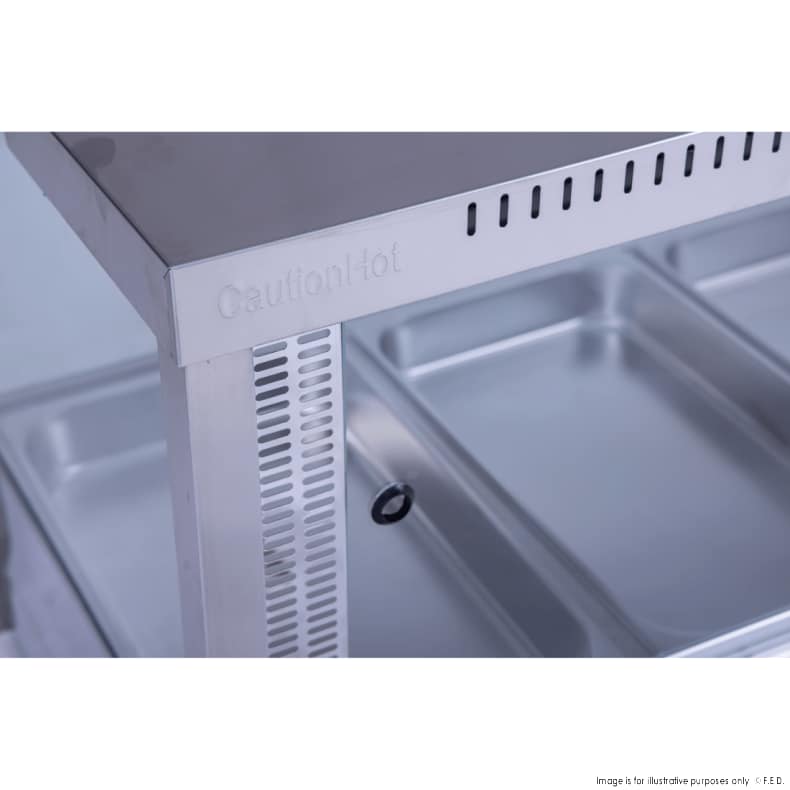

| Frame | Tubular |
| Heating element | Italian |

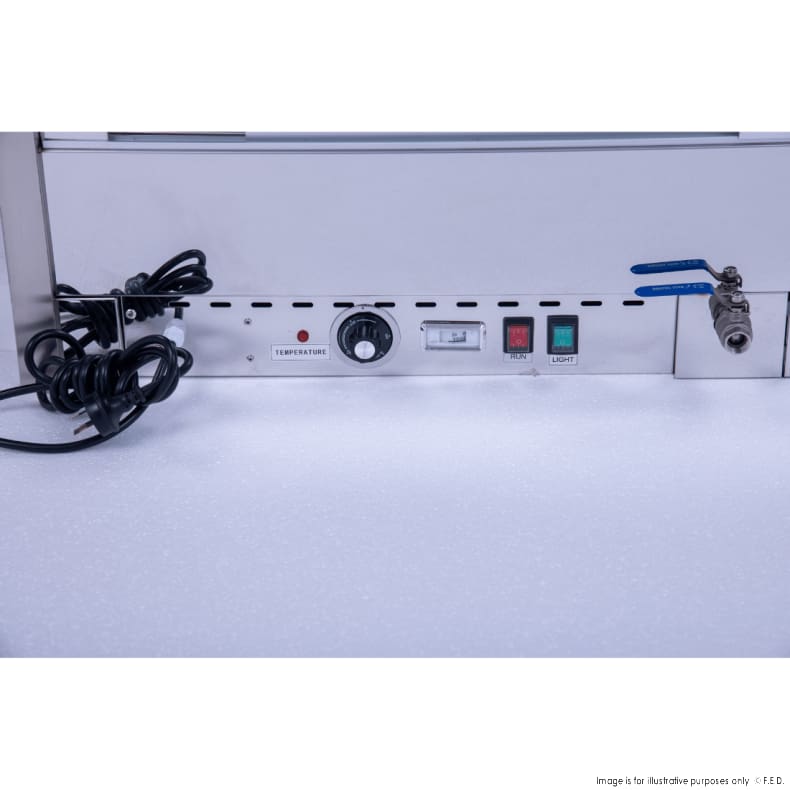

| Drain | Rear ball valve with safety lock |
| Tank marking | Maximum water level |
| Rear door | Sliding, 5 mm tempered glass |
| Glass cover | 8 mm tempered glass |
| Optional trolley | BMT models; confirm exact model with KW |
| Power | 3301 W |
| Plug/outlet rating | 15 A |
| Net weight | 86 kg |
| Packing width | 1770 mm |
| Packing depth | 690 mm |
| Packing height | 850 mm |
For body dimensions, see Key Specifications above.
Compare the verified cabinet dimensions, door format, operating temperature, ambient rating and electrical requirements with your site, access path and storage needs.
Check voltage, phase, plug type, and circuit capacity before purchase. Commercial electrical installation must be completed by a licensed electrician.
| SKU | BM17SC |
| Brand | Bonvue |
| Category | Commercial Fridges and Commercial Freezers |
| Weight | 86 kg |

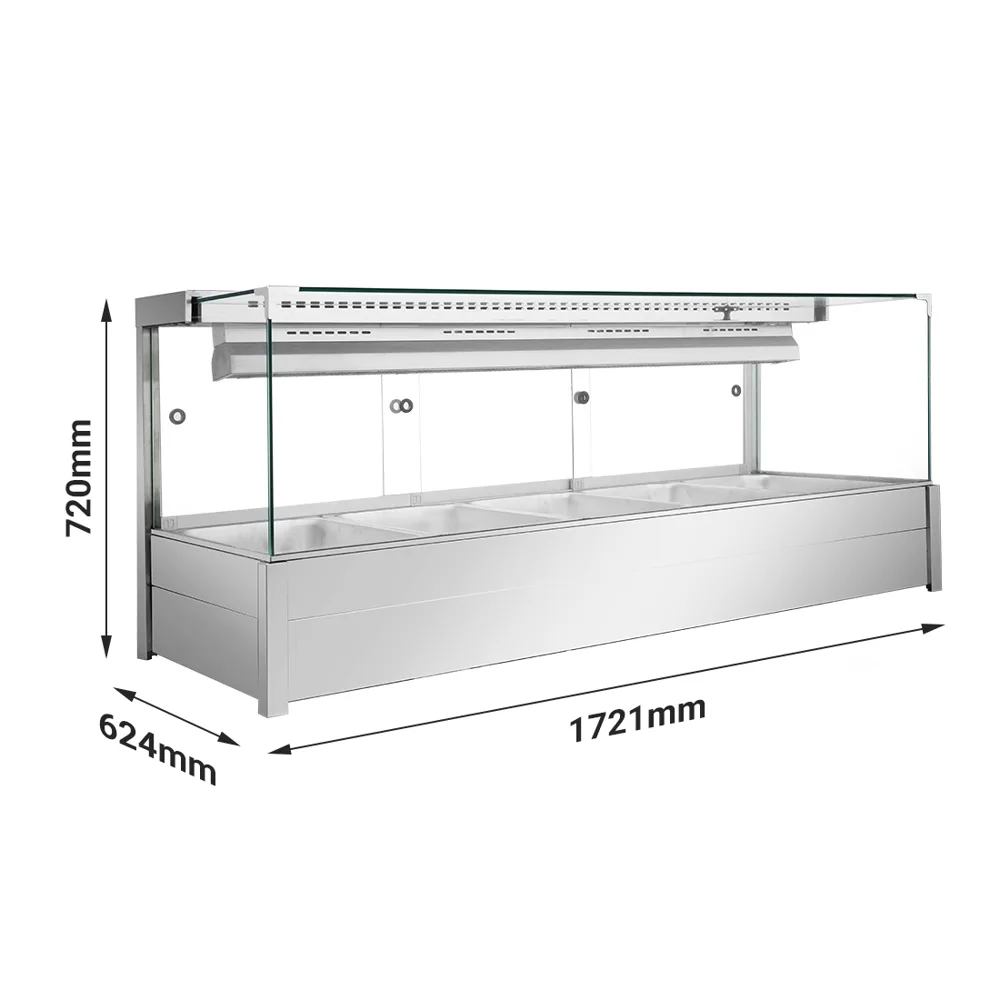

| Dimensions (W×D×H) | 1721 × 624 × 720 mm |
| Stock Status | In Stock |
| Power | 3.301 kW |
| Operating Temperature | 35 °C to 85 °C |
