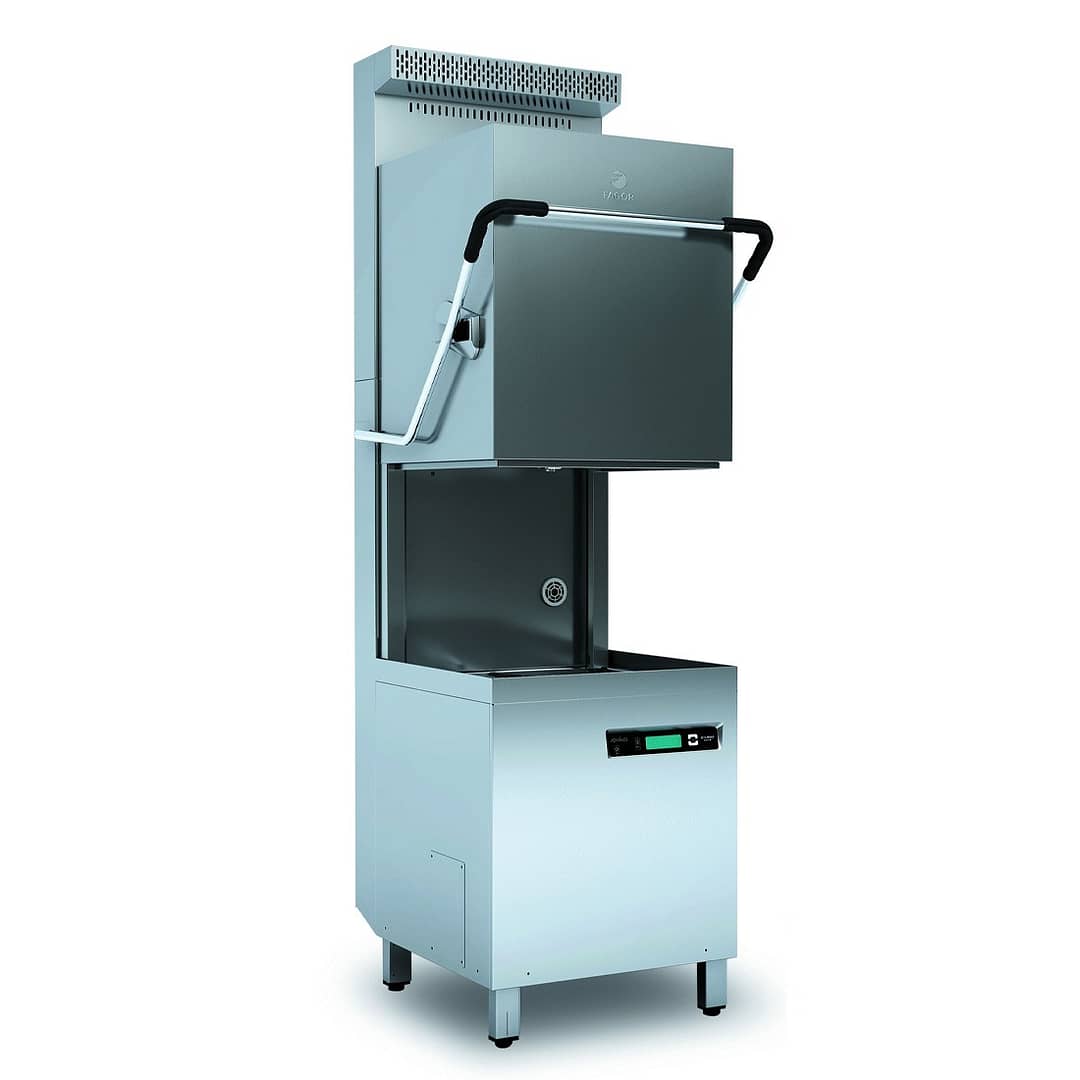

Ex-Showroom: FAGOR EVO-ADVANCE Pass-through Dishwasher AD-125HRS-QLD3
Lot Number: QLD3
Class: 1
Conditions: Minor relocations marks
Warranty: 12 Months
For those who believe that technology and simplicity can go hand-in-hand, the E-VO CONCEPT has arrived.
With built in Heat Recovery System and energy recuperator! The Heat Recovery System collects and condenses the steam during each cycle & is exhausted by the machine after a full cleaning cycle. It heats up the next cycle’s input water making it more energy efficient & with lower energy bills. It also eliminates the need of a ceiling exhaust canopy.
Key Features:
- Fagor EVO-ADVANCE pass-through dishwasher with Heat Recovery System
- Includes built-in drain pump, detergent and rinse dispenser
- HIGH TECHNOLOGY WITHIN EVERYONE’S REACH
- Hood type dishwasher – EVO Generation – Advance range
- GLASS cycle: special program for washing glassware, based on the specifications of hygiene and safety standard DIN 10511
- HRS: version with energy recuperator. HRS collects and condenses the steam exhausted by the machine after a full cleaning cycle, and heats up the input water.
- Made of stainless steel. Includes double skin
- insulated hood, external, front and side panels
- Full double skin body and hood to isolate machine’s noise from the environment.
- Counterbalanced hood.
- Double rotating wash and rinse systems made of stainless steel, above and below.
- Tray filters on the tank, made of AISI-304 stainless steel
- Two wash pumps, 600 W each
- Rinsing pump: 260 W. Air break system
- Drain pump: 70 W. Drainage cycle
- Tank with 1.8 kW heating element
- Tank capacity: 28 litres
- Boiler with multipower heating elements: 3 / 4,5 / 6 / 9 kW
- Thermostatic temperature control: washing at 60ºC and rinsing at 90ºC
- Thermo stop system that guarantees minimum rinsing temperature of 85ºC
- Safety thermostats
- Built-in automatic rinse dispenser and detergent doser
- Safety magnetic switch for hood opening
- Adjustable legs
Additional Information:
- Cycle of 90 seconds, with temperatures: 60 °C (wash) and 65 ºC (rinse)
- Boiler capacity: 9 litres
- Water consumption: 2.4 litres/rinse
- Water protection rating: IPX5
- Total power: adjustable: 4,2 ÷ 12,0 kW
- Dimensions: 658 x 756 x 1540 mm
- Height with HRS recuperator: 2.200 mm
- Baskets equipment: 1 x CT-10, 1 x CP-16/18 and 8 cutlery containers
- Hourly production: 65 baskets/hour – 1170 dishes/hour
- Clearance (max ware height): 440 mm
- Wash cycles: 55″- 90″ – 120″
- Power: 30 W
