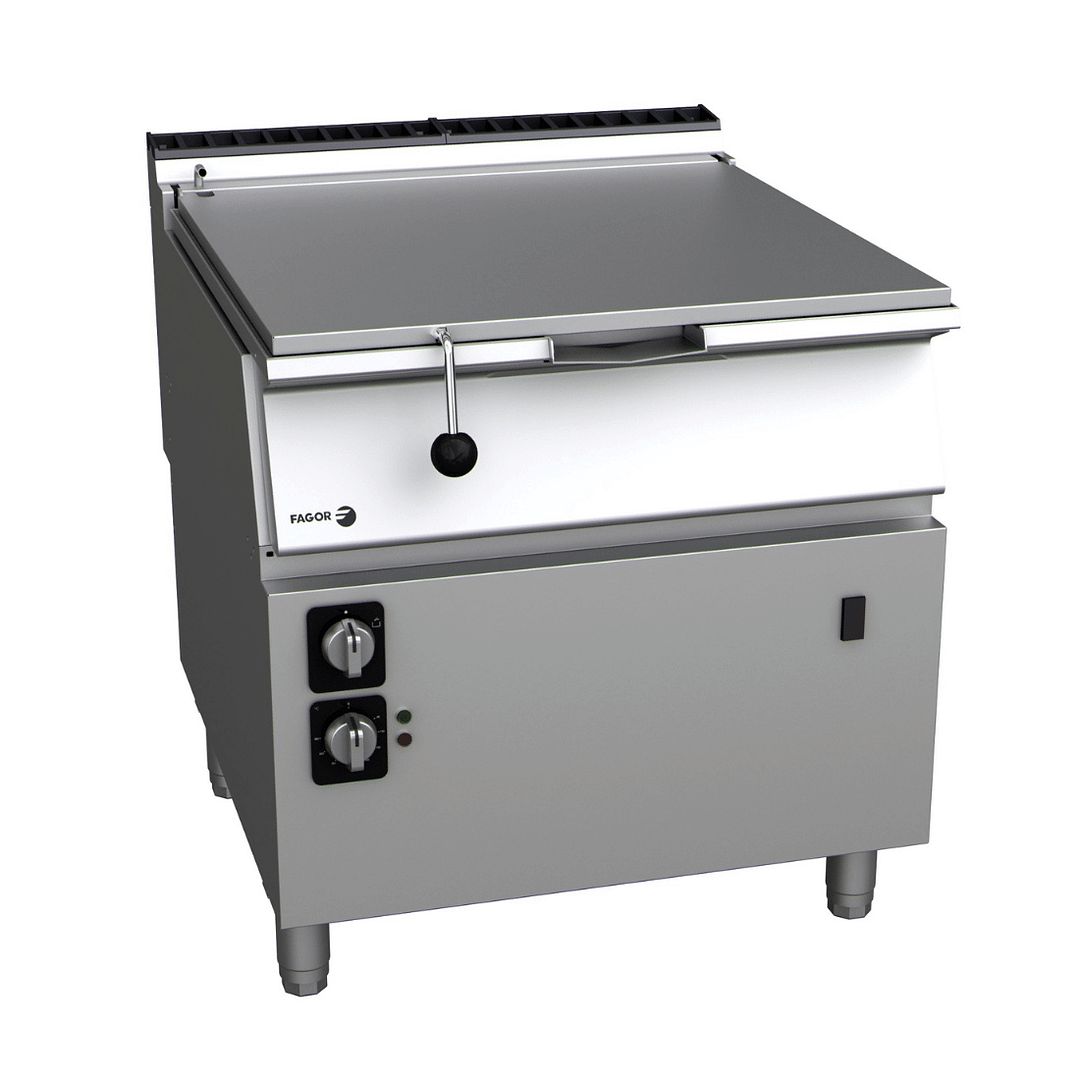

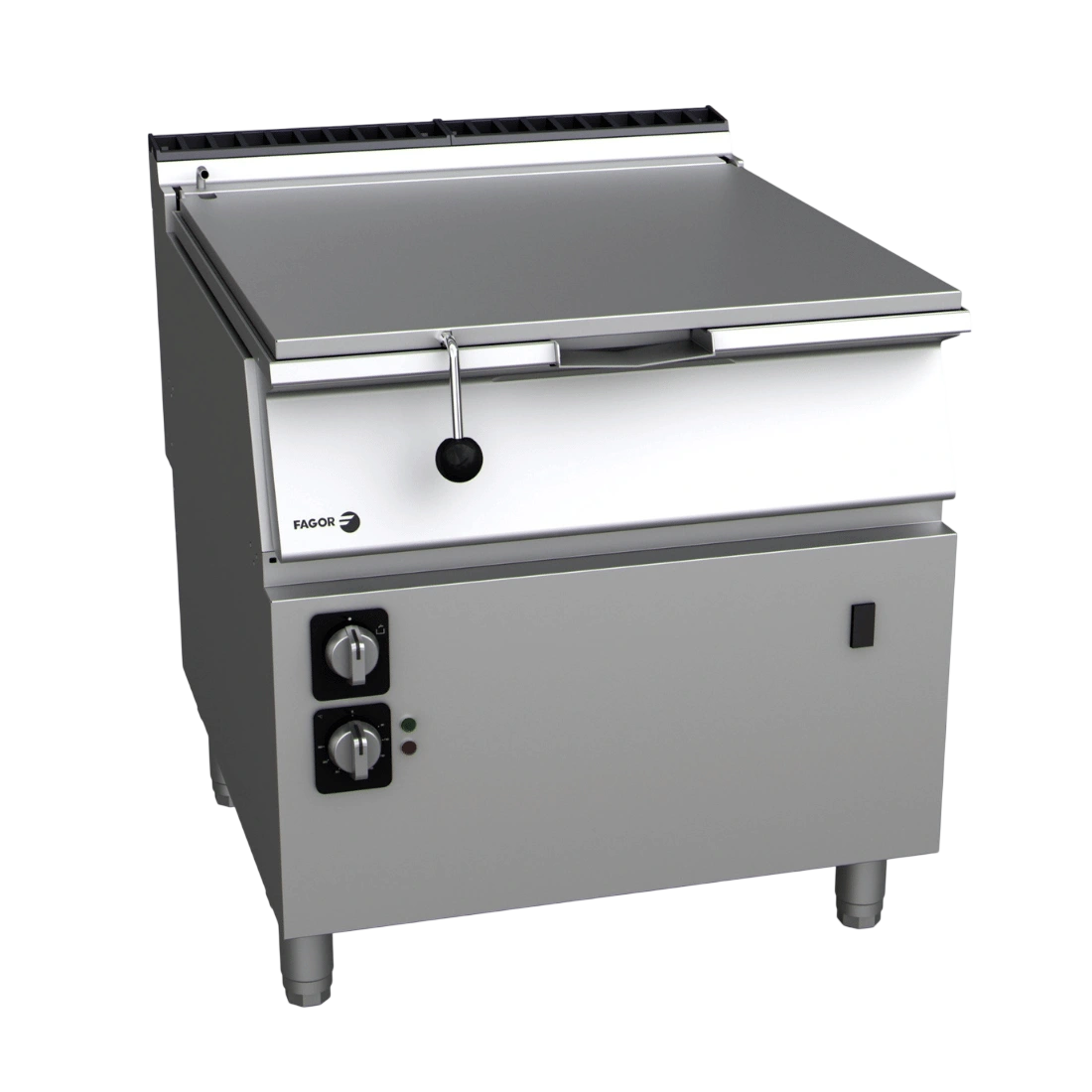

Fagor Kore SB-E910IM Electric Bratt Pan – 90L Heavy-Duty Tilting Pan | Kore 900 Series
The Fagor SB-E910IM Electric Bratt Pan is a high-capacity, multi-function cooking unit engineered for bulk sautéing, boiling, shallow frying, and braising in institutional kitchens and high-volume food production environments. With a generous 90L capacity and a robust stainless steel pan, this bratt pan ensures even cooking and safe handling.
Part of the Kore 900 Series, this unit features a 10mm thick stainless steel base for uniform temperature distribution and high thermal efficiency. The double-walled lid with spring-balanced opening, electric fill valve, and tilting mechanism offer ease of use and safety. With IPX5-rated water protection and intuitive thermostat controls up to 310°C, the SB-E910IM is designed for durability, hygiene, and consistent results.
Key Features
- 90L capacity stainless steel bratt pan with tilting system
- 10mm thick base for even heat distribution
- Electric water fill valve operated by front switch
- Spring-assisted, double-walled lid with condensation drain
- Micro switch cuts off heat when pan is lifted
- Laser-cut joints, rounded corners, and no internal edges
- Perimeter flange prevents condensation runoff
- Shielded stainless steel electric heating elements
- Temperature range: 50°C – 310°C
- Manual tilt operation for safe and controlled unloading
- IPX5 water ingress protection for safe daily washdown
Specifications
| Feature | Details |
|---|---|
| Model | SB-E910IM |
| Series | Fagor Kore 900 Series |
| Capacity | 90 Litres |
| Pan Material | Stainless Steel (10mm base) |
| Heating Type | Electric (Shielded Elements) |
| Temperature Range | 50°C to 310°C |
| Water Fill | Electric valve with front-mounted switch |
| Controls | Manual knobs (2) |
| Safety | Micro switch disables heating when pan is lifted |
| IP Rating | IPX5 |
| Electrical Connection | 415V / 3~N / 15kW |
| Dimensions (mm) | 800 (W) x 930 (D) x 850 (H) |
| Packing Dimensions (mm) | 1022 (W) x 840 (D) x 1255 (H) |
| Net Weight | 195kg |
| Warranty | 2 Years Parts & Labour + 2 Years Parts Only (with registration) |
Installation & Maintenance
Install on a level surface with proper clearance and electrical connection. Only certified electricians should complete installation. Clean the lid, pan surface, and tilt mechanism daily. Inspect the micro switch and heating elements monthly. Always follow manufacturer’s maintenance guidelines.
Frequently Asked Questions
What cooking applications is this bratt pan suited for?
The SB-E910IM is ideal for shallow frying, braising, boiling, searing, and making sauces or soups in large batches. It’s widely used in aged care, hospitals, schools, and production kitchens.
How does the water fill system work?
The unit has an electric fill valve controlled by a toggle switch. Press the switch to fill water directly into the pan for boiling or braising.
Is the bratt pan tiltable?
Yes. The pan includes a manual tilting mechanism, allowing precise control for draining and portioning hot food safely.
Is it safe to wash down the exterior?
Yes. The IPX5 water protection rating allows safe external washdown with low-pressure water. Do not spray directly into controls or electrical connections.
