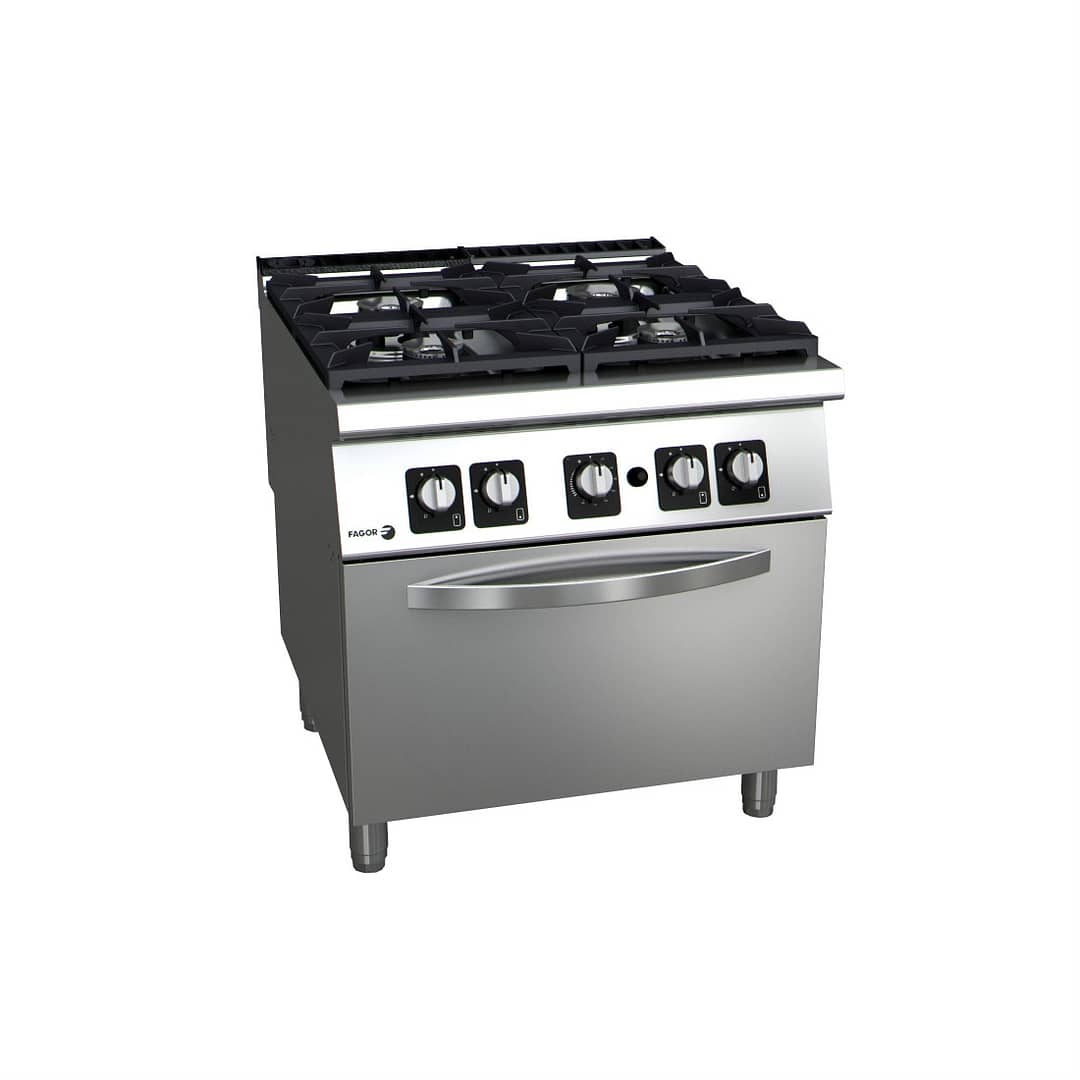

Fagor Kore 900 C-G941H – 4 Burners + GN 2/1 Gas Oven, 42.8kW Total
Updated:
At KW Commercial Kitchen, we supply the Fagor C-G941H, a compact 800-mm wide gas range combining 3×8kW + 1×10.2kW double-crown burners with a GN 2/1 static gas oven (8.6kW). With a 2mm AISI 304 worktop, RAAF enamelled cast-iron hobs and shielded pilots/thermocouples, it’s built for fast line cooking and reliable roasting in Australian kitchens.
Built for Australian restaurants, cafés & hotel kitchens
The C-G941H combines nickel-plated diffusers for even pan coverage, a 3-level GN 2/1 static oven with a 6mm cast-iron floor, and front service access for dependable daily service.
Why this model (quick differentiators)
- Versatile burner pack: three 8kW zones + one 10.2kW for rapid boil/sear.
- Side-loading GN 2/1 oven rails for safer, faster tray handling.
- 75mm trivet prong spacing keeps very small pans stable on 397×350mm hobs.
- High-temp enamelled flue protector aligns with hobs to support large pots.
- Low-consumption pilots reduce standing gas use during prep windows.
Key features & specifications
- Total gas load: 42.8kW (Cooktop 34.2kW = 3×8kW + 1×10.2kW; Oven 8.6kW)
- Oven: GN 2/1 static chamber; 3 shelf levels; stainless interior; 6mm cast-iron floor; piezo ignition
- Hobs: 397×350 mm cast-iron; nickel-plated diffusers; shielded pilots & thermocouples
- Dimensions (W×D×H): 800 × 930 × 850 mm
- Construction: Deep-drawn 2mm AISI 304 stainless top; enamelled cast-iron trivets
- Gas type: NG or ULPG; Connection: R3/4″
- Ingress protection: IPX5
- Warranty: 2 years parts & labour + 2 years parts only upon registration
Compliance & safety (AU)
- Gas: Must be installed/commissioned by a licensed gas fitter per AS/NZS 5601.1; size pipework/regulators for 42.8kW.
- Electrical (ignition where fitted): RCM compliant; use a dedicated circuit if specified.
Convenience & usage advice
- Pan control: Put rapid-boil tasks on the 10.2kW zone; hold sauces on 8kW burners.
- Oven best practice: Preheat the cast-iron floor before roasting; load trays sideways for stability.
Ideal applications
- Busy à-la-carte lines needing simultaneous pan work + roasting
- Hotel/catering kitchens using GN 2/1 trays
- Sites prioritising robust components and easy front servicing
At a glance
- 800-mm wide footprint; total 42.8kW gas load
- GN 2/1 static oven, 3-level rails, cast-iron floor
- 2mm AISI 304 top; enamelled cast-iron trivets; IPX5
- 2+2 year warranty (registration required for extra parts)
Frequently Asked Questions
1) How do I clean it daily without harming finishes?
Use a pH-neutral degreaser and microfibre cloth; avoid abrasives/chlorine; dry trivets after service.
2) What routine maintenance keeps performance stable?
Weekly: clear burner ports and check flame picture; Monthly: inspect pilots/thermocouples; Quarterly: a technician safety check.
3) What are the gas requirements and typical energy use?
Licensed fitter must size supply/regulator for 42.8kW; actual gas use varies by duty cycle and menu mix.
4) What about installation and Australian compliance?
Install to AS/NZS 5601.1 with correct clearances and ventilation; RCM applies to any electrical ignition components.
5) Are spare parts and accessories available?
Common parts include burners, trivets, knobs and oven door seals; quote model/serial for exact parts.
Specs source: Fagor Professional datasheet for C-G941H (incl. 42.8kW, 800×930×850mm, GN 2/1 oven, R3/4″ inlet).
