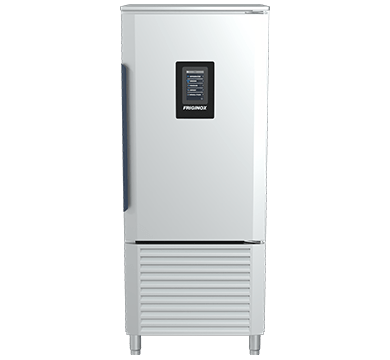

Friginox MX55ATS7 15-Tray Blast Chiller/Freezer – Touchscreen, 55kg Chill / 20kg Freeze
The Friginox MX55ATS7 is a high-performance reach-in blast chiller/freezer built to meet the critical demands of commercial food safety and large-scale preparation. This unit supports up to 15 x GN 1/1 trays and can chill up to 55kg or freeze 20kg per cycle, delivering precise and rapid temperature reduction.
Equipped with a vibrant 7-inch touchscreen and intuitive interface, the MX55ATS7 gives operators access to advanced functions such as ice cream hardening, raw fish sanitization, and drying ventilation. Featuring 304 stainless steel construction, self-closing doors, and a 3-point core probe, it is both hygienic and efficient, making it ideal for food production kitchens, hotels, and high-end catering.
Key Features
- 15 tray capacity – fits GN 1/1 trays with standard spacing
- 55kg chilling from +90°C to +3°C
- 20kg freezing from +90°C to -18°C
- 7-inch ergonomic touchscreen with multilingual display
- Cooling modes: Soft Chill, Hard Chill, Freezing, Raw Fish, Ice Cream, Ventilation Drying
- 304 stainless steel body and interior with coved corners
- Self-closing door with heated frame to reduce condensation
- Core temperature probe (3-point sensor)
- 60mm polyurethane insulation for thermal retention
- Automatic fan shut-off on door opening
Specifications
| Specification | Details |
|---|---|
| Model | MX55ATS7 |
| Tray Capacity | 15 x GN 1/1 |
| Chill Capacity | 55kg from +90°C to +3°C |
| Freeze Capacity | 20kg from +90°C to -18°C |
| Electrical | 230-240V / 50–60Hz / 15A Plug |
| Power | 2.48kW |
| Refrigerant | R452A |
| Insulation | 60mm polyurethane foam |
| Dimensions | 770mm (W) x 790mm (D) x 1925mm (H) |
| Weight | ~210kg |
| Warranty | 12 Months Parts & Labour |
Applications
- Central production kitchens
- High-end restaurant food storage
- Catering and commissary operations
- Ice cream and dessert stabilization
- Raw fish HACCP-compliant chilling
Benefits
- Preserves food texture and safety by minimizing bacterial growth
- Prevents ice crystal formation with rapid deep freezing
- Multi-function control for frozen dessert, fresh protein, and ready meal workflows
- Touch interface and built-in HACCP traceability streamline operation
Frequently Asked Questions
How do I install the Friginox MX55ATS7?
Installation should be performed by a certified technician. Ensure adequate ventilation and space for door swing. Connect to a dedicated 15A circuit as per electrical specification.
Is it compatible with standard GN trays?
Yes, it fits GN 1/1 trays with recommended tray spacing. Non-GN trays may affect air circulation.
Does this unit include HACCP functionality?
Yes, the touchscreen interface supports HACCP trace logging and core probe temperature monitoring to meet food safety standards.
How often should it be serviced?
Clean filters monthly, sanitize internal surfaces weekly, and have a professional technician perform a full diagnostic annually.
