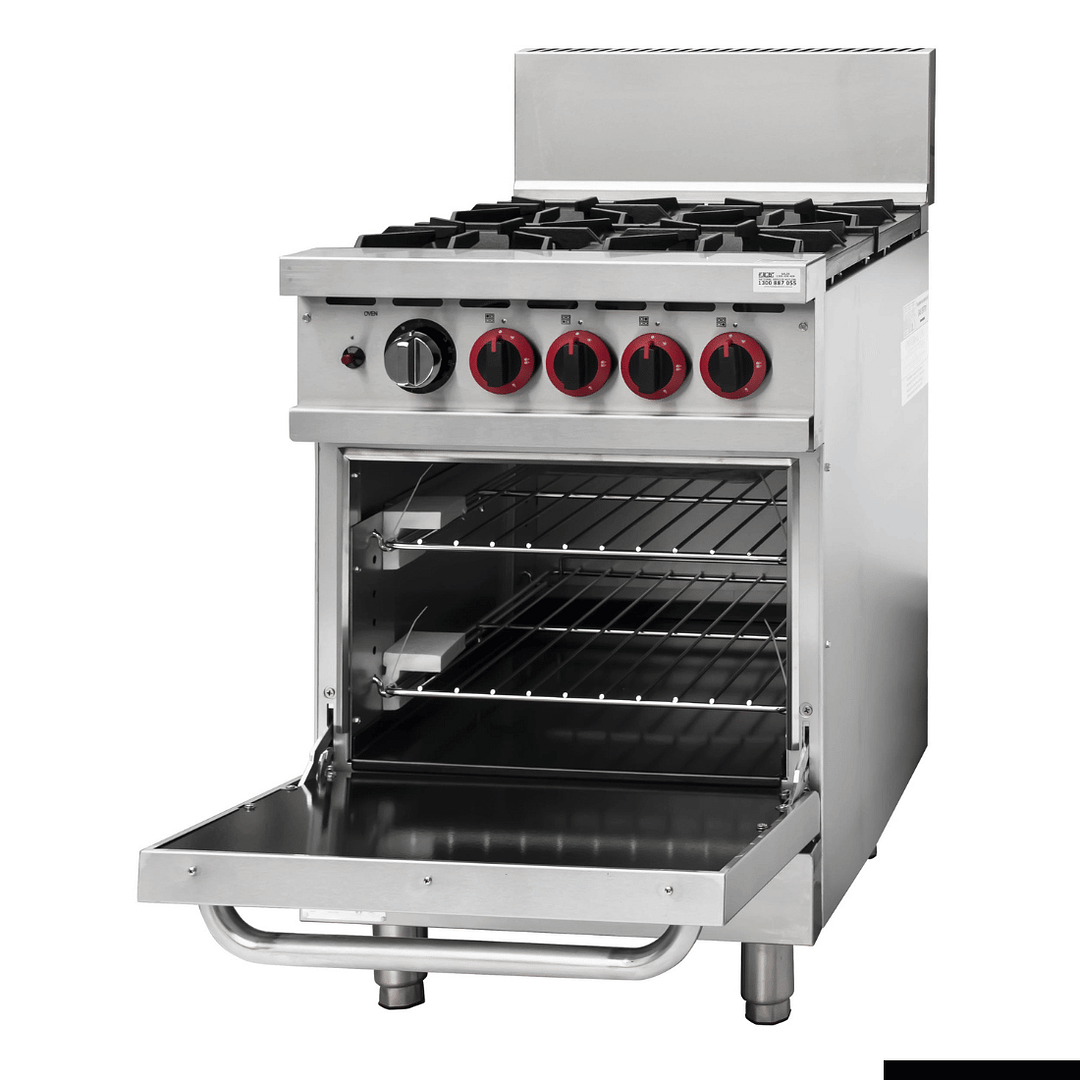

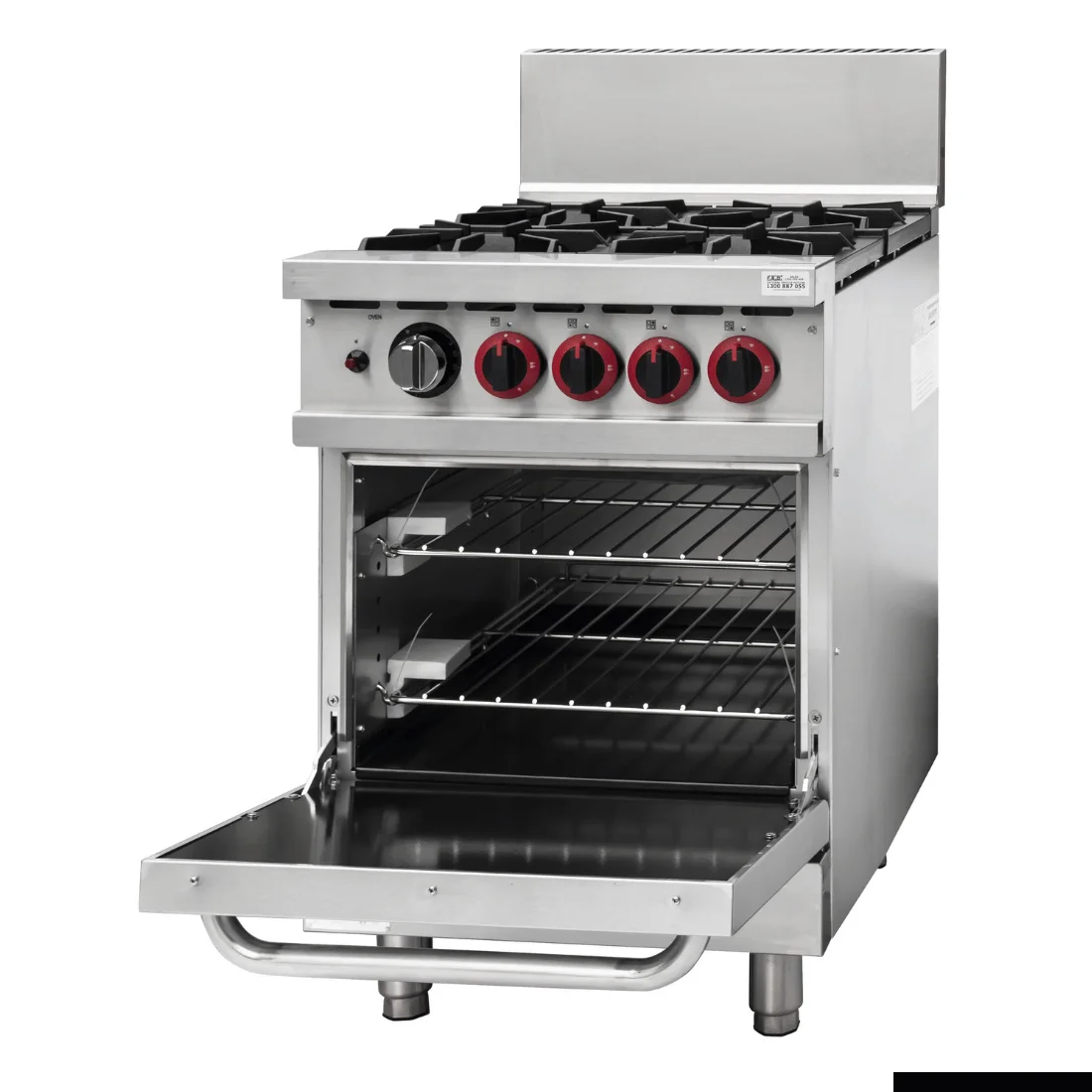

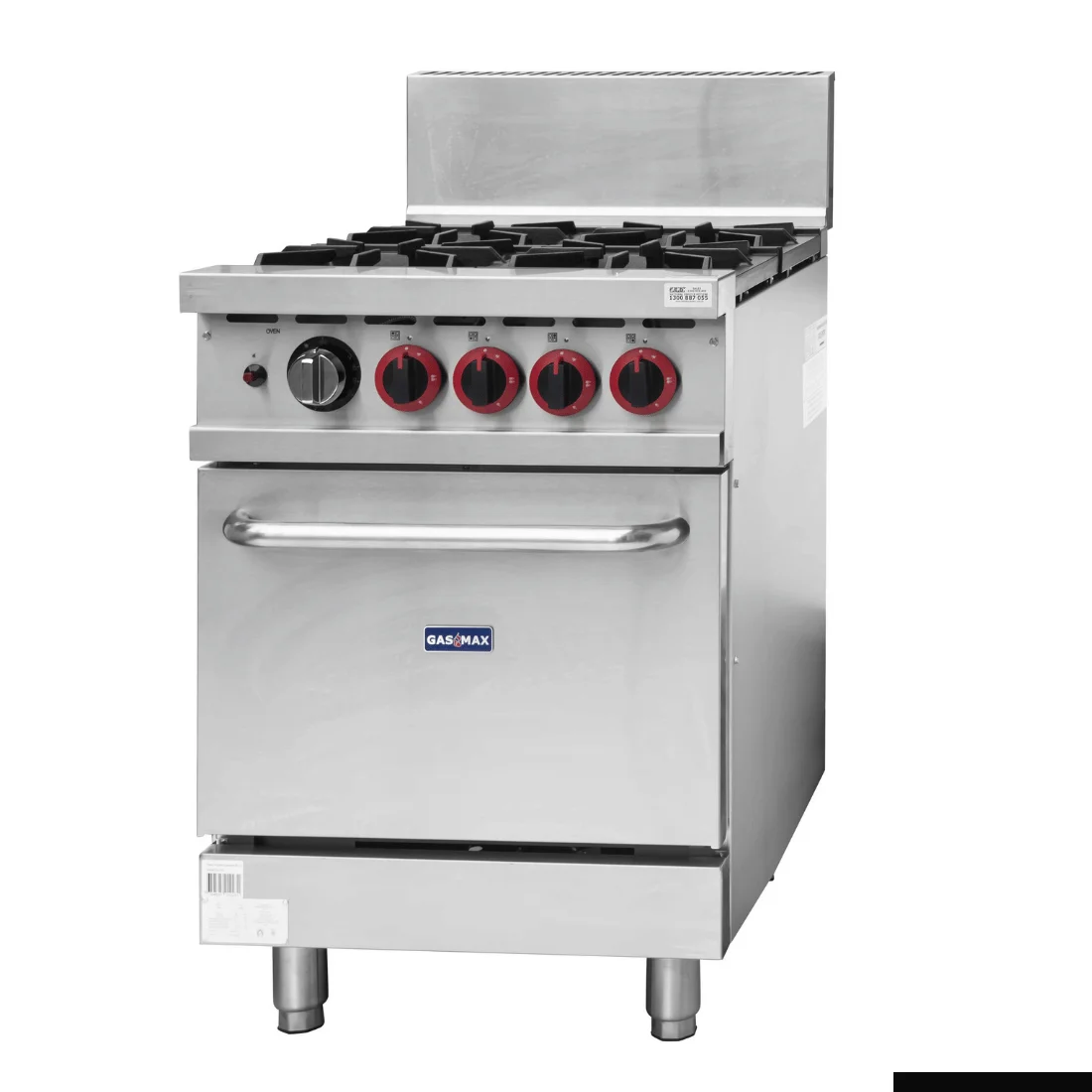

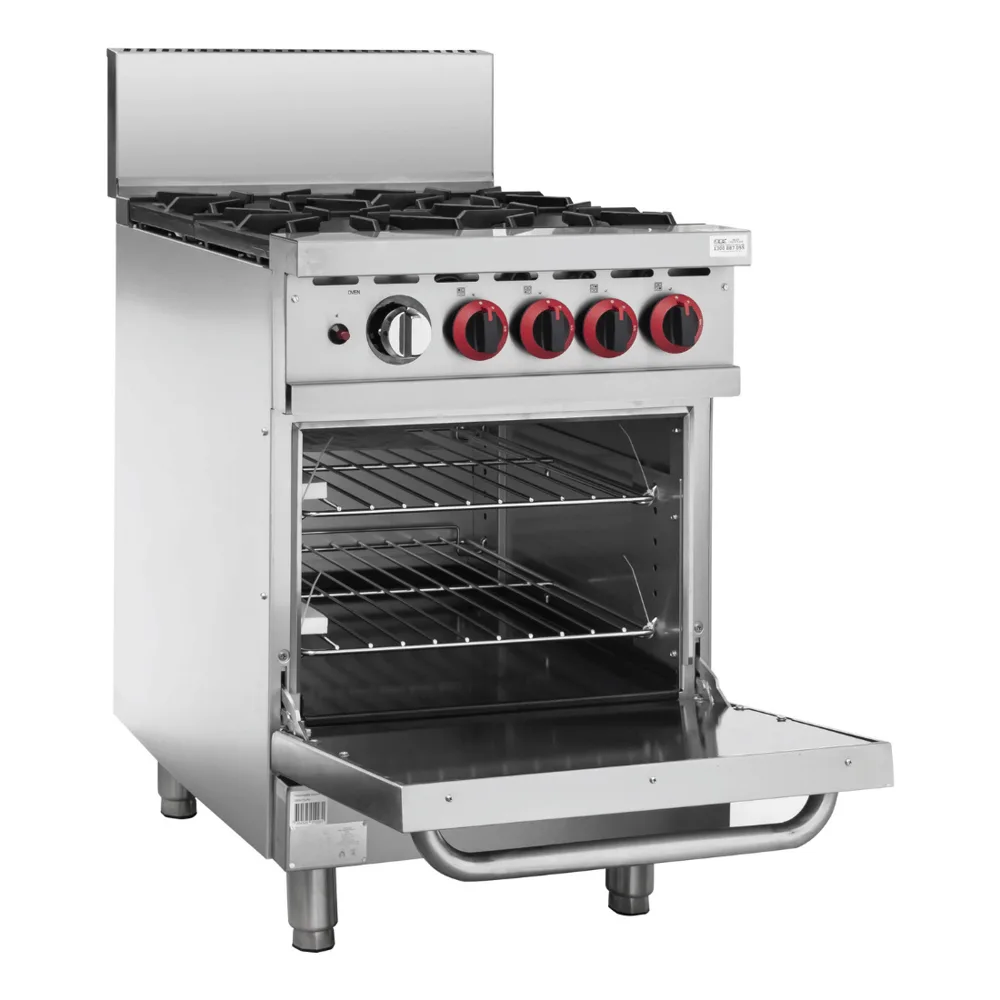

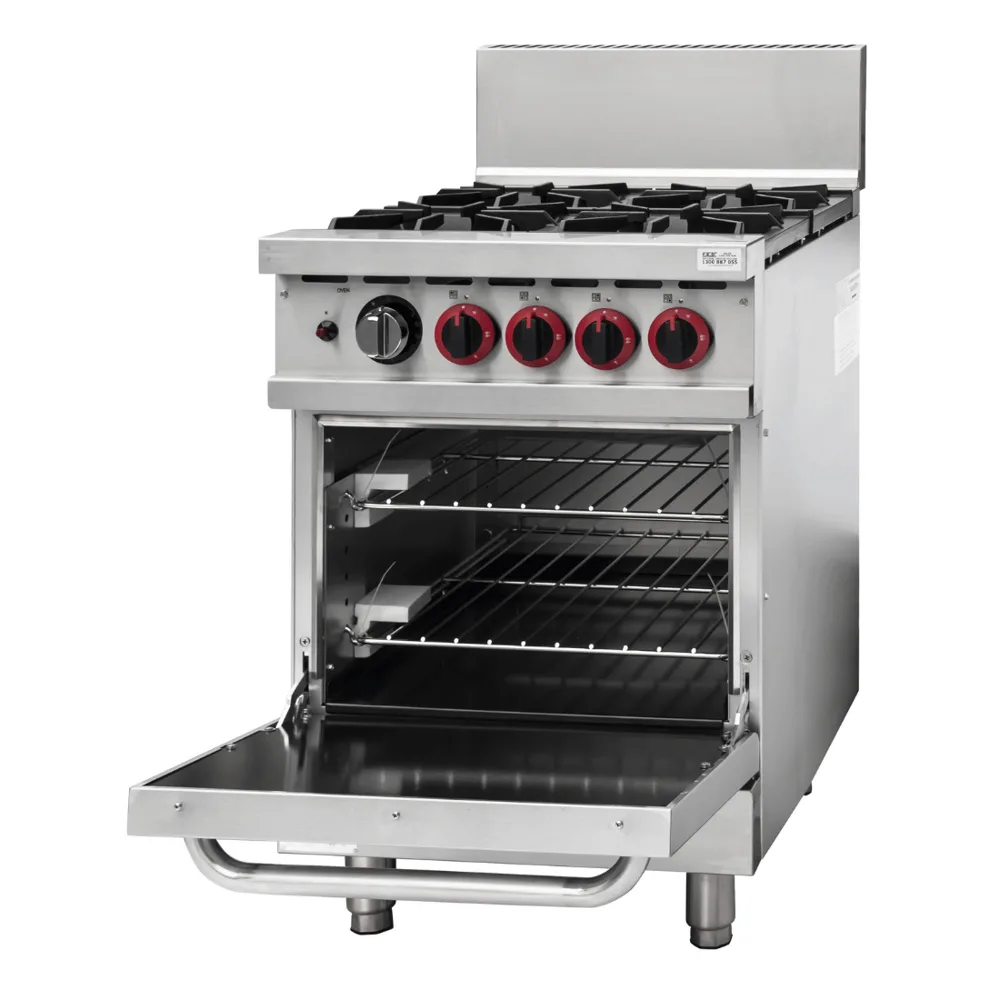

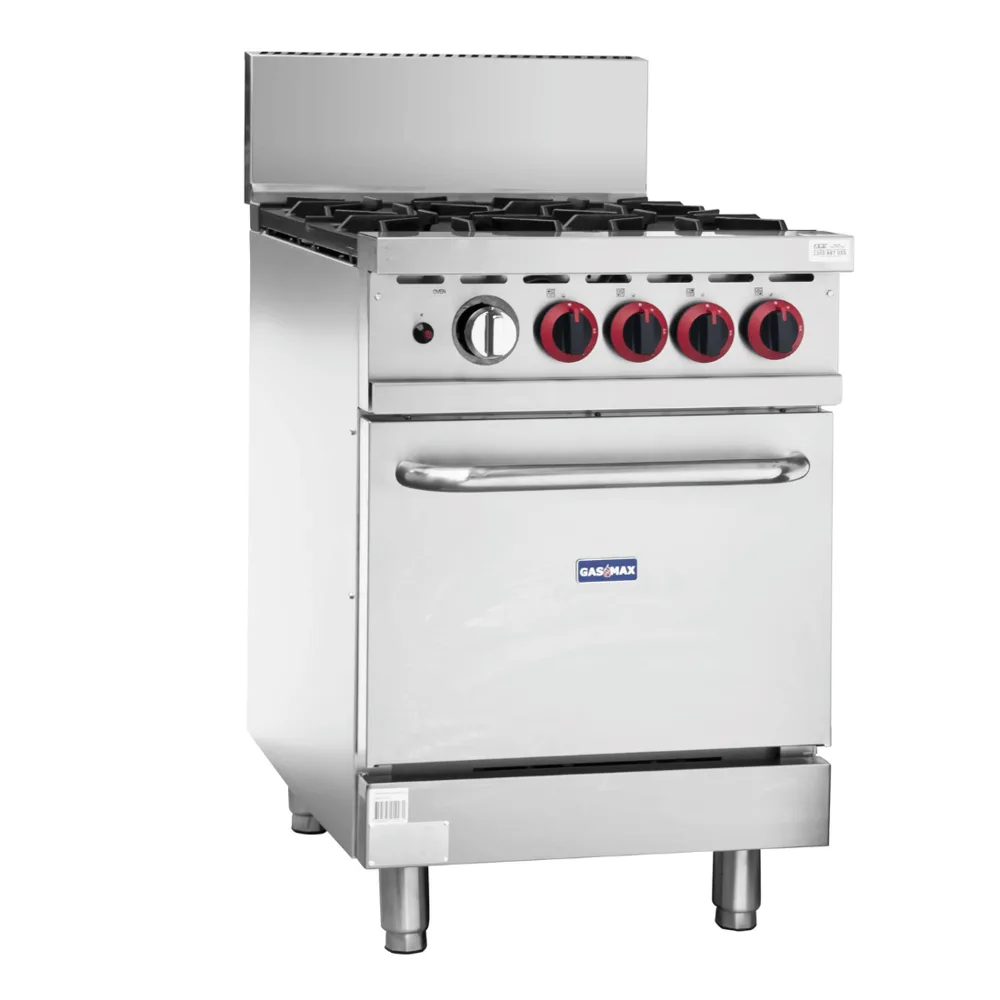

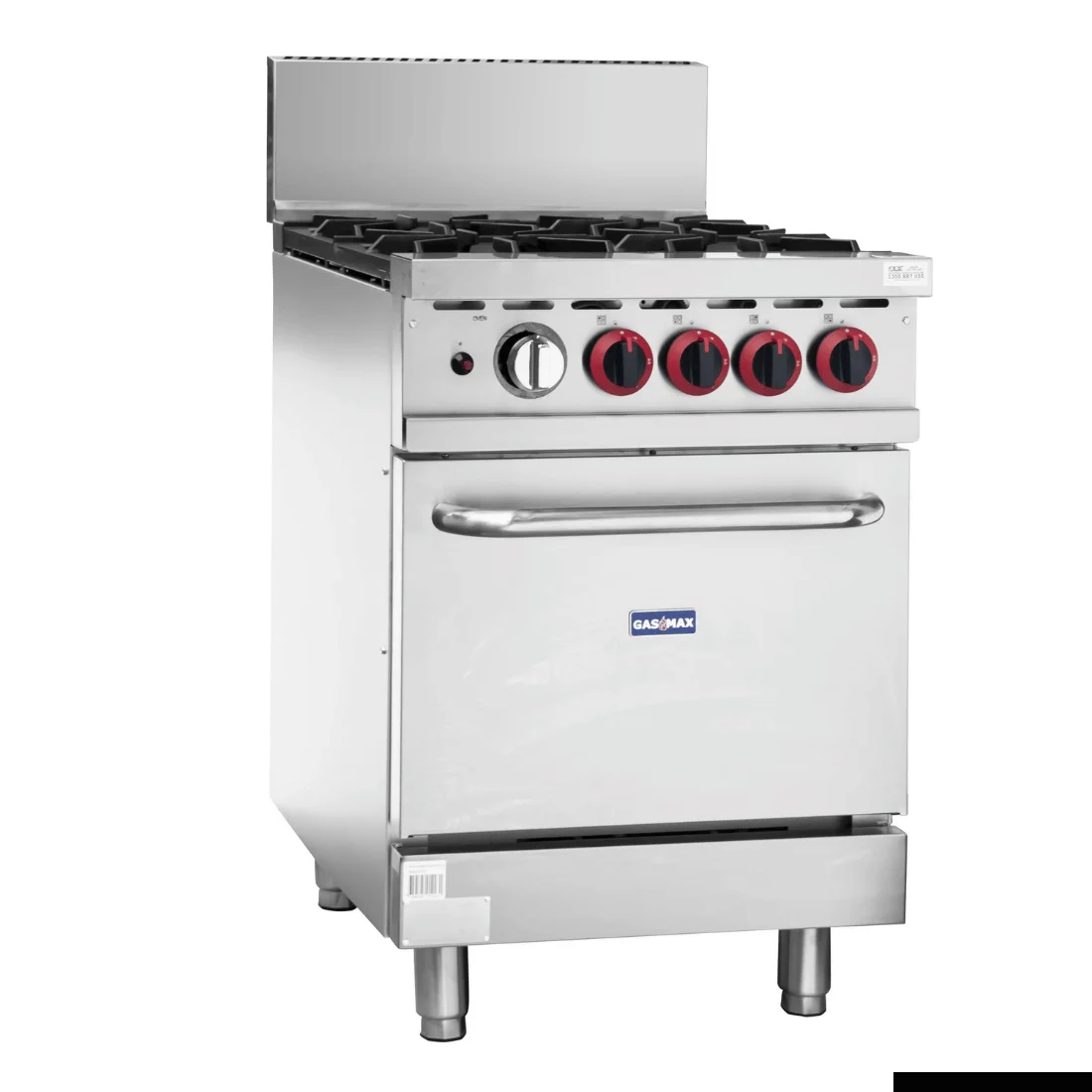

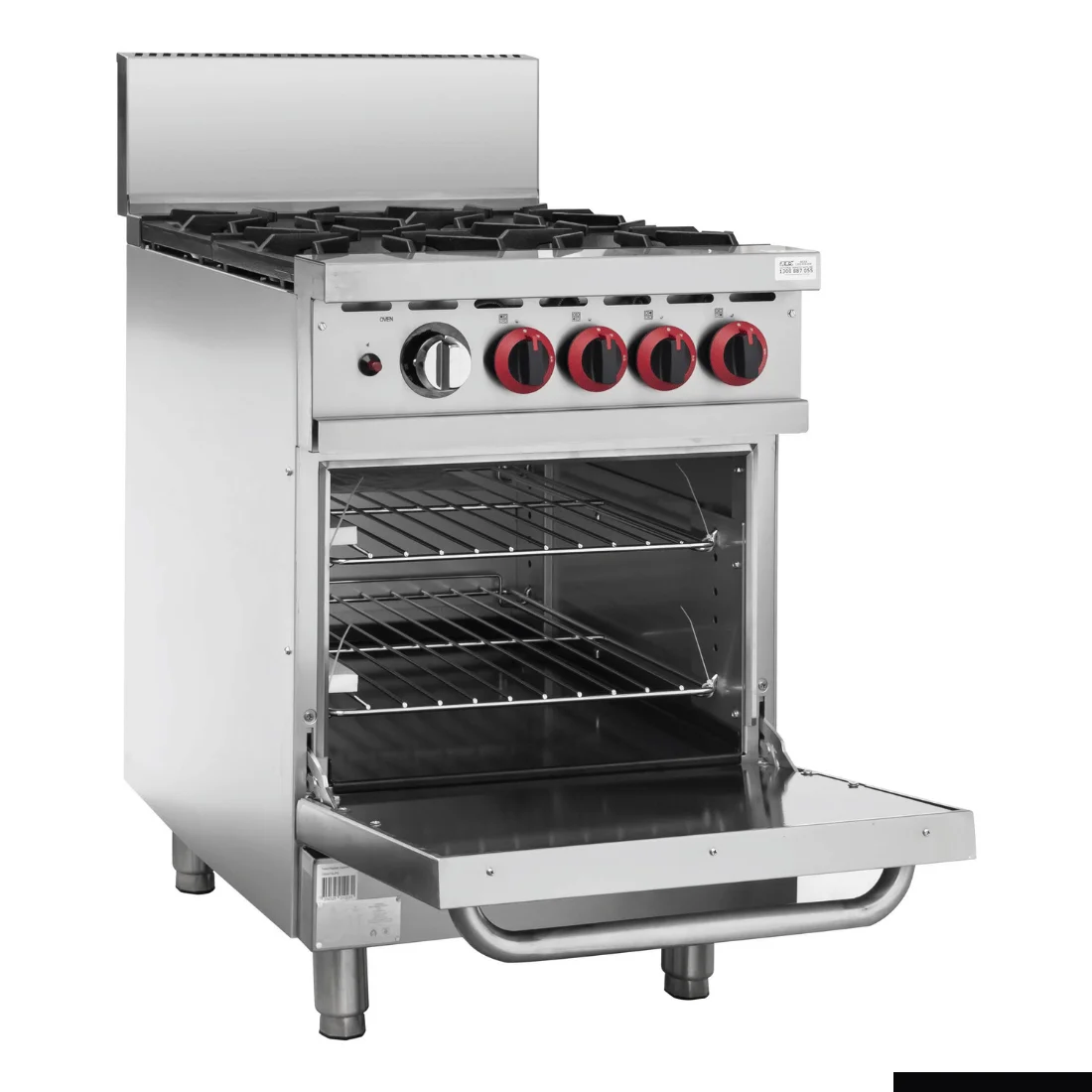

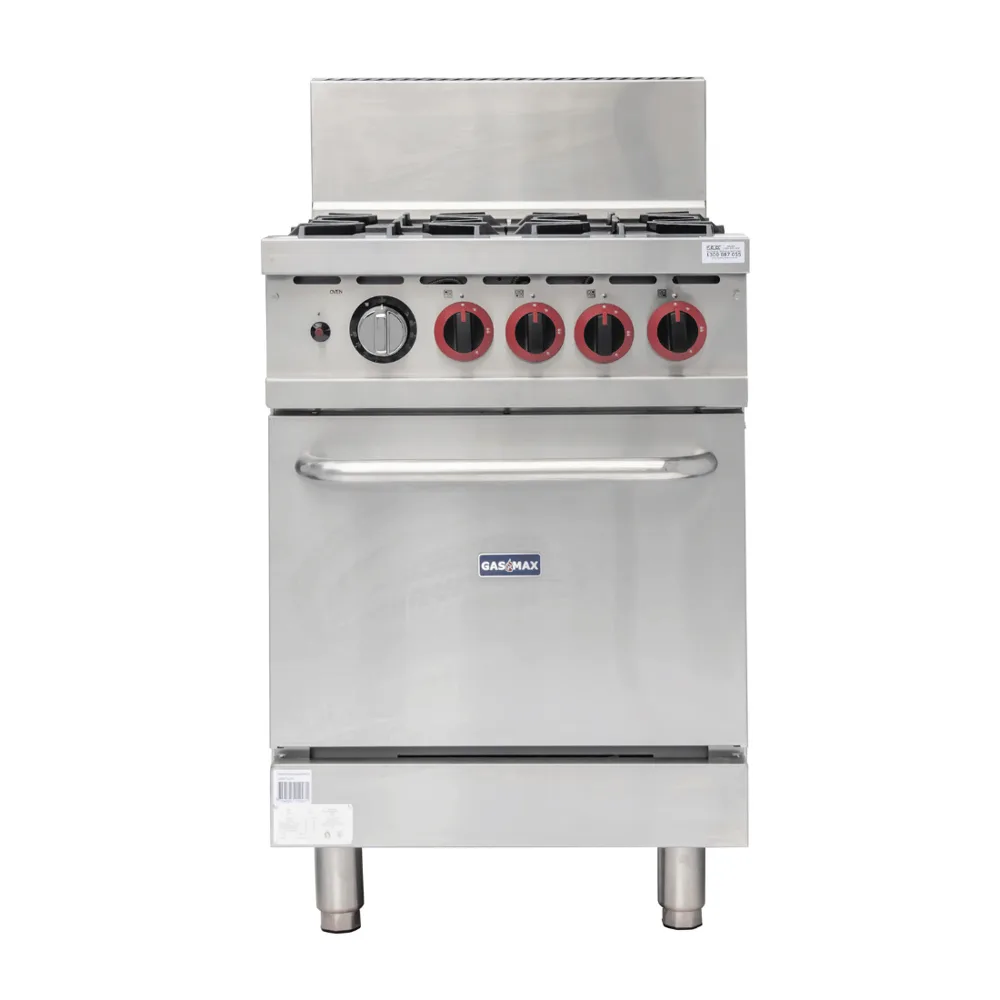

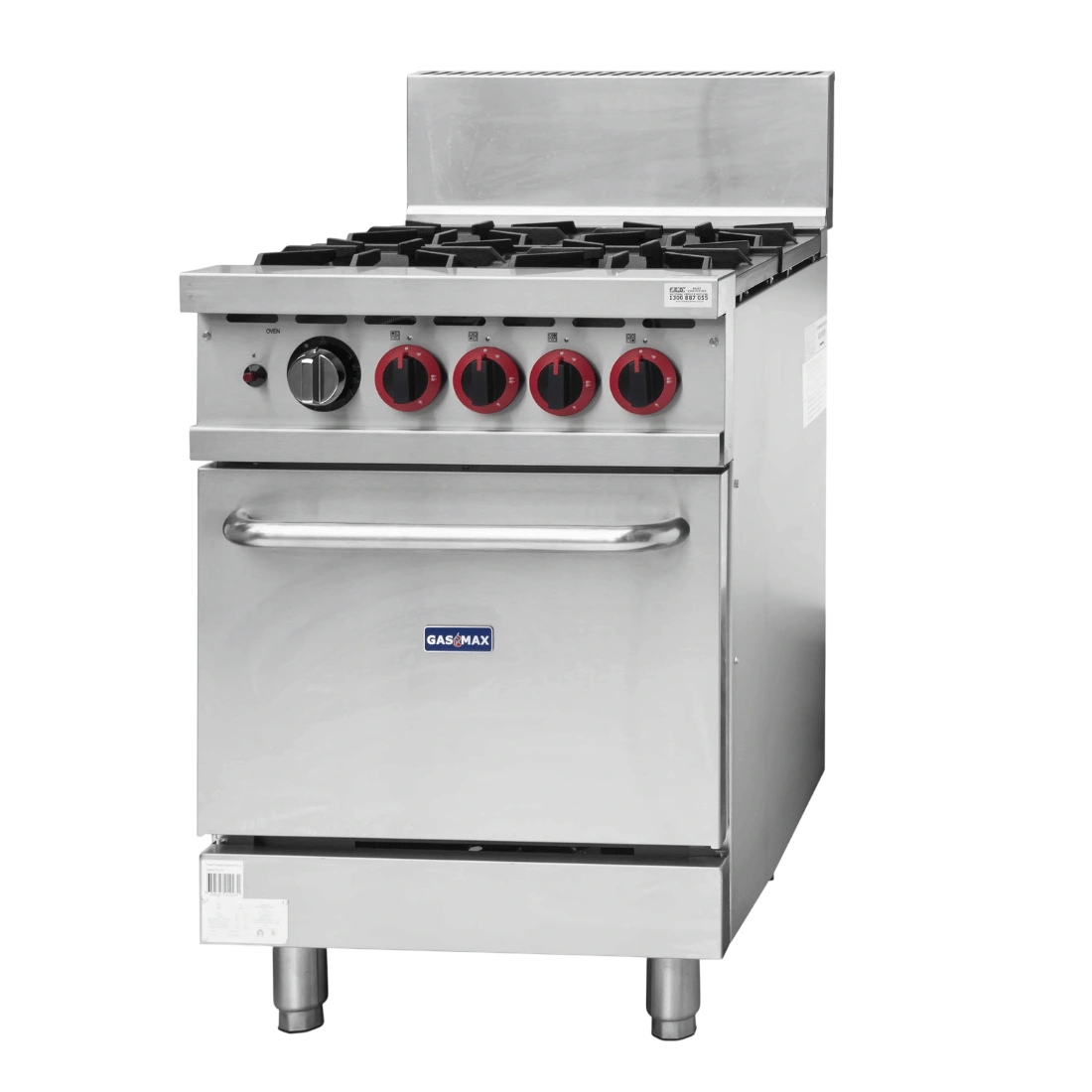

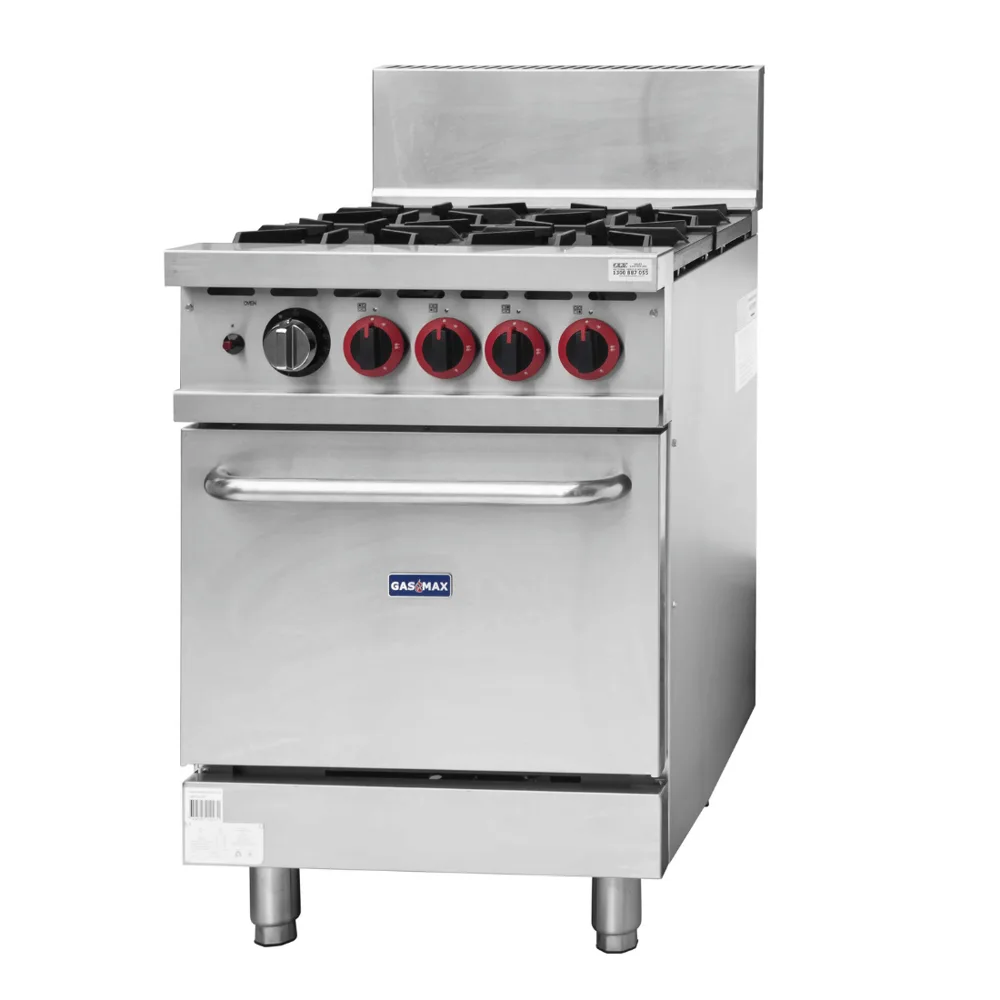

Gasmax GBS4TS 4-Burner Gas Range with Thermostat Oven – 182MJ/h, Flame Failure Protected
The Gasmax GBS4TS is a robust 4-burner gas cooktop with integrated oven, purpose-built for busy commercial kitchens. With a total output of 182MJ/h, this high-performance unit features cast iron open burners and a thermostat-controlled oven ranging from 100°C to 300°C.
Safety is ensured with flame failure valves on all burners and oven components. The rugged stainless steel front and galvanized sides enhance durability in high-volume kitchens. Maintenance is simplified with a pull-out crumb tray and easy-to-clean burner components. Whether you’re grilling, sautéing, or baking, the GBS4TS delivers reliable, powerful performance every time.
Key Features

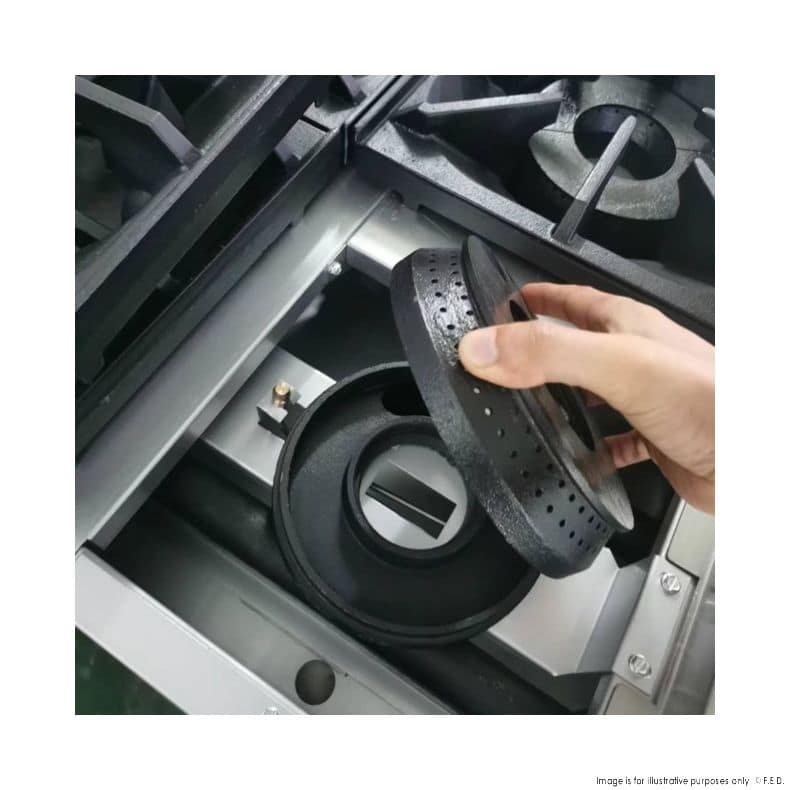

- 4 x 38MJ heavy-duty cast iron burners with flame failure valves
- U-shape oven burner with thermostat control (100°C – 300°C)
- Stainless steel front and oven door, galvanized sides
- Crumb tray with angled front handle for easy removal

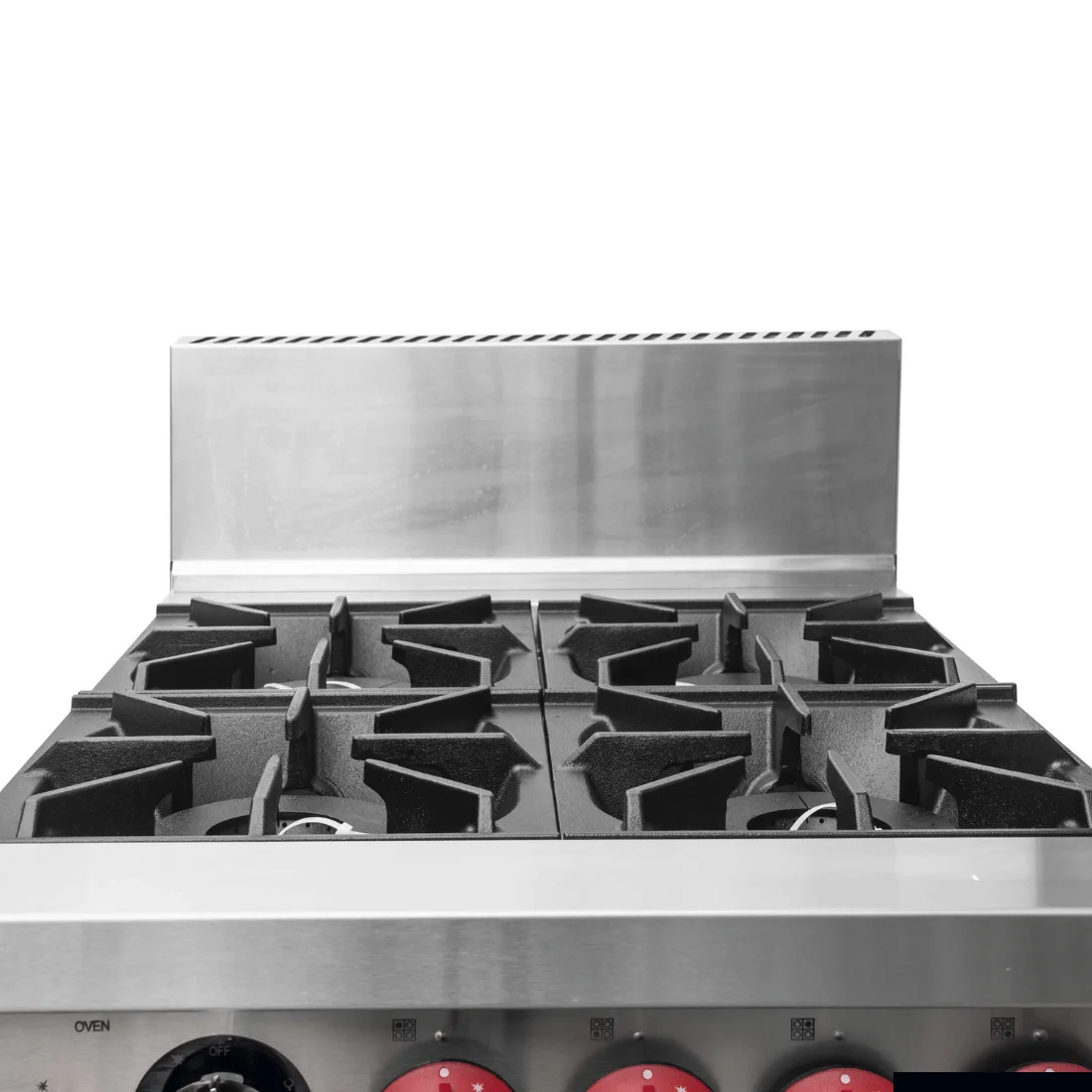

- 12″ x 12″ cast iron grates with anti-clogging pilot covers
- Thermal coupling safety valve for oven protection
- Welded frame structure for maximum stability
- Adjustable heavy-duty legs with kick plate for service access
- Continuous pilot ignition and 3/4″ rear gas connection
Specifications
| Specification | Details |
|---|---|
| Model | GBS4TS |
| Power | 182MJ/h (Total) |
| Burner Output | 4 x 38MJ (Open Burners) |
| Oven Temp Range | 100°C – 300°C |
| Dimensions | 609mm (W) x 855mm (D) x 1128mm (H) |
| Packing Dimensions | 730mm x 1030mm x 890mm |
| Net Weight | 132kg |
| Gas Type | Natural Gas (conversion kits available) |
| Connection | 3/4″ rear gas inlet |
| Warranty | 2 Years Parts & Labour + 2 Years Parts (if registered) |
Applications
- Restaurants and takeaways
- Commercial catering kitchens
- Institutional cooking facilities
- Hotel and high-volume food service environments
Frequently Asked Questions
How should the GBS4TS be installed?
Installation must be performed by a certified gas fitter. Ensure correct rear gas connection, and adequate ventilation is provided.
Is the unit LPG compatible?
Yes. The default is Natural Gas, but conversion kits are available to support LPG operation.
How is the oven controlled?
The oven uses a mechanical thermostat with a 100°C–300°C range and includes a U-shaped burner for even heat distribution.
What routine maintenance is required?
Clean the cast iron grates and crumb tray regularly. Inspect burner ports and flame failure valves monthly. Check pilot lights and oven thermocouples every 3–6 months.
