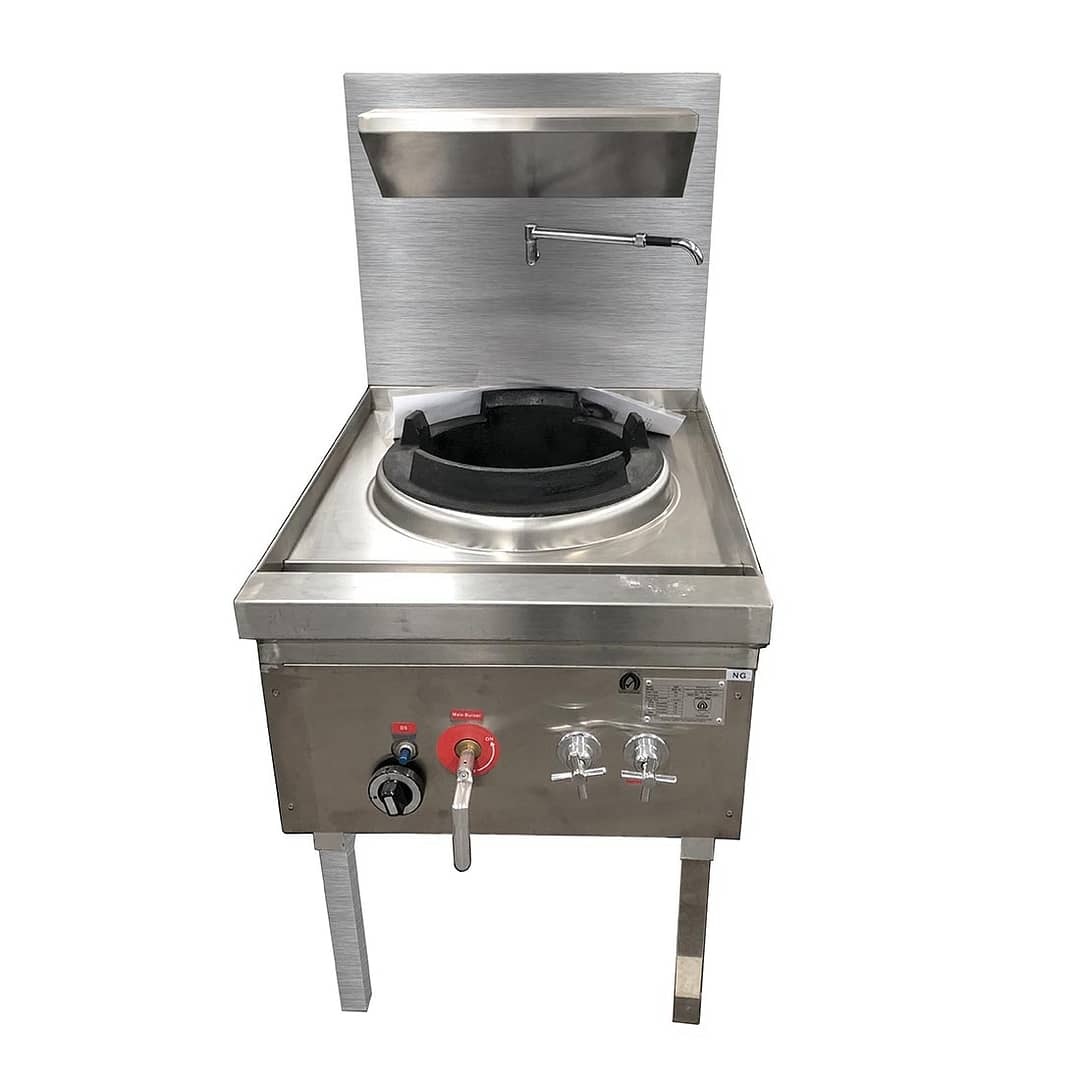

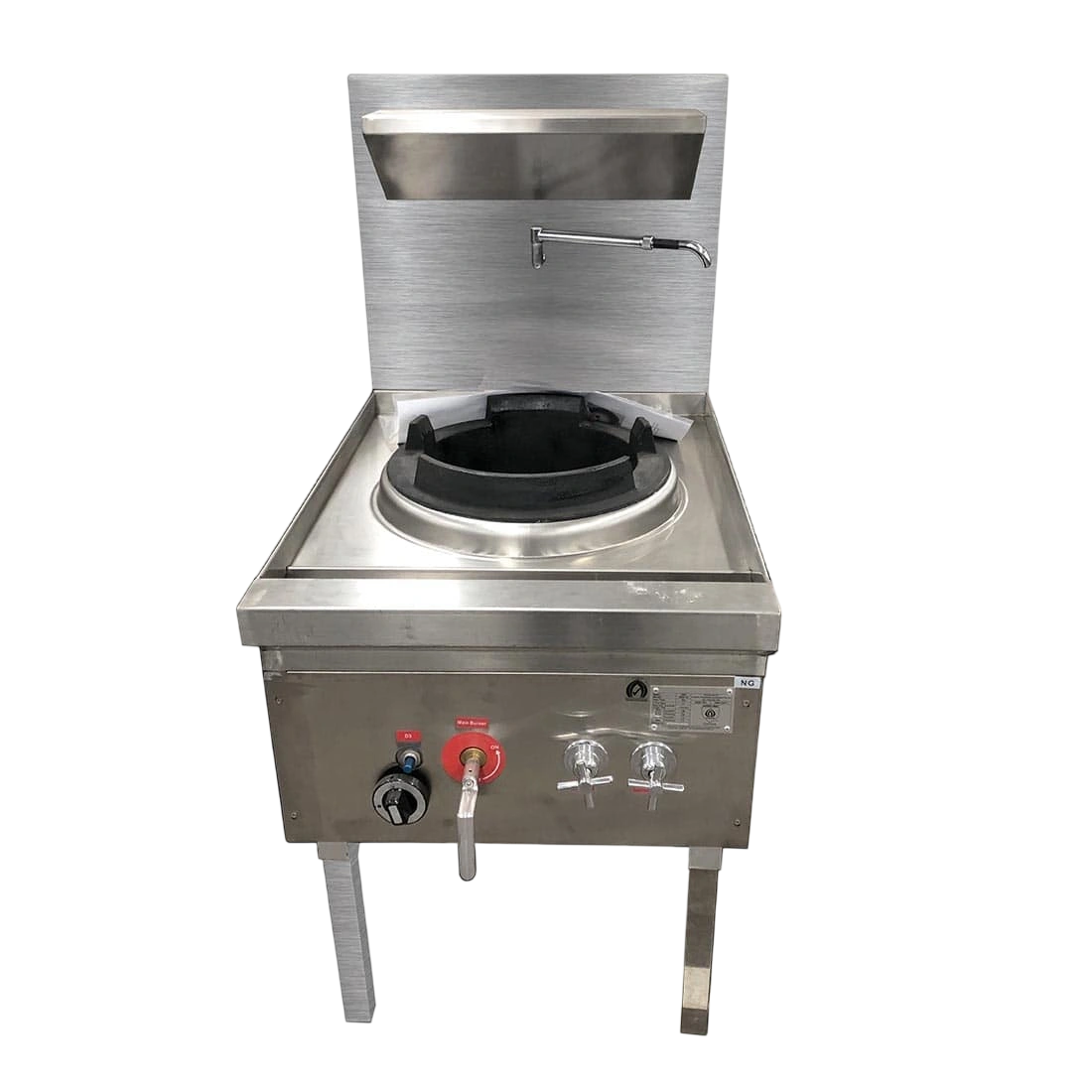

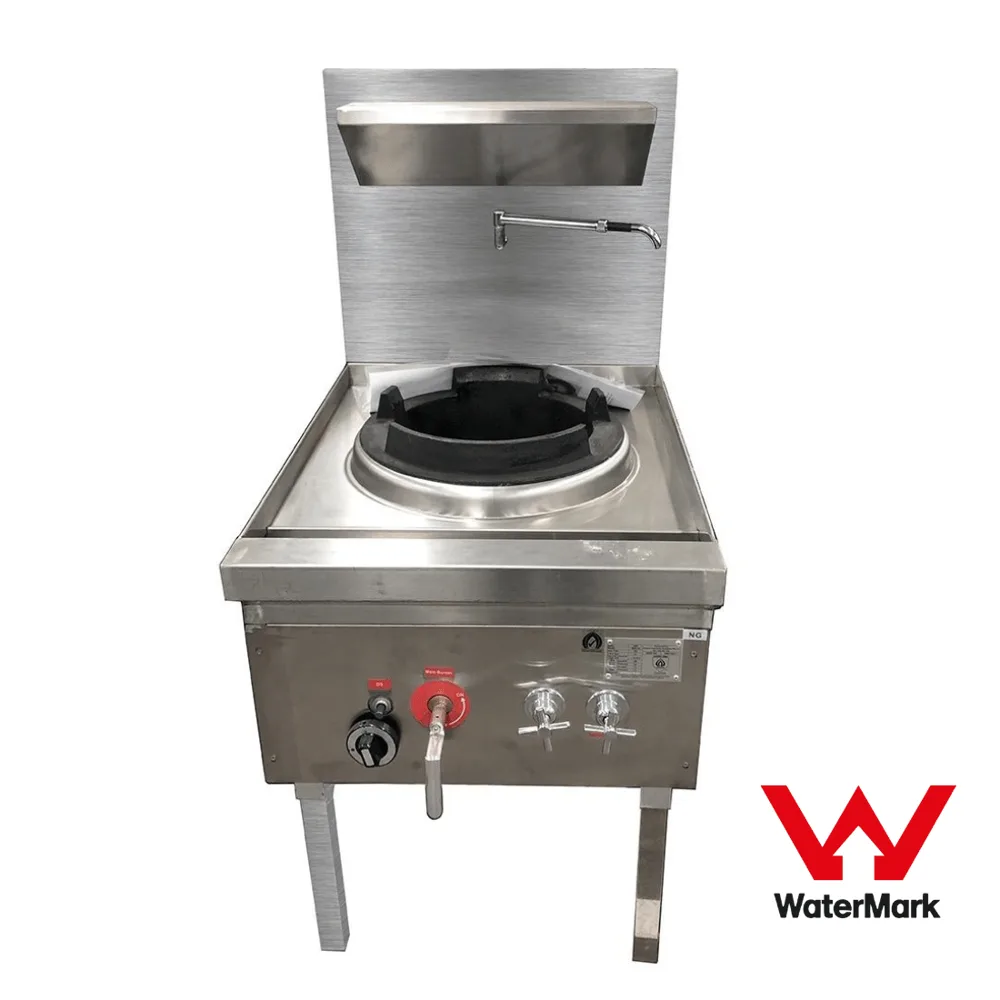

Gasmax WW-1N Waterless Natural Gas Single Wok – Stainless Steel

The Gasmax WW-1N is a stainless steel single natural gas wok station for Asian and fusion kitchens. It combines waterless air-gap cooling, a standard duckbill burner and a knee-operated wok valve, with no side burners.

Consider the WW-1N for a restaurant kitchen that needs one dedicated natural gas wok position. Its knee-operated valve and front gas shut-off suit operation at the cooking station, while the pressed stainless steel top, gutter and filter support daily cleaning.

• Asian and fusion restaurants adding a single natural gas wok position.
• Commercial kitchens replacing a wok station that uses continuously running cooling water.
• Cooking lines that need knee-operated wok control and an accessible front gas shut-off.

• Kitchens using LPG should compare the dedicated Gasmax WW-1L waterless single wok.
• Teams needing two wok positions at once should compare the natural gas Gasmax WW-2N.
• Menus requiring an additional side burner should choose a wok range with side burners.

Start with the fuel supply and the number of wok positions your menu needs. The WW-1N provides one natural gas wok position; compare the WW-1L for LPG or the WW-2N for two natural gas wok positions.

Choose the burner configuration before ordering. A duckbill burner is standard, while a chimney burner is optional. Include the absence of side burners when planning the rest of the cooking line.

Check the complete installation space, extraction and access route. Waterless cooling removes the need for continuously running top-cooling water, while the gutter and filter still require cleaning and drainage planning.

• Air-gap cooling avoids continuously running cooling water.
• Knee-operated wok control and a front master shut-off keep the main controls at the station.
• The pressed stainless steel top, front gutter and filter support clean-down.
• Detachable legs, back and shelf give more options when planning access.

• One wok position limits simultaneous wok cooking compared with a double or triple station.
• No side burners are included.
• The natural gas configuration requires a suitable gas supply and installation by a licensed gas fitter.
• A chimney burner is an optional configuration rather than the standard burner.

• Gasmax WW-2N Waterless Double Wok – Natural Gas Stainless Steel: The Gasmax WW-2N provides two waterless natural gas wok positions instead of the WW-1N’s single position.
• Gasmax WW-1L Waterless LPG Single Wok | Stainless Steel, Duckbill Burner: The Gasmax WW-1L is a stainless steel waterless single wok with a duckbill burner that uses LPG instead of natural gas.

• Natural gas installation. Arrange installation on a regulated natural gas supply by a licensed gas fitter in accordance with AS/NZS 5601.1. Include ventilation, extraction and required clearances in the installation plan.
• Space and access. Allow for a 600 × 890 × 1260 mm body, comprising a 790 mm working height plus a 470 mm back. The legs, back and shelf detach for access; measure the route and allow room for operation and cleaning.
• Cooling and drainage. The air-gap system operates without running cooling water. Plan the gutter’s drainage route and keep its solids filter clean.
• Burner and market configuration. Specify the standard duckbill burner or optional chimney burner before ordering. The LPG model and LPG option kit are excluded from New Zealand availability.
• Daily cleaning. Wipe stainless steel surfaces with a soft cloth and pH-neutral, stainless-safe cleaner, avoiding abrasives. Clear debris from the wok ring, gutter and filter each day.
• Routine servicing. Check burner ports weekly for blockages and arrange gas-connection inspection through a licensed gas fitter. KW Commercial Kitchen can assist with replacement duckbill or chimney burners, wok rings and gas valves.
• Gas-use planning. Allow for gas use to vary with the burner configuration and cooking duty cycle. Match the installation and service plan to the selected burner.

For body dimensions, see Key Specifications above.
