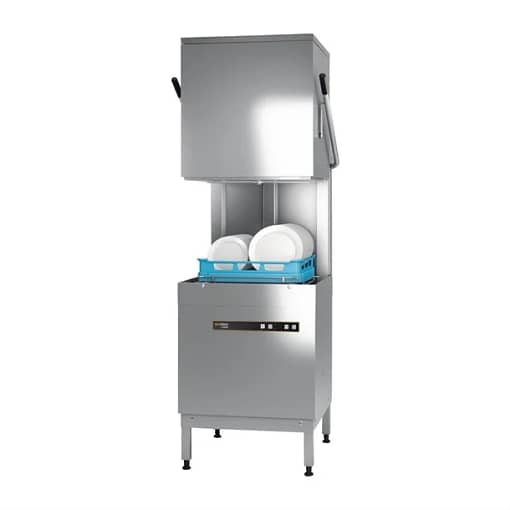

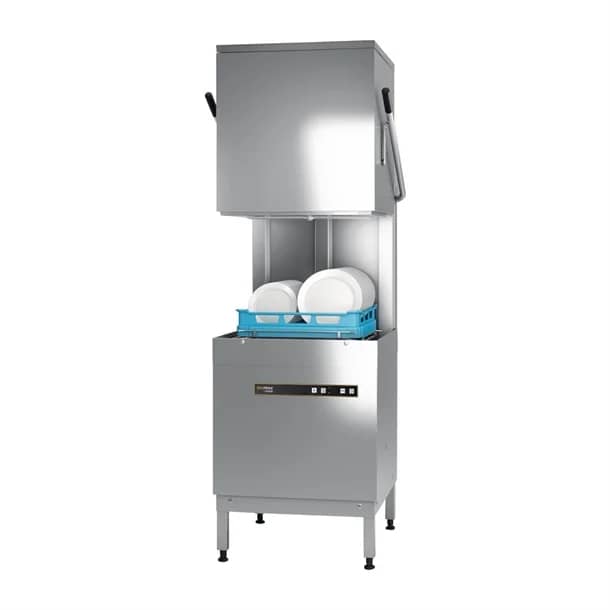

Hobart ECOMAX 604 Hood Type Dish & Glasswasher

The Hobart ECOMAX 604 is a German-engineered hood-type dishwasher built for commercial kitchens needing speed, hygiene, and low water use. Designed to wash up to 840 plates per hour while using only 2.3 litres of rinse water per cycle, this powerful yet efficient machine is ideal for restaurants, hotels, and production kitchens.

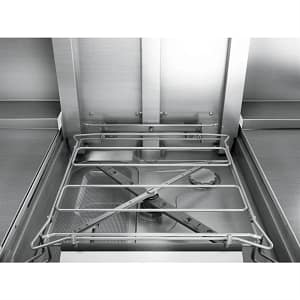

Its fully enclosed four-sided hood retains steam and heat, cutting down on energy loss between cycles. The internal tank features a deep-drawn, seamless design for hygienic operation, complete with a self-cleaning cycle. The wide-angle fan rinse nozzle guarantees even water distribution across every item in the rack — ensuring top-to-bottom consistency in every wash.

Key Features:

• High Capacity: Cleans up to 48 racks/hr — approx. 840 plates or 1,680 glasses/hr
• Low Water Use: Only 2.3L of rinse water per cycle helps reduce operating costs
• Three Wash Cycles: 75, 150, and 180 seconds + self-cleaning mode

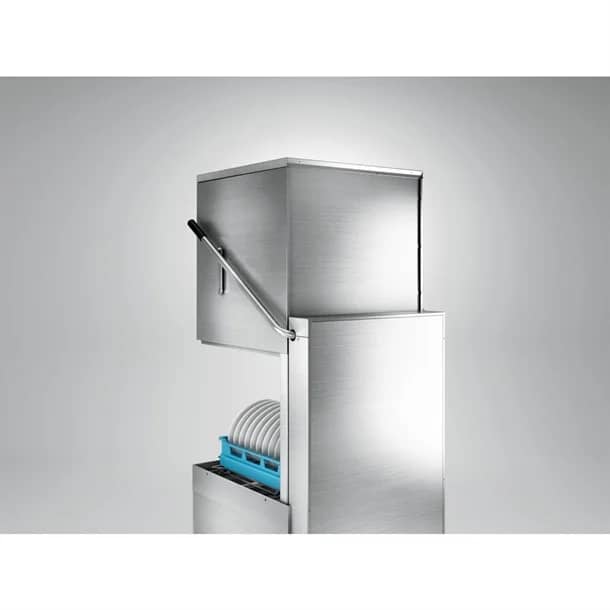

• Insulated 4-Sided Hood: Minimises heat and steam loss during operation
• Wide Angle Fan Nozzle: Maximises coverage for spotless wash and rinse results
• Double Skinned Door: Reduces noise and improves thermal insulation
• Wash Chamber Height: 440mm — accommodates larger plates and containers
• Plug & Play: Includes 15A plug, drain pump, detergent and rinse aid lines, chemical dispensers

Specifications:

• Model: Hobart ECOMAX 604
• Power: 3.2kW | 240V / 50Hz / Single Phase | 15A Plug
• Booster Heater: 2.6kW | Tank Heater: 2.5kW
• Water Usage: 2.3L per rinse cycle:contentReference[oaicite:1]{index=1}
• Tank Capacity: 21L
• Cycle Times: 75 / 150 / 180 seconds
• Wash Temperature: 55–65°C
• Rinse Temperature: Minimum 82°C (Thermostop activated)
• Pump Capacity: 0.4kW
• Maximum Loading Height: 440mm
• Dimensions: 635mm (W) × 742mm (D) × 1,480mm (H)
• Water Pressure: 2–6 bar (200–600kPa)
• Made in: Germany

Why Choose Hobart ECOMAX 604 at KW Commercial Kitchen?

Trusted globally for quality and reliability, Hobart delivers the efficiency and hygiene performance modern kitchens need. With local support and service from KW Commercial Kitchen, your ECOMAX 604 investment comes with expert setup advice and nationwide support — ready to perform straight out of the box.

Frequently Asked Questions

Can this unit wash large dinner plates and trays?

Yes. With a 440mm internal loading height, the ECOMAX 604 accommodates oversized plates and even 1/1 GN pans using optional open tray racks:contentReference[oaicite:2]{index=2}.

Does it require professional installation?

Yes. For compliance and performance reasons, this machine must be installed by a qualified technician. All hoses, drain pump, plug, and dispensers are included for convenience.

Is it reverse osmosis (RO) compatible?

No. The ECOMAX 604 is not suitable for use with RO systems unless specifically adapted:contentReference[oaicite:3]{index=3}.
